8 каналов плоский круглый аккумулятор испытательная панель с кабелем и дополнительный разъем для BST8 серии кнопка сотового аккумулятора

Specification

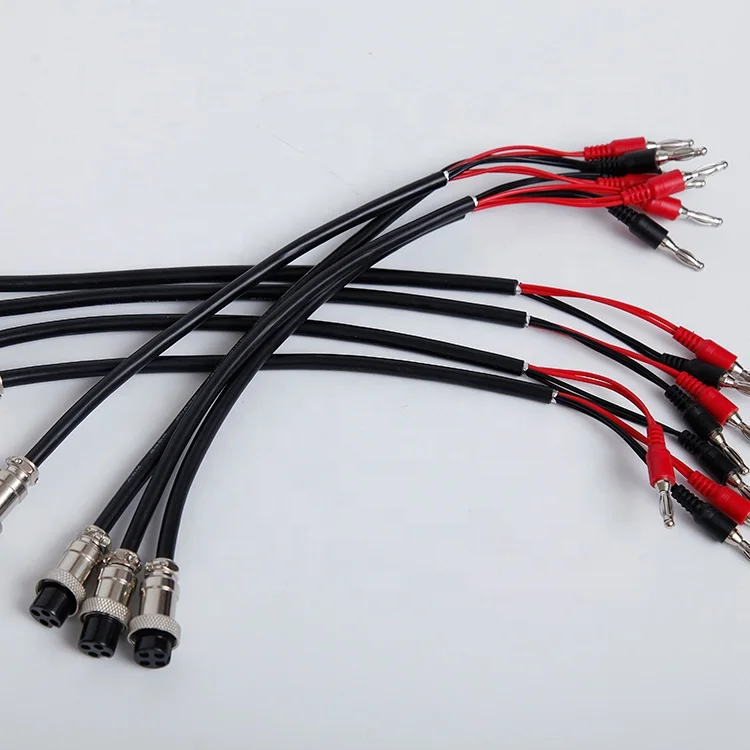

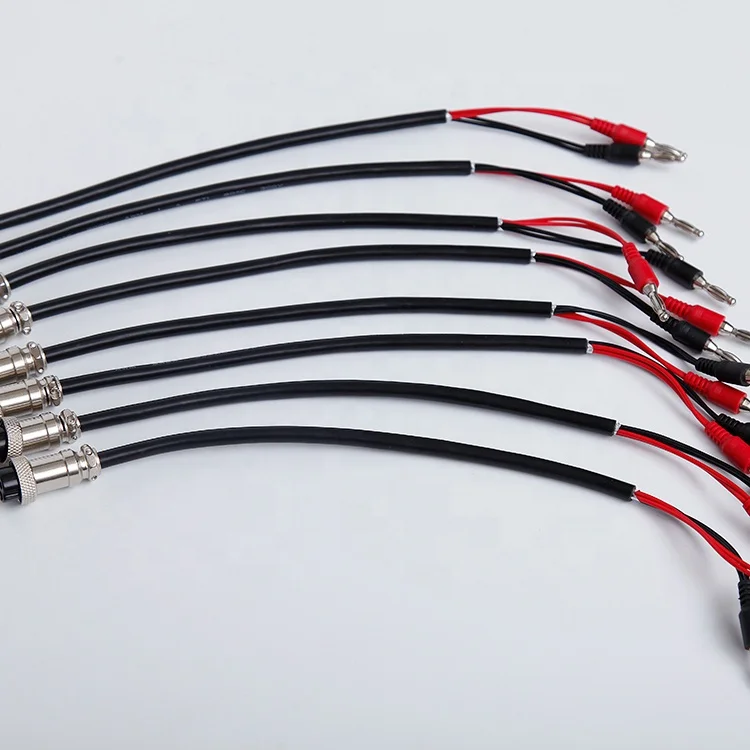

· 8 cables with optional connectors are included in the standard package for immediate useT

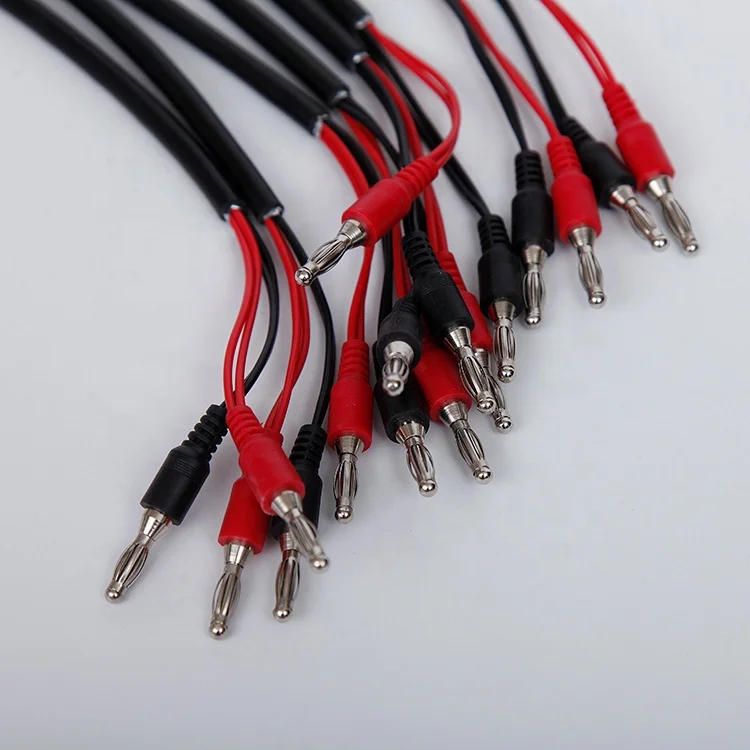

o The connectors to the board are the banana plug for easy insertion and removal. The Banana Plug of the cable are 4mm banana plug, Max wire diam.4.2 mm

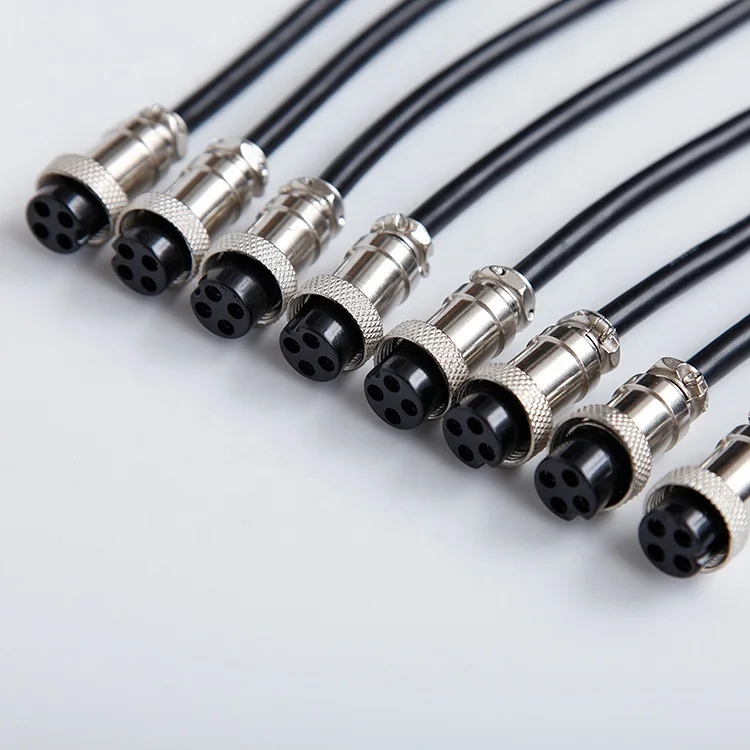

o Another end or of connector testing system are optional connectors

§ 4 alligator clamps (Two small for voltage and two big for current) compatible with other vendor's testing system

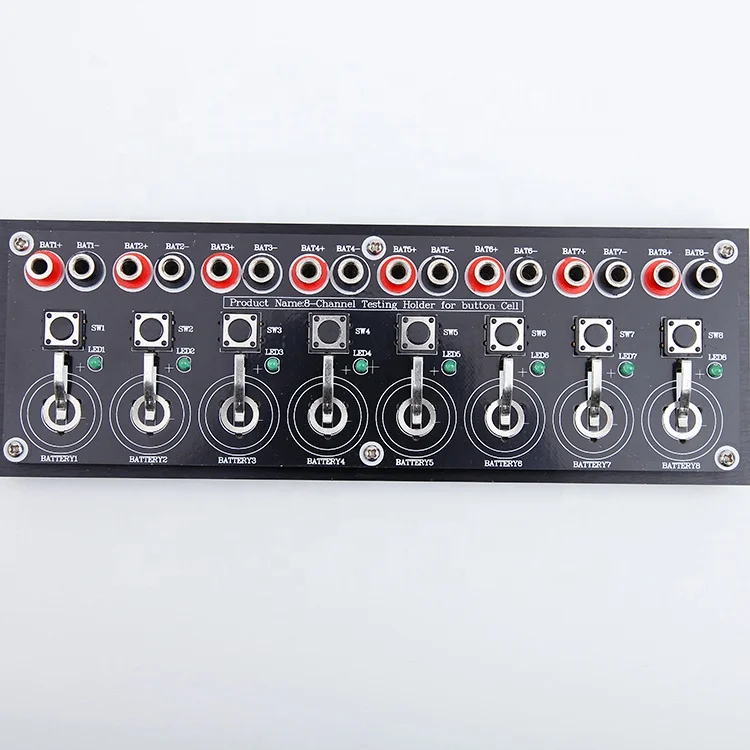

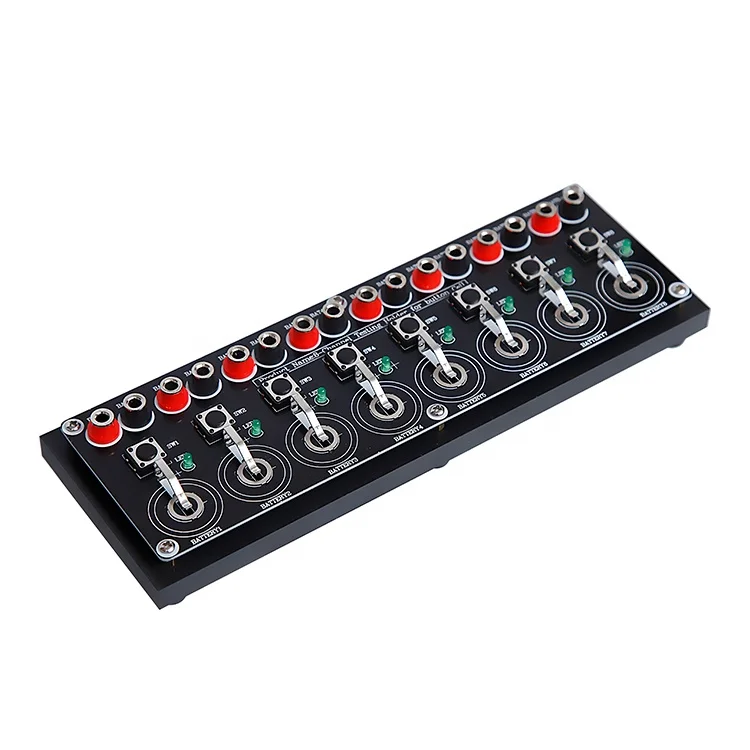

· Built-in battery polarity check light will be on when right place the coin cell and press down the check button

· Can test coin cell  with diam. up to 25mm and compatible with most of the popular coin cell size, like CR2016, CR2032, CR2325, and CR2450

· 8 channels work independently

· Easy battery insertion and removal

· Holder Material: Polypropylene

· Dimension: 230 mm L x 80 mm W x 32 mm H
