Epoxy height measuring rod,Portable height measuring rod,light weight height measuring rod

DATA SHEET

SIZE( M )	Section	Total length (M)	Min length(M)	Weight (kg)
6	5	6	1.32	1.3
8	6	8	1.50	1.7
10	8	10	1.50	2.0
12	9	12	1.55	2.5
15	11	15	1.65	3.5
18	13	18	1.7	4.0



Introduction:

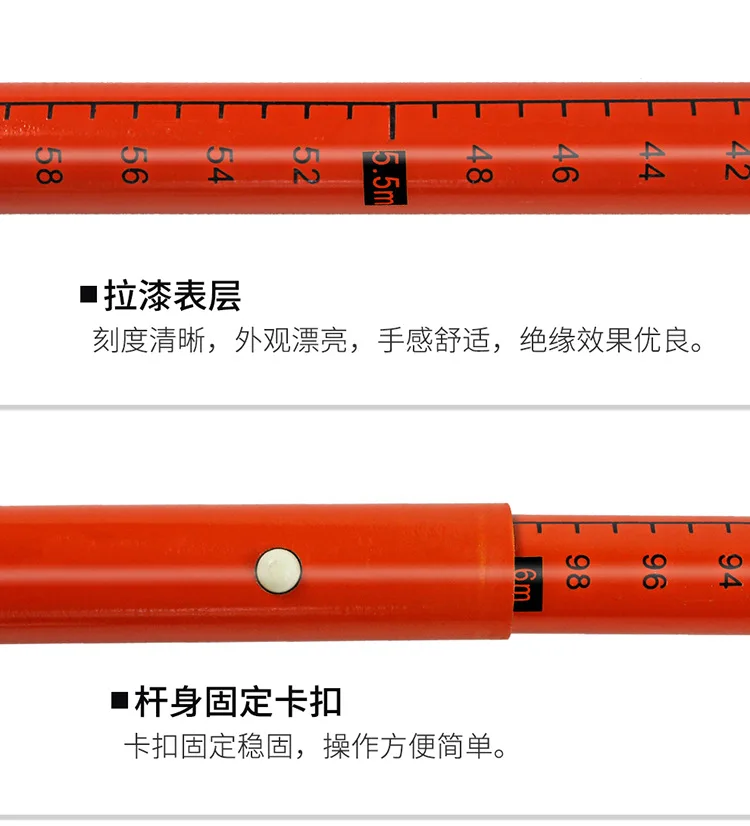

The high pressure height measuring rod is made of epoxy resin, light weight, strong strength, good pressure resistance, light structure, simple operation, clear surface scale, with excellent mechanical and electrical properties, suitable for all kinds of high pressure conditions of height measuring site use, error is not more than 5cm.



How to use?



1. Using the height bar, first open the bar cap, tighten the hook to the screw on the top, and then gradually pull it out until the semicircle mark between the two sections confirms that the button pops out.



2. After using the height measuring rod, hold the bottom, press the button with your thumb, and gradually pull back the upper section until it is completely pulled back.



1. Screw the hook down and install the electroscope head to make the electroscope lever.



Matters needing attention



1. The height measuring rod must be used vertically. If the rod is pulled out, erected or put down, excessive force or improper use may cause the fracture of the rod.



2. Loosen the joint between the two sections. Don't use too much force, or the product will be damaged or your fingers will be hurt.



1. Keep the rod body dry when working with electricity
