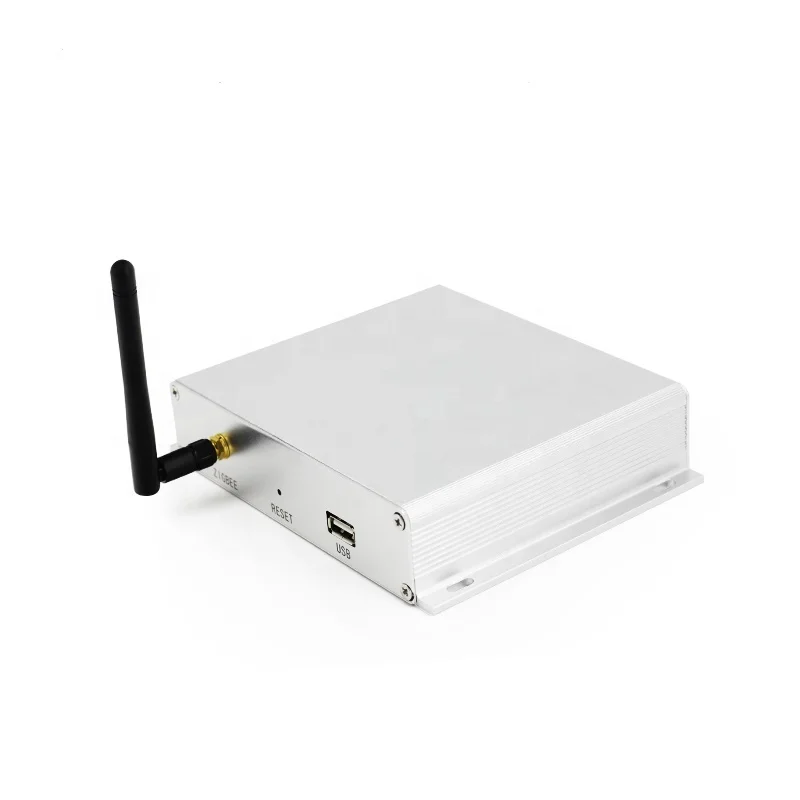

High Quality 485   232 3G 4G WIFI 20-30VDC KL-1100 Wireless Gateway

We mentioned



The kl-h1100 ZigBee wireless data acquisition gateway is independently developed and based on embedded Linux

Technology for Internet of things data transmission devices. Through wired Ethernet, wireless 4G/5G network, none

Line WIFI network, traditional RS232/RS485 serial communication and other transmission methods, will be wireless

ZigBee sensor network data transmission to the Internet PC terminal, the realization of remote monitoring and management of local equipment

The function of backup information.



Special point



Connected ZigBee wireless sensor network industry embedded Linux system, ARMA8(/ARM9) high-performance processor architecture 64M/128M DDR2 memory, 128M SLC nandflash mass storage Ethernet, mobile/unicom/telecom 4G/5G wireless network, wireless WIFI network, RS232/

RS485 serial port four communication methods

The built-in full netcom module of 3NET supports modbus-tcp, modbus-rtu and passthrough communication formats to work in the modbus-tcp server mode. Support multi-client concurrent communication working in modbus-tcp client mode, Concurrent communication with multiple servers built-in small Web management system system upgrade, Press one button to backup, restore and restore. Press 5s for a long time to set up 4 status indicators. Clearly indicate that the system working status data can be transmitted to kunlun cloud platform (iot.klha.net) for unified management and centralized storage of intelligent watchdog



technical parameters
power supply mode	DC 20V~30V
The average power consumption	1.7W
communication mode	Ethernet
	4G/5G, WIFI wireless network
	RS232/RS485serial communications
operating mode	server
	client
protocol type	Modbus-TCP
	Modbus-RTU
	Proprietary protocol (band storage gateway only)
communication interface	10M/100MEthernet port
	USB2.0 port number

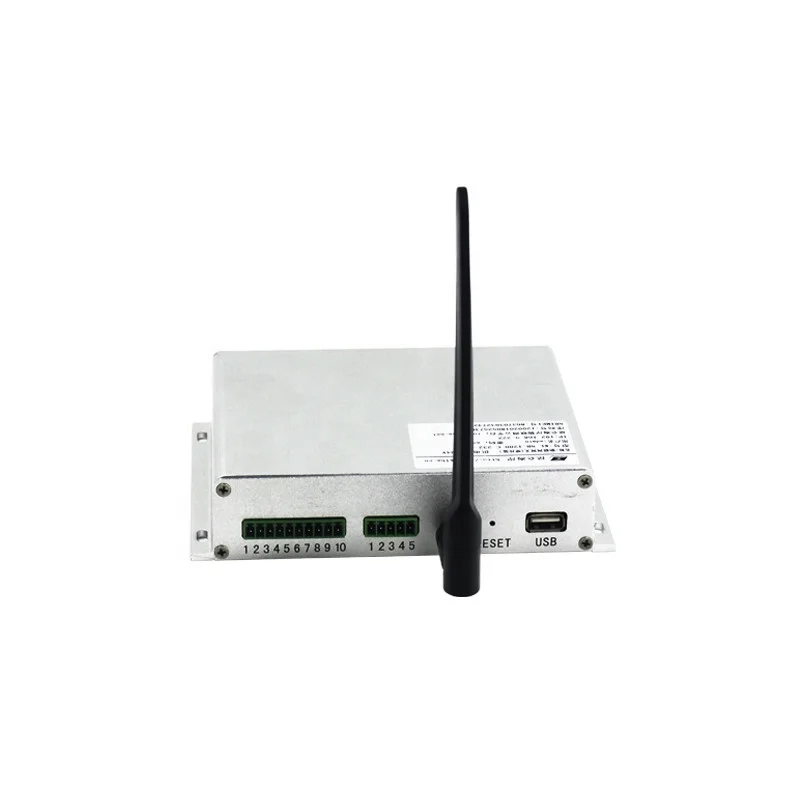

	3.5mmGreen terminal serial port (wall - mounted gateway)
ZigBee	frequency point
	electric networkID
	communication distance
operating ambient temperature	(-20℃~60℃)
Working environment humidity	5%RH~95%RH
boundary dimension	175mm×123mm×33mm( standard edition)

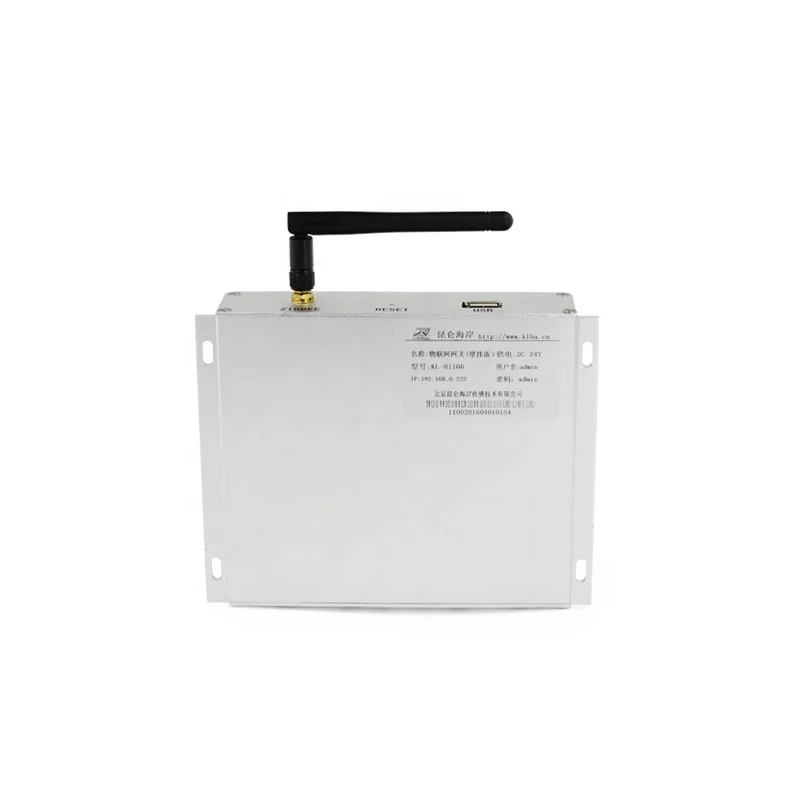

	155mm×120mm×34mm(Hanging version)
product weight	about227g( standard edition) about370g(Hanging version)







specifications and models
KL-H1100			No serial communication
	(-232)		With 2-way RS232 communication
	(-485)		With 2-way RS485 communication
	(-232-485)		With 1 channel RS232 communication and 1 channel RS485 communication
		(-3NET)	Built-in full netcom module
