AC DC 2000W 24V 80A 36V 60A 48V 40A 60V 30A 72V 110V 160V импульсный источник питания
- Категория: Источники питания >>>
- Поставщик: Shenzhen,Totiwo,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 133.28 $* | 136.40 $* |
| Jul-18-2025 | 108.44 $* | 110.91 $* |
| Jun-18-2025 | 131.75 $* | 134.67 $* |
| May-18-2025 | 130.48 $* | 133.87 $* |
| Apr-18-2025 | 104.3 $* | 106.50 $* |
| Mar-18-2025 | 128.83 $* | 131.91 $* |
| Feb-18-2025 | 127.13 $* | 130.57 $* |
| Jan-18-2025 | 126.82 $* | 129.50 $* |
Характеристики
AC DC 2000W 24V 80A 36V 60A 48V 40A 60V 30A 72V 110V 160V Switching SMPS Power Supply
Model No. | TTW-2000-24 | TTW-2000-36 | TTW-2000-48 | TTW-2000-60 | |
Output | DC Voltage | 24V | 36V | 48V | 60V |
Current Range | 0~83.3A | 0~55.6A | 0~41.7A | 0~33.3A | |
Power | 2000W | ||||
Ripple And Noise | Max 150mVp-p | ||||
Voltage Tolerance | ±3% | ||||
Setup, Rise Time | 1500ms, 30ms / 230VAC | ||||
Input | Voltage Range | 90~260VAC | |||
Frequency Range | 50~60Hz | ||||
Efficiency | >0.9 | ||||
Current | 7A/110VAC, 4A/220VAC | ||||
Surge Current | 40A/110VAC, 60A/220VAC | ||||
Leakage Current | Max 3.5mA/240VAC | ||||
Protection | Overload | Above 110%-150% of rated power | |||
Shut-down output voltage, auto recovery after fault condition is removed | |||||
Overvoltage | Above Max. Voltage (105% of rated voltage) | ||||
Shut-down output voltage, auto recovery after fault condition is removed | |||||
Over temperature | 90℃ ± 5℃(5~12V) 80℃ ± 5℃(24V) | ||||
Shut-down output voltage, auto recovery after fault condition is removed | |||||
Environment | Working Temp. & humidity | "-25°C~+45°C, 20%~90%RH | |||
Storage Temp. & humidity | "-40°C~+65°C, 10%~95%RH | ||||
Safety | Withstand Voltage | I/P-O/P: 1.5KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min; | |||
Safety | GB4943 ;IEC60950-1; EN60950-1 | ||||
EMC | EN55032:2015/AC:2016; EN61000-3-2:2014; EN61000-3-3:2013; EN55024:2010+A1:2015 | ||||
LVD | EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 | ||||

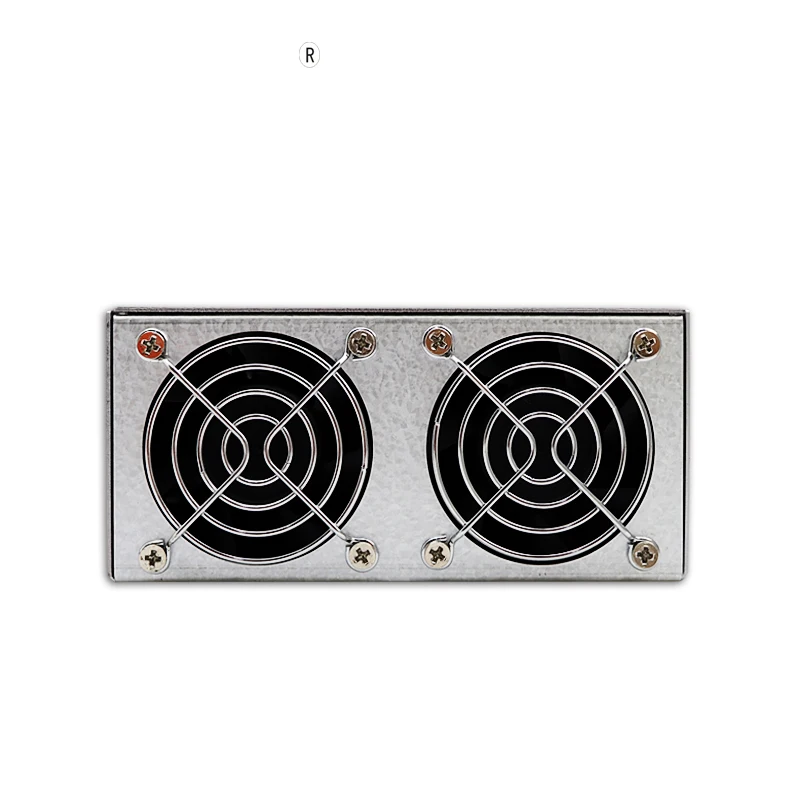

Other | Cooling | forced air | |||
Dimensions (L*W*H) | 260*125*65mm | ||||
Weight | 3500g | ||||
Note | 1. The above mentioned data were measured at 230VAC input and 25°C. | ||||
Q1: What's your main products?
A: we focus on constant voltage ac-dc power supply from 10w to 2000w with different output voltage(5v, 12v, 24v, 36v, 48v, 60v, 90v, 110v etc), IP rate (IP20, IP43, IP67) and size (standard, thin, slim).
Q2: Are you a factory or trade company?
A : We are factory, professional in switching power supply since 2010.
Q3: How long will it take to ship?
A: We have a big warehouse, 90% of goods will be shipped within 3 days.
Q4: Do you accept custom service?
A: We accept custom-made label, colorful box and product.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products with free replacement.
PLEASE NOTE INPUT AND OUTPUT VOLTAGE WHEN YOU PLACE AN ORDER!
