Нагревательная трубка картридж Электрический
- Категория: Industrial Heater >>>
- Поставщик: Sinton,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5.1 $* | 5.41 $* |
| Aug-18-2025 | 5.3 $* | 5.44 $* |
| Jul-18-2025 | 4.0 $* | 4.21 $* |
| Jun-18-2025 | 5.51 $* | 5.43 $* |
| May-18-2025 | 4.59 $* | 4.74 $* |
| Apr-18-2025 | 5.39 $* | 5.44 $* |
| Mar-18-2025 | 5.4 $* | 5.85 $* |
| Feb-18-2025 | 4.47 $* | 4.66 $* |
| Jan-18-2025 | 4.63 $* | 4.39 $* |
Характеристики
Introduction to products

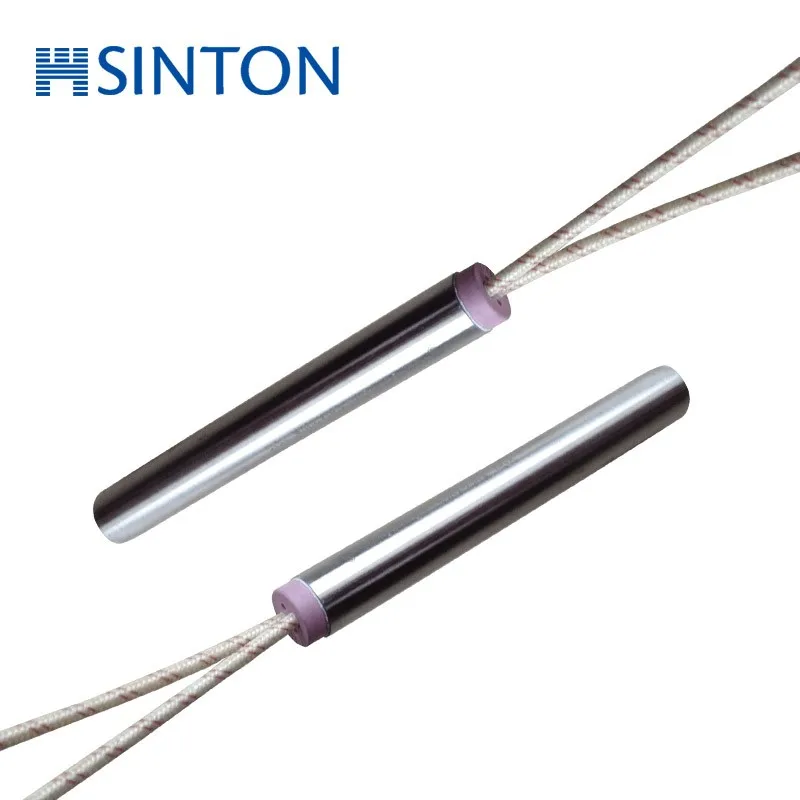

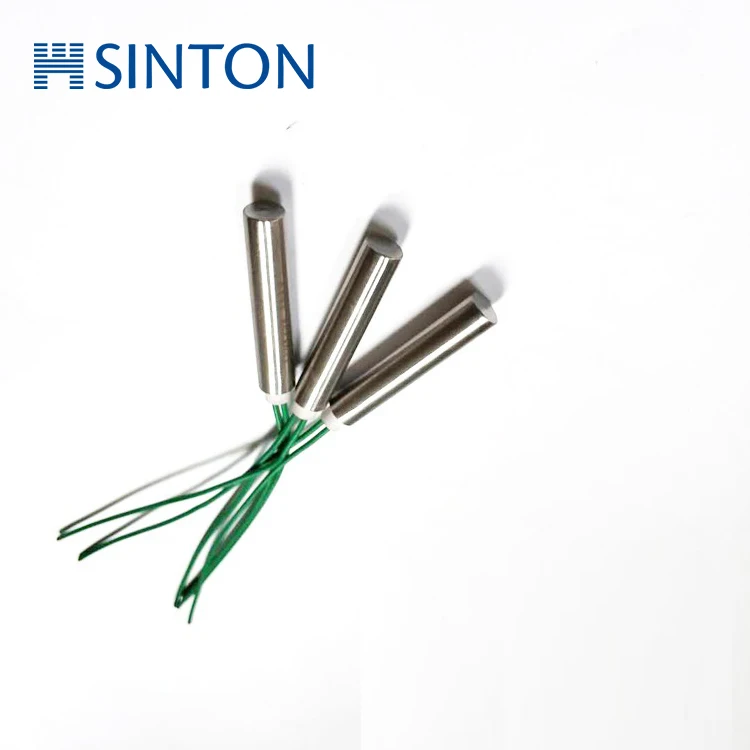

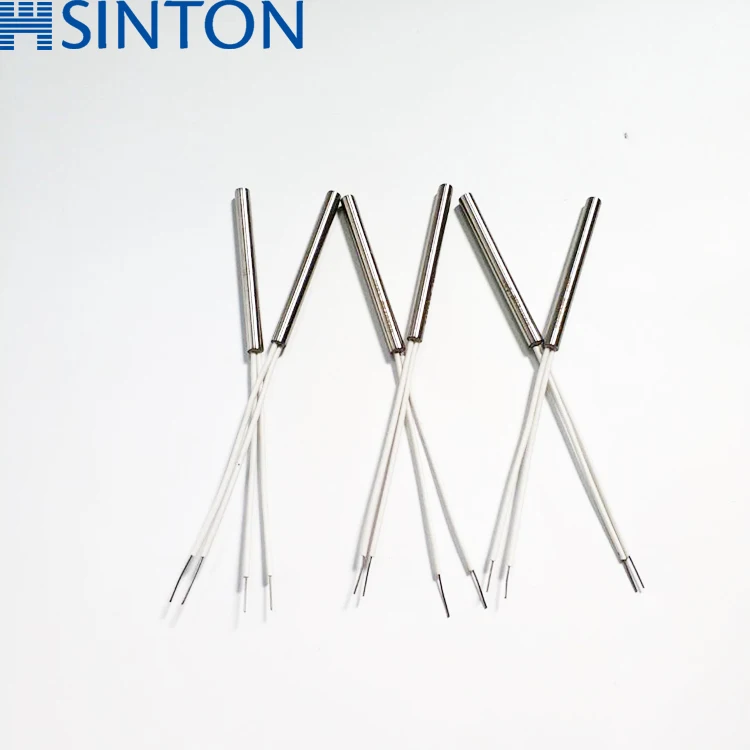

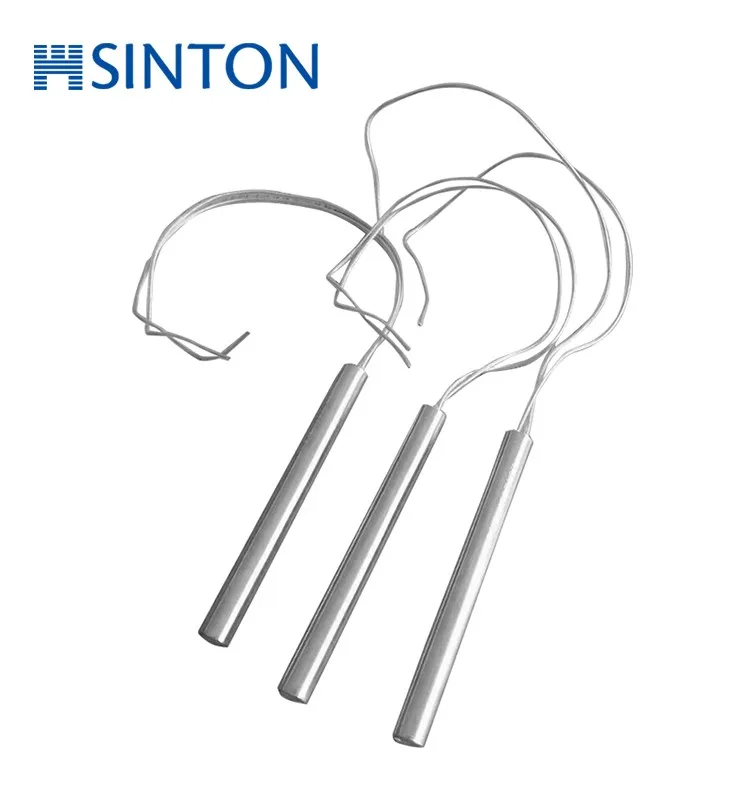

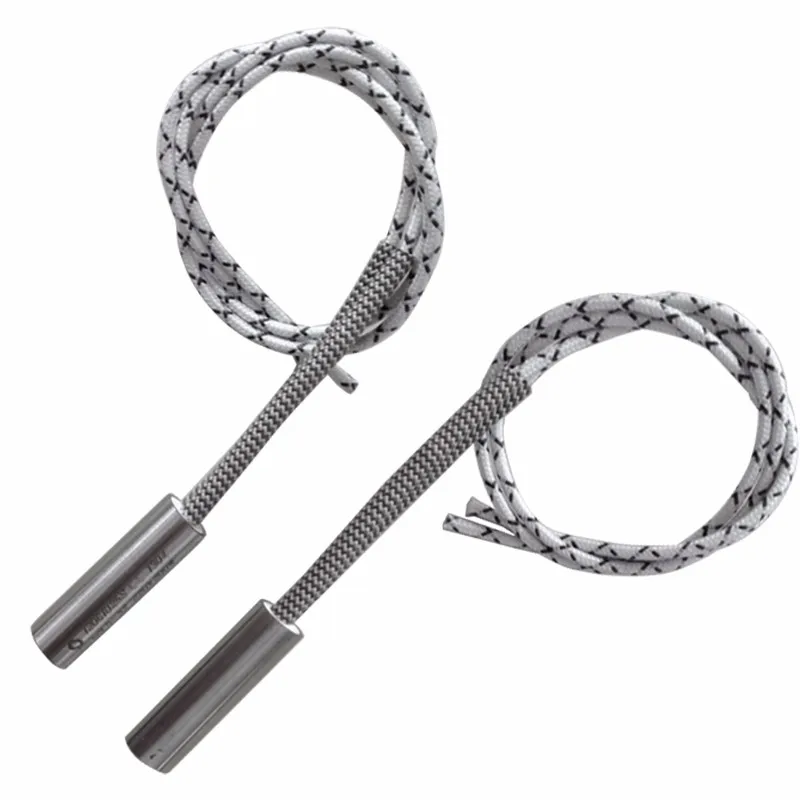

Cartridge heaters are cylindrical electrical heating elements. Mostly used for heating up solids such as injection presses heating plates or various tools, they can also be used for heating up water of gases under certain conditions. Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc they are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries
Product information
Product name | heating tube cartridge electric heater |
Pipe diameter | stainless steel 304/316/321 |
Resistance error | ±2%(Min) |
Useable medium | Gas/water/oil/mold/ high temperature burning |
Heat efficiency | 99.99%(close unlimitedly to 100%) |
Product details
Technical detail
1. Tube diameter: Ф3mm-Ф30mm
2. Tube Material:SS304;SS316,SS321,NICOLOY800 etc.
3. Insulation Material:High-purity Mgo
4. Reisistance wire element:Ni-Cr or Fec
5. Lead Connection Option: Crimped or Swaged leads
6. Lead and type of connection leads, 10" Fiberglass Standard(Wire options:Teflon,silicone higy berature frberglass) Feature
2. Tube Material:SS304;SS316,SS321,NICOLOY800 etc.
3. Insulation Material:High-purity Mgo
4. Reisistance wire element:Ni-Cr or Fec
5. Lead Connection Option: Crimped or Swaged leads
6. Lead and type of connection leads, 10" Fiberglass Standard(Wire options:Teflon,silicone higy berature frberglass) Feature
Product features
Cartridge can be devideded
1. High power density (heat area sufuce power 10-25w/cm2) Working temperatures≤450 degrees
2. Middle, low power density (heat area sufuce power 5-11/cm2)
1. High power density (heat area sufuce power 10-25w/cm2) Working temperatures≤450 degrees
2. Middle, low power density (heat area sufuce power 5-11/cm2)
working temperatures ≤ 300 degrees
Votage:12-250V (or as requirment)
High Density Construction
High-quality stainless steel construction provides long-lasting protection even in the most rugged industrial environments
Protected with a stainless steel sheath, their watt density can reach 50 W/cm2 and their operating temperature can go up to 800°℃
Votage:12-250V (or as requirment)
High Density Construction
High-quality stainless steel construction provides long-lasting protection even in the most rugged industrial environments
Protected with a stainless steel sheath, their watt density can reach 50 W/cm2 and their operating temperature can go up to 800°℃
About the company
Yancheng Xingtai Electric Equipment co.,Ltd. was established in 2003 located in Yancheng,Jiangsu,China. We specialize in electric heaters, ncluding heating resistance alloy wire,cartridge heater,air heater,immersion water heater,flange immersion heater,explosion-protection & corrosion-proof heater and other industrial heating elements.
Yancheng Xingtai is one of the earliest production of electric components manufacturers, by virtue of electric technology has a wealth of production experience and professional technical force, to adapt to the market economy competition and technology requirements, we introduce the international advanced level of tubular electric heating elements and equipment, advancec electric technology into actual industrial equipment, for customers to create maximum value.The scientific management method, a great quality and perfect sates service, make the at home and abroad enjoy a good reputation Since the inception of the company, product sales increasing by more thar 50% annually, and domestic products are exported to Europe, Amefica, Southeast Asia, the Middle East, Africa and other international markets "Gustomer in my heart, quality in my hands", Xingtai has always been the product quality as enterprise life, therefore we always have efforts, ano ultimately create the perfect xingtai brand.
Yancheng Xingtai is one of the earliest production of electric components manufacturers, by virtue of electric technology has a wealth of production experience and professional technical force, to adapt to the market economy competition and technology requirements, we introduce the international advanced level of tubular electric heating elements and equipment, advancec electric technology into actual industrial equipment, for customers to create maximum value.The scientific management method, a great quality and perfect sates service, make the at home and abroad enjoy a good reputation Since the inception of the company, product sales increasing by more thar 50% annually, and domestic products are exported to Europe, Amefica, Southeast Asia, the Middle East, Africa and other international markets "Gustomer in my heart, quality in my hands", Xingtai has always been the product quality as enterprise life, therefore we always have efforts, ano ultimately create the perfect xingtai brand.
Certificate
