Характеристики

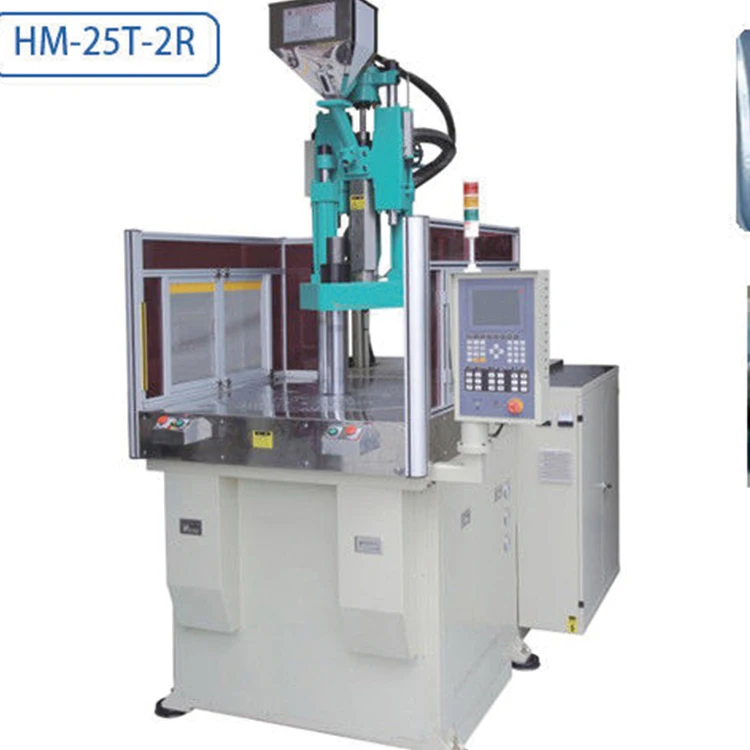

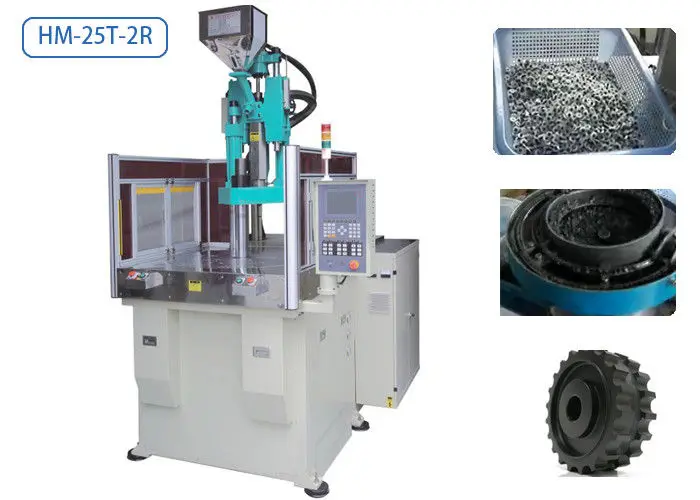

Rotary Injection Molding Machine Price / Vertical Plastic Injection Machine For Waterproof Gear HM-25-2R
Product Description
Waterproof Gear 2 Stations Automatic Injection Moulding Machine 4 Cavities 25T
Choose HOMMAR brand plastic vertical injection moulding machine,means choose a one-stop provider. From material to finished product,we can find the total solutions at Hommar
1. Give suggest to choose suitable material with good price for making plugs
2. Help customer make mold design and manufacturing plugs mold
3. According to customer sitiuation give machine solution,including whole plugs produce line.
4. Teach customer making plugs
5. Help customer buy product necessary accessories
Applications:

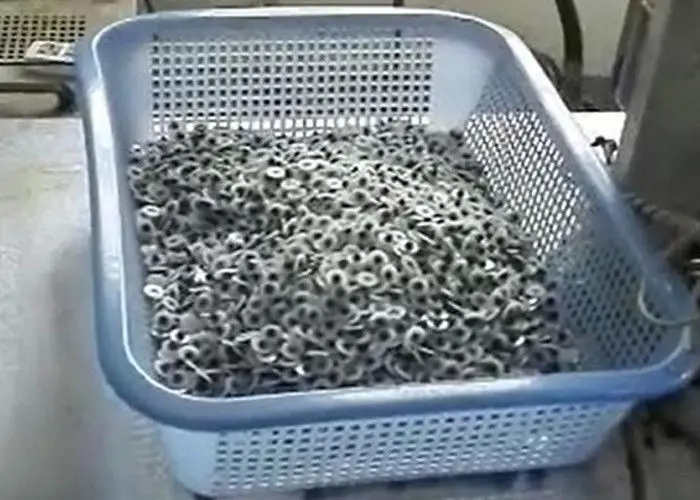

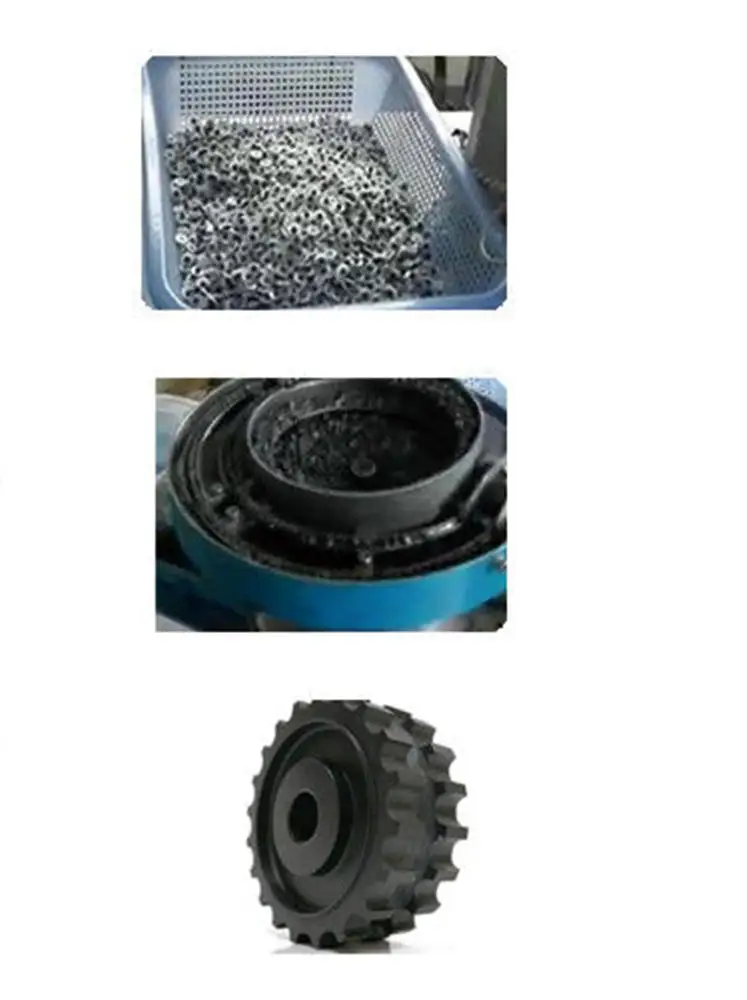

Waterproof Gears
Oilproof Gears
Gears for camera
Gears for underwater devices
Features:
Full Automatical,no need labor
High efficiency,cycle time 6-10s , 10-16 cavities
High speed rotating table injection machine, saving power by 60% and save time by 50%
One stop purchase ,a whole set Solution
On site technicial support available
Parameters:
| Injection Unit | Screw Diameter | mm | 26-30 |
| Screw Stroke | mm | 95 | |
| Shot Volume | cm3 | 45 | |
| Injection Weight | g/oz | 26-32/0.91-1.12 | |
| Plasticizing Capacity | g/s | 6-8.2 | |
| Max. Injection Pressure | kgf/cm2 | 1735-2089 | |
| Injection Rate | cm3/s | 43-64 | |
| Injection Speed | mm/s | 169 | |
| Screw Speed | r.p.m. | 0-150 | |
| Nozzle Force | tf | 4.8 | |
| Nozzle Ejection Stroke | mm | 45 or more | |
| Clamping Unit | Clamping Force | tf | 25 |
| Opening Force | tf |
| |
| Clamping Stroke | mm | 200 | |
| Min. Mold Height | mm | 150 | |
| Max. Distance | mm | 350 | |
| Distance between Columns | mm | -- | |
| Max. Mold Size | mm | 250*250/350*200 | |
| Max.Mold Weight | kg | 290 | |
| Platens Size | mm | 680(diameter) | |
| Ejector Stroke | mm | 75 | |
| Ejector Force | tf | 2.7 | |
| Qty of ejector | pcs | 3 | |
| System Pressure | kgf/cm2 | 140 | |
| Other | Oil Tank Cpacity | L | 160 |
| Motor Power | KW | 3.7 | |
| Heater Power | KW | 3 | |
| Temperature Stage | 2+1 | ||
| Working Table Height | mm | 980 | |
| Dimensions | Machine Size | mm | 2100*1500*3000 |
| Weight | T | 2.0 | |
| Packing Size | mm | 2300*1700*2000 | |
| Packing Weight | T | 2.2 |
Key parts List
| Item | Item Name | Brand | Original of Country |
| 1 | PLC | DIHZHOU | TAIWAN |
| 2 | Screw and barrel | HUAYE | CHINA |
| 3 | Electric motor | Universal | CHINA |
| 4 | Servo Controller | INOVANCE | CHINA |
| 5 | Seal kit | HALLITE | United Kingdom |
| 6 | Solenoid valves | Yuken | Taiwan |
| 7 | Proporional valves | Yuken | Taiwan |
| 8 | Hydraulic motor | White | United States |
| 9 | Linear Scale | Gefran | Italy |
| 10 | Gear pump | Eckerle | Germany |
| 11 | Electrical Connectors | Schneider | France |
| 12 | Tie bar | Genaral | Taiwan |
| 13 | Heater bands | Schneider | France |
Accessory List
| 1 | Injection Machine | x | 1 |
| 2 | Robot | x | 1 |
| 3 | Mold | x | 1 |
| |||
| 1 | Water Chiller | x | 1 |
| 2 | Grinder | x | 1 |
| 3 | Blender | x | 1 |
| 4 | Dryer | x | 1 |
| 5 | Loading machine | x | 1 |
| 6 | Honeycomb Dehumidifiers | x | 1 |
| 7 | Mold Temperature Controller | x | 1 |
Price List
| QTY=1 set | 29000-59000 | USD/set | FOB Shenzhen |
| QTY=2-5 set | 2-3% off | USD/set | FOB Shenzhen |
| QTY=6-10 set | 5-7% off | USD/set | FOB Shenzhen |
| More | Negotiable | ||
After-sales service
QTY=1 PCS,online technical support
QTY=2-4 PCS,our techincians on site but tickets, hotel and food are borne by you and labor fee 100 USD/day/person
QTY=5-6 PCS,techincians on site ,labor free but hotel and food are borne by you.
