5V LC8805B интегрированно-rgb smd led чип SK6805
- Категория: Lighting Accessories >>>
- Поставщик: Shenzhen,Led,Color,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.36 $* | 0.62 $* |
| Aug-15-2025 | 0.93 $* | 0.53 $* |
| Jul-15-2025 | 0.14 $* | 0.58 $* |
| Jun-15-2025 | 0.71 $* | 0.96 $* |
| May-15-2025 | 0.94 $* | 0.82 $* |
| Apr-15-2025 | 0.47 $* | 0.1 $* |
| Mar-15-2025 | 0.88 $* | 0.39 $* |
| Feb-15-2025 | 0.63 $* | 0.30 $* |
| Jan-15-2025 | 0.2 $* | 0.66 $* |
Характеристики

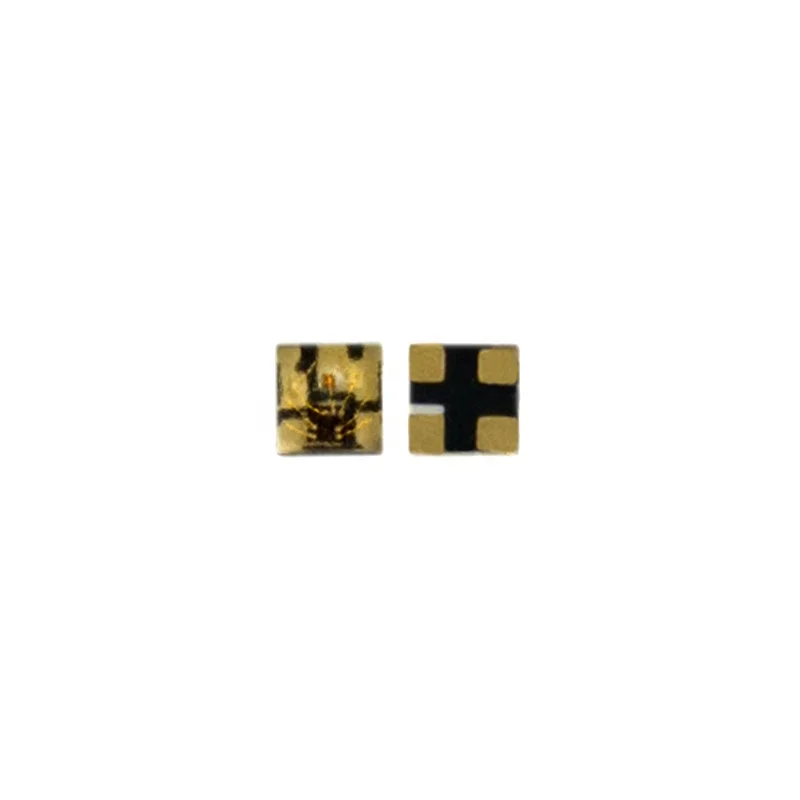

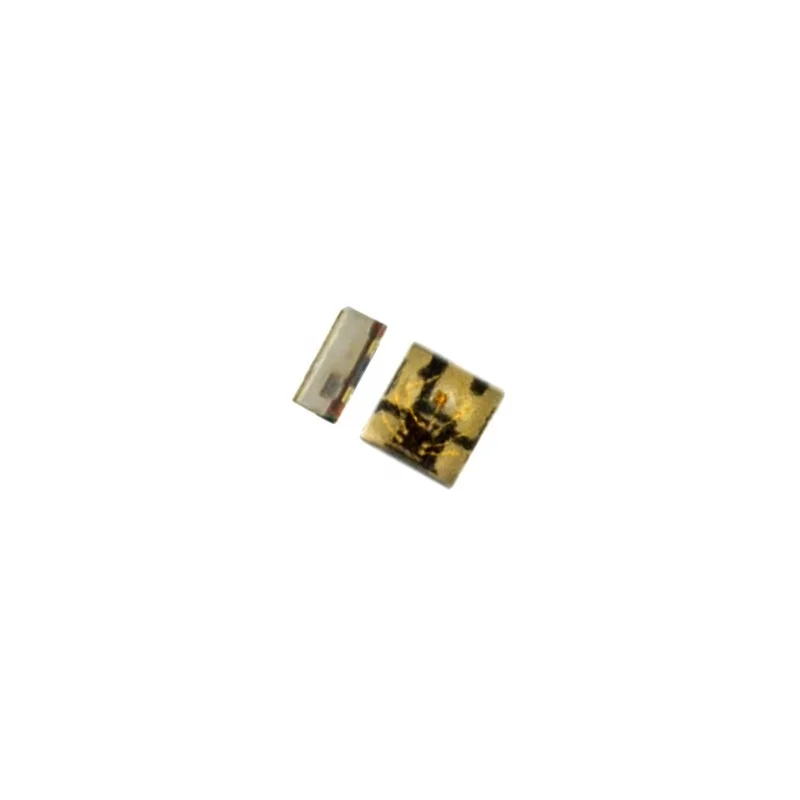

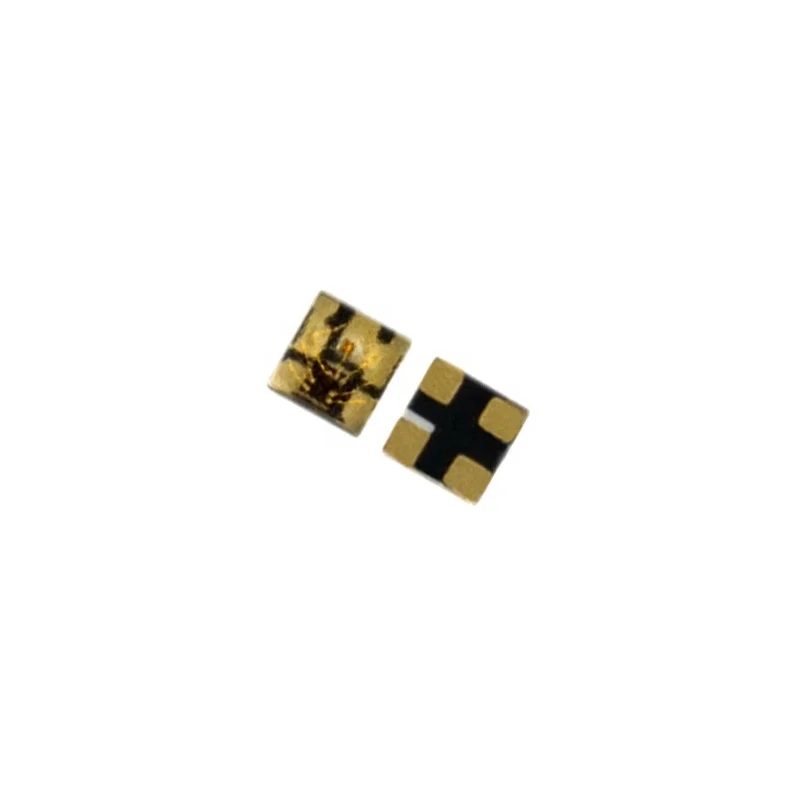

LC8805B-1515 5mA/channel sk6812 IC addresable pixel integrated 1515 rgb smd led chip
LC8805B-1515 LED is a new 1515 pixel LED, it is 3 wires LED (5v, DAT, GND), it is sk6812 ic inside, which can be compatible with ws2812, same function and same control way. each channel is 5mA, and LC8805B-1515 is 15mA per led.
Product Description
1. Product Overview :
LC8805B-1515 is a external controlled intelligent LED with control circuit and light emitting circuit in one 1515 components. Each LED is a pixel, The pixel contains the intelligent digital interface data latch signal shaping amplifier driving circuit, power supply voltage regulator circuit, built-in constant current circuit, high precision RC oscillator, and the output driver adopts patented PWM technology, which Effectively ensure that the color of each pixel is consistent. The data protocol being used is unipolar NRZ communication mode. After the pixel power-on reset, the DIN port receive data from controller,When the frist 24-bit data is extracted by the first pixel and sent to Data latch which inside the pixel ,The remaining data is processed by the internal shaping circuit, The remaining data is shaped and amplified by the internal shaping processing circuit, and then the output is forwarded to the next cascaded pixel through the DO port. The Data transmission through each pixel, the signal will reduce 24bit , The pixel is reset after the end of DIN. Using automaticshaping forwarding technology makes the number of cascaded pixels without signal transmission, only limited by signal transmission speed. The LED has a low driving voltage, environmental protection and energy saving,high brightness, scattering angle, good consistency, low power, and long lifespan . The control circuit is integrated in the LED ,which make Components smaller and more easier to install.
2. Applications
Full-color module, Flexible led Strip ,Rigid led strip
LED decorative lighting, LED Panel a variety of electronic products, electrical equipment etc
LED decorative lighting, LED Panel a variety of electronic products, electrical equipment etc
3. Main Feature
SMD internal integrated high quality external control line serial cascade constant
current IC;
Control circuit and the RGB chip integrated in SMD 1515 components, to form a
complete external control pixel, make the color mix uniformity and consistency;
Built-in data shaping circuit, a pixel signal is received after wave shaping and output
waveform distortion will not guarantee a line;
Gray level adjusting circuit (256 level gray scale adjustable);
Red drive special treatment, color balance;
Single-line data transmission for unlimited cascade
Plastic forward strengthening technology, the transmission distance between two points
over 10M;
Data transmission frequency can reach 800 Kbps, when the refresh rate of 30 frames
per sec,the number of cascades is not less than 1024 points.
4. Mechanical Dimensions:
5. Pin Configuration:
Packaging & Shipping
Each 1000PCS LEDs per reel , 1 reel into Anti-static bag and carton box outside.
Payment: T/T ,Western Union or Paypal are welcomed
Sample can be delivered in 3days
Shipping freight are quoted under your requests
Shipping port: Shenzhen, Mainland China
Discounts are offered based on order quantities
Our Services
1) ODM+OEM Service offered
2) Overseas Agency is opened
3) Provide full support in lighting solutions for customer request.
4) More quantity, more discount
Company Information
Shenzhen Color Photoelectric Co., Ltd. is a high-tech LED enterprise committed to the R&D, production, sales and service of LED lighting strips and digital pixel LED chips. The company is headquartered in Shenzhen ,China. It has R&D centers, laboratories, manufacturing centers, product quality monitoring centers, warehouse logistics centers.
As technology development, people pay more and more attention to the intelligence of LED and the variability of color. Our company has made great efforts to design addressable LED smart digital leds and applied for a variety of technical patents. This kind of leds can synthesize 16777216 colors, which can achieve independent color of each pixel. At present, our company independently develops digital LEDs,as the lc8808,lc8822,lc8812, LC8805B-2020 leds.
We have our engineer team,develop all type the new products and design products as customers` demands,and solve technical problems.
With 2 sets of high speed SMT machine,make sure faster leadtime,
Dust-free workshop for high quality LED strip production,to make sure the led strip are high quality with strict quality control.
