2019 new type hand laser welding machine 200w 300w jewelry



Desktop jewelry laser welding machine 200w for jewelry and dental is used in aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc,
especially for the perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw

This welder is specially developed for laser welding of jewelry used in perforating and spot welding of gold and silver jewelry. The laser spot welding is an important aspect of laser process technology application. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of the workpiece, and the surface heat diffuses to the interior through thermal conduction and melts the workpiece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of its unique advantage, it is widely used in the process of gold and silver jewelry and welding of mini and small parts.

1. Main feature

Main Features -- jewelry laser soldering machine

1. Energy, pulse width, frequency, the spot size can be adjusted in a?large range, to achieve a variety of effects of welding. Parameter is adjusted by the closed cavity control rod, simple and efficient.

2. Have 24 hours of continuous work, operating performance is stable, within 10000 hours of maintenance free.?

3. Humanized design, ergonomic, long time working without fatigue.

4. Fast speed, high efficiency, large depth, small deformation, small?heat affected zone, high quality welding joint, no pollution, high efficiency and environmental protection.

5.Widely used in jewelry accessories, electronic components, glasses clocks and watches, hardware, precision equipment, medical equipment, auto parts, gifts and crafts, etc.

Our machine advantage

1.Energy, pulse width, frequency and faculae can be adjusted within a wide range to achieve different welding effects.

2. The parameters are adjusted by the control rod in the sealed cavity, simple and efficient .

3. Ceramic focusing cavity imported from the U.K. is employed, corrosion resistant, high temperature resistant, efficient in optical/electrical conversion.

4. The focusing cavity's service lifespan is 8 to 10 years, and the service lifespan of the Xenon lamp is over 8 million times.

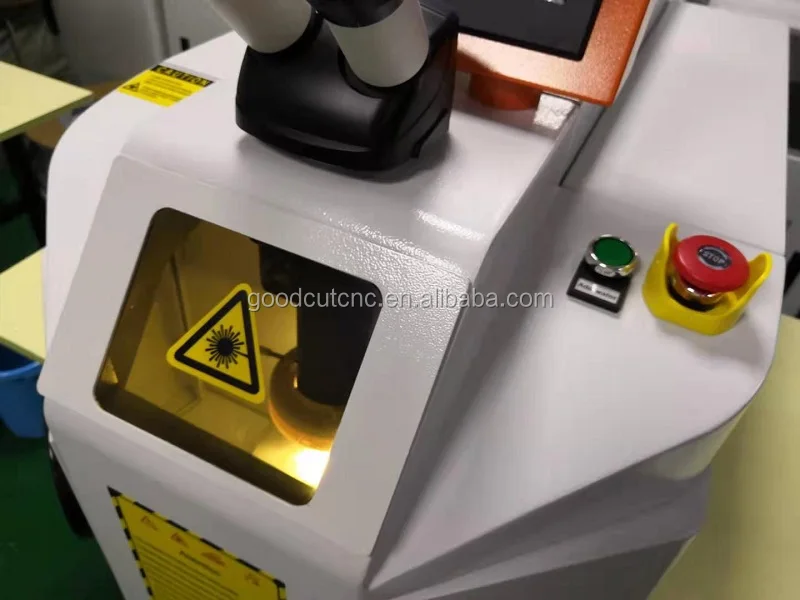

5. World-leading automatic light shielding system is employed to remove stimulation of light on eyes during operation.

6. 24-hour continuous operation, with stable operating performance and maintenance-free within 10,000 hours. Personalized design in compliance with ergonomics principles.





2. Welding Material

Platinum, Karat Gold, Silver, Titanium, Stainless Steel, Cooper, Aluminum, other metal and alloy.



3. Application Area

Widely applicable to all kinds of micro parts of precision welding, such as: Jewelry, electronics, Dental,watches, military.





4.Advantage of our machine.

1)New Design:Pure white design highlights the similicity of beauty.

2)Real manufacturer:80% of the parts of the jewelry laser welding machine are designed by OPTIC including body,laser source,YAG crystal,Cavity etc.This give us strong custom ability,trused quality and reliable after-sale service.

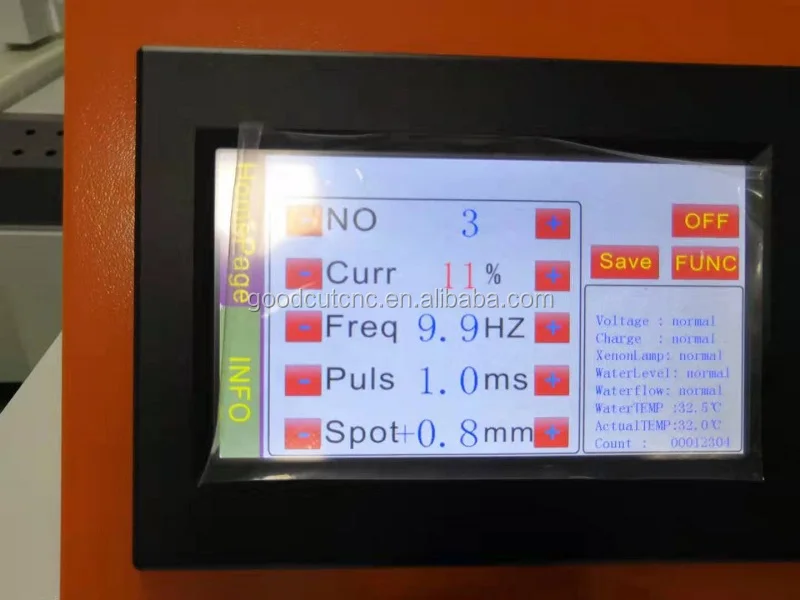

3)Easy operation:Control board with ccd camera all in one.

4)Affordable price: please contact us for the price

5)The machine can work with nearly all the power supply around the world.We can make the machine to 220V single phase 50HZ or 110V single phase.

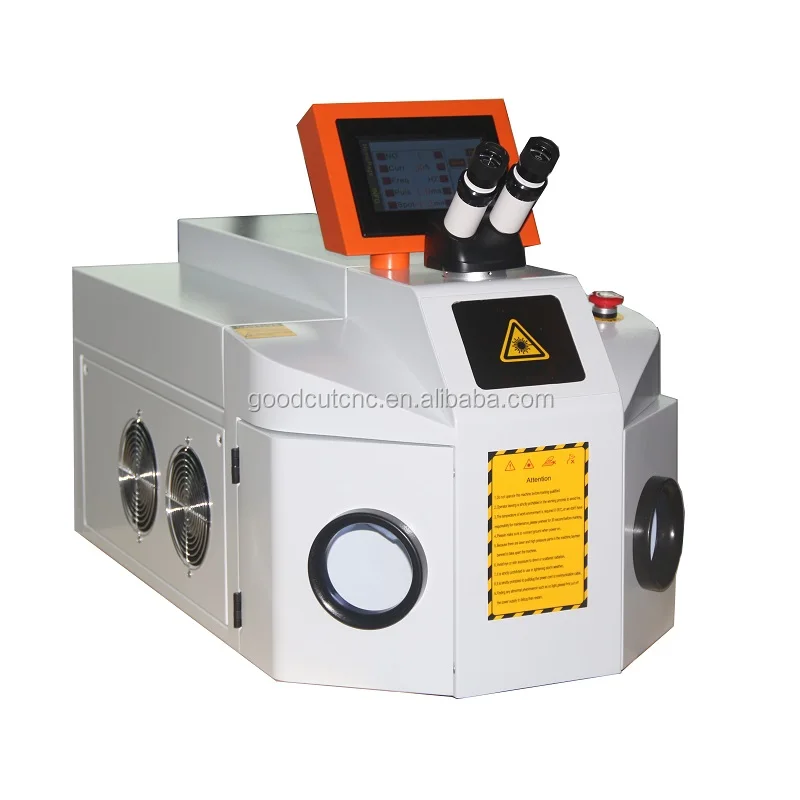

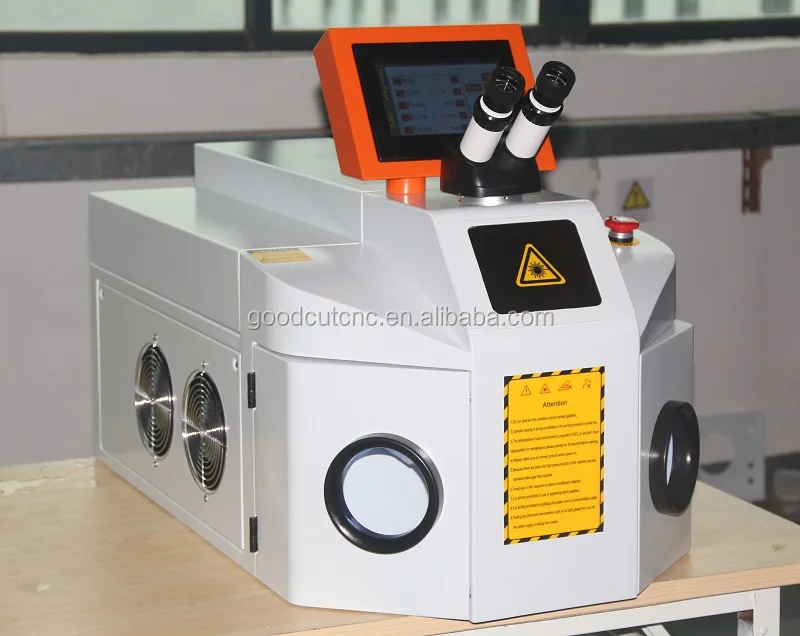

Model	GC-W200
Laser Power	200W
Laser Type	YAG
Laser wavelength	1064NM
Max single pulse Energy	80J/90J
Pulse Width	0.1-10ms
Frequency	0-20HZ
Welding depth	0.1-2mm
Spot size	0.1-3mm
Power Consumption	3kw
Power Supply	AC220±5%/50HZ/110V/60HZ
Cooling method	Built-in Water Cooling
New Weight	90KG
Gross Weight	110KG
Machine Dimension	850x500x600mm
Package	950x550x650mm



This welder is mainly used in perforating and spot welding of gold and silver jewelry. The laser spot welding is an important aspect of laser process technology application. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of its unique advantage, it is widely used in the process of gold and silver jewelry and welding of mini and small parts.



Applicable materials:gold,silver,platinum,stainless steel,titanium, and other metals and their alloys.Widely used in gold and silver jewelry,rings,pendants,bracelets,necklaces,holes,spot welding brazing,repair seams and the welding of claw parts of the mosaic parts,tec..It can also be applied to artificial teech sand and small precision parts(such as:inheritance circuit lead,clock spring,kinescope,electron gun assembly,etc.



Jewelry laser joint machine is mainly used for gold and silver ornaments of the fill hole and the spot trachoma, widely used in spot welding of micro precision parts, such as jewelry, batteries nickel belt, IC lead, watch springs, tubes, electron gun assembly, and others areas.
