Четырёхканальные ПИД-температурные приборы YUDIAN AI-7048
US $65.00-$110.00
Прямые продажи с фабрики миниатюрный микрокомпьютер мультивходом температурный дисплей блок регулятор температуры двойным дисплеем и
- Категория: Temperature Instruments >>>
- Поставщик: Shanghai,Chikong,Automation,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 36.55 $* | 38.76 $* |
| Aug-19-2025 | 35.22 $* | 37.26 $* |
| Jul-19-2025 | 30.73 $* | 32.71 $* |
| Jun-19-2025 | 35.14 $* | 37.39 $* |
| May-19-2025 | 30.54 $* | 32.22 $* |
| Apr-19-2025 | 34.94 $* | 36.14 $* |
| Mar-19-2025 | 34.58 $* | 36.86 $* |
| Feb-19-2025 | 34.9 $* | 36.80 $* |
| Jan-19-2025 | 33.8 $* | 35.69 $* |
Характеристики
Product Description
product parameters
Power Input | 100-240VDC, -15%, +10%/50-60Hz; or 24 VDC/AC, -15%, +10%. |
Input type | Thermocouple: K (-100~1300℃), S (0~1700℃), R (0~1700℃), T (-200~+390℃), E (0~1000℃), J (0~1200℃), N (0~1300℃), WRe3-WRe25 (0~2300℃), WRe5-WRe26 (0~2300℃)
Resistance temperature detector: Cu50, Pt100
Linear Voltage: 0-5V, 1-5V, 0-1V, 0-100mV, 0-60mV, 0-20mV, 0-10V, ect.
Linear current: 0-20mA, 4-20mA, etc.
Linear resistance: 0-80ohm, 0-400ohm
|
Control Outputs | relay 250VAC/2A or 30 VDC/1A
triac 100-240VAC/0.2A (continuous), 2A (20mS intantaneous, repeat period>= 5s)
ssr driver - 12VDC/30mA
thyristor zero crossing trigger output: triac 5-500A, 2 paralleled SCRs or SCR power
Linear current: 0-20mA, 4-20mA
|
Alarm Outputs | 1 channel relay(big volume & small volume ) : 30VDC/2A, 250VAC/2A
1 channel relay(small volume) 30VDC/1A, 250VAC/1A
2 channels relay: 30VDC/2A, 250VAC/2A
|
Communications | Modbus and AIbus RS485 |
Power consumption | ≤ 5W |
Operating Ambient | Temperature -10~60℃; Humidity ≤90%RH |

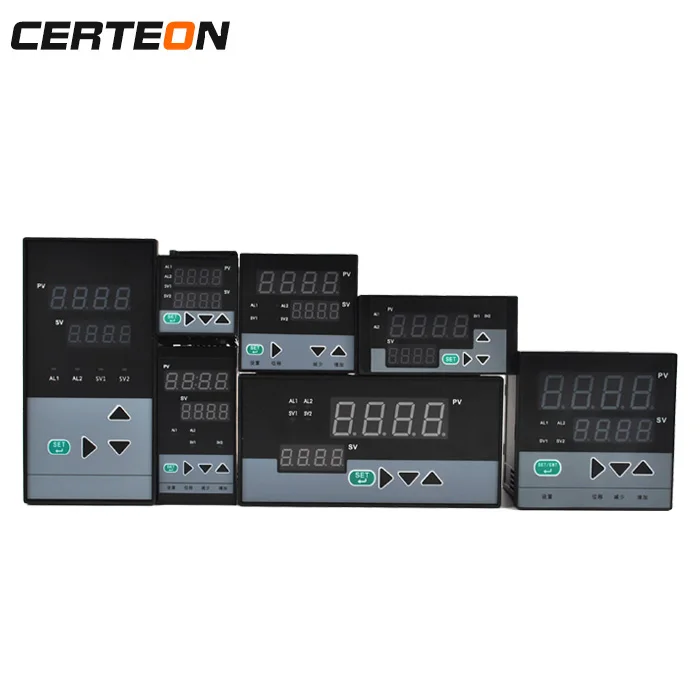

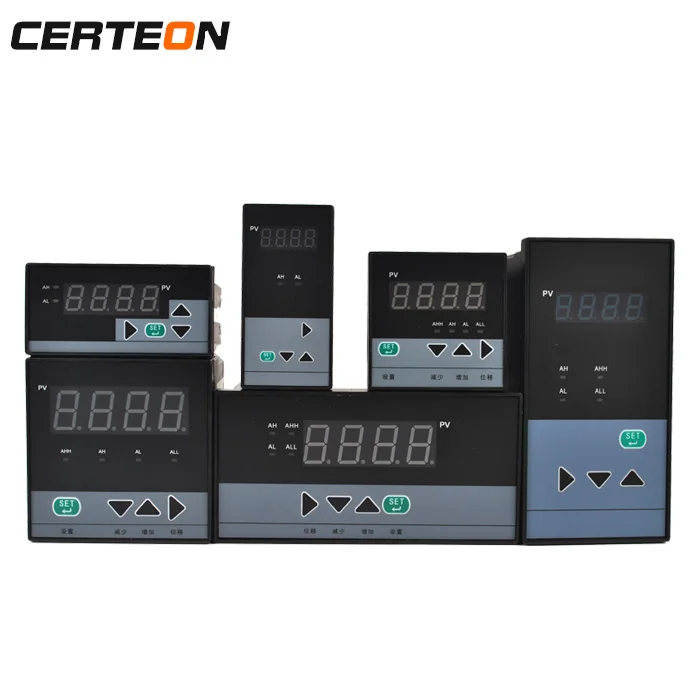

Front Panel size | 96*96mm, 160*80mm, 80*160mm, 48*96mm, 96*48mm, 48*48mm, 72*72mm |
Company Information
FAQ
Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.
Q:What is the delivery time ?
A:Our delivery time is within 3-7days after we get your payment ; for large qty mass order , the time should be confrimed again for you
Q:How about your package ?
A:Do not worry about the package ,we have rich experience at packing , all our package is standard exporting package .
Q: How about the Warranty time ?
A:Our warranty time is 12 months after you get our goods . All lifelong technology service and support .
Q:How about the payment terms ?
A:You can choose T/T, Western union , or you can choose by alibaba -credit insurance .
Q:Could I visit your factory?
A: Sincerely invite you to visit our factory
Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:What is the MOQ?
A:1PC.
Q:Can I get a lower price if I order large quantities?
A:Yes,cheaper prices with more bigger size orders.
Q:Can I have my own logo of the products?
A:Of course.We provide OEM services.The products’ material,dimansions,color,etc. will according to your requirement.
