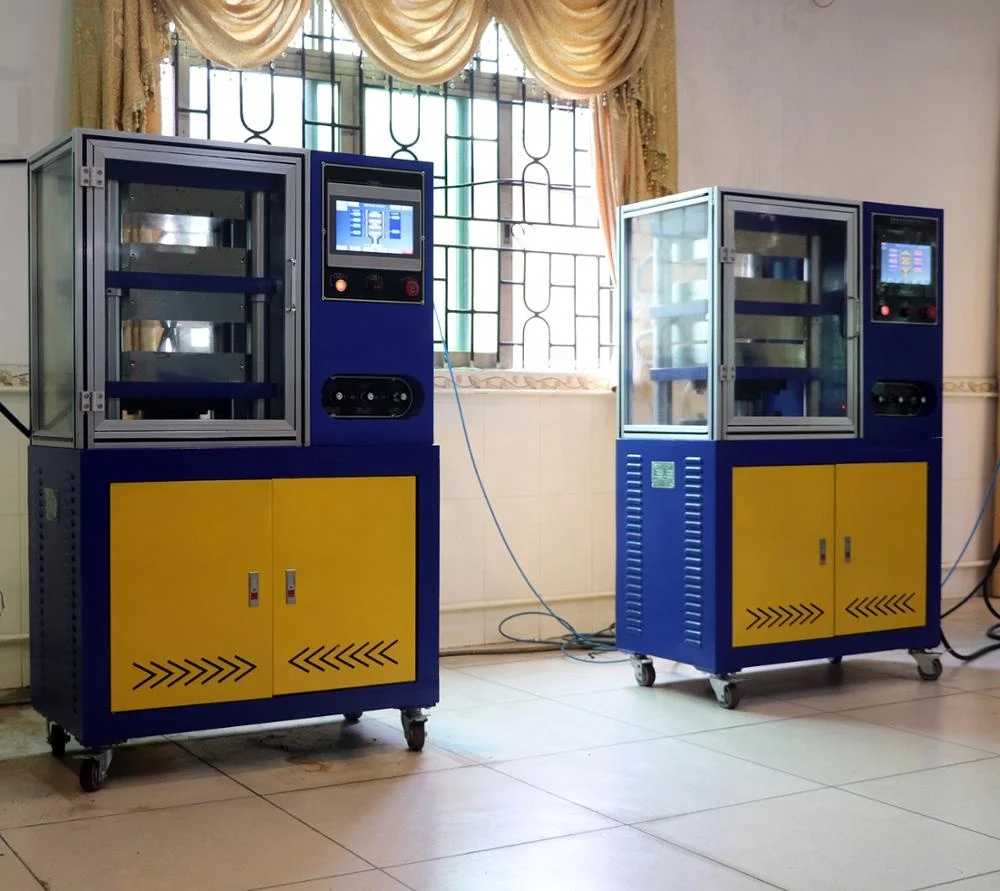

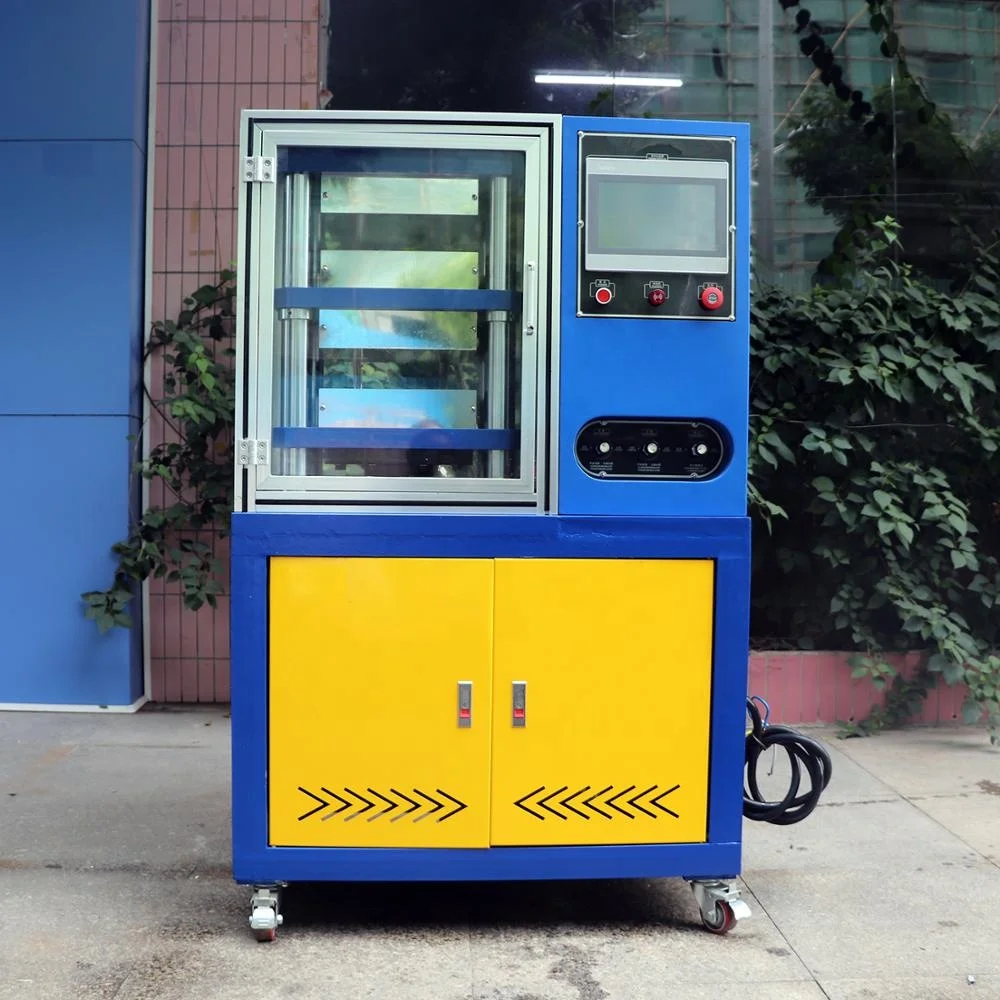

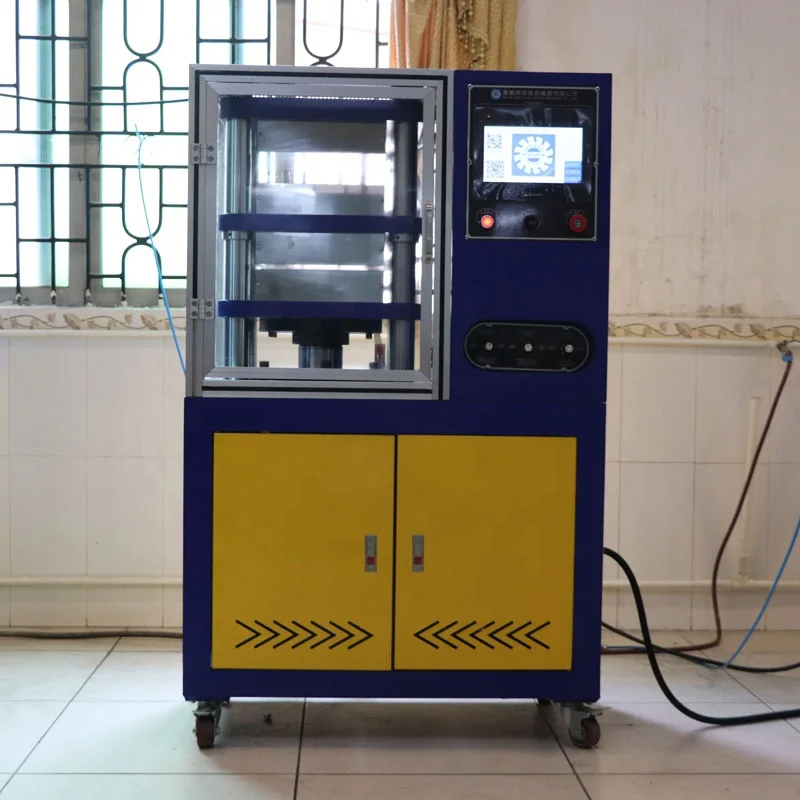

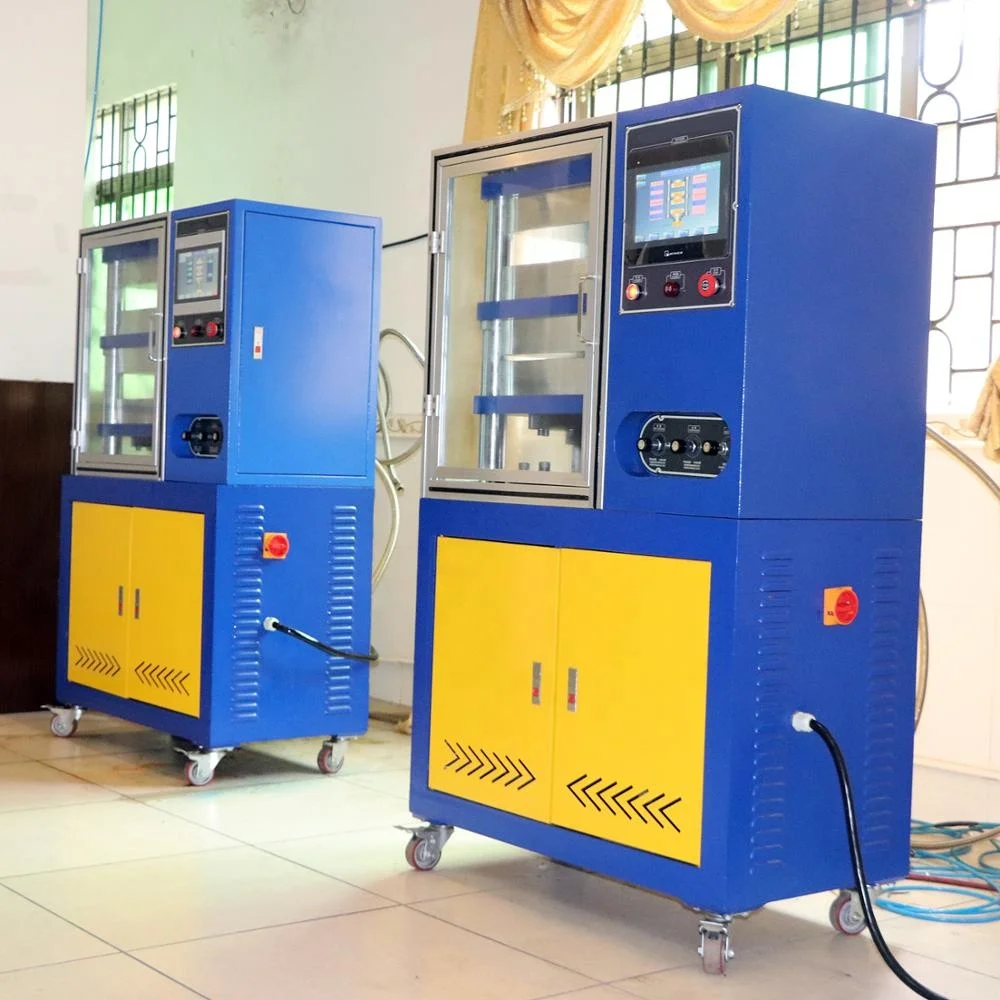

Automatic Rubber Vulcanizing Machine, Rubber Mat Vulcanizing Press



Product Description


1002-3 .jpg


Instruction:


Automatic Rubber Vulcanizing Machine, Rubber Mat Vulcanizing Press is placed in the casting mold and clamped between the electric-heating flat plates to apply pressure and temperature,make the material shaping,testing and serving as the basis for the ingredient of mass production.







Parameters:

























































































Capacity



10T,20T,30T,50T



Temp. Range



Room temp. ~300℃



Temp. Controller



LED Indicator,press key set input, the value indicate output



Timer



LED display,time range 0.1S~99min~9.9hr



Heating type



Electrical Heating



Hot pressure plate



300×300mm / 350x350mm / 500x500mm optional



Cold pressure plate



300×300mm / 350x350mm / 500x500mm optional



Distance of pressure plate



100mm



Pressure material



SKD chromium-molybdenum alloy



Pressure surface



Mirror chrome plated



Cooling temperature scope



Room temp. ~+5℃



Cooling type



Water cooling / Air cooling (optional)



Oil pressure system






The proportion hydraulic pressure current capacity loop circuit


 control system,


the GPY oil pump driver high performance electroencephalographic



matching high accuracy non resistance piston of oil cylinder


carry out constant speed rate control mode, can preelection one, twice pressure and time.



Oil cylinder stroke



Max 200mm



Oil cylinder speed



11mm/s



Pressure gauge



0~350kg/sq.cm



power



10.6HP



Dimension W×D×H



1000×500×1500 mm



Power supply



3 phase,AC 380V,20A (or customize)



Weight



About 500kg
























 Flat vulcanizing machine



Related Products


We can produce all kinds of rubber and plastic test equipments:




































Packaging & Shipping


Test Machine Package2





Our Services



1. Zotai Service:


If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.


2. Onsite Service:


A. Device installation;


B. Equipment Operation Test Technology training;


C. Equipment Calibration;


D. Daily maintenance and maintenance of equipment


3. Free technical training for visiting factories


4. 24-hour Online contact


5. Free software upgrades


6. Free information:


A.Product Instruction;


B.Product operation instruction/video;


C.Experiment Test (test application, test report)


7. Device Problem Handling:


A. Social media 24 hours online communication;


B. Mail Seamless Docking;


C. Video Conferencing;


D. Artificial free door-to-door service






Company Information


Dongguan Zotai Instrument Technology Co., Ltd. specializes in rubber and plastic testing machine, metal detector, textile testing machine and shoe testing machine for more than 10 years. With advanced technology, excellent product quality and best customer service, the products are exported to more than 100 products. Countries and regions have won praises from customers around the world.
We have a professional design team that can customize individual products according to customer requirements.
If you have any questions or concerns, the sales and after-sales service department will respond to you within 24 hours.


rubber test machine2.jpg




























FAQ


1.Are your company a trading one or a factory?


Factory + trade (integration), 10 years focusing on test instruments field, 8 years exporting experience.


OEM is also acceptable for us.


2.How to choose the most suitable products?


Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.


3.Do you accept customization service?


Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.


4.How about your warranty?


Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.


5.How about the packing for machine, is it safely protected during transportation?


Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.


6.What is the order process?


Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
