Inte Core i5 4200U (2 cores 4 threads, 3M Cache, 1.60 GHz up to 2.60 GHz, TDP: 15W)
Graphics Card
Inte Celeren 2955U: Inte H-D Graphics
Graphics Base Frequency: 200 MHz
Graphics Max Dynamic Frequency: 1.0GHz
Inte Core i3 4010U: Inte H-D Graphics 4400
Graphics Base Frequency: 200 MHz
Graphics Max Dynamic Frequency: 1.0GHz Max Resolution (H-DMI): 3200x2000@60Hz
Inte Core i3 5010U: Inte H-D Graphics 5500:
Graphics Base Frequency: 300 MHz Graphics Max Dynamic Frequency: 900 MHz Max Resolution (H-DMI): 2560x1600@60Hz
Inte Core i5 4200U: Inte H-D Graphics 4400
Graphics Base Frequency: 200 MHz Graphics Max Dynamic Frequency: 1.0GHz Max Resolution (H-DMI): 3280x2000@60Hz
Memory(RAM)
2GB/4GB/8GB/ DDR3L 1066/1333/1600 Mhz, Max up to 8GB, 204-pin SO-DIMM
Hard Disk(SSD)
HDD：1*SATA 2.5"HDD(Maximum data conversion rate SATA2.0)
SSD ：1* Full Height mSATA socket 16GB/30GB/60GB/120GB/240GB/500GB mSATA SSD 500GB HDD Support 1* mSATA SSD+1*2.5 inch SATA HDD Only one mSATA installed by default
Support OS
Official Win10/8/7 Linux ubuntu Openelec, etc. Notice: we pre-install activated non-genuine version Win7/8/10 OS for free only,; If you need legal genuine Win7/8/10 OS or other OS like Linux, Ubuntu, Pfsense..., please leave us message.
I/O
1*RS232 2×USB3.0 2×USB2.0

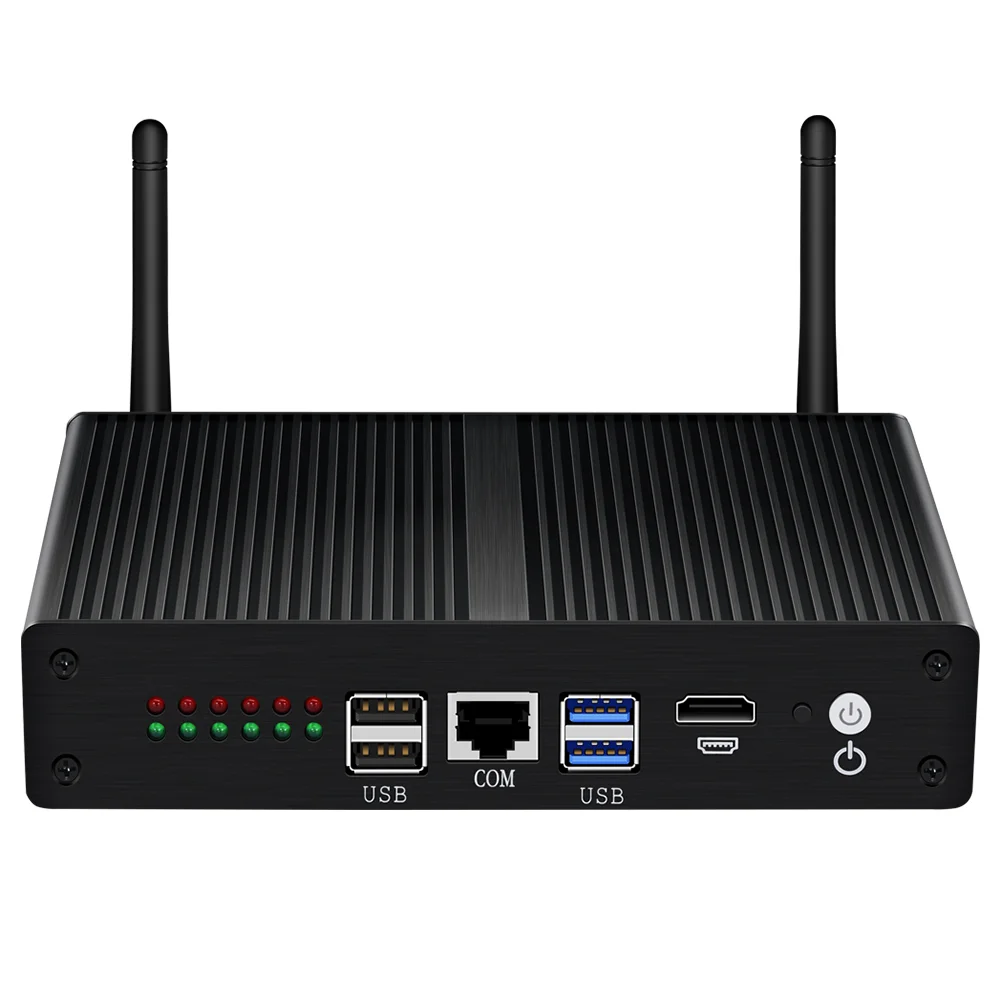

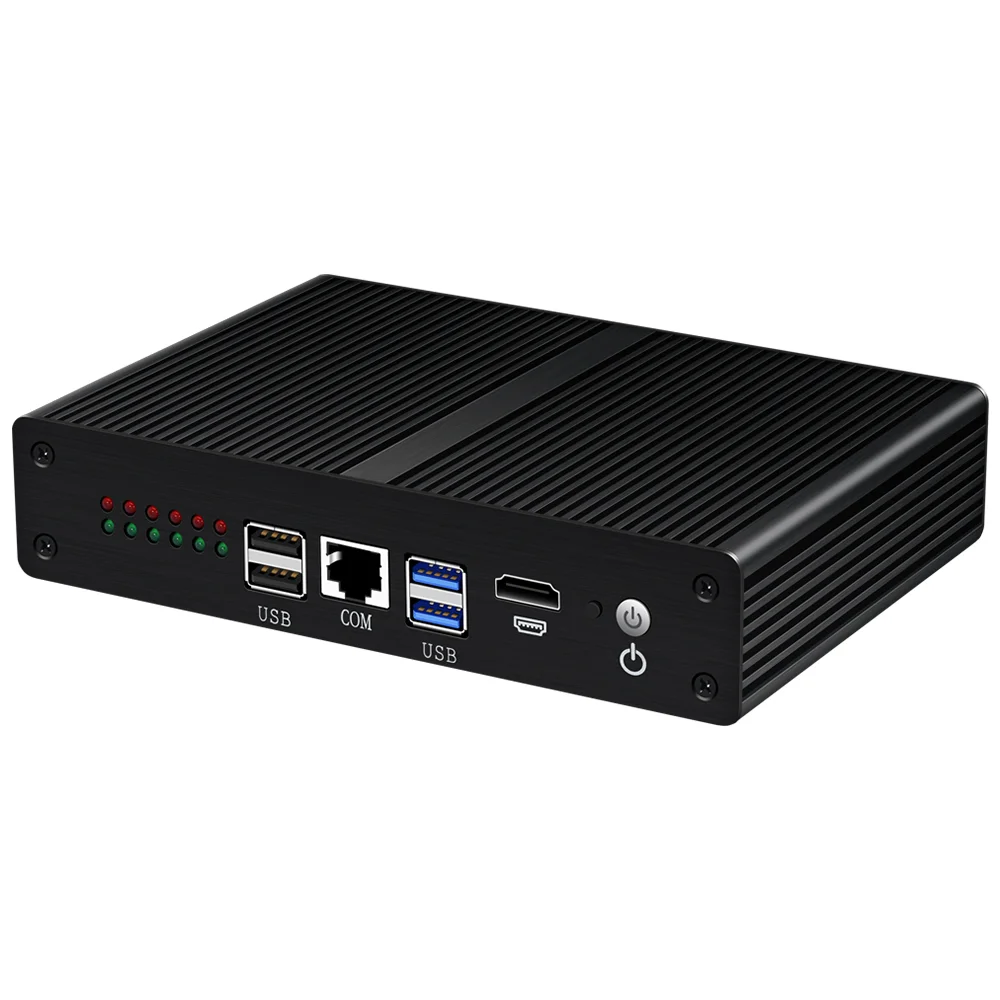

Front-Panel Connectors
Power on/off HDD LED+PW LED 2 x USB 3.0 2 x USB2.0
1 x RS232 COM 1 × H-DMI

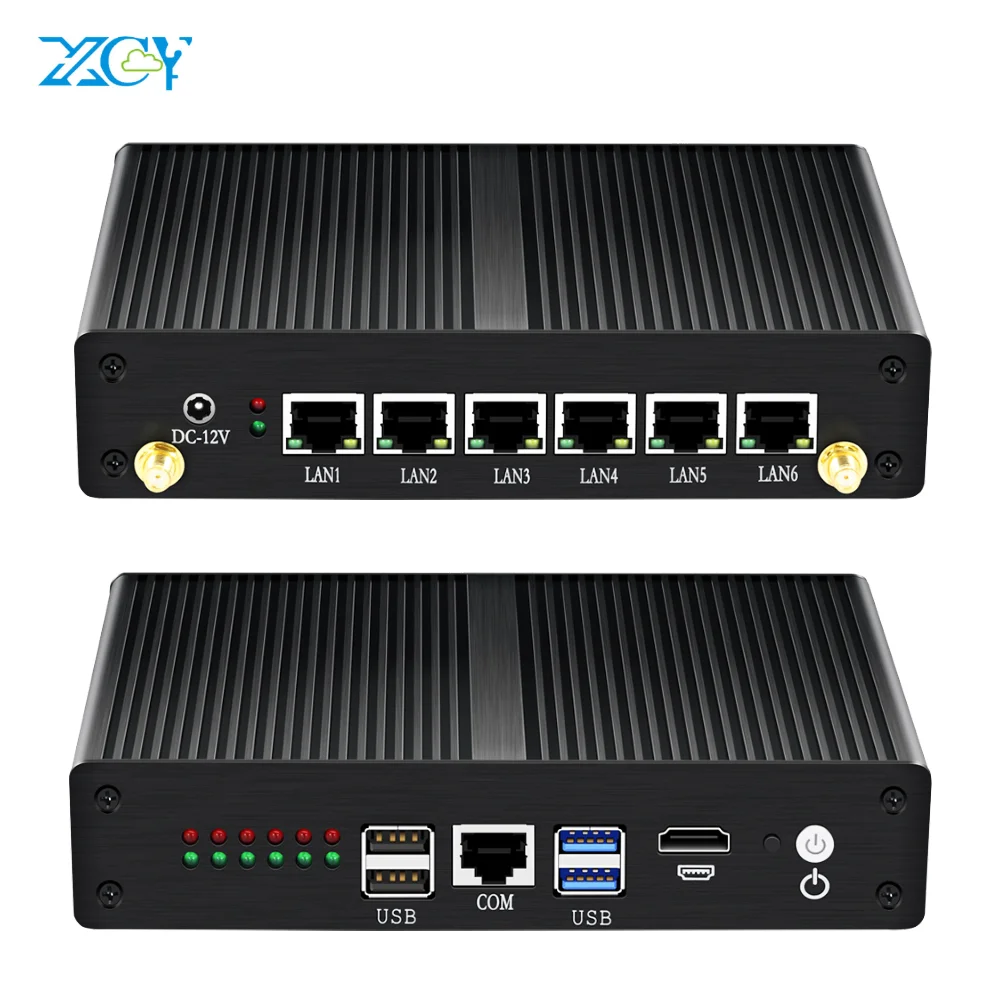

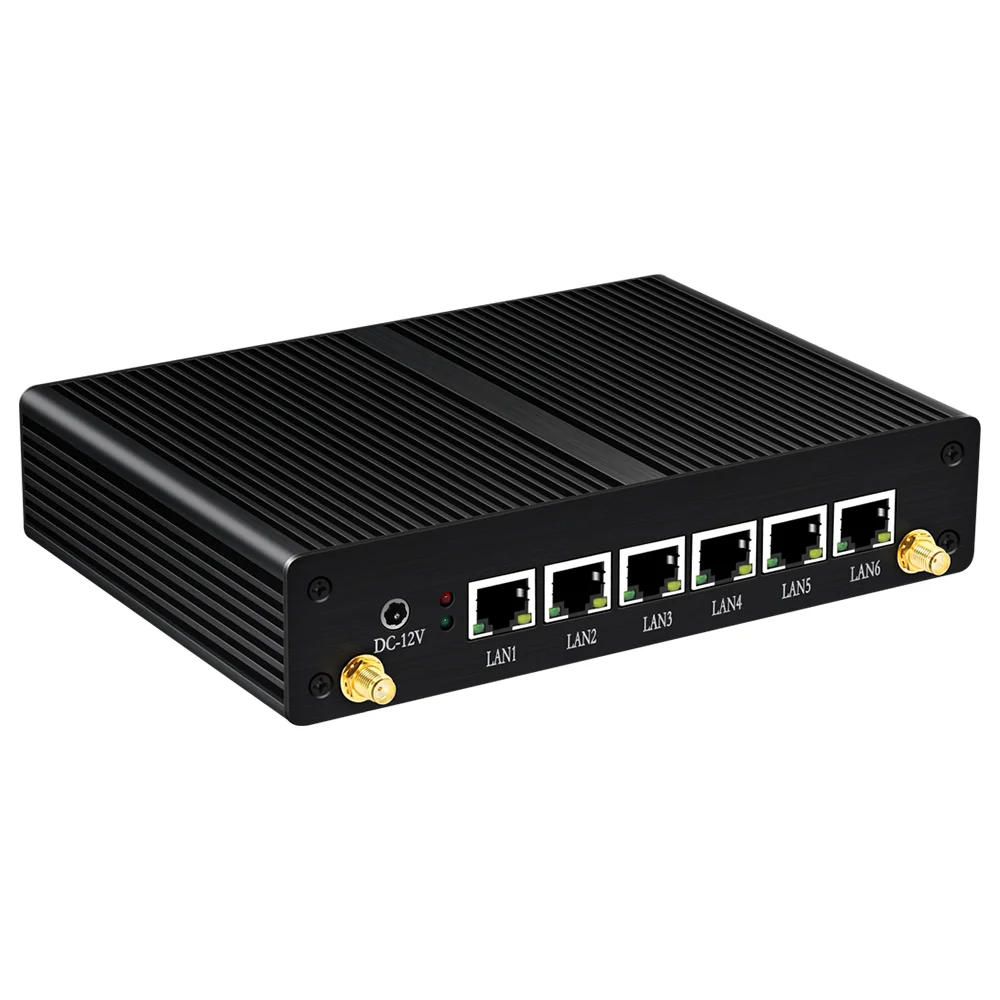

Rear-Panel Connectors
1 × DC IN 12V/5A 6 × LAN (RJ-45 Ports 10/100/1000 Mbps Adaptive) 2 x WIFI antennas connectors
Ethernet port
6 x RJ45 10/100/1000Mbps Inte i211-AT Gigabits Ethernet
Support Wake On Lan
WIFI
with dual antenna,802.11.b/g/n

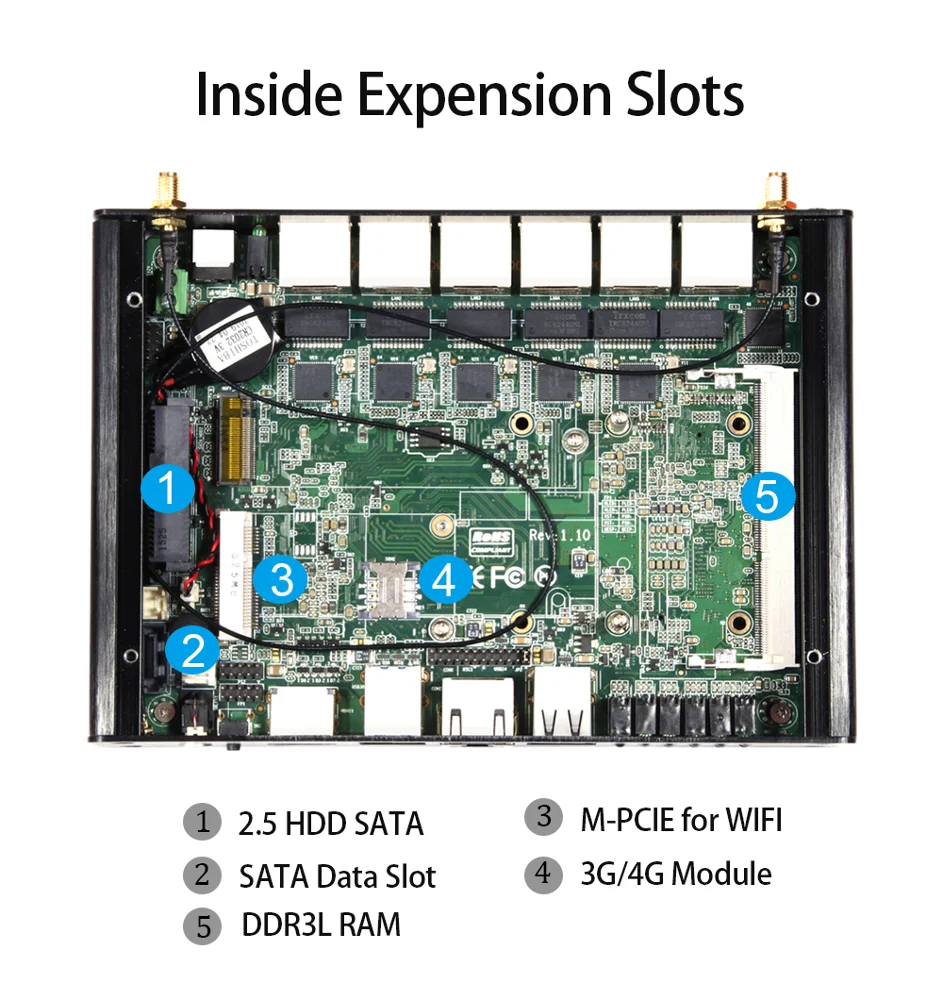

Extension Options
1× Full Height Mini PCI-E WIFI/3G/4G
Power
Input: AC 100-240V /50-60Hz Output: DC 12V/5A
Cooling System
Fanless passive Cooling,Heat sink aluminum block
Chassis Material
Aluminum Alloy
Mounted
VESA/Wall-Mounted/Desktop
Operating Temperature
-20-65℃
Storage Temperature
-20-85℃(15℃-35℃ recommended)
Relative Humidity
10%~90% (non-condensing)
Dimension
136*126*40mm
Package Content
1x Mini PC 1x Power Adapter 1x WIFI Module with Dual antennas (If you buy Barebone PC without RAM and SSD, there will be no WIFI)
1x SATA Power Cable,SATACable (Free gift), 1x User Manual
Notice: The price listed is for 2955U barebone PC without memory, hard drive and WIFI module , if you need them, please email me.Thanks very much.
Packaging & Shipping
Packing list
1x Mini PC 1x Power Adapter 1x WIFI Module with Dual antennas (If you buy Barebone PC without RAM and SSD, there will be no WIFI)
1x SATA Power Cable,SATA Cable 1x User Manual Notice: The prce listed is for 2955U barebone PC without memory ，hard drive and WIFI, if you need memory and hard drive, please email me.Thanks very much.
Payment & Delivery
We accept "L/C, DA, DP, T/T, Western Union, and Paypal. "But it depends on the contract and which country.
Normally, we ship packages via DHL,EMS,UPS,FEDEX. It usually takes 3-7 working days to most countries.We will choose the right logistics according to your country.
Plug Type
We Mainly provide 4 type Power adapter(No.1=UL/ No.2=EU/ No.3=UK/ No.4=AU)for you choice. If you need other type, please contact the Bingxin.
No.1is mainly used in the USA, Canada, Mexico& Japan
No.2 used almost everywhere in Europe& Russia, except for the UK & Ireland
No.3mainly used in the United Kingdom, Ireland, Malta, Malaysia & Singapore
No.4mainly used in Australia, New Zealand, China & Argentina.
Our Services & Strength
Our Promise
1. Warranty: 1-year warranty.In the second and the third year, we can repair it for free, but we will charge for the parts that need to change.
2. We can sell one sample for your test.
3. We can provide OEM/ODM services.
4. We ensure great products, services and favorable prices for you. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
FAQ
Q.Such a small computer,how is its running speed? A:Our mini PC use new generation architecture Inte CPU with mSATA SSD and 2.5" SATA SSD / HDD,seconds to office software,design software,net surfing,audio and video entertainment,run smoothly small and medium computer games.
Q:Will it be too hot in working? Can it work for 7*24hrs,zero noise attracts me,but I am worried about this. A: The CPU is Inte latest lower saved CPU,rated power of CPU is only 10W-15W,the CPU is only about 60℃ in lots of testing.And it won`t work in the most powerful performance all the time.As you may know,the laptop CPU temperature is about 78℃ or more.Each one will be tested 3*24hrs before shipping.Normally the heat doesn`t affect the CPU life at all if the CPU temperature is under 80℃,so don't worry at all for its cooling.
Q:Why do I feel the casing so hot when it 's working? A: The CPU almost touches the back casing to expand the heats,its temperature is almost the same same if that of CPU.1st,the metal casing is for heat expanding more easily,this is one of the reasons to use metal materials as its casing; 2nd,there is thermal paste with silver material imported from Japan in the CPU plug of motherboard.3rd, there is free bracket mount attached to computer,you can make it stand in the bracket mount for cooling.
Q: How long can this mini computer used? A: XCY mini PC with low-power hardware,compared to traditional computer,mini PC is more energy saving and environmental protection,less radiation and longer using life.
Q:What is the Minimum Order Quantity(MOQ)? A:We can sell one piece sample for your test.
Q:What is the lead time of your products? A:1-3 days for one sample, 15 working days for a large quantity.
