Product Description



Brief introduction of sand Vertical Shaft Impact Crusher

sand Vertical Shaft Impact Crusher is widely used in all kinds of minerals. It provides the high quality sand and crushed stone aggregate to the high-speed railroad, high-rise construction, municipal administration construction, water and electricity dam construction, concretes agitation station. It is the most effective machine at present. It is also applicable to crush various stones with different hardness in medium and fine crushing area. It is more advanced in intermediate hard, extra, extra hard and abrasive material crushing.

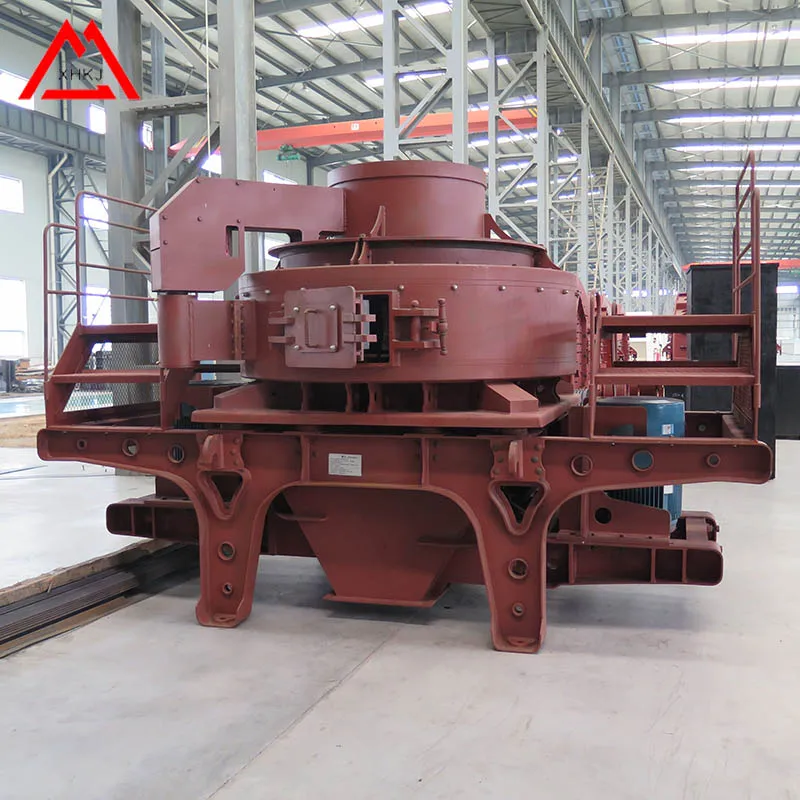

sand Vertical Shaft Impact Crusher

Working Principle



Working principle of sand Vertical Shaft Impact Crusher

The material falls from the upper side of machine, then into the impeller, with the effect of centrifugal force, the material was crushed with other parts of the material which shunt around the impeller in a umbrella shape. After the cross impacting, the materials will be forming an eddy current and then impact, crush with each other again, then discharging from the lower part. The whole system forms a close circuit and through multi-cycles, finally matched granularity of the final product by the control of screen set.

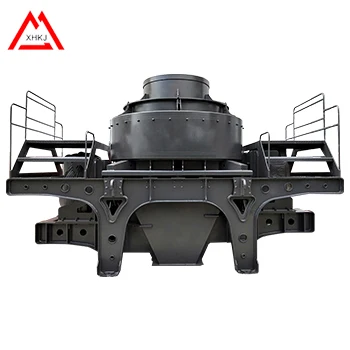

sand Vertical Shaft Impact Crusher

Features



Features and advantage of sand Vertical Shaft Impact Crusher

1,“stone striking stone” working principle, high efficiency, low electricity consumption, and high efficiency crushing

2,Strong ability of through the non-crushing material, low effects by the material moisture content

3,Suitable to crush stones with mid-hardness, high hardness, and super high hardness

4,Mechanism for the production of sand, the gradation of finished product is in an adjustable fineness modulus.

5,Simple structure, low cost, easy operation/ maintenance and installation

6,Low noise and the dust pollution

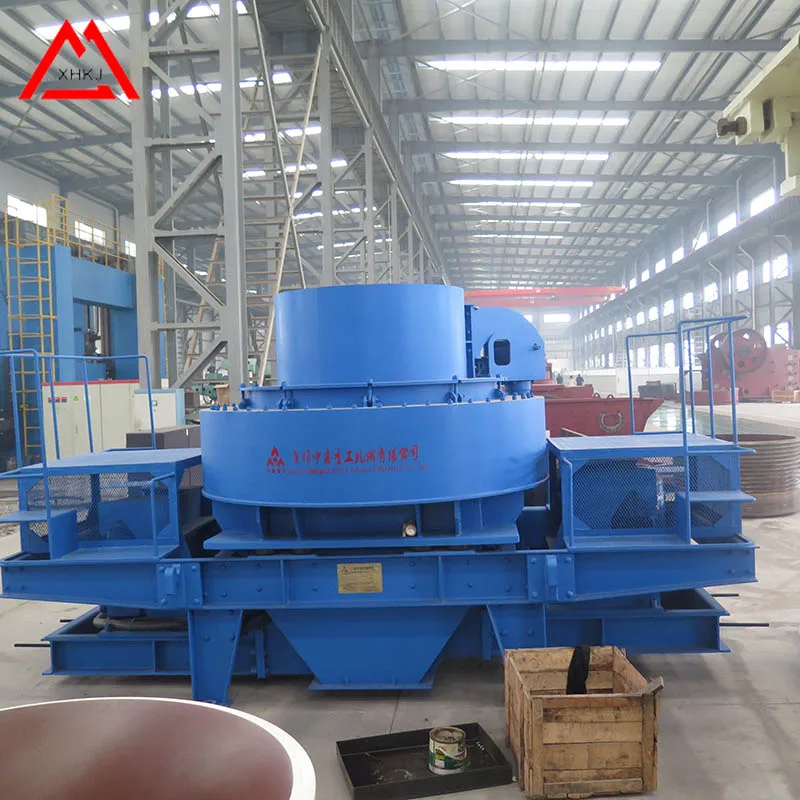

sand Vertical Shaft Impact Crusher



Specifications



Technical data sand Vertical Shaft Impact Crusher

Type

Max Feeding Size(mm)

Capacity(t/h)

Motor

Power(kw)

Weight(kg)

VSI550

40

5-20

30-55

4200

VSI650

45

15-40

2×45-75

6780

VSI750

45

40-80

2×75-2×90

10300

VSI900

65

60-140

2×90-2×110

12900

VSI1050

80

100-260

2×110-2×160

19800

VSI1250

100

200-400

2×132-2×200

25500

VSI1350

120

250-600

2×160-2×400

30600



After crushing effec

sand Vertical Shaft Impact Crusher

APPLICABLE MATERIALS:

Chemicals, Mine, Coal, Granite, Rock, Stone, Marble, Griotte, Calcium Carbonate, Domolite, Limestone, Limerock, Calcareous Stone, Conquina, Siliceous Limestone, Chromite Ore, Mineral, Cement, Concrete, Compound, Cobblestone, Iron Ore, Ironstone, Iron-mineral soils, Copper Ore, Azurite, Copper Sulphide Ore, Quartz Stone, Quartzite, Keli Stone, Silestone, Coal, Gold Ore, Basalt, Whinstone, Shaly, Shale, Mudstone, Nonferrous Metals Ore, etc.

RANGE OF APPLICATIONS:

Sand Making Plant, Construction Waste Recycling, Household Waste Processing, Labratory, Quarry, Road, Building, Cement Plant, Building, Highway, Chemical, Metallurge, Coal Mine, Gold Mine, Benification, Mineral Separation, Stone Production, Brick Making, Ore Dressing, etc.

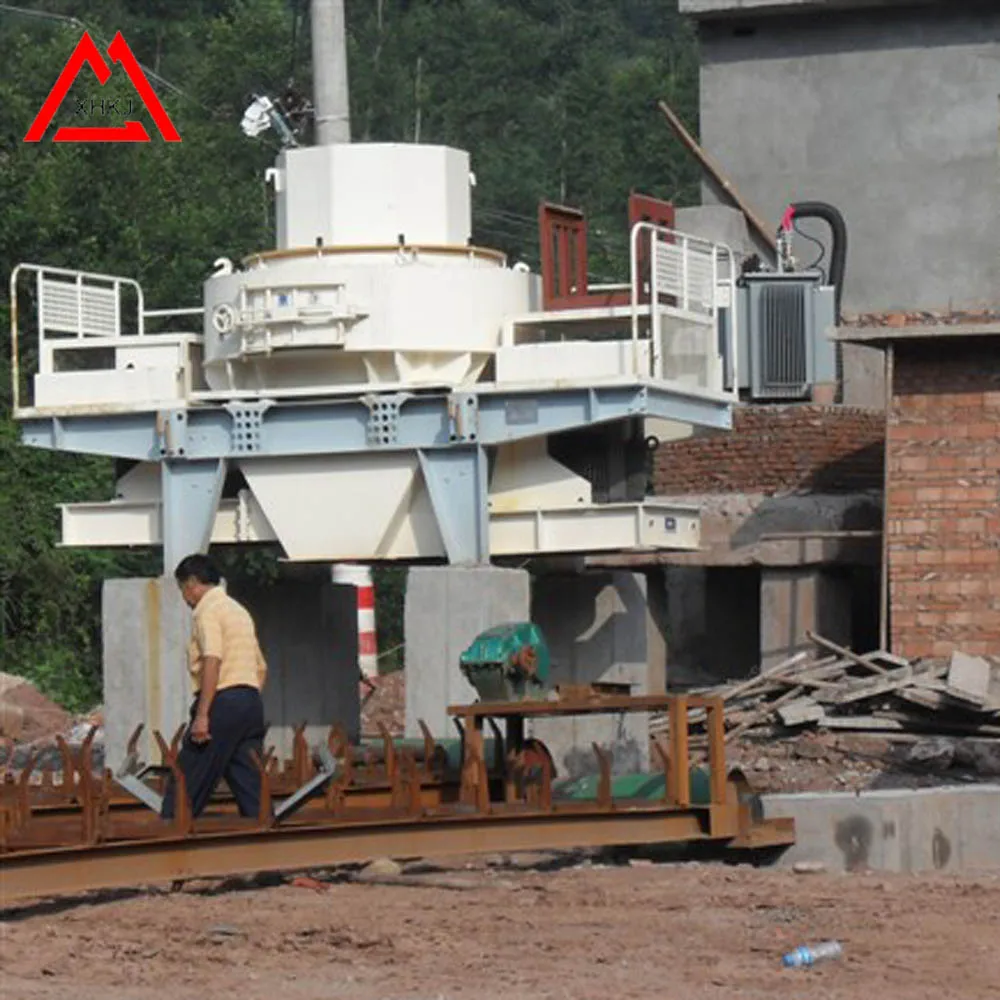

Customer Visit

After years of hard exploration, Jiaozuo Xinhai Heavy Industrial has built a complete effective service system and experienced service team, not only freely supplying site planning, design and installation foundation drawing, flow chart and most professional technical training, but also sending technician to guide the equipment installation and commissioning on customers jobsite. This service system solves customers’ problem, shortens the project duration and wines recognition and praise of customers from all over the world.

Xinhai Heavy Industrial insists on the enterprise idea of “not only take the wealth to customers, but also the value”. We will keep on making efforts on innovation, manufacturing high-quality crusher, improving the product performance and optimizing the service system to promote the development of China mining machinery industry by professional service and strict quality control.

Exhibition

Our company mainly manufactures equipment for stone production line, such as XHP multi-cylinder hydraulic cone crusher, jaw crusher, impact crusher, Symons cone crusher, spring cone crusher, sand making machine, vibrating feeder, vibrating screen etc., which have been exported to more than 30 countries. With the advantages of super-high crushing efficiency and stability, XHP series multi-cylinder hydraulic cone crushers are highly appreciated by customers and widely applied to the crushing process of various ore or hard stone and cobblestone sand making and have achieved great effect. XHP cone crusher has become the No.1 brand of multi-cylinder hydraulic cone crusher in China.
