Комплект заземления с кольцевой пряжкой для кабеля 1/2 дюйма 7/8 11/4 15/8 дюйма/sus 304 металлические

Описание и отзывы

Трекер стоимости

Характеристики

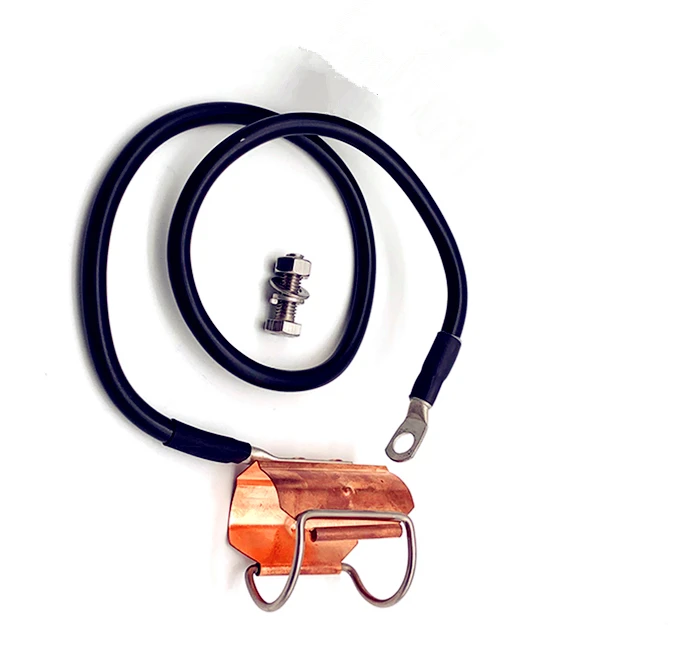

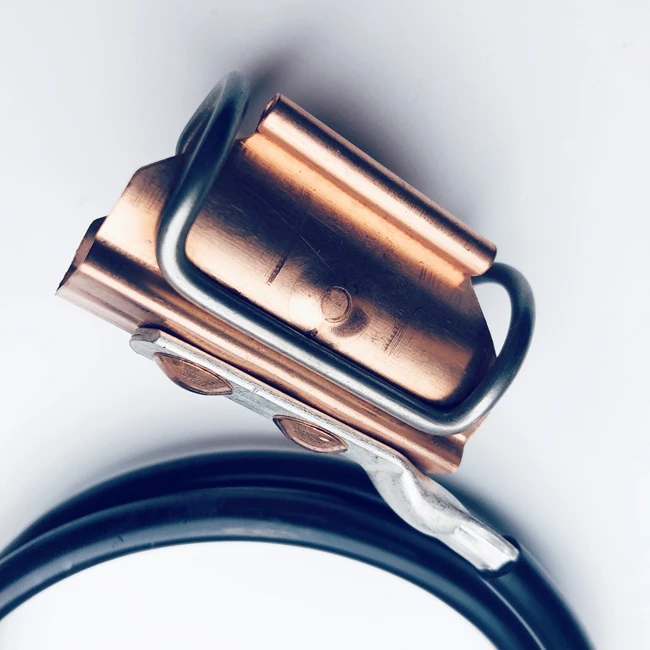

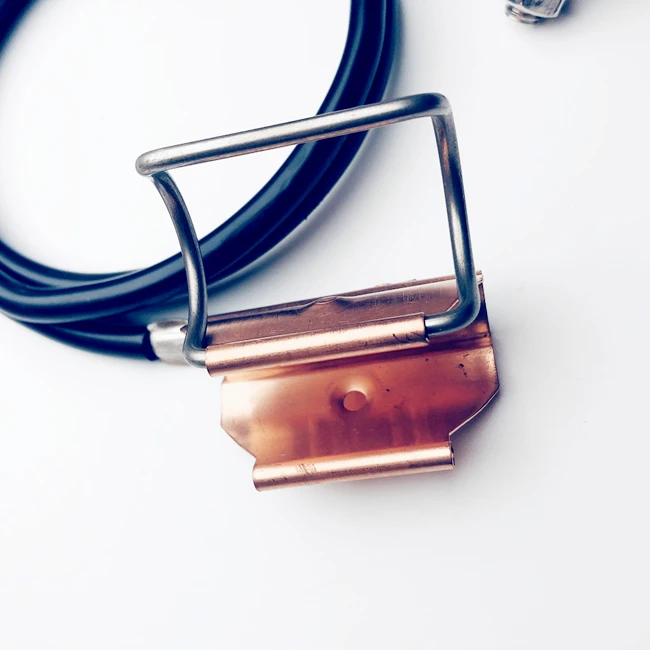

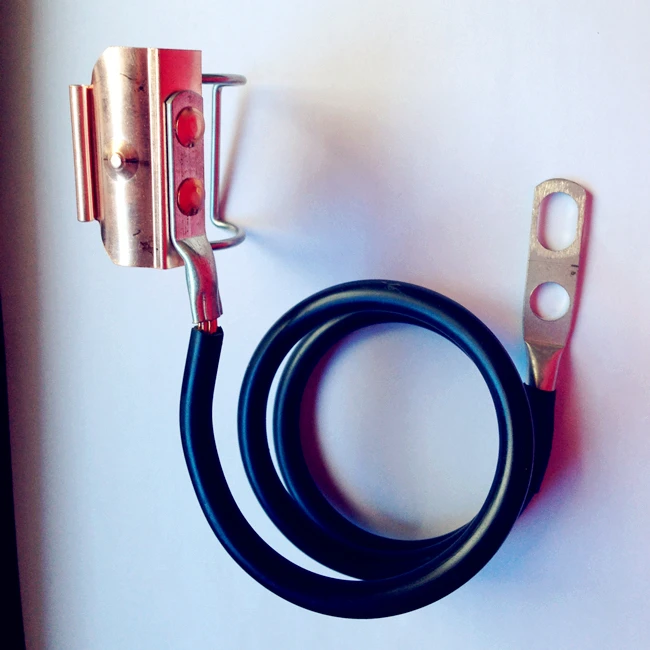

Ring buckle type grounding kits for cable 1/2'' 7/8'' 11/4'' 15/8'' 7/8"/ sus 304 metal grounding kits



Main use:

It's suit for grounding binding of all kinds cable: 1/4",1/2",3/8",7/8",5/4",1-5/8", etc.



Component part:

Clamp: Stainless steel

Connector: T2 cooper grounding wire, standard configuration 0.6, 0.8, 1m

                   The length can made according to the customer’s requirement

Bolt & nut: stainless steel

Batten: stainless steel



Technical parameters:

Nominal impulse discharge current	70KA
Insulation resistance	500MΩ
Grounding resistance	≤5mΩ
Inner contact material	Tinned braid copper
Grounding cable	AW6/16mm2
Waterproofing	IP67
