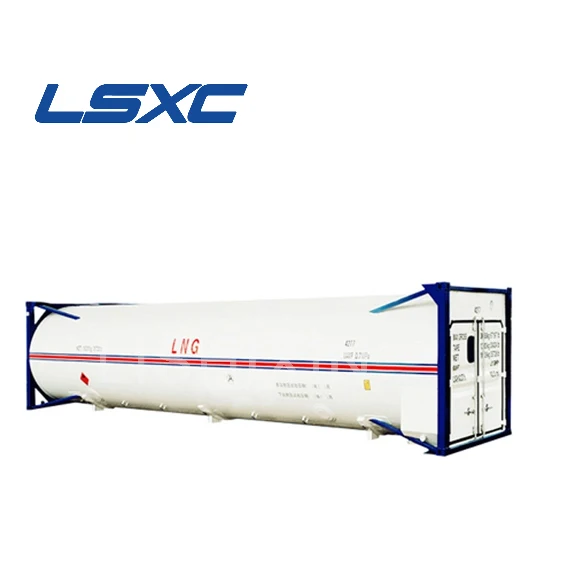

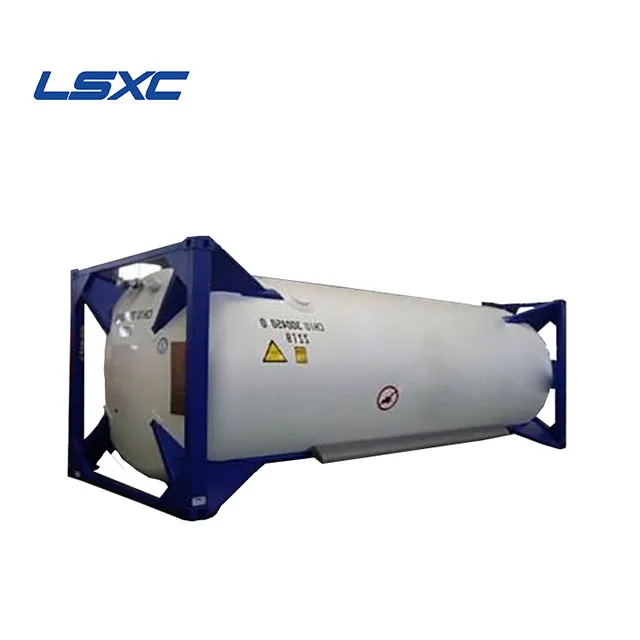

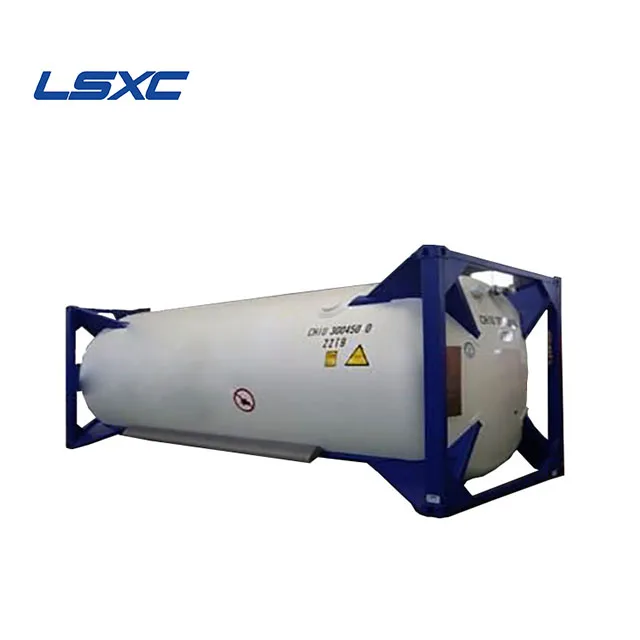

China Manufacturer High Capacity  LNG Cryogenic Liquid Storage Tank  ISO Tank Container





Codes and regulations		RID/ADR, IMDG, ASME VIII DIV 1-2017Ed;
		T75 UN PORTABLE TANK TIR;UIC;CSC;TC;FRA;CFR49;ISO 1496/3;ISO Standard 1161
Guidelines for tank container		T75 UN Portable Tank
ISO Size and type code		42K7
Maximum Allowed Loading Weight		17510kgs
Tare Weight		11700kgs
Allowed stacking weight		192000kgs
Manufacturing license level		Inside tank		C3
		outside tank
Max. Working Pressure(Mpa.)		Inside tank(MPa)		0.75
		outside tank(MPa)		-0.1(Vacuum)
Min. Working Tempretrues		Inside tank		-196°C
		outside tank		-40°C
Design Pressure(Mpa.)		Inside tank		0.8
		outside tank		-0.103
Design Tempretrues		Inside tank		-196 °C
		outside tank		50 °C
The Main material		Cover	inside tank	SA-240M  304
			outside tank	Q345R
		Shell	inside tank	SA-240M  304
			outside tank	Q345R
		Frame work	Hollow Section	Q345-D--GB/T1591
			Plates	Q345-D--GB/T1591
			Rolled section	Q345-D--GB/T1591
Overall Size(Frame)/L*W*H/mm		12192*2438*2591
Media		Inside tank		LNG
Media Characteristics		Inside tank		explosive
Paint		Frame		30µm +40µm +50µm
		Shell		30µm +40µm +50µm
Total Volume(L)		45700
Type Of Insulation		High Vacuum Multi-layer Insulation
Material		Aluminium Foil
Provision for Baffles		Five sets of surge baffles shall be installed.
Corrosion allowance		Inside tank		0mm
		outside tank		0mm
Nominal thickness	Shell	Inside tank		6mm
		outside tank		4.0mm
	Head	Inside tank		8mm
		outside tank		6.0mm
Air pressure test pressure		Inside tank(MPa)		1.17
Fittings		All fittings, including valves and pipe sections shall be cleaned and then fitted to the tank.
Welding joint coefficient		Inside tank		1
		outside tank		0.85
Leakage Test and Nitrogen Purge		After cleaning, all valves, blind flanges, caps and connected piping are installed and a leak test is performed at16.2 bar using clean and dry air.  The vessel will be delivered in a Nitrogen purged condition.  Nitrogen will be used (O2 < 0.5% residual oxygen, 0.5 bar pressure).
Main hazard category		2.1
Design service life		20 years
Mode of transportation		Road,Sea,Railway
Safety valve	Quantity		Two
	Set Pressure		+8bar
Liquid Level gauge	Grade			2.5
	Quantity			One
	Measuring range(Kpa)			0~2.0M  H2O
Loading and unloading device	Gas phase joint		Type	Flange connection
			Nominal Diameter	DN50
	liquid phase joint		Type	Flange connection
			Nominal Diameter	DN50
Pressure gauge	Quantity			One
	Measuring range(Mpa)			0~1.6
	Precision			1.6 Class
