Shanghai Ruide Марка distec 23 точность 3 мм + 2ppm теодолит с лазерной

Shanghai Ruide Марка distec 23 точность 3 мм + 2ppm теодолит с лазерной

Категория: Теодолиты >>>
Поставщик: Shanghai,Hexin,Survey,Instrument,Company,Ltd.

Цена:800,00 $ - 840,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	952.36 $*	1000.3 $*
Aug-18-2025	944.98 $*	991.34 $*
Jul-18-2025	792.9 $*	832.88 $*
Jun-18-2025	928.93 $*	974.91 $*
May-18-2025	808.36 $*	848.94 $*
Apr-18-2025	912.36 $*	958.34 $*
Mar-18-2025	904.20 $*	949.12 $*
Feb-18-2025	896.45 $*	941.99 $*
Jan-18-2025	888.61 $*	932.60 $*

Характеристики

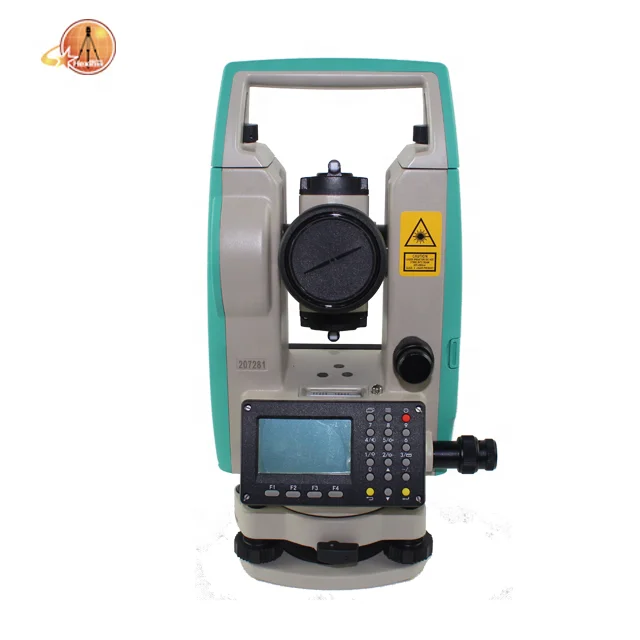

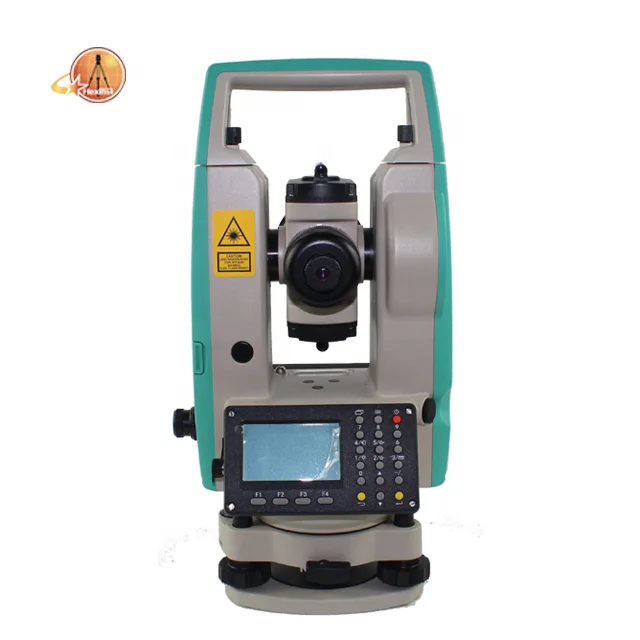

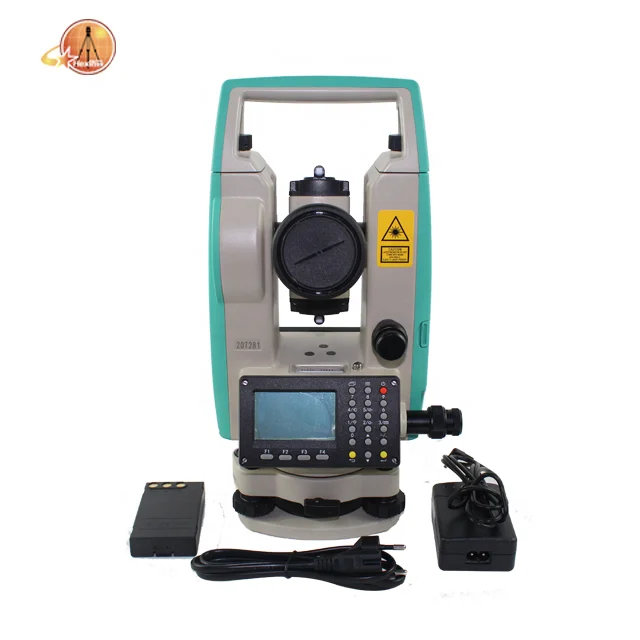

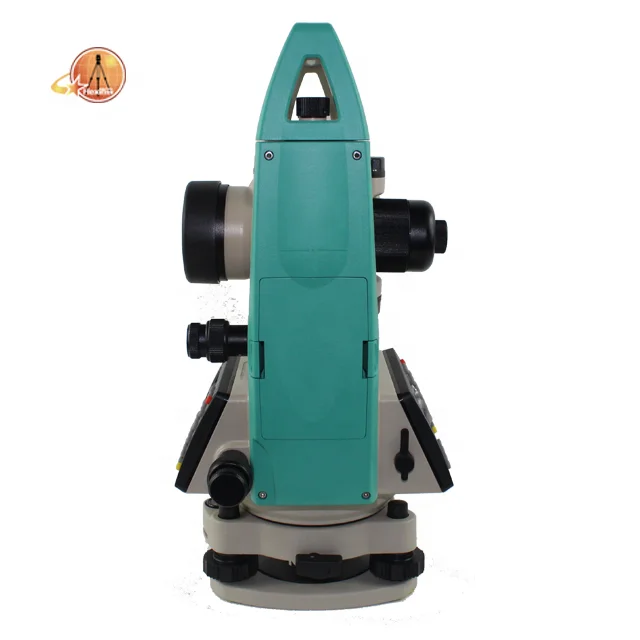

shanghai Ruide brand disteo 23 Accuracy 3mm + 2ppm theodolite with Laser Pointer

Ruide Disteo 23 collimator theodolite surveying instrument with 2

key Benefits:

2" Angle Accuracy

300m Distance Range with Prism

Laser Pointer

Distance/Axes Stake-out

Alphanumeric Keyboard

300m distance

measurement with Prism,

with 3mm+2ppm distance accuracy

2.7 inches LCD Screen with Alphanumeric keyboard.

$shanghai Ruide brand disteo 23 Accuracy 3mm + 2ppm theodolite with Laser Pointer\n.JPG$

lIntegrated EDM

300m range with reflector prism

Measuring time less than 1.5s

Accuracy 3mm+2ppm

lErgonomic full numeric keypad with shortcut keys

All settings available directly onboard

Shortcut keys to quick setting

1. Programming ergonomic design

lThree function module displayed

lOne key toggle

lF1-F4 soft key for function selection

Ergonomic design for more user-friendly experience. No need of any combination keys or hidden menu to set and configure the instrument.

lFull numeric keyboard

Inputting has never been easier!

lShortcut keys

Easy access to commonly used function

lOnboard setting menu

All settings listed clearly in menu

2. Onboard Programs

lMeas: Trigger measurement

lS.O.: Enter the distance staking out function

lMode: Distance measuring setting

Distance staking out

lShft: Change the distance type to be staked out. HD/SD/VD

lS.O.: Start staking out the input distance

lMeas: Trigger measurement

lS.O.: Stake out another distance

lMode: Distance measuring setting

Axis stakeing out

Axis staking out equipped on Disteo 23 is such an unique program that helps to stake out the control points in an easier way.

After inputting the offset value from the control point to the known building axis, the program will calculate and indicate to find the points.

Setting out the axes is the primary task for construction. You can choose the relative axes to stake out based on the points' position. With this powerful program, Disteo 23 helps you to find the setting out point precisely in an easier way.

product show

Ruide Disteo 23 collimator theodolite surveying instrument with 2

Product Description

Distance Measurement	Vial
Range: 300m	Plate Vial: 30"/2mm
Accuracy: ±(3mm+2ppm*D)	Circular Vial: 8'/2mm
Measure Time:	Laser Tube
Continuous: 0.35s, Fine: 1.5s	Wave Length: 635 ±20nm
Atmosphere Correction: Manual input, auto correct.	Class II Laser
Angle Measurement	Spot Diameter: ≤5mm/100m
Prism Constant: Type: Absolute Encoding	Axis Error: ≤10"
Min. Reading: 1"	Laser Plummet
Accuracy: 2"	Accuracy: 31.5mm
Detection Method: Horizontal: Dual; Vertical: Dual	Spot Diameter: 32.5mm
Telescope	Length: 635 ± 20nm
Image: Erect	Class II Laser
Magnification: 30x	Display Unit
Effective Aperture: 40mm	2.7 inches, 160x96 dot
Resolving Power: 3"	4 lines display
Field of View: 1°30'	Power Supply
Min. Focus: 1.5m	Battery: Li-on Rechargeable
Stadia Accuracy: ≤0.40%/L	Voltage: 7.4V
Tube Length: 155mm	Working Hrs: 8 hrs
Compensator	Environment
Type: Single Axis	Working Range: -20°C - +50°C
Working Range: 3'	Dimension
Accuracy: 3"	Size: 165160340mm
	Weight: 4.7kg

Terms of payment

Generally, we accept Trade Assurance, Paypal, Advance T/T, and West

union.If you prefer other payment terms, please let us know.

Shipment

We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS,China Air Post.

You can also choose your own shipping forwarder.
