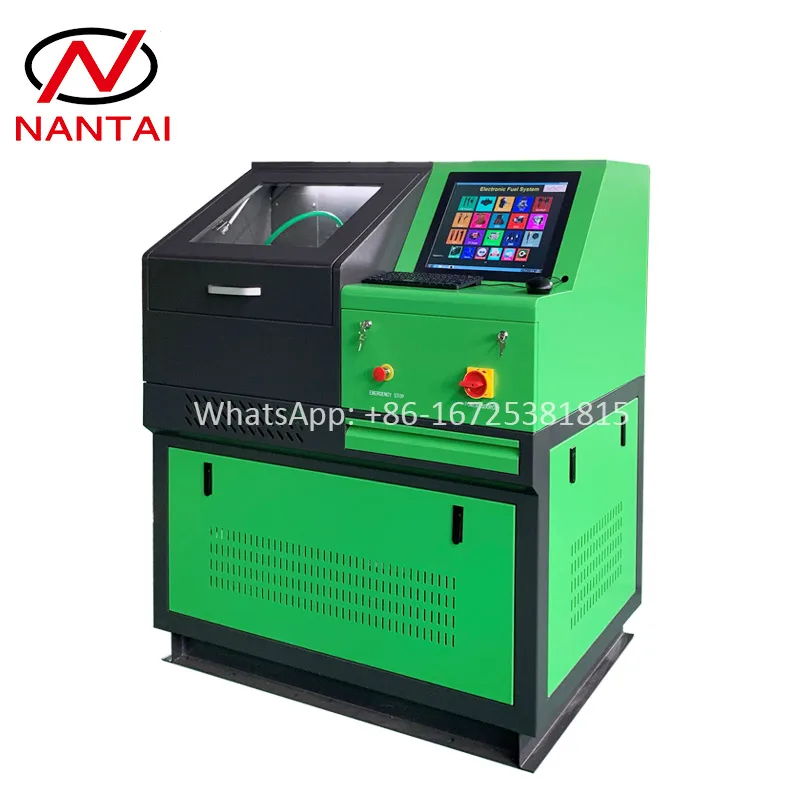

TAIAN NANTAI NTS300 CRDI Diesel Injector Tester Diesel Fuel Common Rail injector Test Equipment made in China

NTS300 fuel injector test equipment:

NTS300 Test bench is our latest Independence researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer, Windows operating system.  The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved.  It adopts  original CP3 common rail pump to provide 0~1600 bar for rail pressure(DENSO).  The rail pressure can be adjusted automatically,and it also provide pressure overload protect.  It can test common rail injector of all brands. Advanced technology, steady performance, precise measurement and convenient operation.



Youtube video:

https://youtu.be/uvcnown8a0A







Features of NTS300 fuel injector test equipment:

1.Controlled by industrial computer in real time, Windows operating system.
2.Oil quantity is measured by sensor and displayed on 19 tactile LCD screen.
3.More than 1000 kinds of injectors data can be searched and used
4.It is installed common rail pump to provide 0-2500 bar .
5.Rail pressure can be tested in real time.
6.Provide pressure overload protect by DENSO rail.
7.Pulse and frequency of the injector can be adjusted.
8.Injection time can be setted.
9.Protection function of short-circuit.
10.Precise measurement, easy operation, low noise.

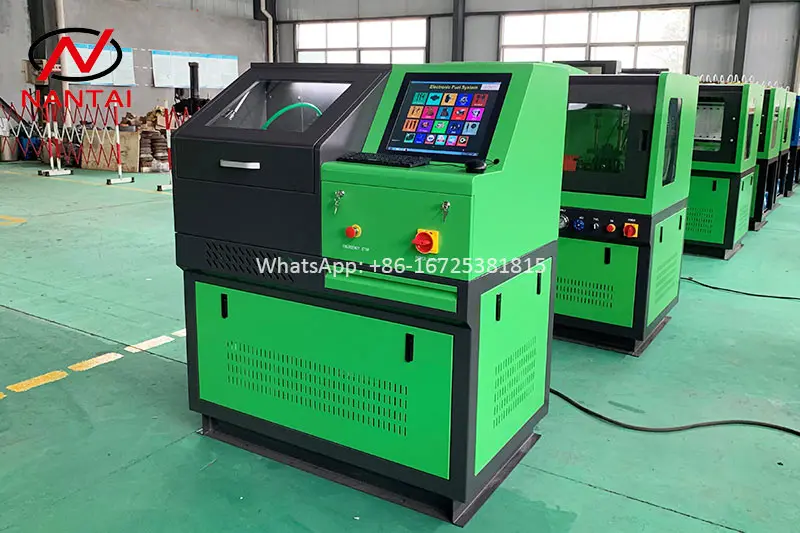

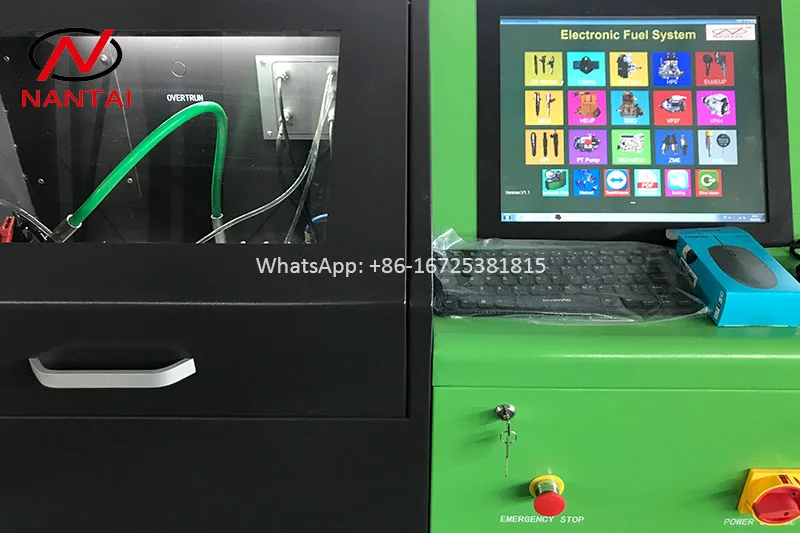

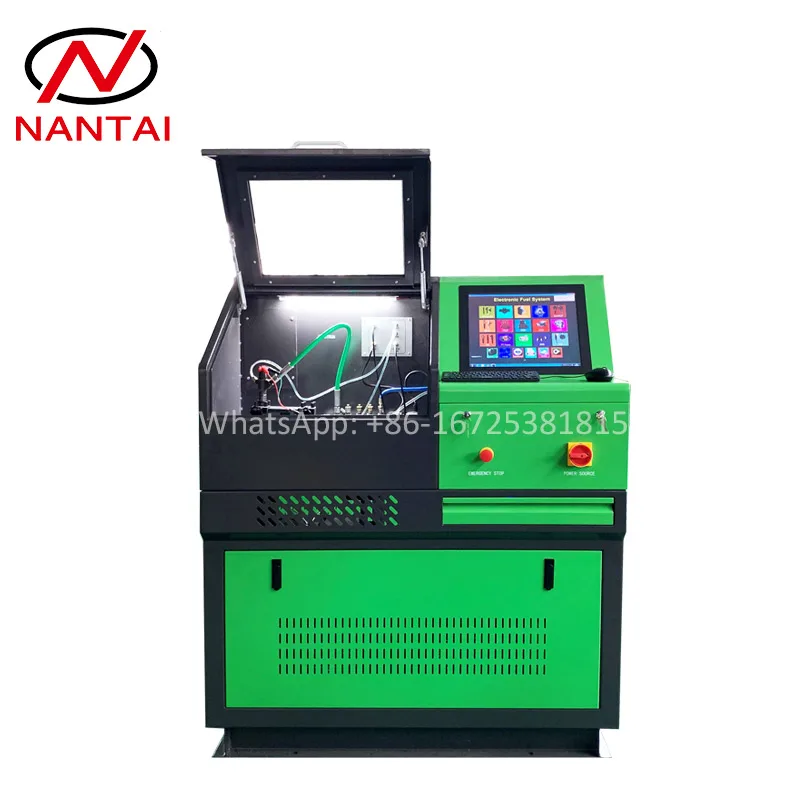

Machine Details of NTS300 fuel injector test equipment:













Functions of NTS300 fuel injector test equipment:

1.Test injector brands: All Brands
2.Test 1 piece of injector
3.Test the pre-injection of common rail injector.
4.Test the max oil quantity of common rail injector.
5.Test the cranking oil quantity of common rail injector.
6.Test the back flow oil quantity of common rail injector.
7.Test the average oil quantity of common rail injector.
8.Test the seal performance of common rail injector.
9.Data can be searched and saved.



Parameters of NTS300 fuel injector test equipment:

Pulse width	0.1-20ms
Continuous Injection Counts	0-1000 times
Temperature fuel	40±2℃
Rail high pressure	0-2500 bar
Test oil filtered precision	5μ
Rotation speed	0-3000 RPM
Oil tank capacity	1.6L
Weight	300KG





Packing Details of NTS300 fuel injector test equipment:

Standard wooden box for sea export.





Our Survice:

Providing professional consulting services, customized services, and reception services.
Providing technical support services all life;
The whole machine is guaranteed for 1 year (except for vulnerable parts).



Our factory:

Taian Nantai Experimental Equipment Co.,Ltd. is the leading manufacturer specializing in producing the Diesel Fuel Injection System Tester in the world. available for traditional diesel fuel injection pump test bench, high pressure common rail system test bench , and various kinds of fuel electronic controller pumps test system. Also available the nozzle spare parts and special assemble and disassemble tools for the different pumps.The company has strict internal management and established a complete and reliable quality assurance system, and rewards the ISO9001-2000 CERTIFICATE and CE CERTIFICATE.







Different functions and applications can be customized and developed according to customers' demand.
