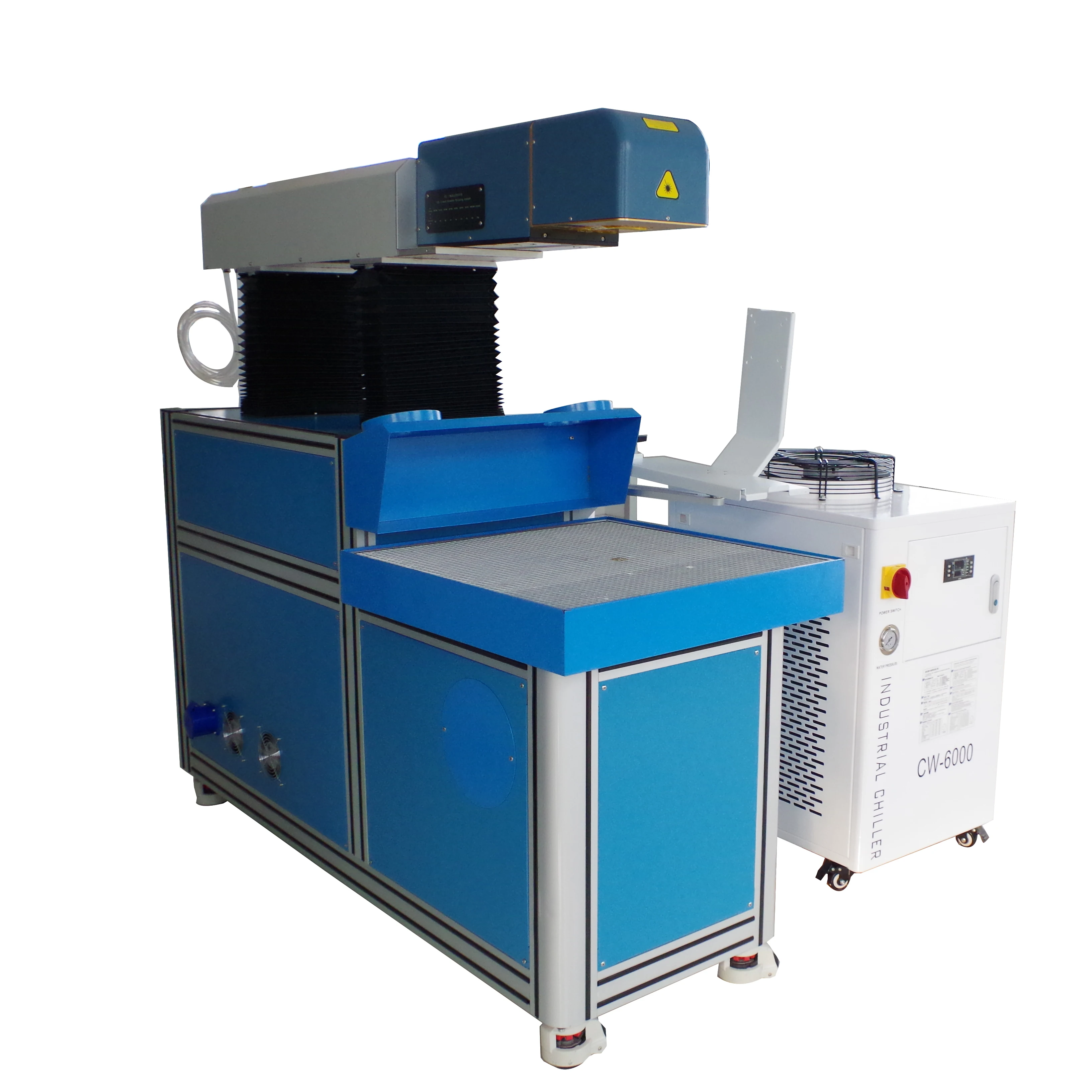

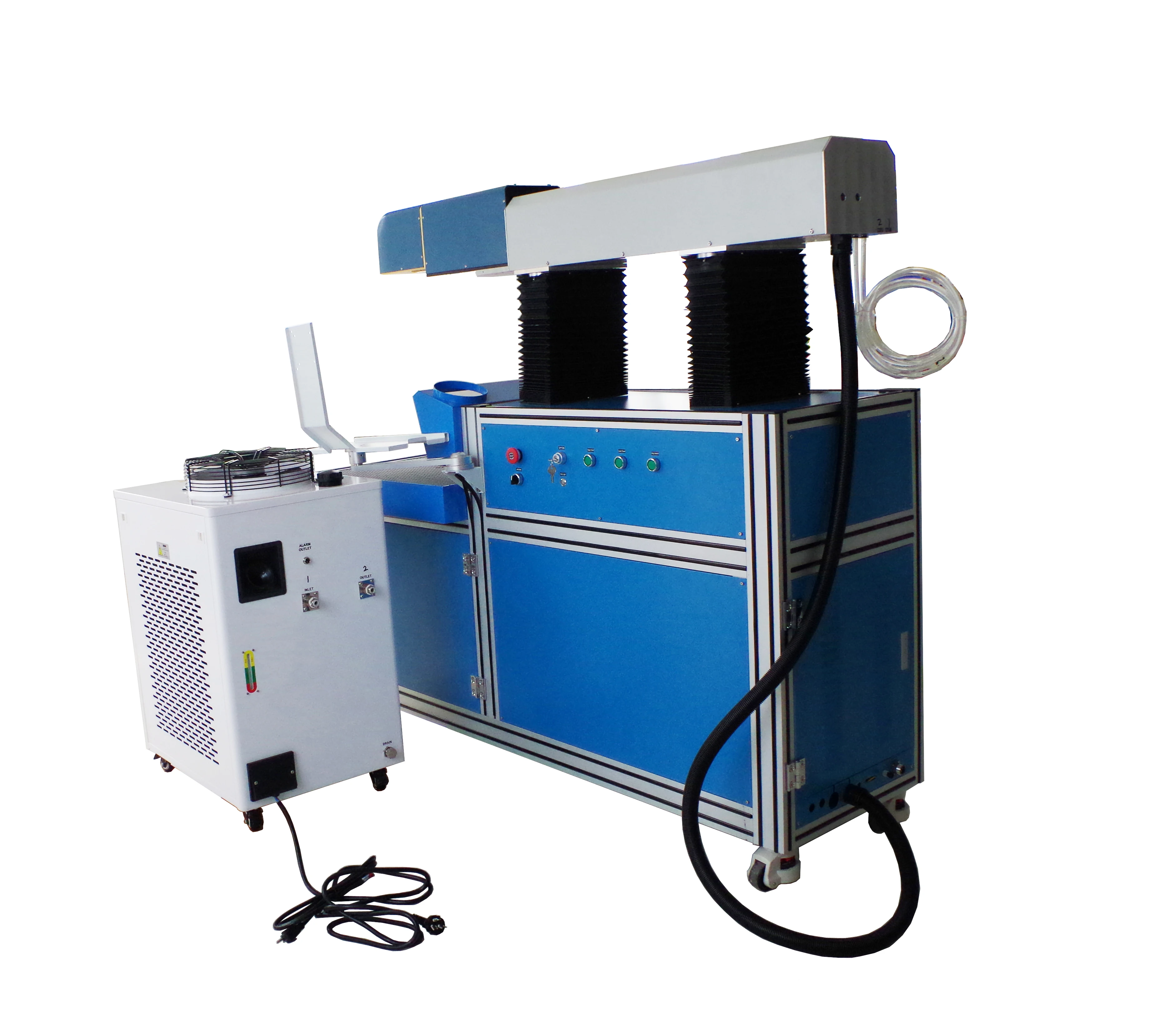

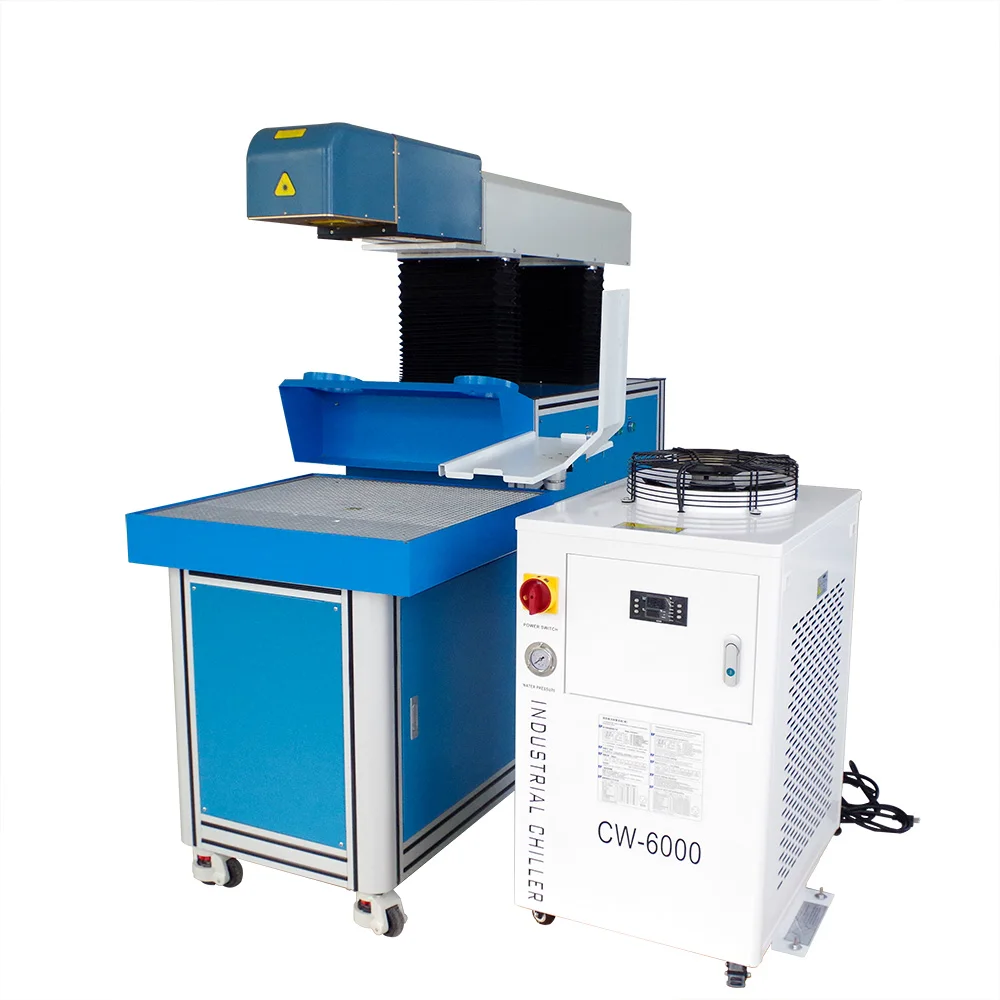

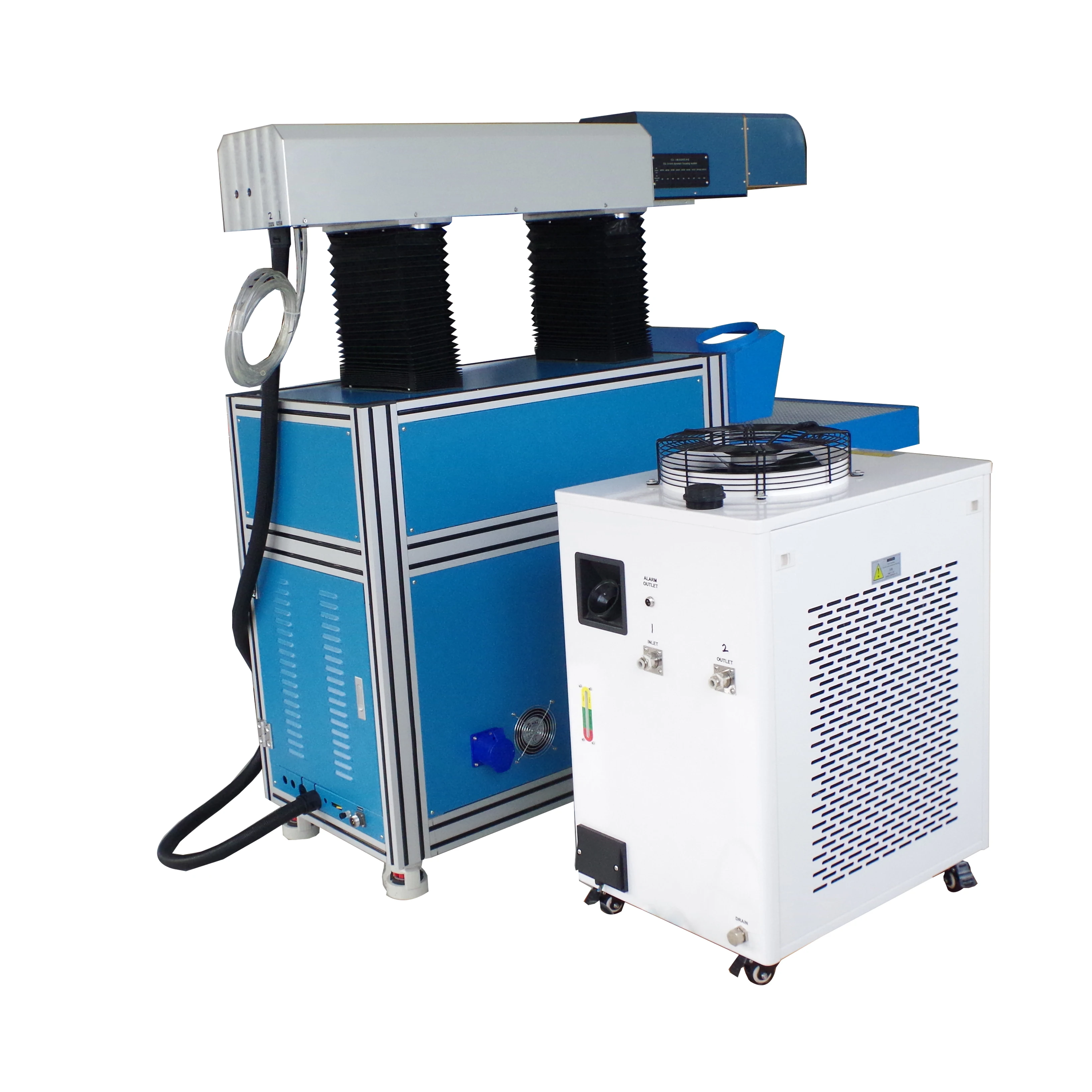

60 Вт 80 100 200 углекислотный Лазерный Гравировальный аппарат для удаления с динамическим
- Категория: >>>
- Поставщик: Liaocheng,Ray,Fine,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 18802.73 $* | 19742.49 $* |
| Aug-19-2025 | 18644.41 $* | 19576.17 $* |
| Jul-19-2025 | 15642.10 $* | 16424.72 $* |
| Jun-19-2025 | 18328.80 $* | 19244.30 $* |
| May-19-2025 | 15958.19 $* | 16756.53 $* |
| Apr-19-2025 | 18012.98 $* | 18913.58 $* |
| Mar-19-2025 | 17854.15 $* | 18747.53 $* |
| Feb-19-2025 | 17696.59 $* | 18581.21 $* |
| Jan-19-2025 | 17538.84 $* | 18415.45 $* |
Характеристики
Product Description
3D MORE SUITABLE FOR LARGE FORMAT HIGH SPEED MARKING WITH HIGH PRECISION. SUITABLE FOR CURVED, IRREGULAR SURFACE MARKING
MACHINE FEATURES:
1) High precision marking, swift, engraving depth controllable.
2) Applied on most of non-metal material.
3) Excellent beam quality, high photoelectric conversion efficiency, good performance and can be competent at fine processing.
4) Windows interface adopted, compatible with CORELDRAW, AUTOCAD, PHOTOSHOP, etc.
5) Support PLT,PCX, DXF,BMP and other formats, execute SHX, TTF font directly, support automatic code, serial number, batch
number, two-dimensional bar code marking, and garphic anti marking function available.
MACHINE FEATURES:
1) High precision marking, swift, engraving depth controllable.
2) Applied on most of non-metal material.
3) Excellent beam quality, high photoelectric conversion efficiency, good performance and can be competent at fine processing.
4) Windows interface adopted, compatible with CORELDRAW, AUTOCAD, PHOTOSHOP, etc.
5) Support PLT,PCX, DXF,BMP and other formats, execute SHX, TTF font directly, support automatic code, serial number, batch
number, two-dimensional bar code marking, and garphic anti marking function available.
Model RF-CO2-3D |
Working size 100/200/300/400/500/600/800/1000/1200mm |
Laser power 60W/80W/100W/150W Reci or US Synrad metal laser tube |
Galvo system High quality Galvo scanning system- 3D |
Laser Power Control 0-100% Software Controlling |
Axial Speed 0-8000mm/s |
Motion System Servo Motor/ stepper motor |
Repeat Location Accuracy ± 0.01mm |
Voltage 110V/220V, 50HZ/60HZ |
Cooling System Industrial water chiller |
Min character 0.3mm |
Operate system Windows XP/7/8/10 |
Format Support PLT/DXF/AI/SDT/BMP/JPG/JPEG/GIF/TGA/PNG/TIF/TIFF/STL CorelDraw/PhotoShop/AutoCAD/Illustrator |
Software Lenmark-3DS |
Package size Length*width*height :1800x750x1500mm Gross weight:300kg |
Sample
Marking & Engraving material:
Wood, paper, leather,cloth, plexiglass, epoxy, acrylic, unsaturated polyester resin and other non-metal materials.
Wood, paper, leather,cloth, plexiglass, epoxy, acrylic, unsaturated polyester resin and other non-metal materials.
Details Show

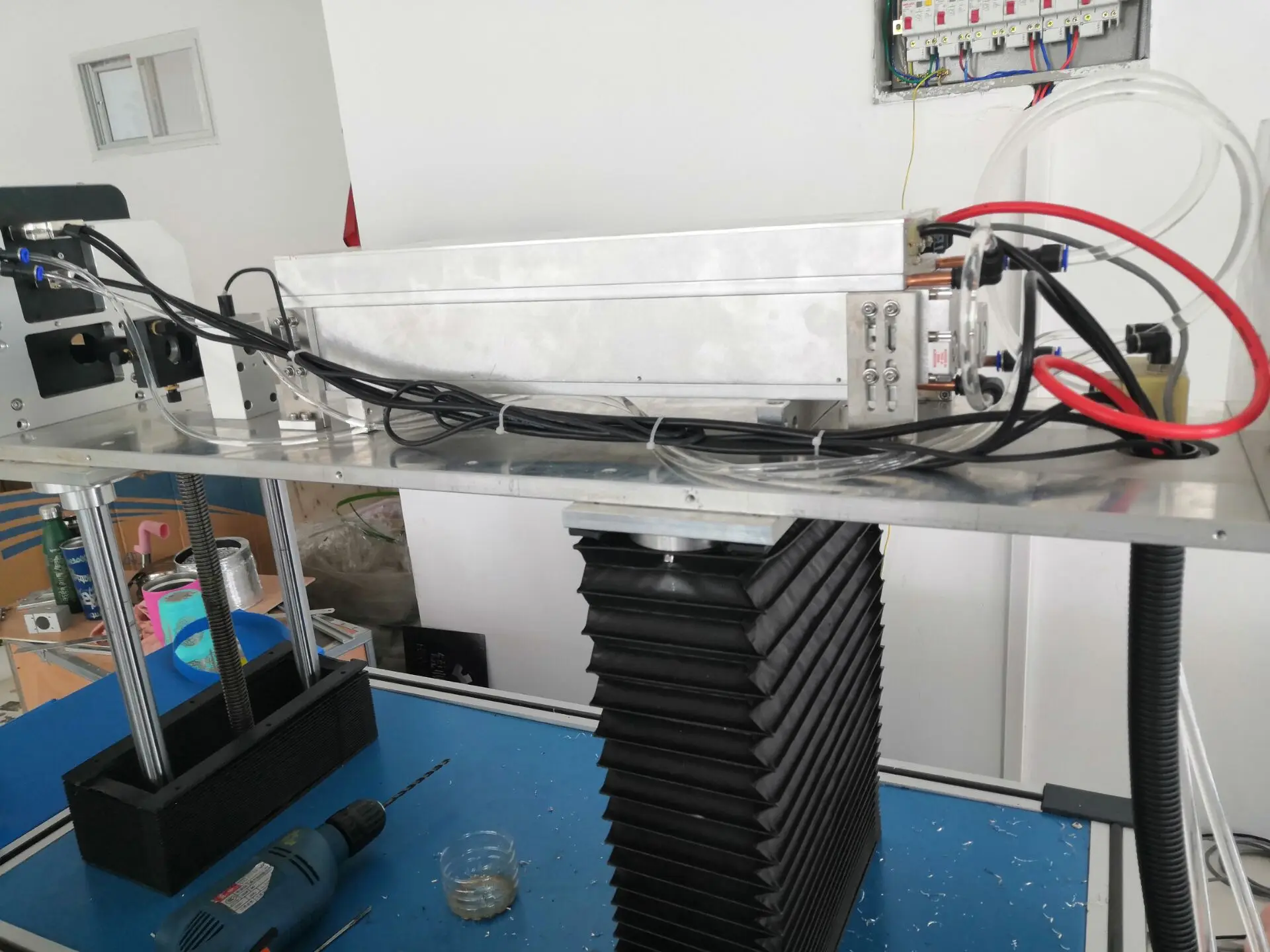

Metal laser tube (optional)
-US Synrad / Coherent metal laser tube.
-Better and finer spot size for fine marking.
Glass laser tube (optional)
-Reci glass tube 60W/80W/90W/100W/150W .
-Economical price and high power output.
High quality high speed 3D galvanometer and field lens. (FEELTEK or SINO-GALVO brand)
Stable metal work platform, and high quality push button switches and power supplies
Professional industrial chiller CW5000/CW6200
Packing Shipping
Packing Cling film, foam, wooden box, fixing tape
Delivery time 20 Days
Shipping Consider Air and Sea
Our Service
Training Service
As well, you may send your technician to our company to learn how to operate machines.
Quality Guarantee
We arrange final test before shipment. We run the machine without material for a few days, and then cut materials for test. After
making sure machine is the best performance, then ship out the machine.
Operating guide
Explain the use of machines and software. Guide the customer proper use, extend product life and reduce energy consumption.
Machine maintenance&Warranty
Explain the maintenance of machine parts to extend product life and save the energy consumption
The whole set of machine warranty period is 2 year.
As well, you may send your technician to our company to learn how to operate machines.
Quality Guarantee
We arrange final test before shipment. We run the machine without material for a few days, and then cut materials for test. After
making sure machine is the best performance, then ship out the machine.
Operating guide
Explain the use of machines and software. Guide the customer proper use, extend product life and reduce energy consumption.
Machine maintenance&Warranty
Explain the maintenance of machine parts to extend product life and save the energy consumption
The whole set of machine warranty period is 2 year.
