Самоустанавливающийся башенный кран 50t для строительства по низкой


Поделиться:


Цена:60 000,00 $ - 80 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 71400.88 $* 74970.59 $*
Aug-19-2025 70800.14 $* 74340.32 $*
Jul-19-2025 59400.26 $* 62370.25 $*
Jun-19-2025 69600.96 $* 73080.88 $*
May-19-2025 60600.88 $* 63630.7 $*
Apr-19-2025 68400.99 $* 71820.83 $*
Mar-19-2025 67800.52 $* 71190.91 $*
Feb-19-2025 67200.26 $* 70560.77 $*
Jan-19-2025 66600.56 $* 69930.34 $*

Характеристики






Product Description

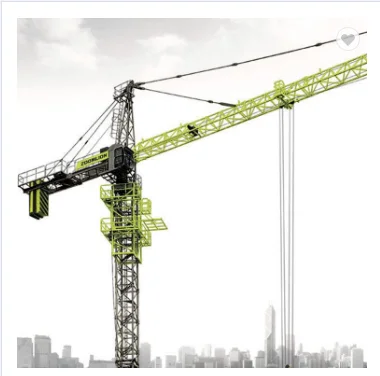

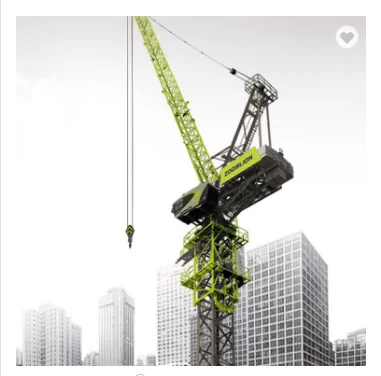

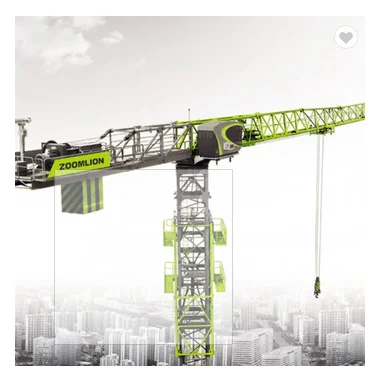

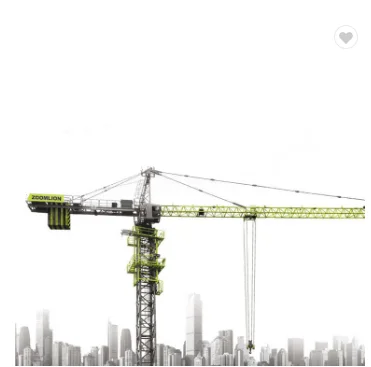

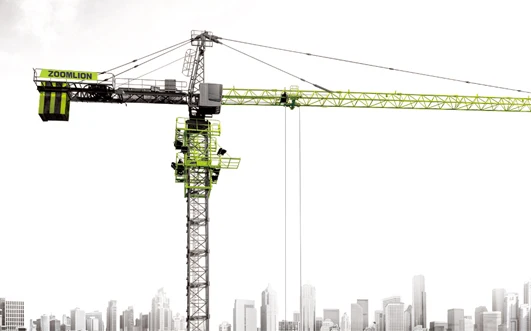

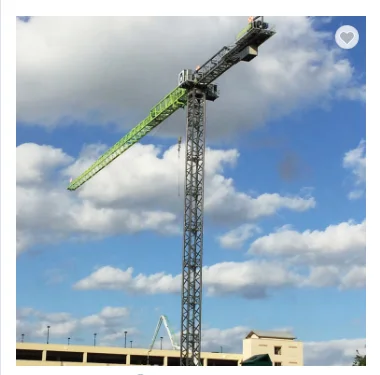

Low Price 50t Self Erecting Tower Crane for Construction


1. Performance parameters of L630-50: performance parameters and technical indexes reach both domestic and international advanced level.
• Max. jib length: 60m; Jib length under different assembling modes can decrease progressively by 5 meters and the Min. jib length is 30 meters.
• Max. lifting capacity 50t;
• Max. hoisting capacity at jib tip:9.5t;
• Max. lifting moment 800 t.m;
• Max. free-standing height:51.65m; Max. working height of anchored crane: 300m;
• Hoisting mechanism:QPL5080; power: 160kW; rope capacity:600m;
• Slewing mechanism:HPW75F1.130B×2/HPW75F2.130B×1; power: 3×7.5kW;
• Trolleying mechanism: BPL900; power:90kW
• Types of tower crane: stationary crane with embedded outriggers, stationary crane with embedded bolts, stationary crane with under-frame and mobile tower crane.

2. Electrical control system
With PLC control, the electrical control system enjoys better reliability and safety. Produced by professional manufacturers with advanced foreign technology, the electrical elements feature service lives that are 3 or 4 times longer than that of domestic products, less faults, easy maintenance and repair as well as reliable operation.

3. Technical features
• The crane boasts of multiple operation modes and wide application. The crane can work in different forms: stationary crane with embedded outriggers, stationary crane with under-frame, stationary crane with embedded bolts and crane anchored to wall, thus being applicable to various construction projects.
• The complete machine adopts internationally well-received beautiful shape;
• The crane features high working speed and excellent speed regulation performance. Stepless speed regulation by frequency control, the world's most advanced solution, is adopted for the trolleying mechanism and slewing mechanism, thus ensuring more stable and reliable operation ;
• The cab is independently installed externally with good vision and large inner space, thus offering a good working environment for operators;
• A variety of safety devices are equipped, which are all mechanical or mechatronic products that are applicable to severe working conditions, so as to ensure the tower crane's reliable operation..
















































































Ratedliftingmoment(kN.m)6300
 Max.liftingheight(m)Free-standingstationarycrane51.65
Anchoredcrane300
Workingradius(m)Max.workingradius60
Min.workingradius6.3
Max.liftingcapacity(t)50
Hoistingmechanism Ropefallα=2α=4
Speed(m/min)0~320~640~800~160~320~40
Liftingweight(t)2512.56502512
Power(kW)160
SlewingmechanismSpeed(m/min)0~0.61
Power(kW)3×7.5
TrolleyingmechanismSpeed(m/min)3(15°~85°)
Power(kW)90
