Product Description

Factory custom workshop pipe handling electric steel beam structure transfer truck

These Factory custom workshop pipe handling electric steel beam structure transfer truck have been conceived and built to realize their utmost working flexibility.Because they have no predefined path and can steer in any direction and move on any kind of floor. And these transfer truck are very useful to bring the heavy loads where overhead cranes cannot arrive.

The features as following:

1. The transfer truck is battery powered, they represent the best solution for all those appliances with delicate handling problems in limited places.(360 degree turning flexibly)

2. The trackless transfer truck is very flexible since it can move freely around the plant as indoor as outdoor.

3. It is equipped with non-marking wheels to avoid any mark on floor.(Imported PU wheel or customized)

4. Easy operation make transfer cart perfect to meet the most important requirements: where space is very limited and paths are strictly constrained.

5. Dimensions,capacity, loading platform superstructure, speed and many others features can be customized as per client request.Factory custom workshop pipe handling electric steel beam structure transfer truck

Want more details,please contact us

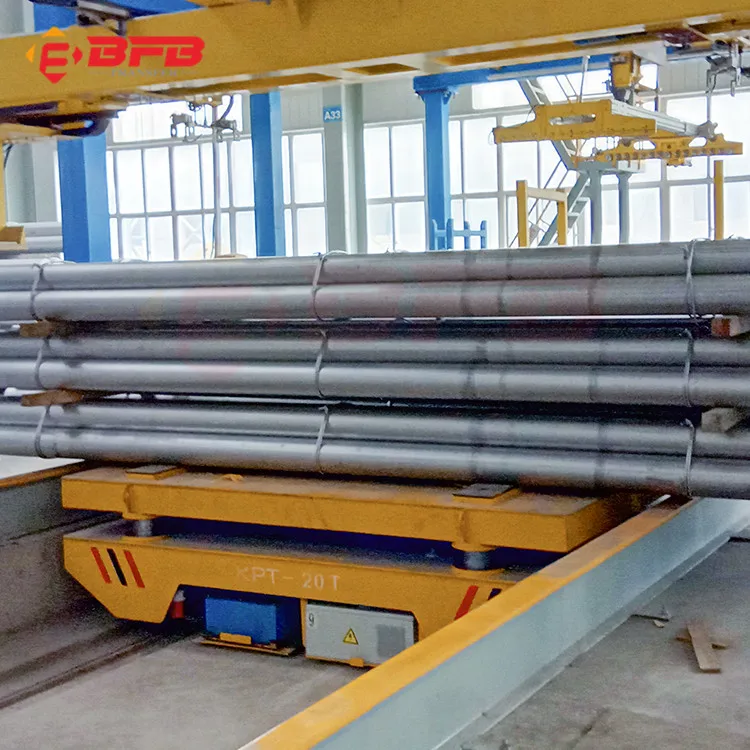

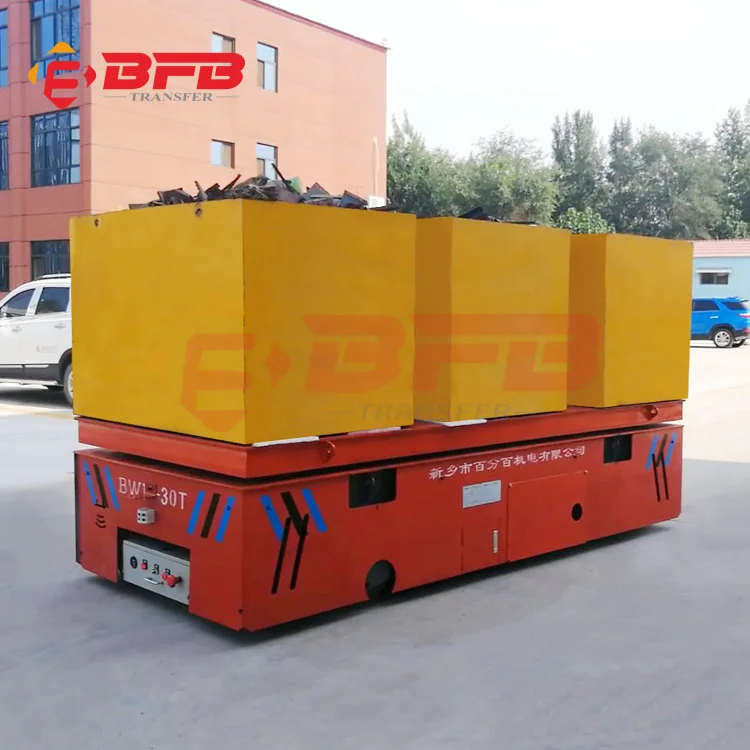

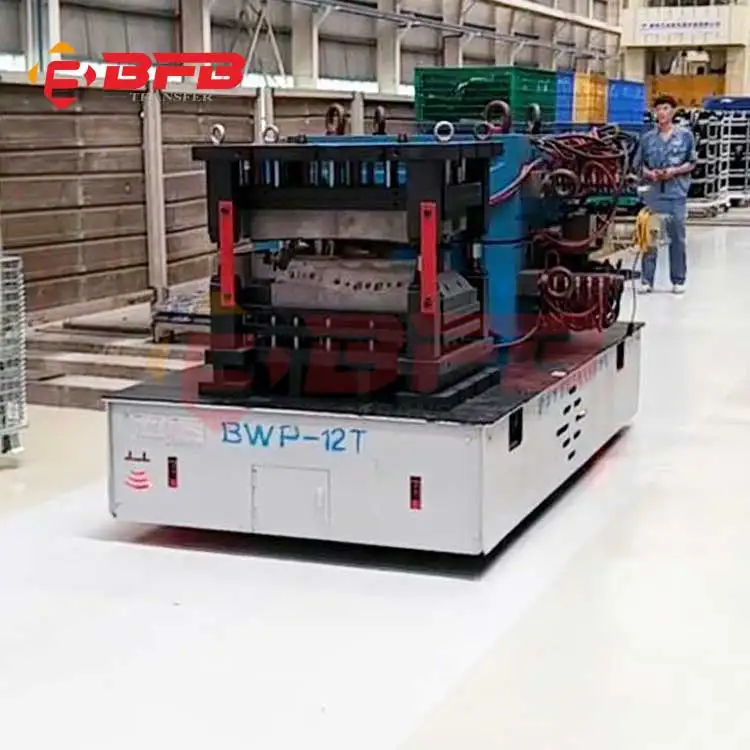

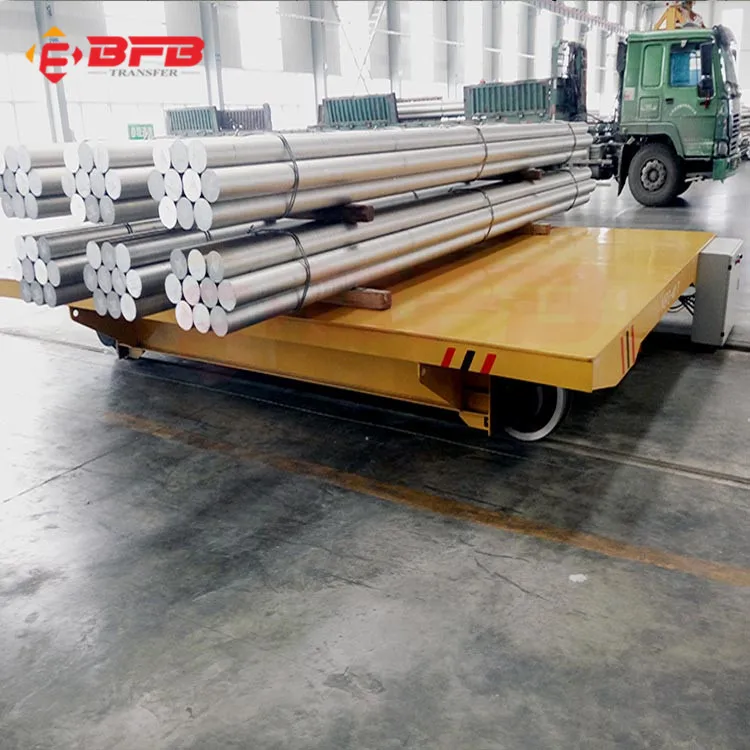

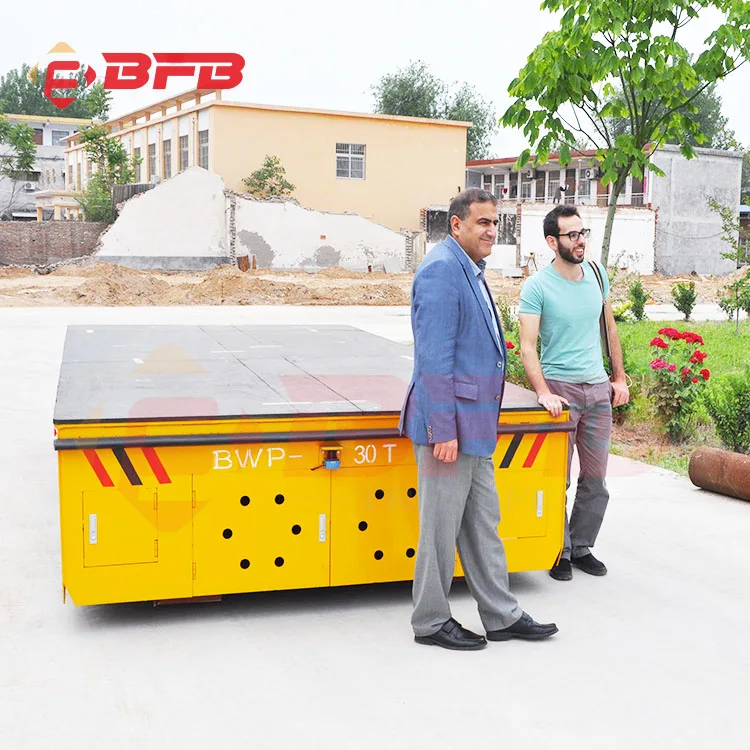

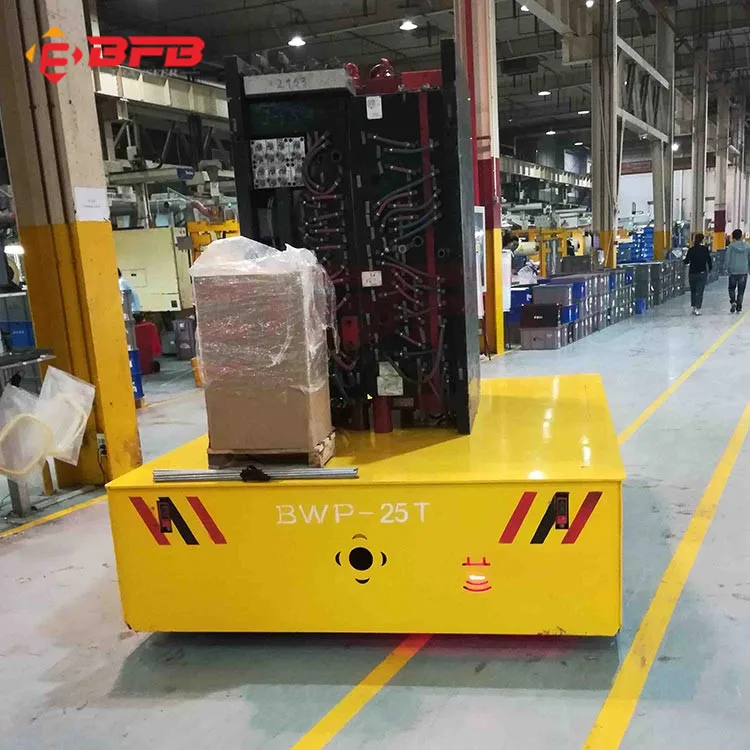

Detailed Image

Get more parts details,contact us.

Advantage

1.   High level automation(self propelled/steerable)
2.   The largest capacity can reach to 500t
3.   Safe parts are installed in the transfer truck(warning light, e-stop, buffer...)
4.   Robust sturdy transfer car frame
5.   AC/DC electric engine , diesel engine or pneumatic engine
6.   Excellent gear reducer and motor with high quality, assemblied together perfectly
7. Remote control&hand pendant control make the opration more convenient.
8.   The speed can be adjusted
9.   Easy operation and maintenance
10. Famous brand parts, guarantee the quality and prolong the using lifetime
11. Low noise and do not pollute the environment

Product Parameter

Modle	BWP-2T	BWP-10T	BWP-30T	BWP-50T	BWP-80T	BWP-100T
Table Size (m)	2.01.50.45	2.32.00.55	3.52.20.7	5.52.60.8	6.52.80.95	6.63.01.2
Power	Maintenance Free Battery
Wheel Base	1080mm	1650mm	1650mm	2000mm	1950mm	2000mm
Wheel Dia.	250mm	350mm	450mm	600mm	600mm	600mm
Running Speed	0-20m/min	0-20m/min	0-20m/min	0-20m/min	0-20m/min	0-20m/min
Motor Power	2*1.2kw	2*2.2kw	2*5.5kw	2*7.5kw	30kw	40kw
Battery Capacity	250Ah	250Ah	450Ah	500Ah	800Ah	1000Ah
Battery Volatge	24v	48v	48v	48v	72v	72v
Max Wheel Load	14.4Kn	42.6Kn	110.4Kn	174Kn	185Kn	190Kn
Reference weight	2.3t	4.2t	6.8t	8t	14.6t	26.8t

Remark: The technical parameter of the trackless transfer truck only can be make reference above.All can be customized manufacturing as per your true demand. Please contact us if any doubt. Our professional engineer will help you solve the transfer cart problems in any time.
