Weighing Belt Feeder Controller Belt Conveyor Scale Counter Controller Supmeter BST100-E21

 Technical Specification

• Executing Standard

• CMC GB/T 7724-2008PRC National Standard.

² OMIL R50:1997International Recommendation.

² Accuracy Grade: 0.5.

² Accuracy of Flow Control: 0.5%~1.0%.

• Display

• 128×64 LCD display screen with 7 background colors for English display.


• Display Refreshing Time: Setting Range 0.1~2.0s.

• Loadcell Interface

• Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].


• Signal Input Range: 0~25mV.


• ∑-ADC: 24-bit, 100,000 internal code used.


• Sampling Frequency: 200Hz.


• Zero Drift: ±0.1μV/℃ RTI (Relative to Input).


• Gain Drift: ±5ppm/℃.


• Non-linearity: 0.005%FS.

• Speed Sensor Interface

• Output Voltage/Max. Current: DC12V/100mA.


• Speed Pulse Input Range: 0.5~3000Hz.

• Switch Signal Interface

• 3 Normally Open Switch Inputs [DI].


• 4 Normally Open Relay Switch Outputs [DO]: AC250V/DC24V, 1A.


• 1 ‘Totalized Weight High-speed Pulse’ Output [PO]: 100mA, DC5~24V; Weight per Pulse and Pulse Width can be preset.


State Indication

LED Lamp	Description
[RUN]	ON: Weighing state. OFF: Stopping state.
[AUTO]	Feeding control mode: ON: Auto [PID]. OFF: Manual.
[EXT]	Flow Set Mode: ON: External [AI: 4~20mA]. OFF: Internal.
[ALARM]	Alarm.
[LOCK]	ON: Key-locked. OFF: Key-unlocked.

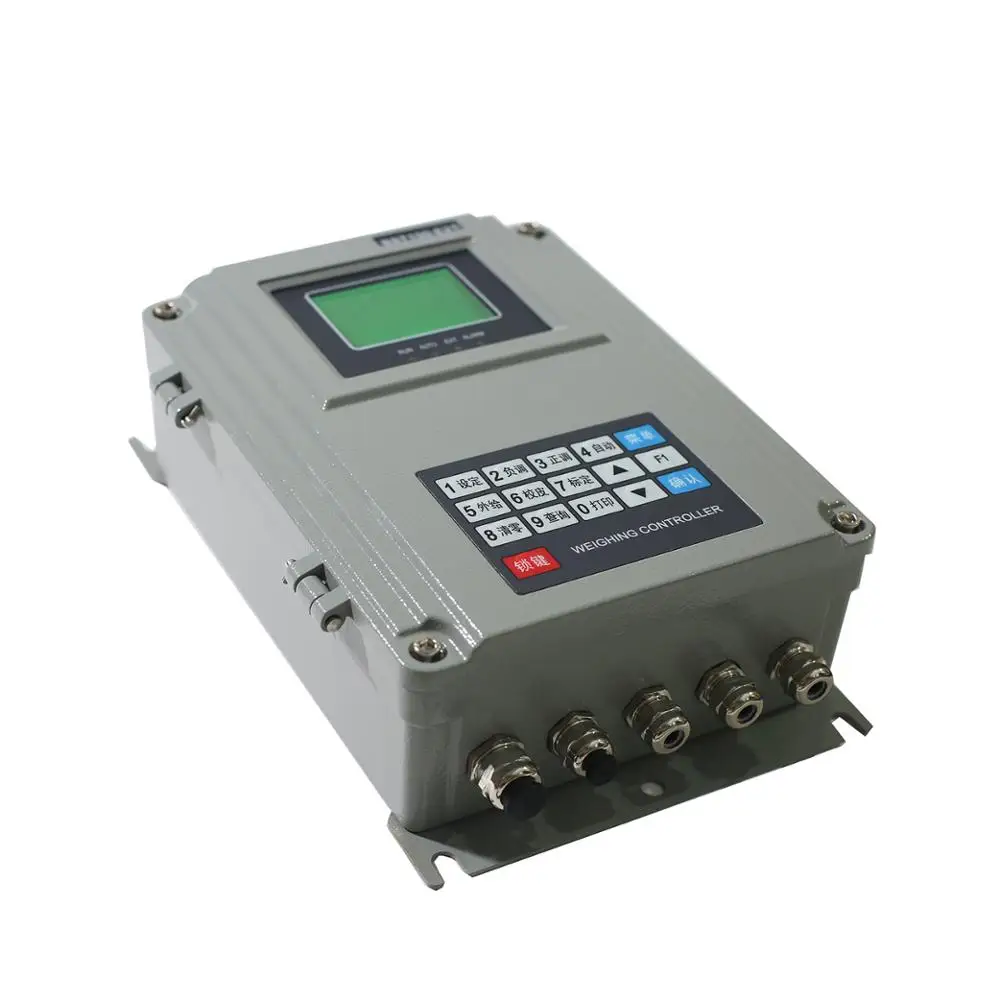

Model Wall-mounting Operation Interface



Model Wall-mounting Installation





 Ration Flow Auto-Feeding System

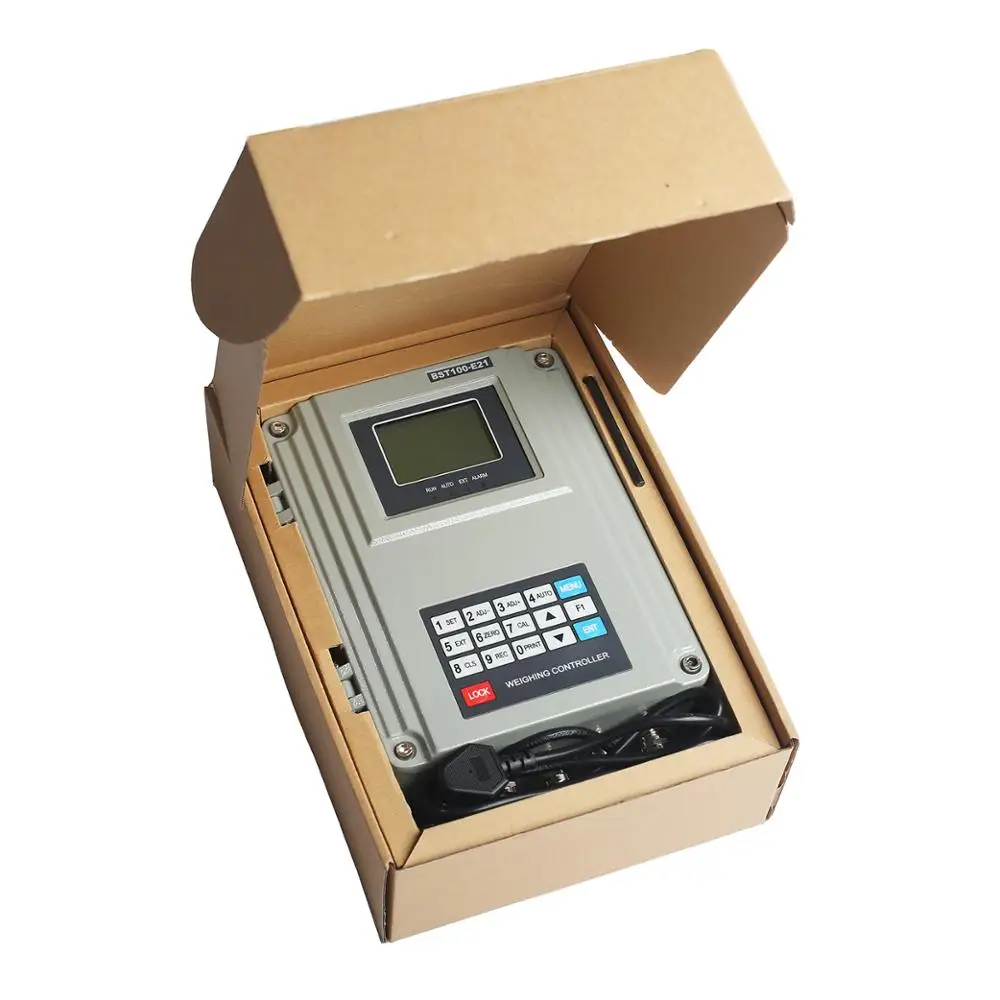

   Delivery
