Хорошая цена небольшие отходные шины установка пиролиза из пластика в топливное

Хорошая цена небольшие отходные шины установка пиролиза из пластика в топливное

Категория: Оборудование для обработки резины >>>
Поставщик: Xinxiang,Huayin,Renewable,Energy,Equipment,Co.,Ltd.

Цена:45 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	53550.46 $*	56228.74 $*
Aug-19-2025	53100.85 $*	55755.93 $*
Jul-19-2025	44550.5 $*	46778.1 $*
Jun-19-2025	52200.8 $*	54810.54 $*
May-19-2025	45450.24 $*	47723.13 $*
Apr-19-2025	51300.6 $*	53865.11 $*
Mar-19-2025	50850.14 $*	53393.72 $*
Feb-19-2025	50400.76 $*	52920.37 $*
Jan-19-2025	49950.75 $*	52448.8 $*

Характеристики

The introduction of HUAYIN waste plastic to fuel diesel oil pyrolysis plant

With the development of global economic and industry, countless amount of rubber, tire & plastic wastes are generated every day, which put enormous stress on environment. Since landfill and incineration are apparently not environmental methods for waste management, Therefore pyrolysis plant designed for recycling tire & plastic wastes into fuel oil ,carbon black and gas is developing and becoming known to more people in recent years as its environmental processing method and profitability.

process

The input raw material and their different oil yield

Approx oil yield rate of different raw material
PE/ldpe/hdpe	50%-75%	House garbage	35%-50%
PP	50%-75%	Plastic cable	80%
PS	50%-75%	Plastic bag	50%
Leftovers of paper	Wet 15-20%, dry 60%	Submarine cable	75%
ABS	40%	Rubber cable	35%

The Output product application of Huayin waste plastic pyrolysis plant

From waste tire pyrolysis plant, 4 kinds of products can be obtained: fuel oil, catbon black, steel wire, and incondensable gas. Fuel oil is widely used in industries, such as steel factory, heavy oil generator, cement factory, and boiler heating etc. Carbon black can be made into pellets for making new rubber products. Steel wire could be sold to the recycle station or steel mill for remelting. The incondensable gas is recycled to heat the pyrolysis reactor, saving energy.

iran

iran4

Iran5

Technical parameter

Model	HY-05	HY-08	HY-10	HY-12
Raw material	Waste rubbers/tyres/plastic	Waste rubbers/tyres/plastic	Waste rubbers/tyres/plastic	Waste rubbers/tyres/plastic
Daily Handling capacity	5 tons	8 tons	10 tons	12 tons
Working pressure	Normal pressure	Normal pressure	Normal pressure	Normal pressure
Main engine rotating speed	0.4R /min	0.4R /min	0.4R /min	0.4R /min
Power	15KWH	15KWH	15KWH	15KWH
Cooling Mode	Water	Water	Water	Water
Floor Area	200m2	250m2	300m2	300m2
Heating Mode	Direct	Direct	Direct	Direct
Oil Yield	45%-50%	45%-50%	45%-50%	45%-50%
Noise dB (A)	<=85	<=85	<=85	<=85
Machine dimension(mm)	D2200*L5000	D2200*L6600	D2600*L6600	D2800*L6600
Working Mode	Intermittence	Intermittence	Intermittence	Intermittence

Operation process

Step 1: Feeding (2 hours). Feed tyres into reactor manually or with auto feeder;

Step 2: Preheating (2-4hours). Tyres gradually melts under high temperature and oil gas comes out;

Step 3: Oil producing peak (8-10 hours). Oil gas goes through the cooling system and is cooled down into liquid fuel oil; some oil gas that cannot be further cooled down into liquid fuel oil under common temperature and common pressure ("syngas") will be recycled to furnace for heating, saving your fuel;

Step 4: Cooling (4 hours). After the oil processing process is completed, leave the plant for cooling.

Step 5: Carbon black discharging (1-2 hours). Use a fully-sealed carbon black discharging system to discharge carbon black.

Step 6: Pulling out steel wire (0.5h).

Main advantages of Huayin waste tire/plastic pyrolysis plant

photobank (7)

a) Safety

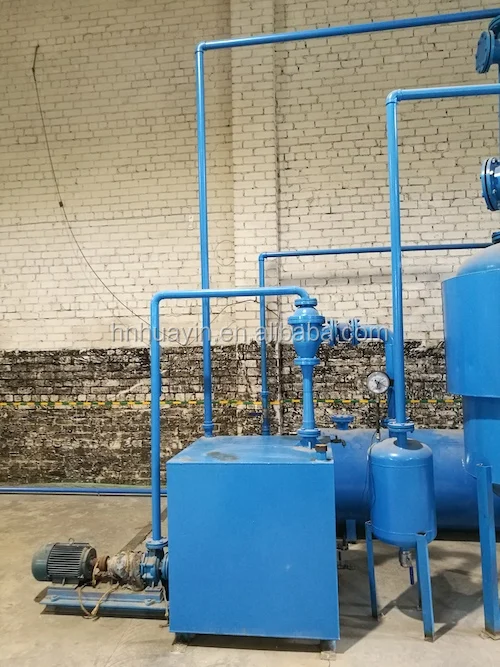

1) Two devices to avoid backfire in production: oil-water separator and anti-back fire device.

2) Vacuum device makes reactor working under ordinary pressure or negative pressure.

3) Temperature monitoring , Pressure gagedevice to avoid excessive working temperature.

photobank (38)

b) Environmental protection

1) The flue gas (caused by burning fuel to heat the reactor) will be purified and cooled by dust removal device, then can be released into air through chimney.

2) The syngas that can not be liquified to fuel oil will back to the furnace for burning.

mmexport1509630433050
