P01010001 Snoring Sensor Sleep study sensor UNICARE High-Frequency Electrode new medical cap products

Описание и отзывы

Трекер стоимости

Характеристики

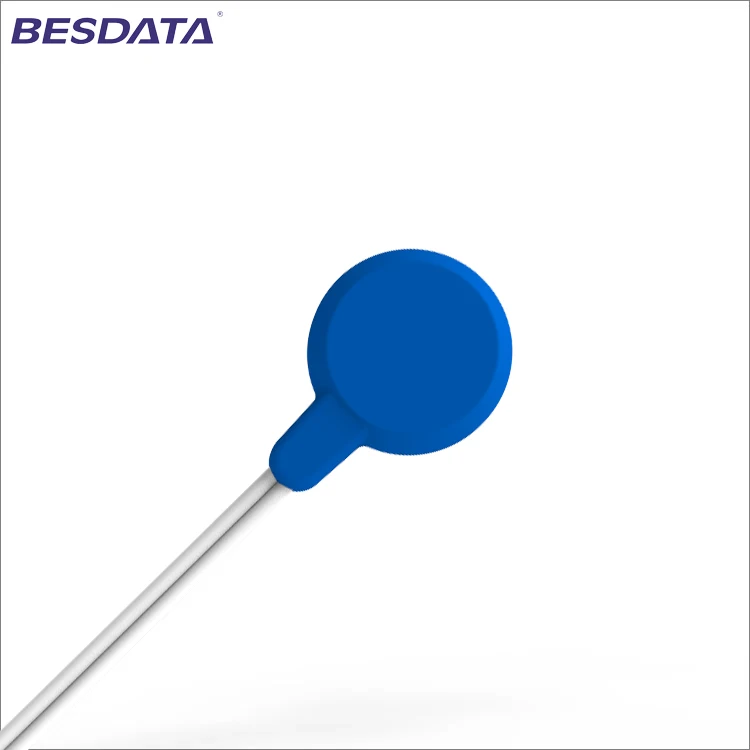

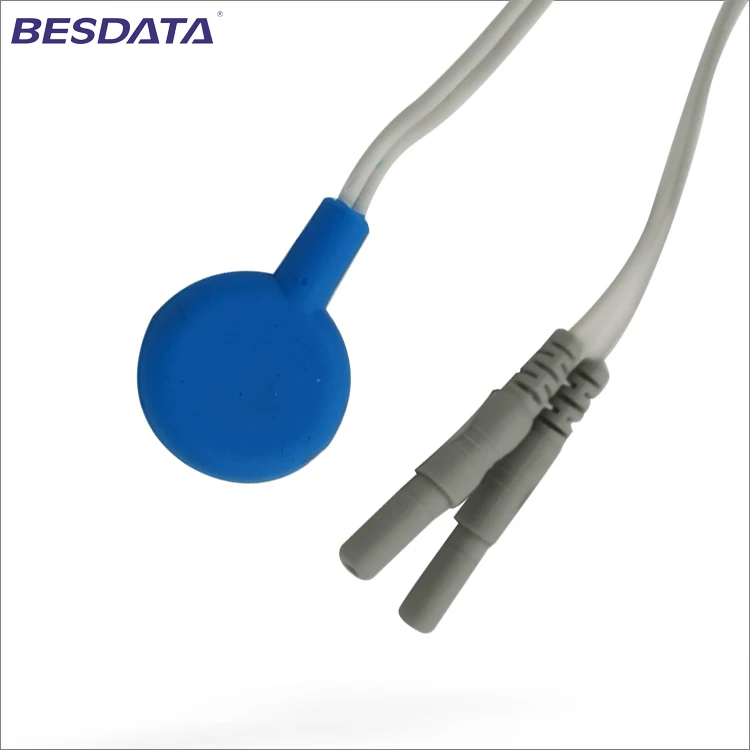

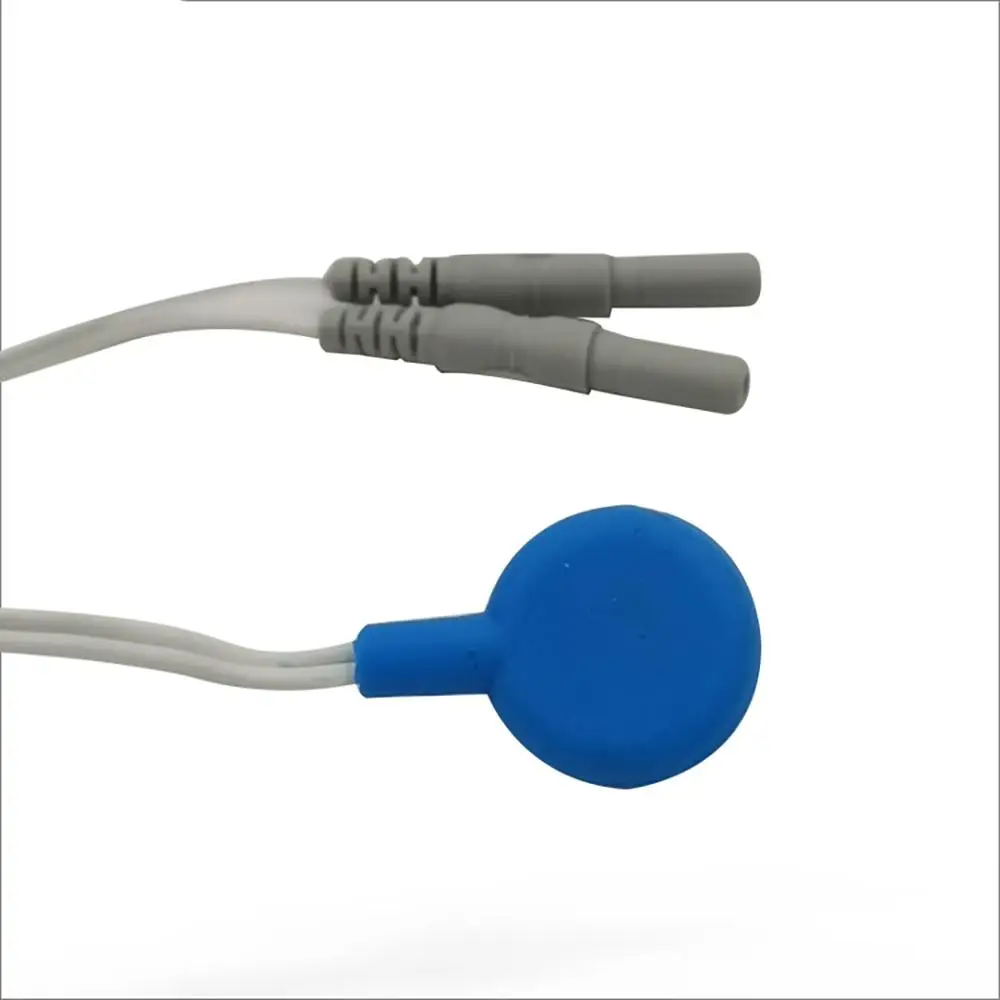

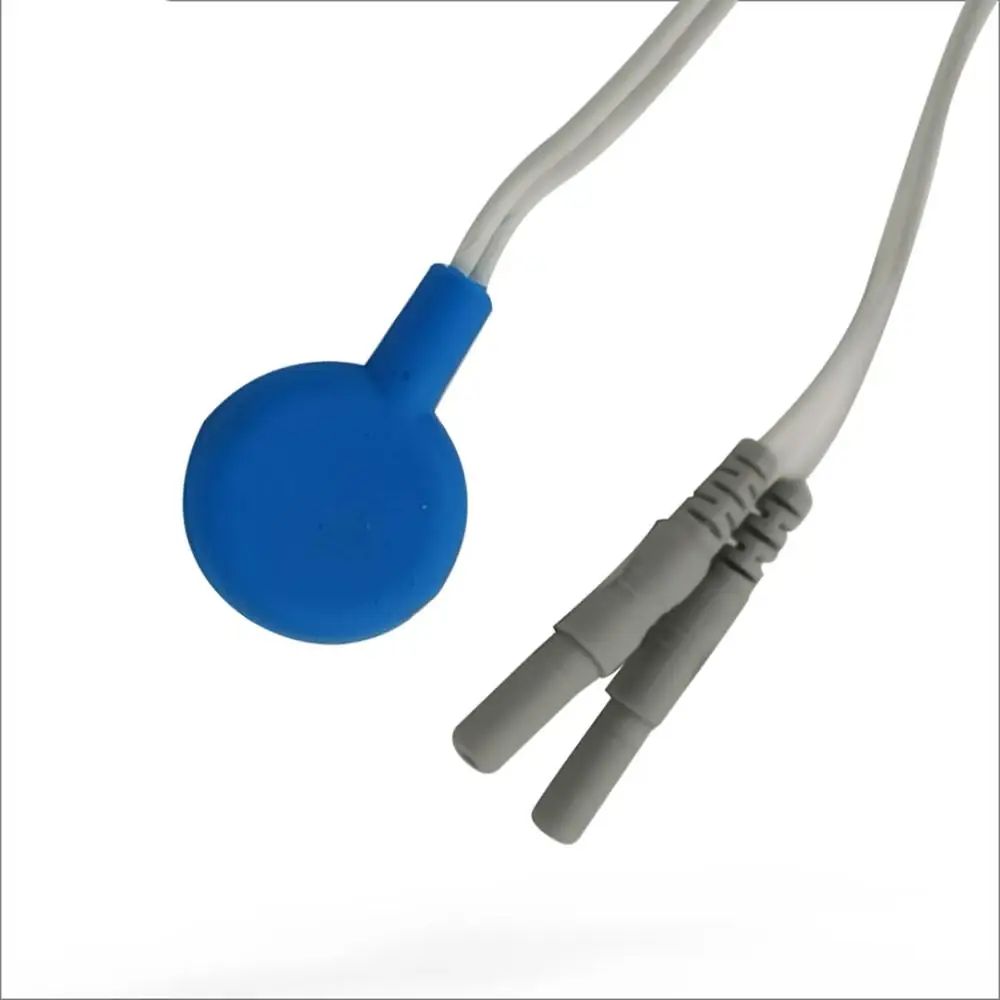

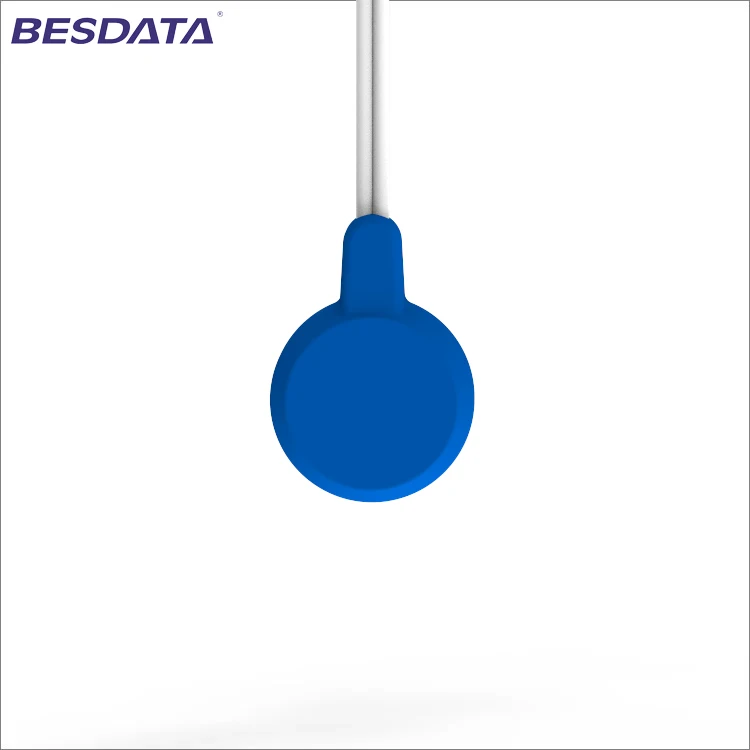

UNICARE Snoring Sensor

High-Frequency Electrode



Snoring Sensor

Sleep study sensor

Snore measure sensor

Snore sensor



Application:

Snoring Sensors respond to snoring and other sounds in the audio range picked up through the skin, and convert them to a small analog voltage that provides a clear, reliable indication of the presence of these sounds. SleepSense Piezo Snore Sensors are designed with a large sensitive area to improve signal stability and a soft, flat surface to seal against ambient noises.



Features:



Picks Up Snoring Vibrations

Compact, Low-Profile Design

Accurate Readings

increased sensitivity ,

Extensive and flexible placement range,

lightweight

connector to AC jack,

No batteries required





Applying the sensor:

1, The sensor is attached to patient’s neck.

2, To position the sensor, place the sensor with the opening side or protruding side,against the skin and use medical grade tape to hold the snesor in place.Make sure the sensor is tight against the skin to ensure that the vibrations are clearly transmitted to the sensor during snoring

3,Ask the patient to simulate snoring, and check that clear,strong signals are being transmitted before leaving the patient and starting the study.
