Профессиональное оборудование для бассейна дезинфекционная машина серия EC электролиз Хлорная
- Категория: Бассейн и аксессуары >>>
- Поставщик: Guangzhou,Palicy,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 214.50 $* | 225.21 $* |
| Aug-19-2025 | 212.69 $* | 223.24 $* |
| Jul-19-2025 | 178.87 $* | 187.89 $* |
| Jun-19-2025 | 209.18 $* | 219.11 $* |
| May-19-2025 | 182.73 $* | 191.88 $* |
| Apr-19-2025 | 205.5 $* | 215.57 $* |
| Mar-19-2025 | 203.42 $* | 213.59 $* |
| Feb-19-2025 | 202.28 $* | 212.12 $* |
| Jan-19-2025 | 200.18 $* | 210.41 $* |
Характеристики
Product Description
The EC series salt chlorine machine adopts advanced microcomputer technology, which is easy to operate, fully functional, with automatic cleaning function, automatic alarm when obstacles occur, etc. You can choose the appropriate specifications according to your actual needs.
Direction for use
使用说明
1.Before use，please ensure that the pipe used for installation is the same size with the salt chlorinator. The nominal
diameter of the connection pipe of the chlorinator is :1.5"(metric：∅50mm；inches：1.5"/∅48mm)
2.Before use，please ensure that the valve of the pipe connecting to the chlorinator is turned off.
3.Before installation，please clean any clutter or oil off of the pipes and connection joint.
4.The salt chlorinator should be installed with the return pipe to the pool and by the bypass of the water treatment shown
on the diagram.A adjust valve needs to be installed on the main pipe（as shown on Diagram 1 or Diagram2）.
5.Before installing the salt chlorinator ，please ensure that the water flow matches the direction the chlorinator indicates.
6.When connecting the pipes to the chlorinator，please use glue specialized for PVC.

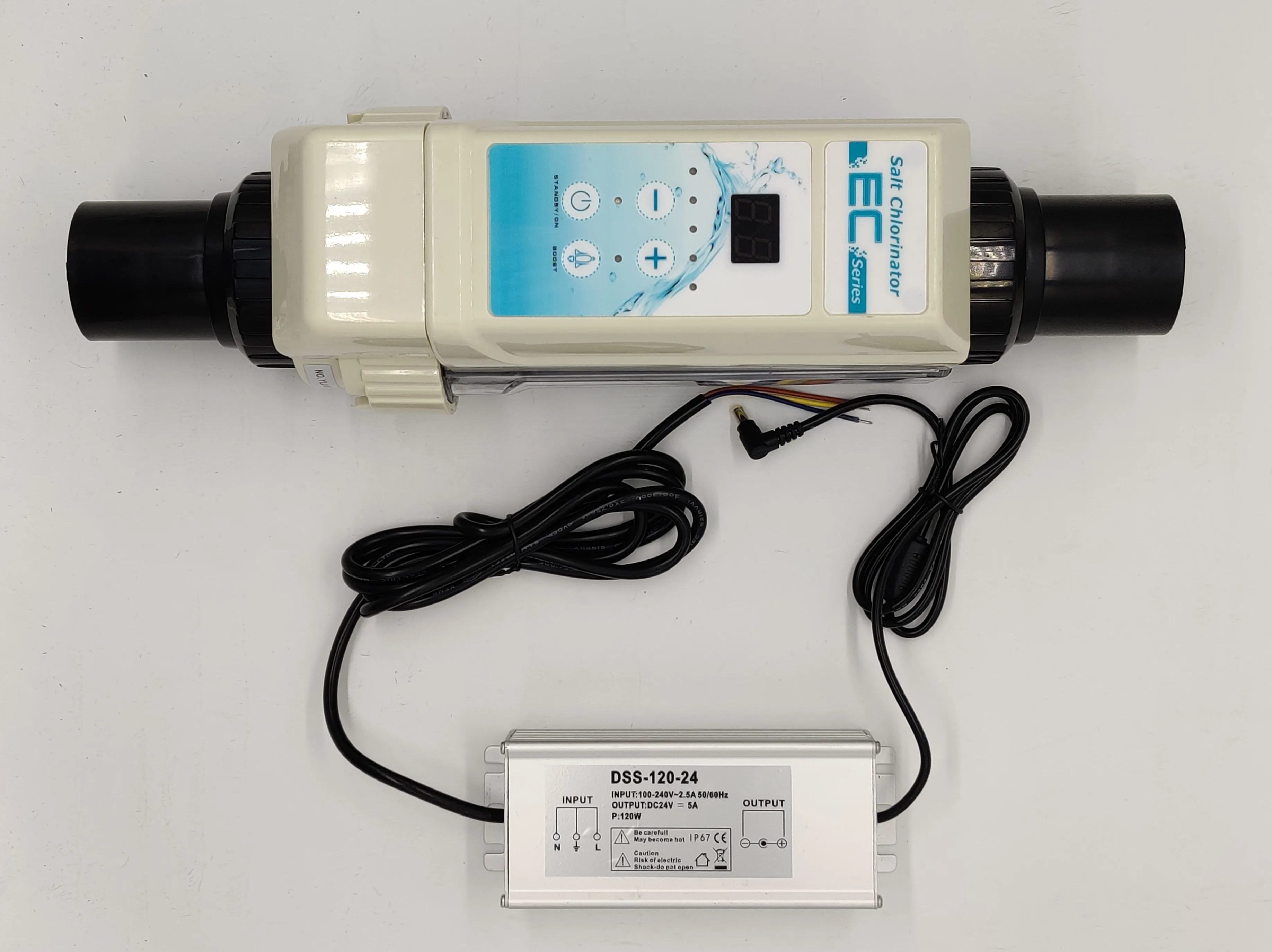

7.The operating power adapter of the chlorinator uses the external power adapter，input（AC110～220V、50～60Hz），output DC18V/4A
8.The external power adapter of the chlorinator must be installed to a power source that contains a leakage switch protection.
9.The chlorinator should be installed in a well ventilated area，to help the chlorinator to cool down.Do not install in an area where the
electronic component of the chlorinator could be damaged by moisture and rain.
10.In the process of use，the chlorinator should avoid direct sunlight that may accelerate the aging of the shell of the chlorinator.
diameter of the connection pipe of the chlorinator is :1.5"(metric：∅50mm；inches：1.5"/∅48mm)
2.Before use，please ensure that the valve of the pipe connecting to the chlorinator is turned off.
3.Before installation，please clean any clutter or oil off of the pipes and connection joint.
4.The salt chlorinator should be installed with the return pipe to the pool and by the bypass of the water treatment shown
on the diagram.A adjust valve needs to be installed on the main pipe（as shown on Diagram 1 or Diagram2）.
5.Before installing the salt chlorinator ，please ensure that the water flow matches the direction the chlorinator indicates.
6.When connecting the pipes to the chlorinator，please use glue specialized for PVC.
7.The operating power adapter of the chlorinator uses the external power adapter，input（AC110～220V、50～60Hz），output DC18V/4A
8.The external power adapter of the chlorinator must be installed to a power source that contains a leakage switch protection.
9.The chlorinator should be installed in a well ventilated area，to help the chlorinator to cool down.Do not install in an area where the
electronic component of the chlorinator could be damaged by moisture and rain.
10.In the process of use，the chlorinator should avoid direct sunlight that may accelerate the aging of the shell of the chlorinator.
Description of application effect
使用效果描述
1. The controller and generator are designed in one piece, which is easy to install and takes up little space.
2. The inlet and outlet are the same axial level, which reduces the arrangement of the pipeline.
3. Designed with removable structure for detachable titanium metal plate for easy installation and maintenance.
4. The amount of chlorine produced in each grade can be selected and adjusted according to needs, energy saving and
environmental protection.
5, with salt high and low tips and fault alarm function
6, with water temperature protection (10-40 degrees), water shortage and water protection, etc., effectively extend the
life of salt chlorine generator
7, water level detection. Work is allowed when the probe detects water.
8, power on automatically start and remember the last working state.
2. The inlet and outlet are the same axial level, which reduces the arrangement of the pipeline.
3. Designed with removable structure for detachable titanium metal plate for easy installation and maintenance.
4. The amount of chlorine produced in each grade can be selected and adjusted according to needs, energy saving and
environmental protection.
5, with salt high and low tips and fault alarm function
6, with water temperature protection (10-40 degrees), water shortage and water protection, etc., effectively extend the
life of salt chlorine generator
7, water level detection. Work is allowed when the probe detects water.
8, power on automatically start and remember the last working state.

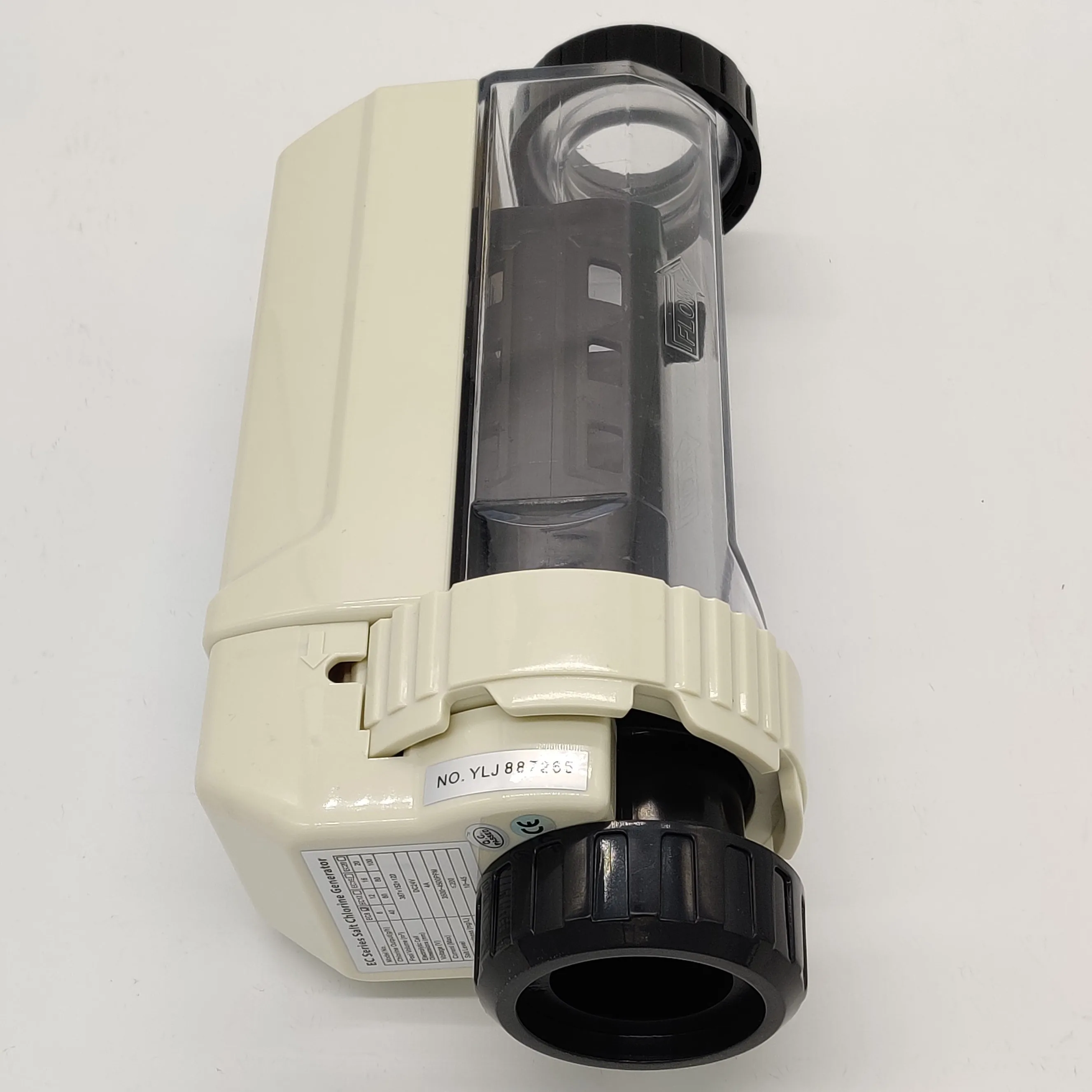

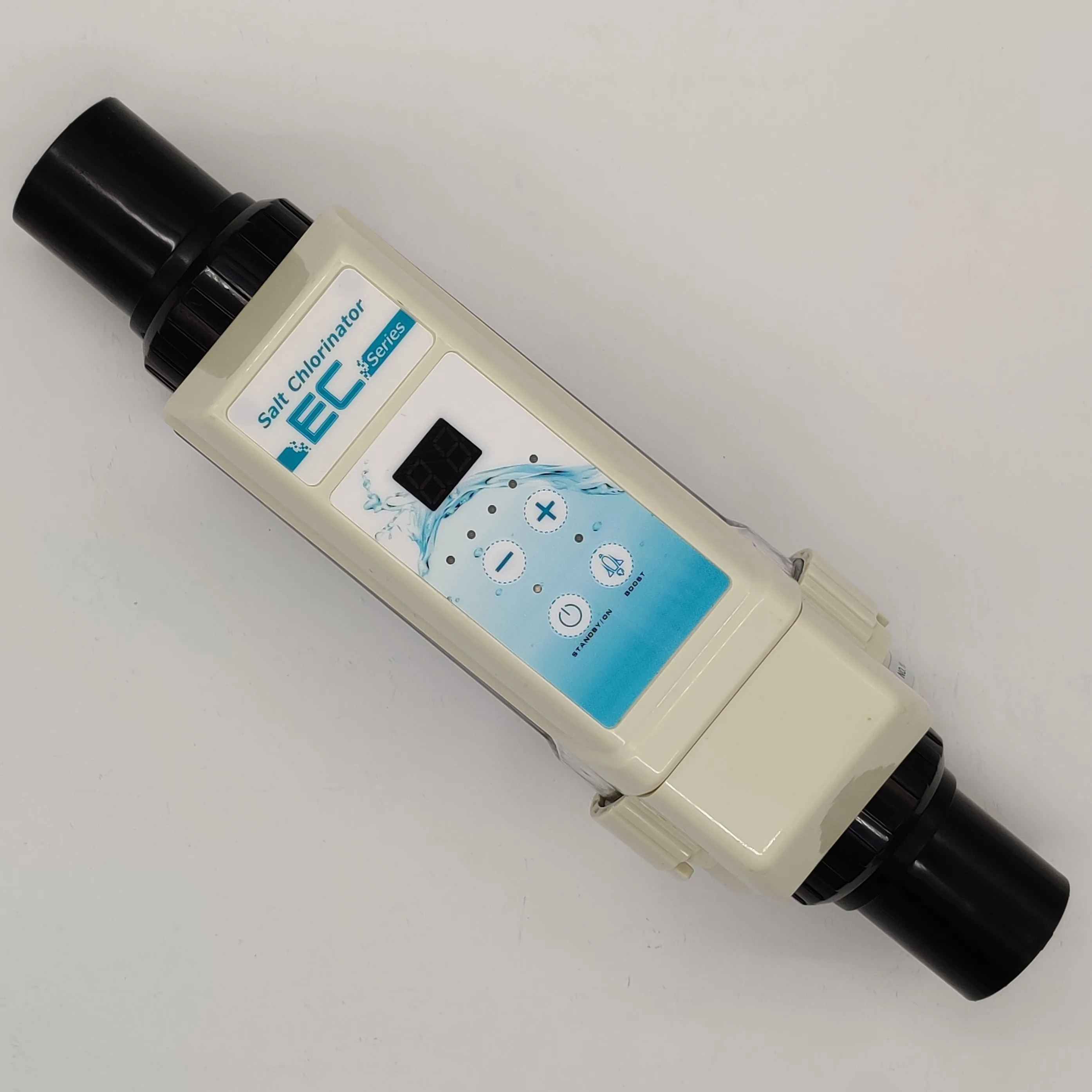

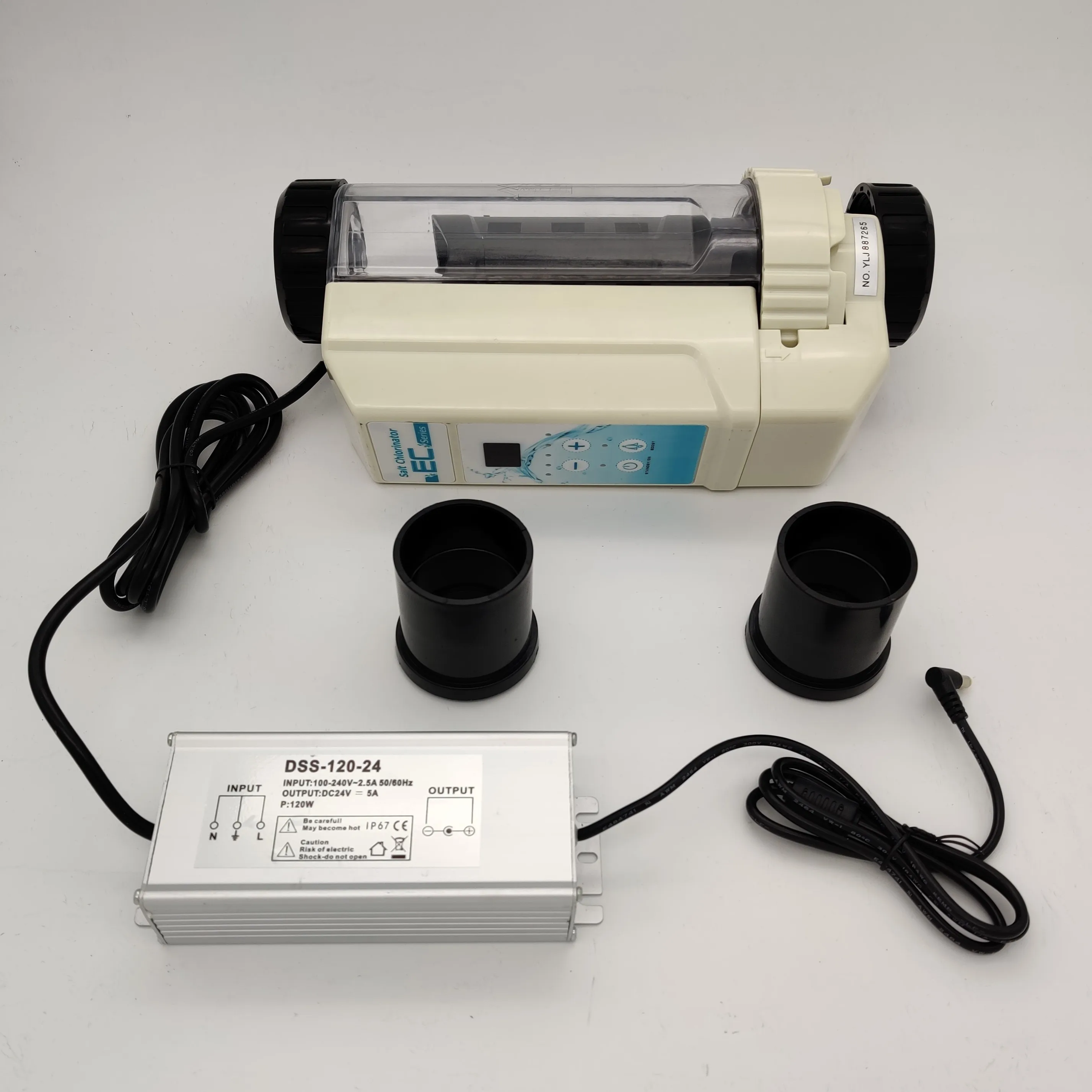

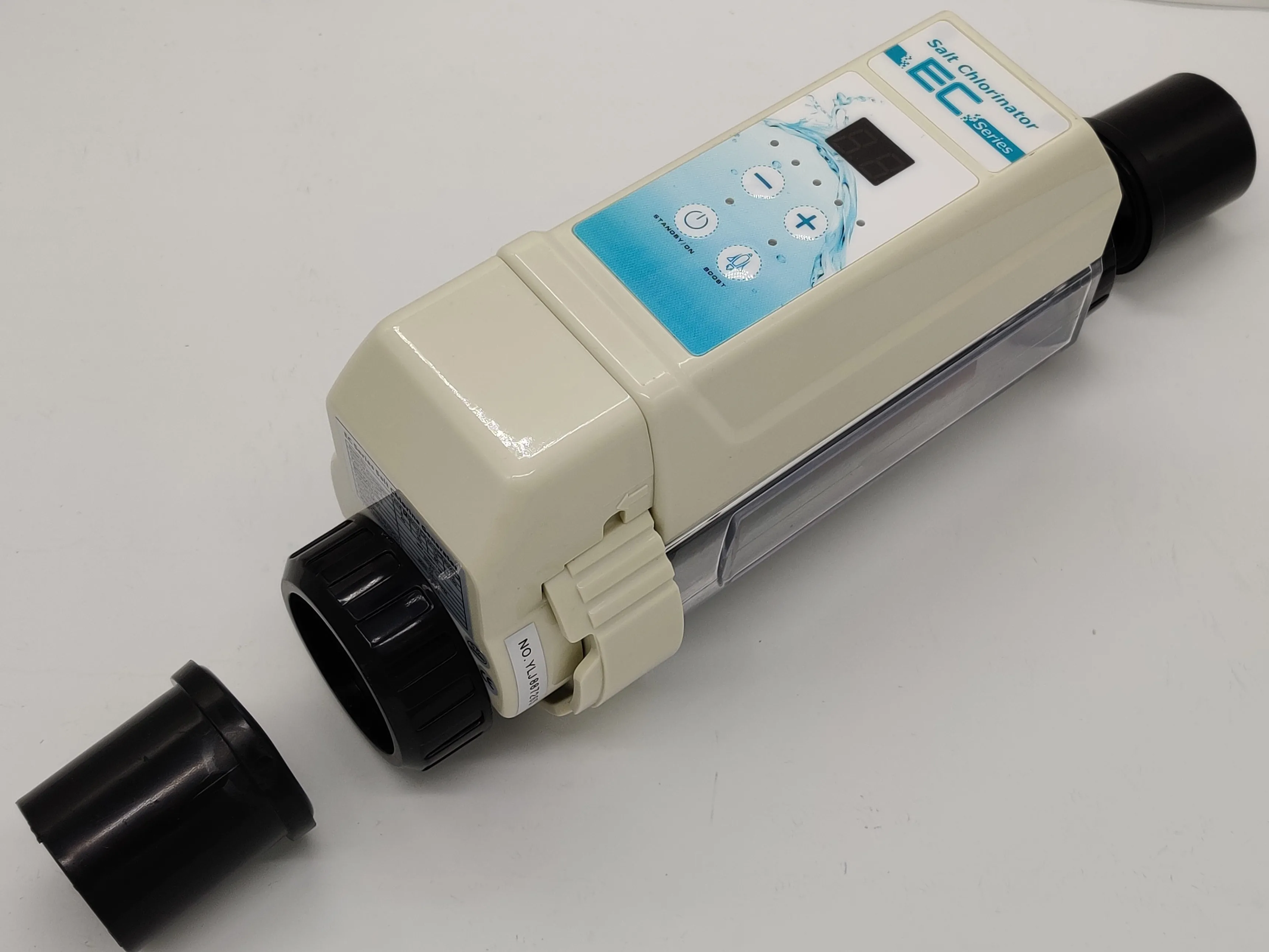

Detailed Images
Note: Please follow the instructions provided in the box to install and use.
