Высокого качества офтальмологических Автоматический


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 0.36 $* 0.69 $*
Aug-19-2025 0.11 $* 0.71 $*
Jul-19-2025 0.4 $* 0.98 $*
Jun-19-2025 0.41 $* 0.60 $*
May-19-2025 0.44 $* 0.32 $*
Apr-19-2025 0.0 $* 0.21 $*
Mar-19-2025 0.84 $* 0.32 $*
Feb-19-2025 0.44 $* 0.35 $*
Jan-19-2025 0.55 $* 0.89 $*

Характеристики



Product Description




Features:

This model can connect CV7200 / CV7600 Auto phoropter, CM1900C Visual chart and TL6500B / TL6800C Auto lensmeter together by bluebooth.


1. 7" tiltable color and touch screen.with keratometer function
2. auto detachment printer
3. auto tracking on Y Axis

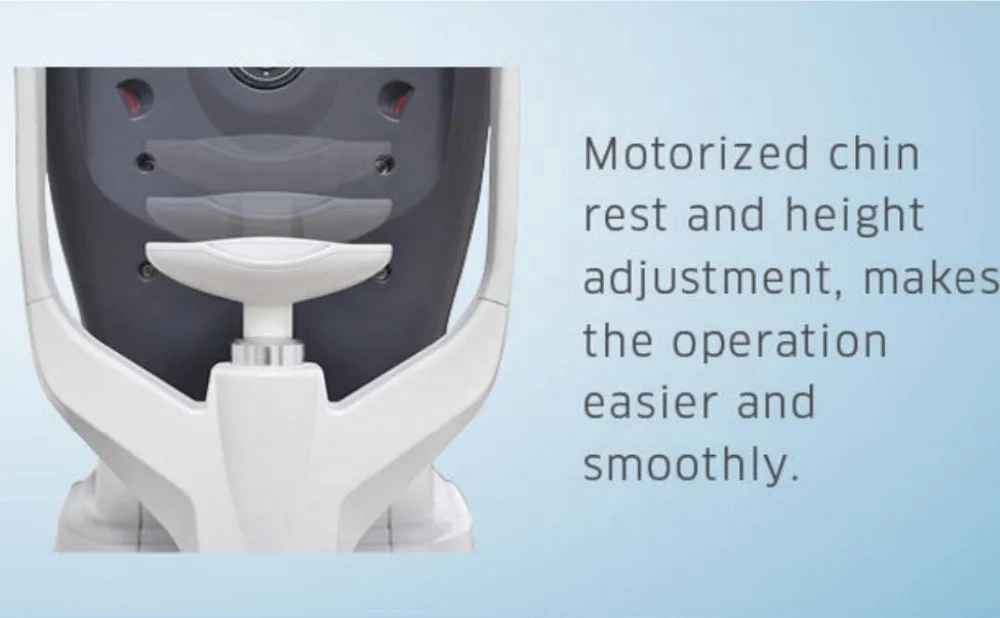

4. motorized chinrest

5. Motorized joystick

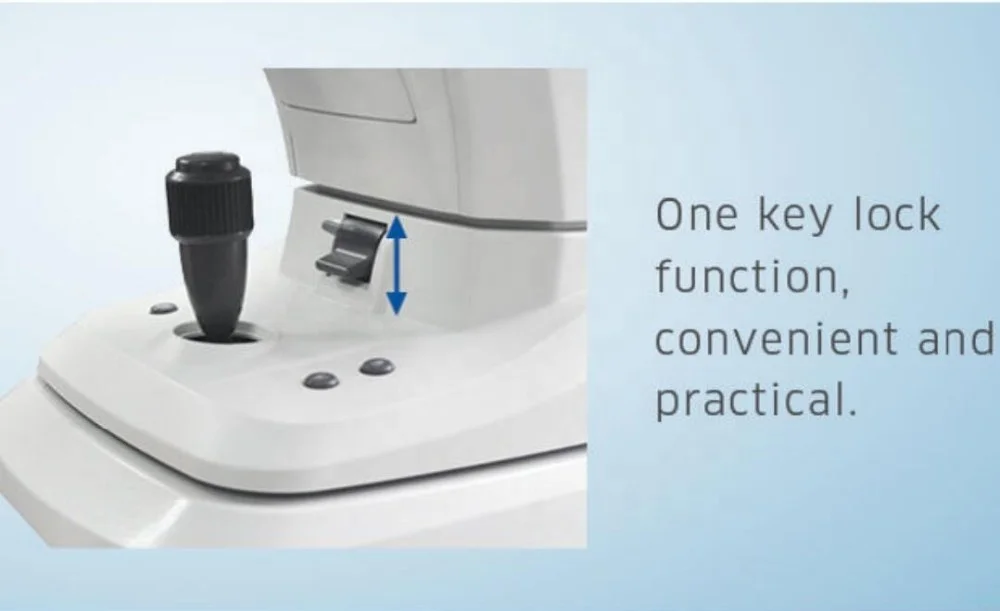

6. One key lock

7. IOL function, can measure the eye whose eye with cataract or other eye surgical before.





Measurement mode
K/R mode
Refractive and Keratometer measurement
REF mode
Refractive measurement
KEF mode
Corneal curvature measurement






Refractive measurement
Vertex Distance
0.0,12.0,13.75,15.0 mm
Sphere
-25.00~+22.00D (0.12/0.25D step) (VD=12mm)
Cylinder
0.00~±10.00D (0.12/0.25D step)
Axis
1°~180°(1° step)
Pupil Distance
10~85 mm
Min. pupil diameter measurable
2.0mm
Target
Automatic fogging target



Corneal curvature measurement
Radius of curvature
5~10mm (0.01mmstep)
Corneal Refraction
33.75~67.50D (0.12/0.25Dstep)
Corneal Astigmatism
0.00~-15.00D (0.12/0.25Dstep)
Angle of corneal
1°~180°(1°step)
Corneal diameter
2.0~12.00mm





Hardware specification
Monitor
7 inch Color touch LCD
Printer
Auto detachment printer
Power saving function
OFF, 5, 15 mins (selectable)
Date output
RS232/Bluetooth
Power supply
AC110~220 V, 50/60HZ
Dimensions/weight
288(W)*500(D)*480(H)mm/14kg

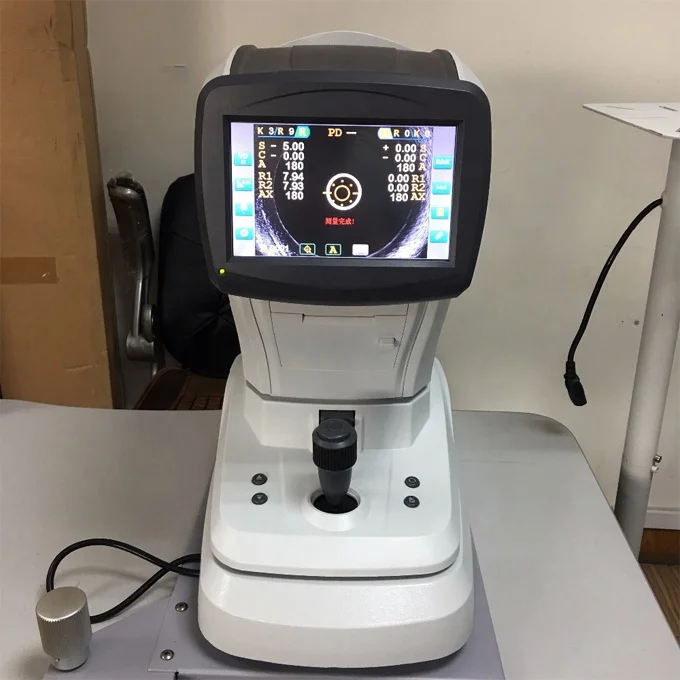

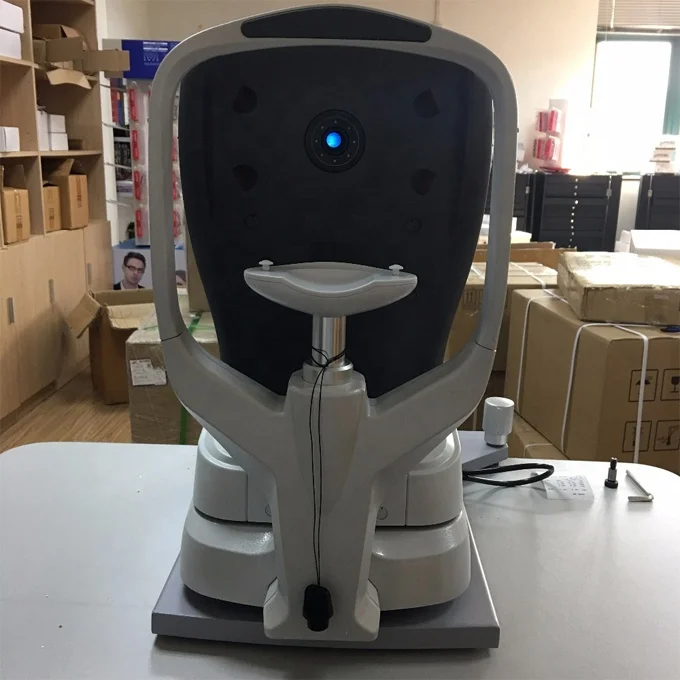

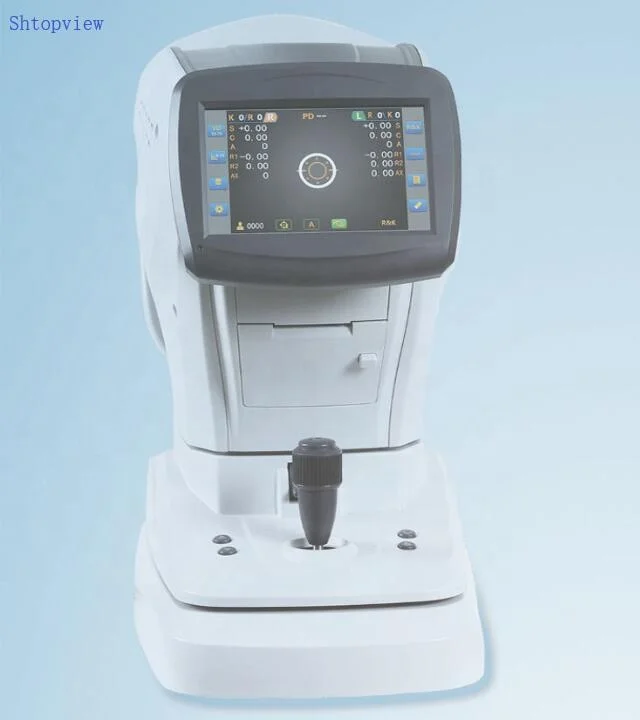

Details Images


Device configuration
1. 7 inch resistive screen: Display measurement results. The screen can adjust angle.
2. Power pilot lamp: When the instrument is working, the indicator light is bright.
3. Printer: print measurement results.
4. Measurement button: When the measurement button is pressed, measurement starts.
5. Joystick: Adjust the measuring window position forward and backward / Left and right / up and down.
6. Chinrest up / down button: Realize the function of lifting the chinrest.


 Accessories
1. Socket head wrench: Unlock plug screw.
2. Model eye: Use to proofreading accuracy.
3. Fuse wire: To prevent short circuit.
4. Printing paper: Measurement of retinal imaging.
5. Operator's manual: Instructions for use of this device.
6. Dust cover: When not using the instrument, dustproof.
7. Chinrest paper: Customer put on the chinrest.
8. Horizontal bubble: Display instrument level.
