Торговый автомат с передним сенсорным ЖК-экраном 15 дюймов 17

Торговый автомат с передним сенсорным ЖК-экраном 15 дюймов 17

Категория: Touch Screen Monitors >>>
Поставщик: Shenzhen,Chuangli,Technology,Co.,Ltd.

Цена:179,90 $ - 209,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	227.84 $*	232.21 $*
Jul-16-2025	184.10 $*	188.39 $*
Jun-16-2025	224.88 $*	228.90 $*
May-16-2025	222.90 $*	226.8 $*
Apr-16-2025	177.39 $*	181.11 $*
Mar-16-2025	218.96 $*	222.75 $*
Feb-16-2025	217.41 $*	221.85 $*
Jan-16-2025	215.88 $*	219.29 $*

Характеристики

Product Description

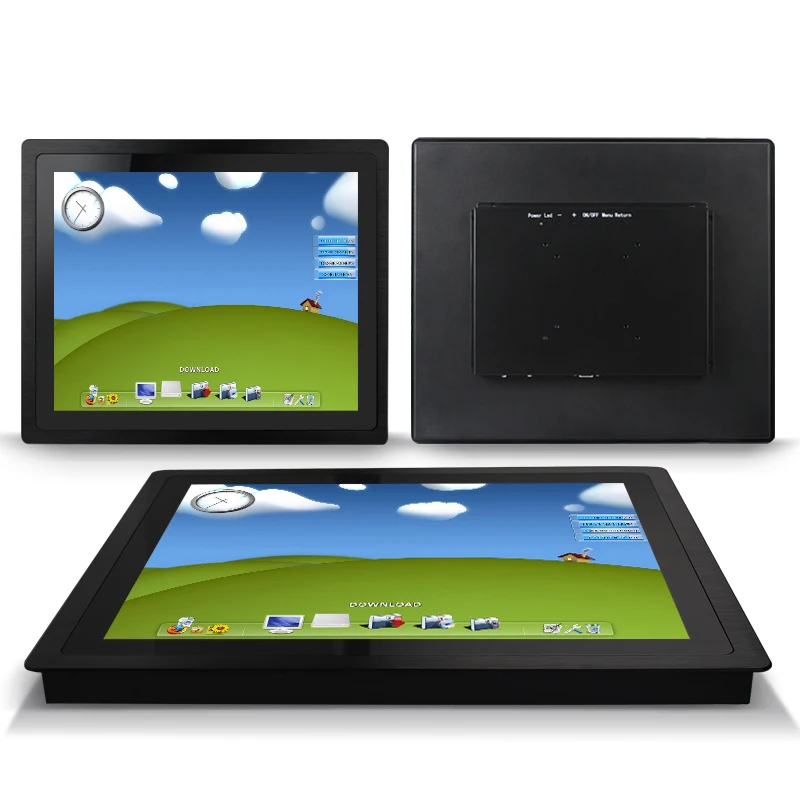

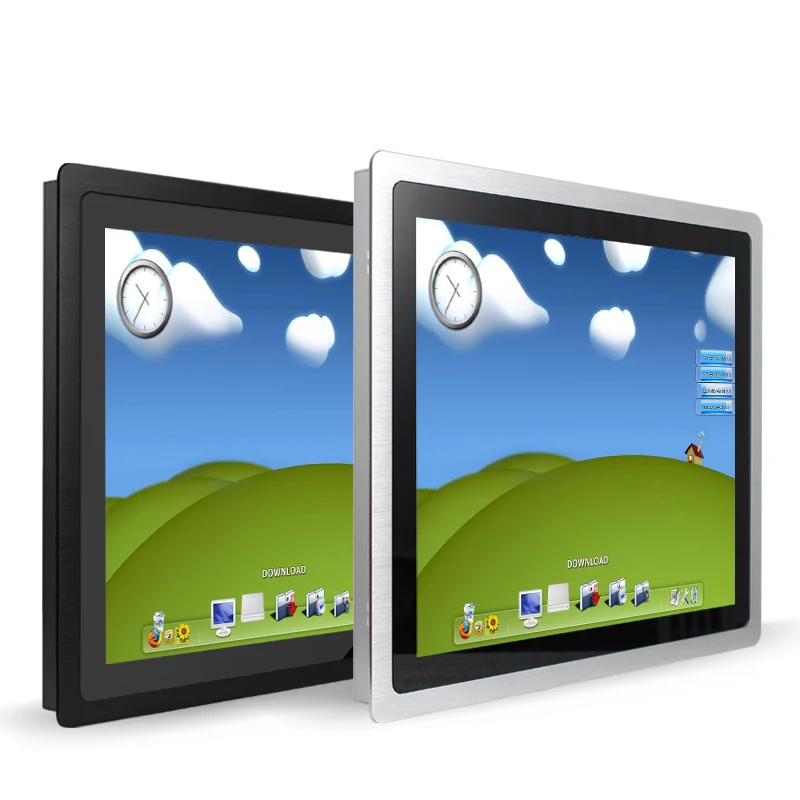

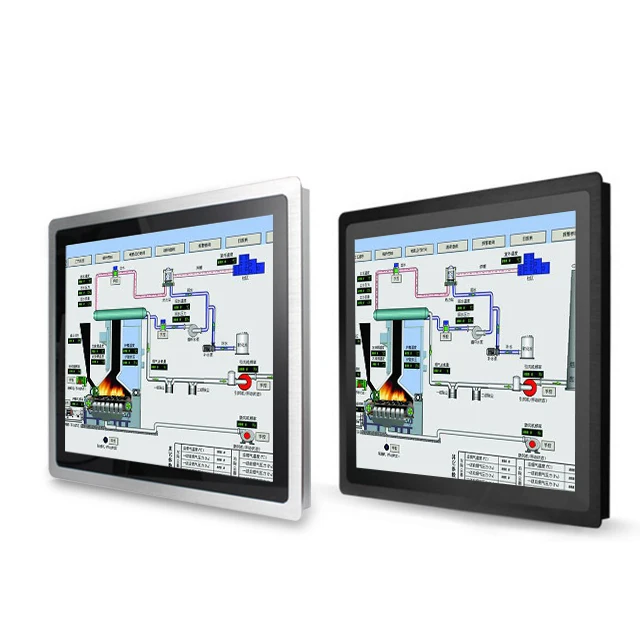

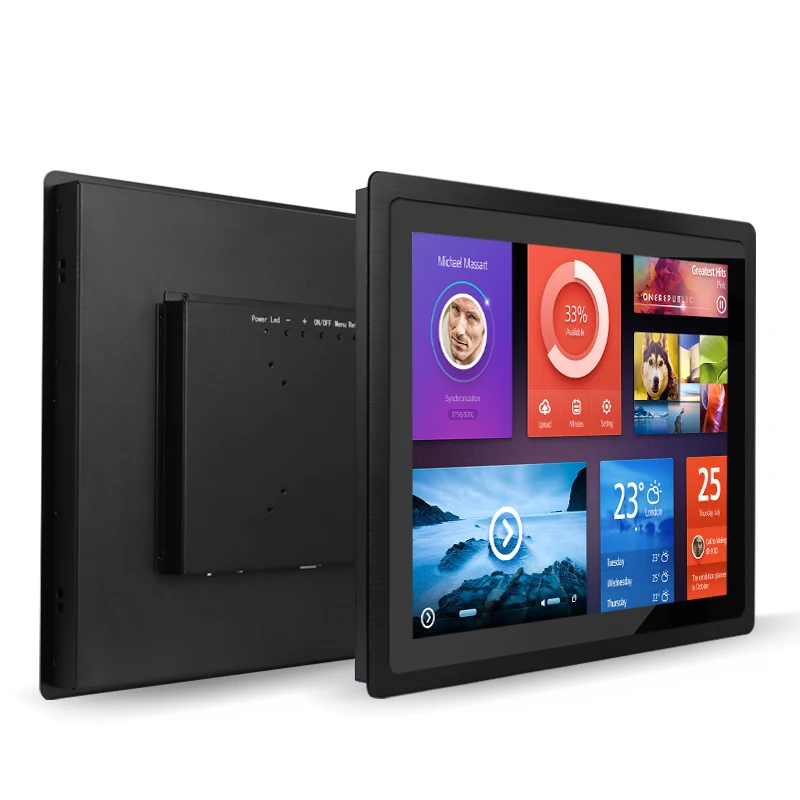

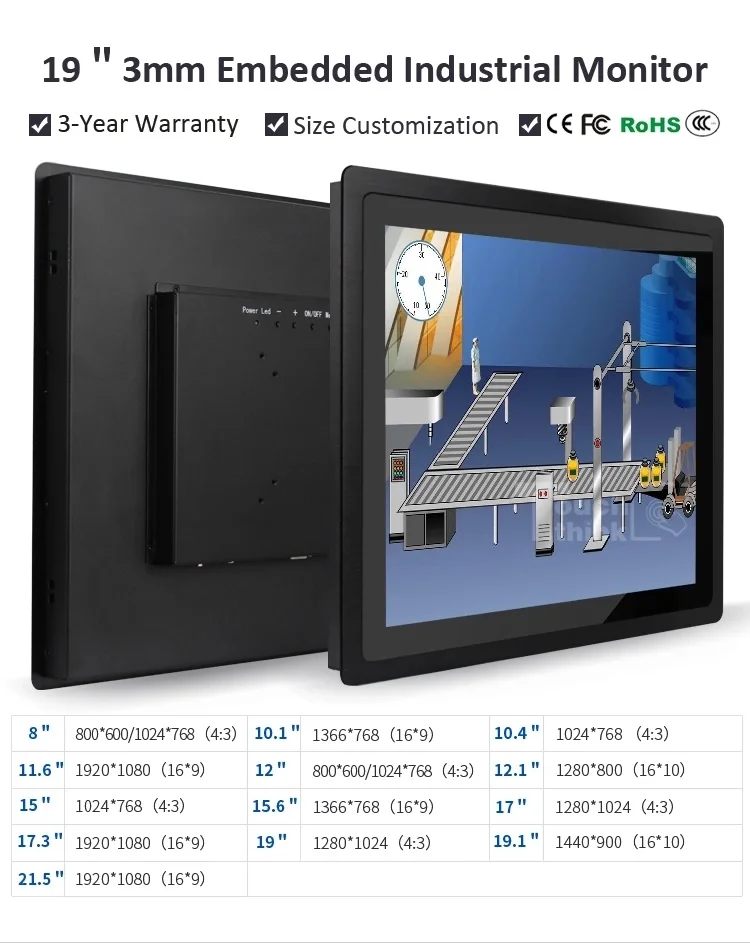

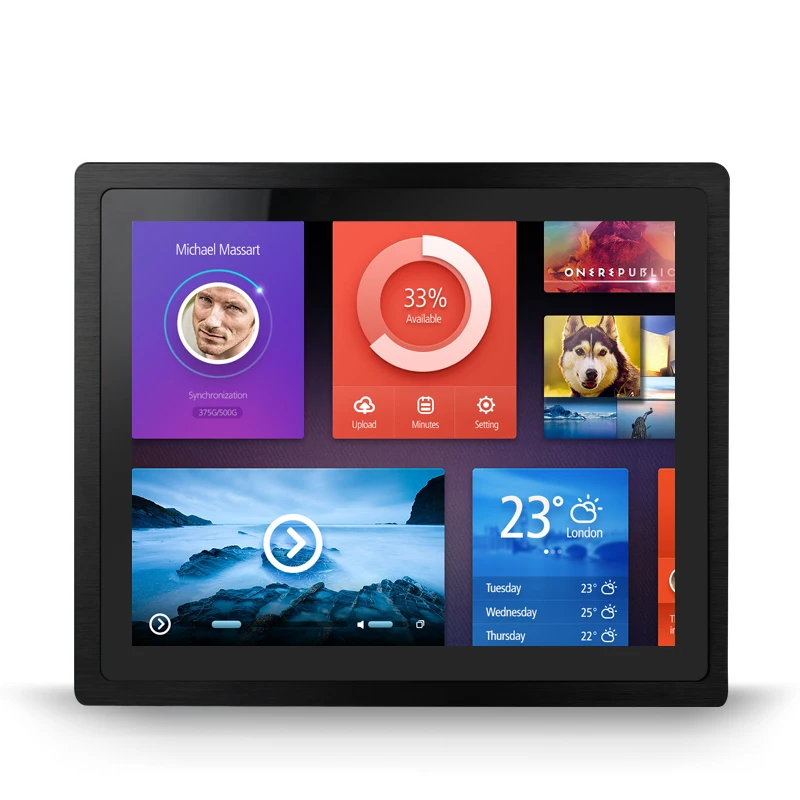

15'' 17'' 19 inch Front mounted lcd touch screen monitor vending machine

---_01 ---_02 ---_04 ---_06 ---_08 ---_05 ---_03

Specifications

Model	OT195U-01 (Square screen)
Type	Open frame capacitive touch screen monitor
LCD Type	TFT-LCD
Diagonal Dimension	19"(diagonal)
Outer Frame color	Black
Active Area	376.3mm*301.1mm
Display Resolution	1280*1024
Supported Colors	16.7M
Brightness (typical)	250cd/m²
Response Time (typical)	5ms
Perspective (Typ.at CR>10)	Horizontal (Left / Right)	85°/85°
	Vertical (Up / Down)	80°/80°
Contrast Ratio (typical)	1000:1
Video input format	VGA&DVI OR VGA&HD-MI
Frequency(H/V)	30~80KHz / 60~75Hz
Power Supply	Type: external power adapter Input voltage: 100-240 V AC, 50-60 Hz The output voltage: 12 volts at 3 amps Max
Environmental	Operating temperature.	0~50°C
	Storage temperature	-20~60°C
	Working humidity	10%~90%
	Storage humidity	10%~90%
MTBF	50,000 hours
LED Backlight Life(Min)	30,000 hours
Backlight	LED
Power Consumption	15W Max.
OSD control	Button	POWER,AUTO,RIGHT,LEFT,MENU
	Functions	Brightness, contrast, auto-correction, phase, clock, horizontal and vertical position, language, function setting, reset
Touch Screen Type	19” flat capacitive touch screen(riot)
Touch Interface	USB
Warranty	1 Year

Application

---_10

Packaging & Shipping

Packing Details

Packed with strong EPE inside, high quality carton box and wooden box as external package.
(Each two sets packed into one carton)

Port: Shenzhen,China

Lead Time:

Quantity (Sets)	1 - 30	>30
Est. Time(day)	7	To be negotiated

Shipping

7-15 working days for delivery lead time, various shipping method optional such as DHL, UPS, FEDEX, TNT, by air or by ship

package flow HTq6pXaK.jpg_.webp.jpg

Our Services

1. Good quality with cost effective price

2. MOQ is 1 set
3. Product leading time is 7- 15 working days according to the quantity
4. Provide OEM service and can customize products according to the drawing
5. Strictly control every detail of production, and each product will be inspected by our QC team before delivery.

6. ISO Certified Standards

7. Safety Agency Certifications

8. Complete Deployment Services

Our service

Company Information

Certifications

FAQ

Q1: Are you a factory or a trading company?
A: We are a OEM/ODM factory.

Q2: What payment methods your company accept?
A: We accept most of the payment methods,but mainly accept T/T,L/C, and Western Union.

Q3: How long is the warranty time for your products?
A: Our officially promised warranty time is 3 years after delivery.

Q4: What will you do if the product be nature damange within warranty time and how about out that time?
A: Well, we will give some quite simple questions to help us confirm the damaged part. Once it confirmed, the free replacement will be send. Also, we will just request a very low price for replacement part, if the product out of warranty time.

Q5: What kind of delivery method you always choose?
A: DHL/FedEx/UPS/EMS is accepted, Air freight also supported,For mass order, we will choose ship by sea.

Q6: Can I customize the product I ordered?
A: Abusolutely yes, customizatiion offer from customers are most welcome in our company.

Q7 : What's the MOQ of your products
A: We have no limit for MOQ, so you can even buy only 1 piece.
