300000-2000000 ккал/ч тепловой котел для нефти сжиженного нефтяного топлива дизельного

300000-2000000 ккал/ч тепловой котел для нефти сжиженного нефтяного топлива дизельного

Категория: Котел и запчасти >>>
Поставщик: Henan,Taiguo,Boiler,Manufacturing,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.10 $*	0.42 $*
Aug-19-2025	0.81 $*	0.66 $*
Jul-19-2025	0.22 $*	0.77 $*
Jun-19-2025	0.97 $*	0.76 $*
May-19-2025	0.63 $*	0.32 $*
Apr-19-2025	0.4 $*	0.42 $*
Mar-19-2025	0.84 $*	0.43 $*
Feb-19-2025	0.31 $*	0.31 $*
Jan-19-2025	0.14 $*	0.92 $*

Характеристики

Product Description

High Quality

TAIGUO YY(Q)W series thermal fluid boiler has skid-mounted design and full automatic control system. Heat carrier is thermal fluid oil, boiler's working pressure ≤1.0MPa, oil temperature ≤310℃. Adopting horizontable three-pass structure, 3 layer corrugated coil rings.

Installation-Free

The complete boiler system is well skid-mounted on the basement, also we have done the pipe(valves) connection and wire connection. After receiving the boiler, user no need to do installation, just filling the thermal fluid oil, join the fuel and electricity. Entire boiler system is portable.

Excellent Structure

Free-Assembly, Portable System, Three Fire-Passes, New Wet-Back Design, Corrugated Furnace, Fire-tube

Safety Technologies

Automatic Ignition Burner, Accurate Oil-Temp. Control ±1℃, Automatic Oil Replenishment, Automatic Over-pressure Protection, Automatic Over-temp. Protection

Simple Operation

Automatic PLC ON/OFF, Visible Oil Temperature, Visible Working Pressure, Visible Exhaust-gas Temperature, Adjustable Oil Temp. ≤310℃

Model Catalogue

Model	YY(Q)W-350	YY(Q)W-500	YY(Q)W-700	YY(Q)W-1000
Heat Power	300,000 Kcal/H	420,000 Kcal/H	600,000 Kcal/H	850,000 Kcal/H
Heat Power	Boiler Horsepower	350 KW	500KW	700 KW	1000 KW
Working Pressure	≤ 10 BAR	≤ 10 BAR	≤ 10 BAR	≤ 10 BAR
Oil Outlet Temp.	≤310 ℃	≤310 ℃	≤310 ℃	≤310 ℃
Fuel Type	Gas, Oil	Gas, Oil	Gas, Oil	Gas, Oil

Model	YY(Q)W-1200	YY(Q)W-1400	YY(Q)W-1800	YY(Q)W-2400
Heat Power	1,000,000 Kcal/H	1,200,000 Kcal/H	1,500,000 Kcal/H	2,000,000 Kcal/H
Heat Power	Boiler Horsepower	1200 KW	1400 KW	1800 KW	2400 KW
Working Pressure	≤ 10 BAR	≤ 10 BAR	≤ 10 BAR	≤ 10 BAR
Oil Outlet Temp.	≤310 ℃	≤310 ℃	≤310 ℃	≤310 ℃
Fuel Type	Gas, Oil	Gas, Oil	Gas, Oil	Gas, Oil

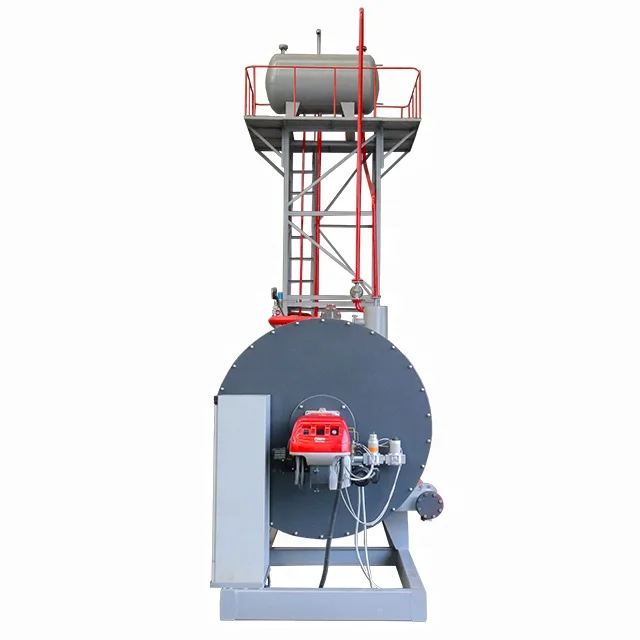

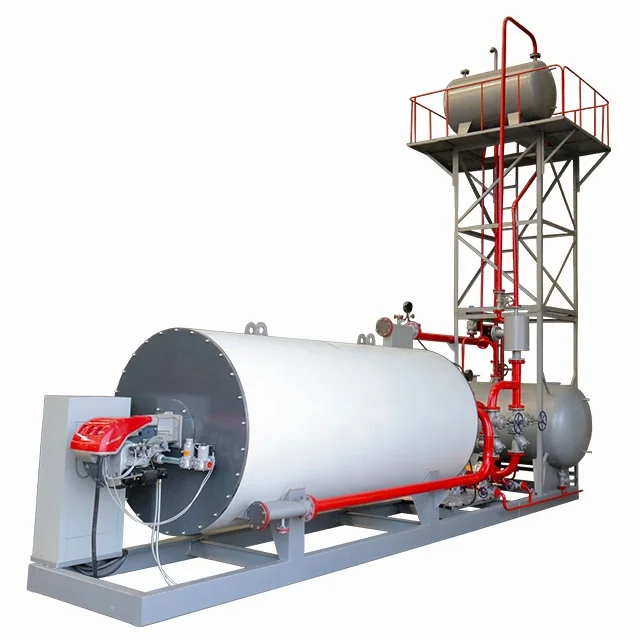

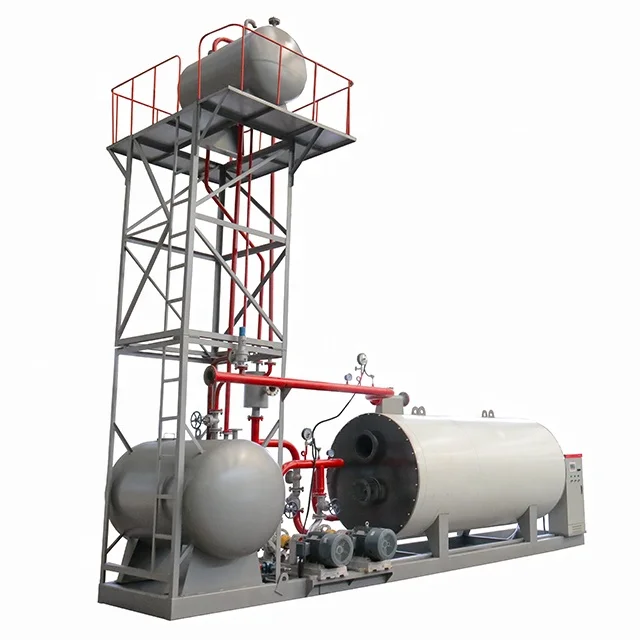

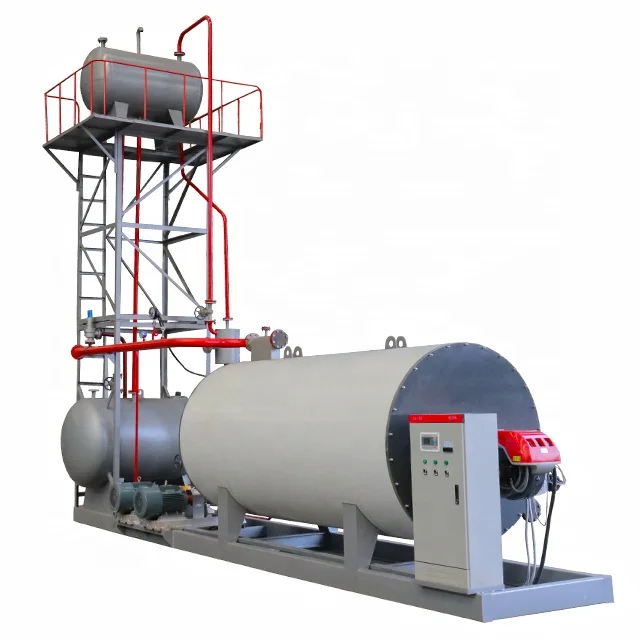

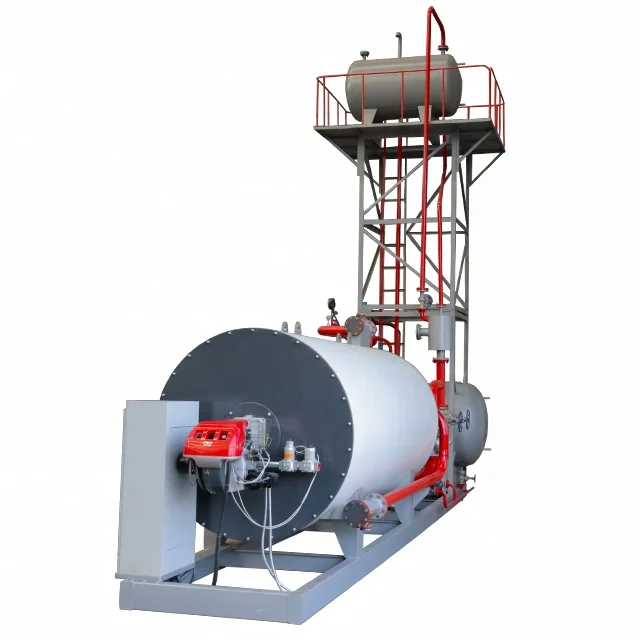

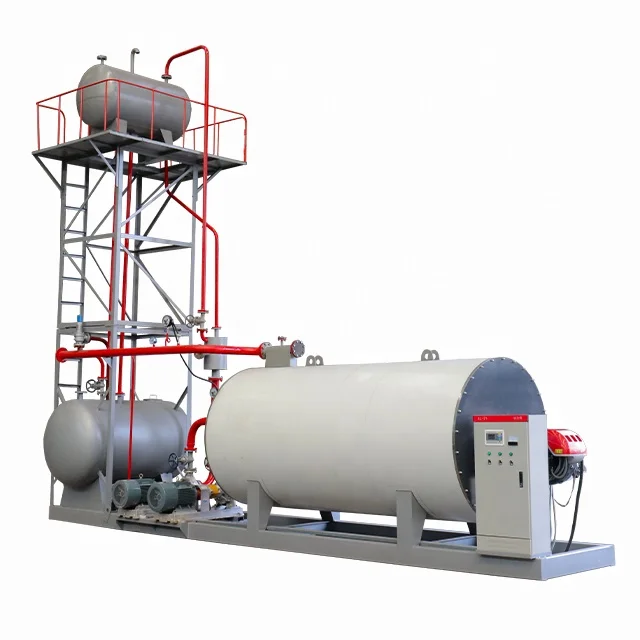

Detailed Image

1. Italy BALTUR/ RIELLO Burner

2. PLC ON/OFF Control

3. Oil Storage Tank

4. Oil Expansion Tank

5. Oil Circulation Pumps

6. Hot Oil Outlet Pipe

7. Cold Oil Inlet

8. Pressure Gauge, Thermocouple

9. Furnace Explosion-Proof

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting the support
* Visting our factory

Shipment

* Loading the container in the factory

* Manage the CHINA-CUSTOM clearance, ocean shipping

After-Sales Service

* Engineers available to service machinery overseas.
* Training how to install the machine, training how to use the boiler.

Returning Visit

* Our After-Sales team will return the visit to remind the maintenance, and help the user to solve the problem in daily operation.

About Us

Well-organized Workshop

TAIGUO has 2 workshops, adopting 5S management standards, the workshop environment is clean and tidy, equipment and products are placed in an orderly manner. All the above, just to create a comfortable working experience for production workers and visiting customers.

Sufficient New Stocks

In order to manage the delivery ASAP, TAIGUO ready the sufficient new stocks, include gas (oil) boiler, gas (oil) fired steam generator, coal (biomass) boiler, electric heating boiler, gas (oil) fired thermal oil boiler, coal-fired thermal oil boiler, biomass fired thermal oil boiler, timber treatment cylinder, hot air furnace, etc.

Experienced Team

TAIGUO has more than 190 employees, includes 2 general managers, 4 technical directors, 9 QC engineers,25 salesmen, 10 administrative staff, 4 warehouse staff, 6 financial staff, 4 pre-sales engineers, and 6 after-sales engineers, 120 frontline production workers.
