Характеристики
HBFL Galvanized Wire Drawing Machine/Copper Wire Drawing Machine
Product Description
A. BASIC TECHNICAL PARAMETER AND ONE SET INCLUDING
Item No. | Product name | Quantity | FOB Tianjin Unite Price | Total Price |
1 | Vertical pay off stand | 1 | Free | Free |
2 |
| 1 | Free | Free |
3 | Main machine of Straight line wire drawing machine includes dust removal+control cabinet | 11 | USD6800 | USD74800 |
4 | H type wire collection or elephant nose wire collection | 1 | USD5700 | USD5700 |
5 | Pointer machine | 1 | Free | |
6 | Butter welding machine | 3 | Free | Free |
7 | Wire drawing Powder | 200kg | Free | Free |
Mold type | HBFL-8/550 straight line wire drawing machine |
Drum diameter (traction diameter) | 550mm |
Quantity of drum | 11 |
Input wire diameter | Φ6.5mm |
Output wire diameter | Φ1.25mm |
Inelt wire tensile strength | ≤450mpa |
Maximum compressibility | 90.5% |
Max speed | 12m/s(Φ2.0mm ,1200Kg/H) |
Motor | 22KW*11+ wire collection 15KW=257KW |
The motor is decorated | Motor erection |
Mold size | Φ40mm×30(tungsten steel) |
Drum (tower wheel) arrangement | The nose is upright and inclined |
machine direction | From right to left |
Wire collection type | H type wire collection or elephant nose type |
The finished straightening | finished straightening |
wear-resisting part | Rotating part in contact with wire The surface is sprayed with tungsten carbide |
Roll cooling | Spray water cooling |
Die box cooling form | The first end adds the rotation to pull the pink bar, directly draws the water cooling in the second area |
|
User supplied liquid, external circulation |
Tension frame | Built-in inflation detection |
Rack | 20 steel plate, square pipe welding machine, the body to the minimum |
Drive | Transmitte belt |
Bearing support form | The box is closed |
Safety device | Safety cover, add the observation window, open the cover and automatically slow down, stop the wire for detection |
Bearing lubrication | Tank self-lubrication |
Vacuuming design | Reserve suction holes |
lighting | Each machine is equipped with individual lighting |
Parking brake | Pneumatic brake |
Electric cabinet | Vito structure, protection grade IP54 |
Electrical system | Frequency conversion speed control 485 communication PLC Control |
Energy consumption monitoring | Electricity meters are installed |
Frequency conversion motor brand | Hebei mengniu motor(China famous brand) |
Low voltage electrical appliances | Delixi brand |
The inverter | 22 kw huichuan inverter, 485 communication, |
Field cable supply | The special control cable shall be provided by the supplier Other control cables and power cables shall be provided by the demander
|
Gas, water, electricity | The demander receives the device interface |

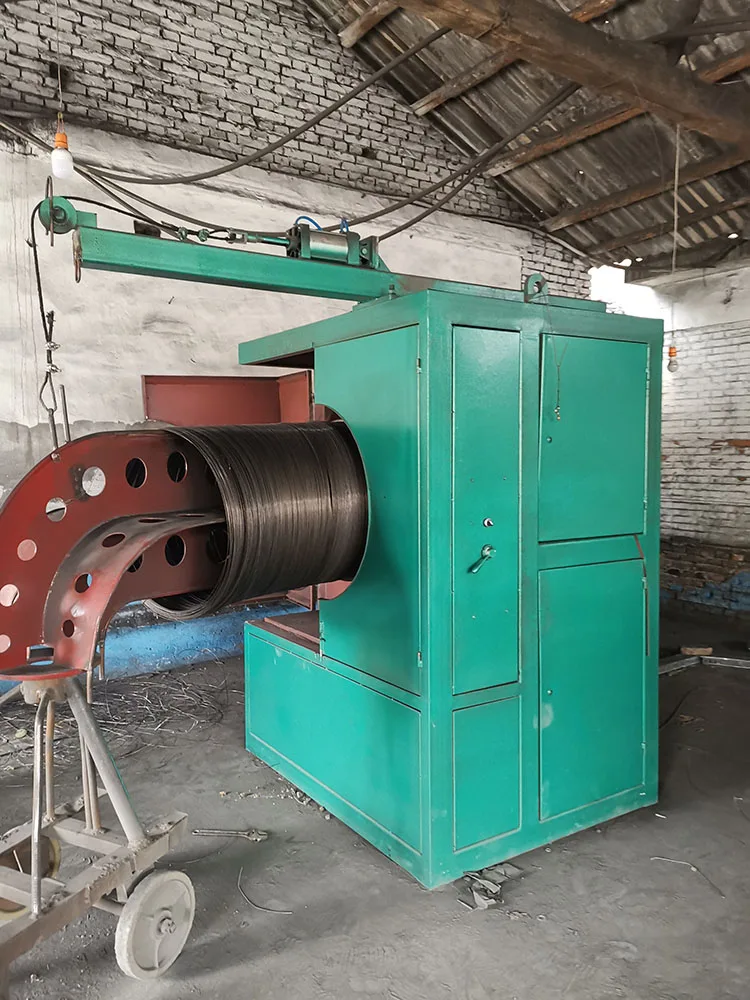

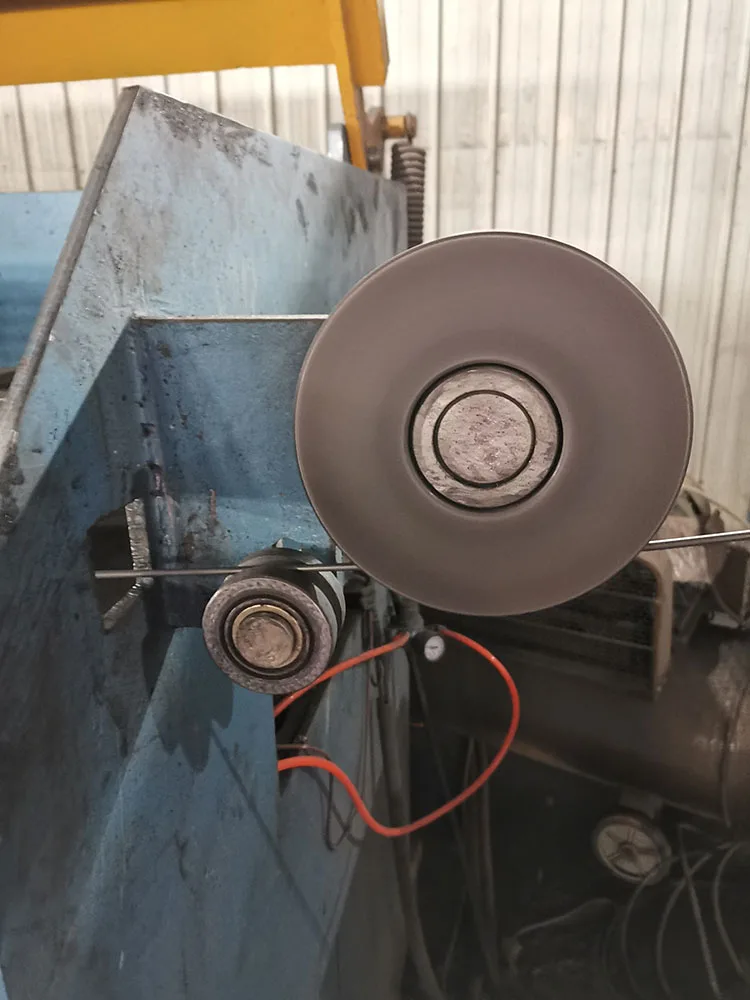

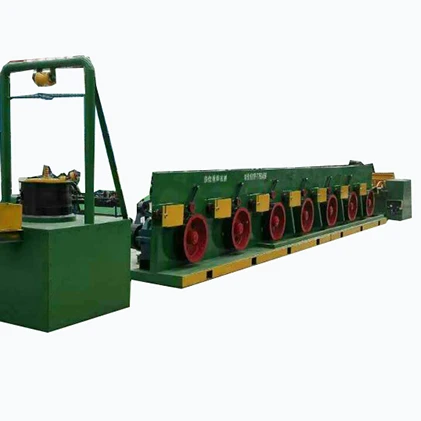

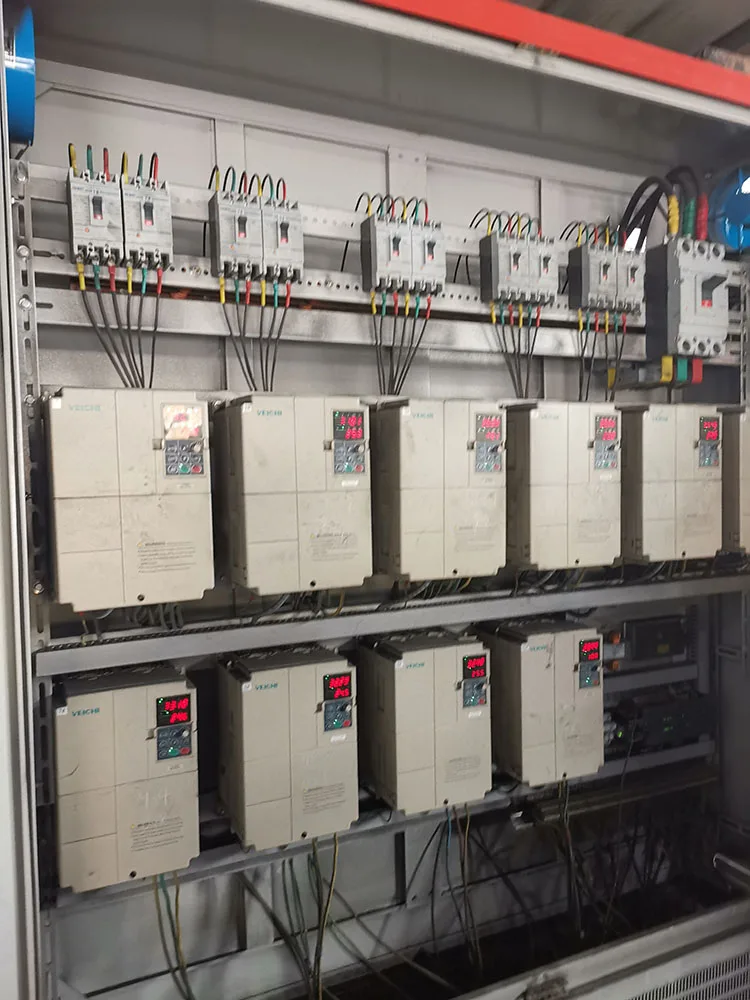

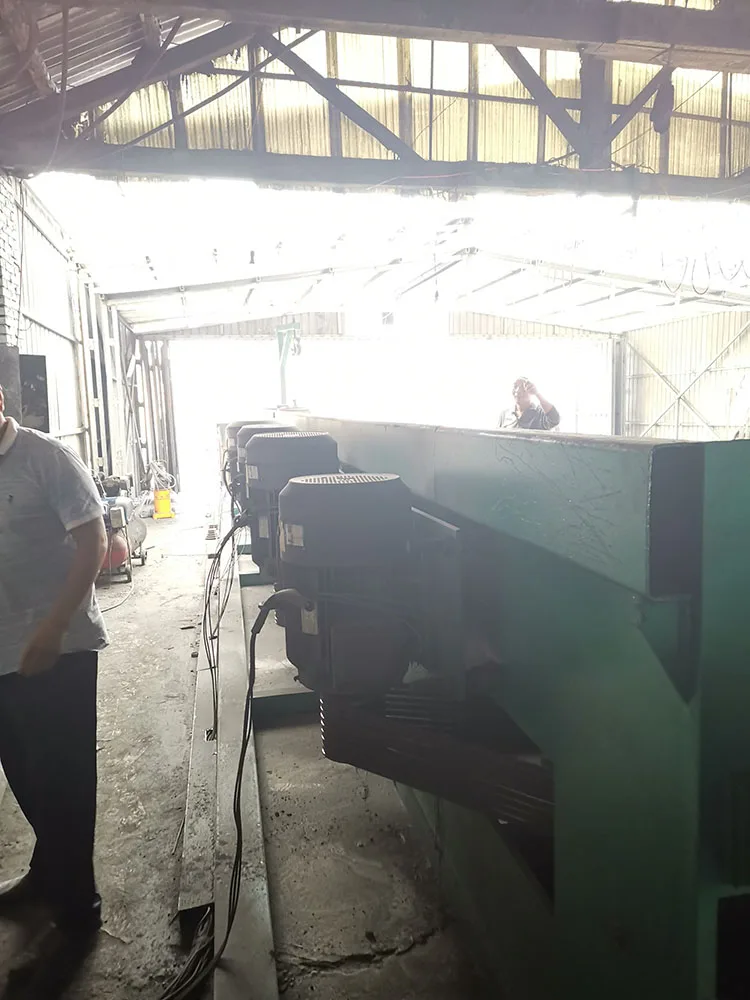

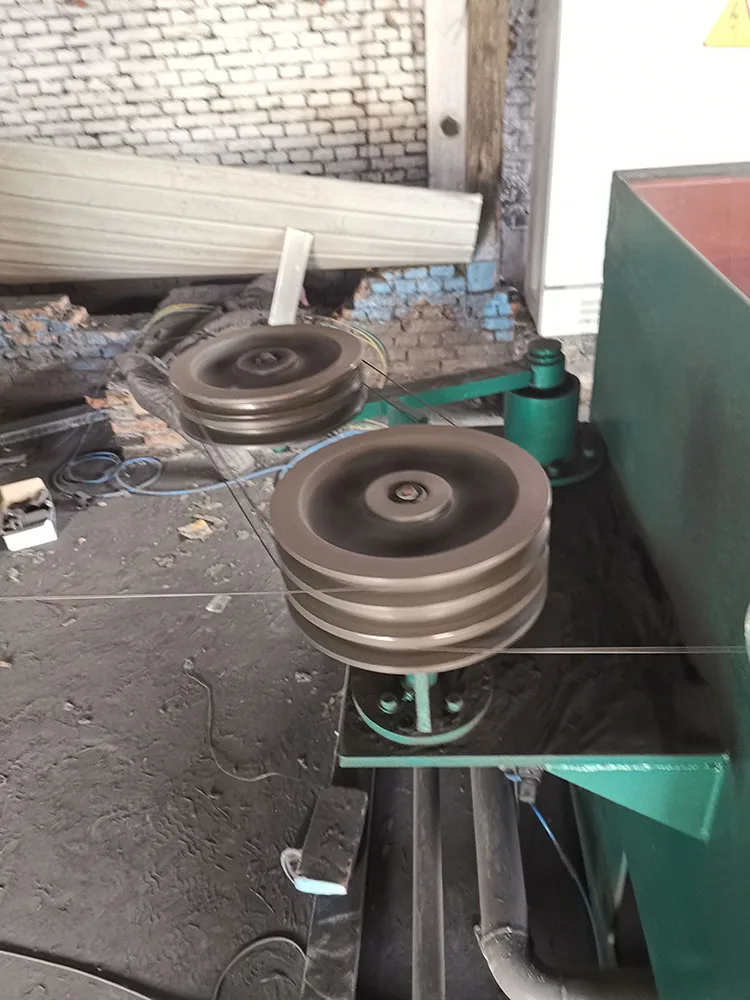

B. PICTURES OF THE PRODUCTION LINE
