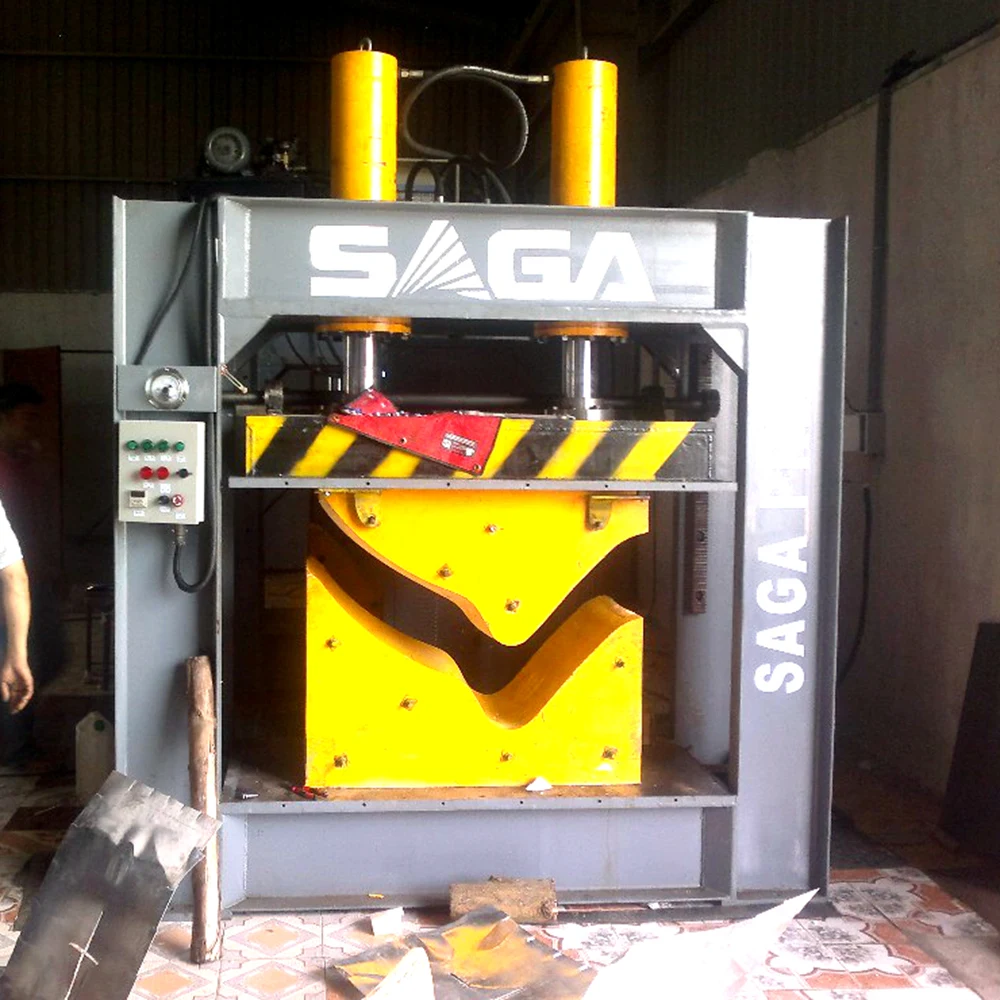

RF Press Bent Plywood Sofa Wood Bending Machine Radio Frequency YX80-SA
1.High frequency wood bending press applies high frequency generator to hydraulic press, by mould and electrode.
2.It transfers the high frequency power to the work piece to achieve the function of fast gluing and forming.

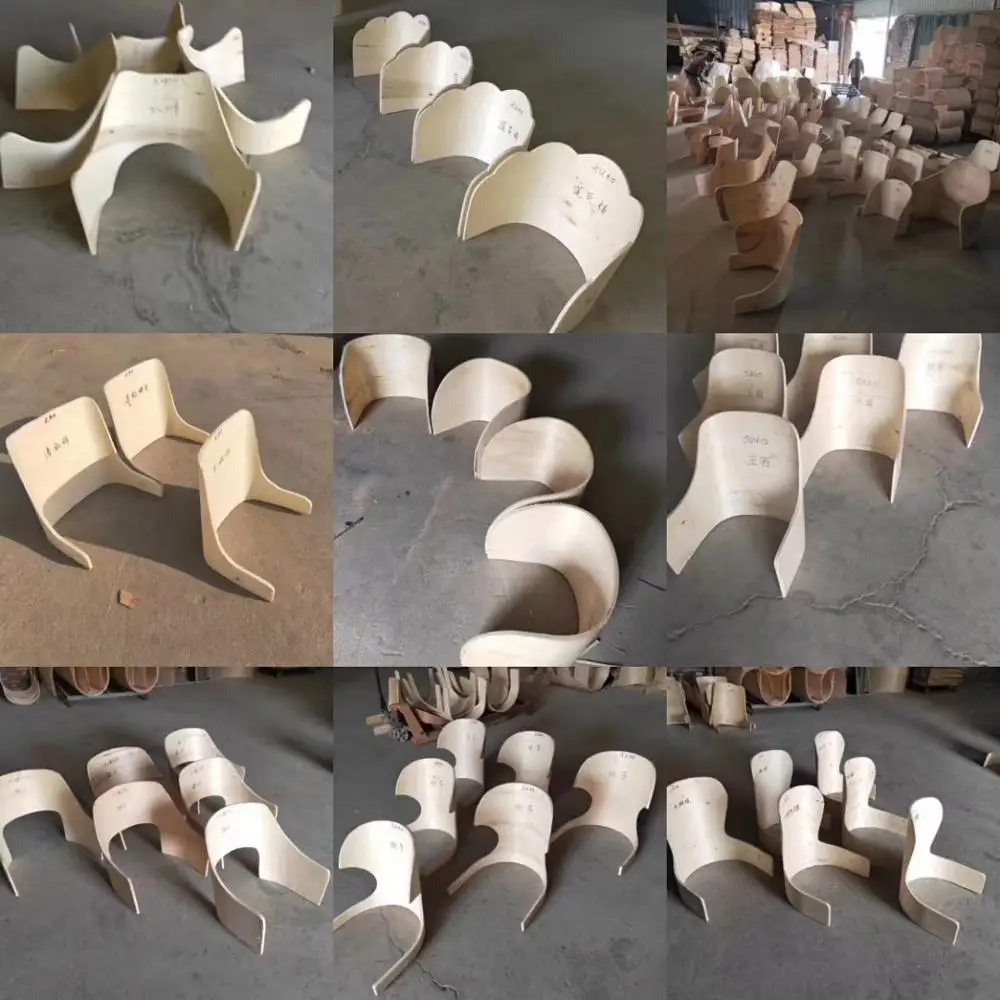

3.Be suitable for: bent plywood chair, bent or arc plywood for the furniture or bed or other bent plywood products like cloth hanger or surface of musical instrument.
Character
YX80-SA RF Hot Press Wood Bending Machine For Plywood Furniture
1. Fast and uniformly heating.
2. Bending shape is stable, not easy to change delamination.
3. High frequency power is a selectively heating power, it concentrates only on water or glue, wood not consume High Frequency power, so HF heating is effective and power saving.

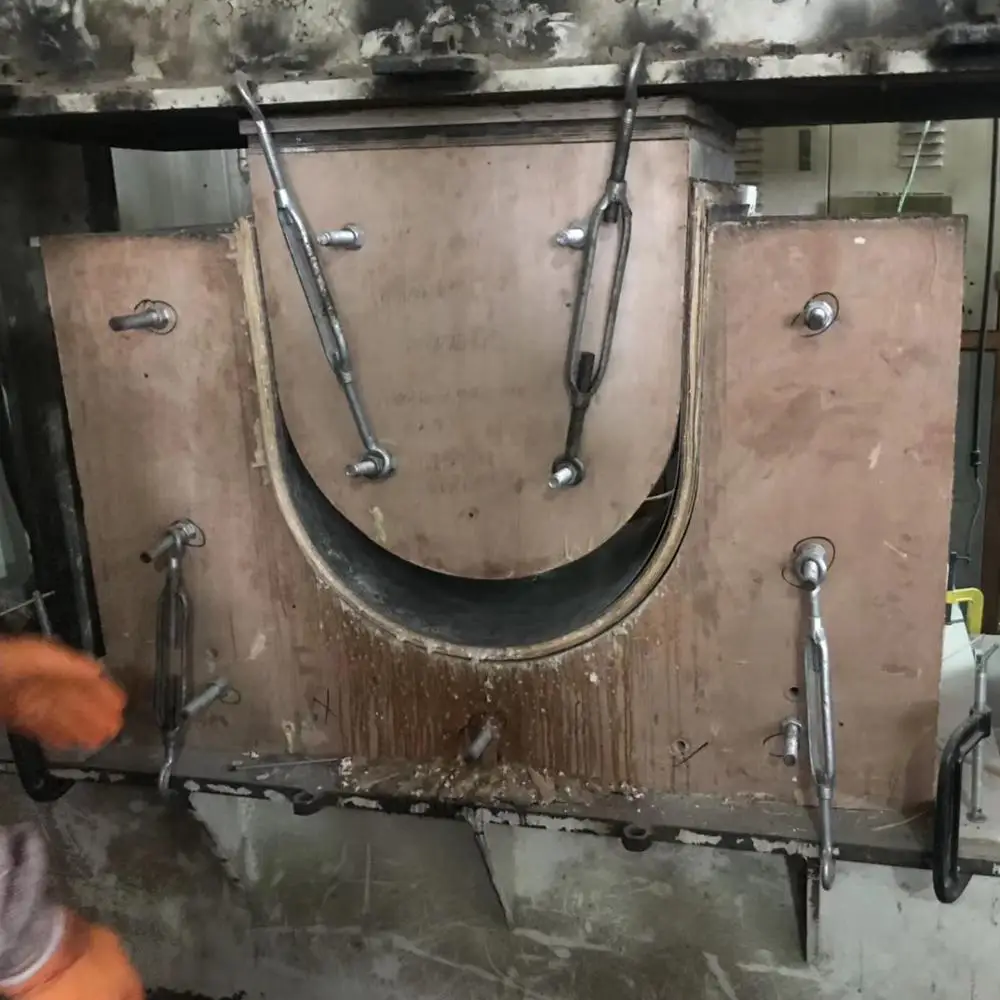

4. Wooden or MDF mould used, much ecnomic than metal mould if shape is frequently changed.
Basic Parameter
Mode | YX80-SA | YX150-SA |
HF Generator | 20kW, 2 Output | 30kW, 2 Output |
Press Working Size | 1600*800mm | 2500*1300mm |
Cylinder | 80T(2PCS) | 150T(2PCS) |
Stroke of cylinder | 600mm | 600mm |
Control | Automatic | Automatic |
Power of Hydraulic | 7.5kW | 7.5kW |
Opening of Plate | 1200mm | 1200mm |
Over size | 2300*800*2200mm | 2900*1300*2200mm |
ABOUT SAGA :
Curving Wood Equipment HF Plywood Bending Press From SAGA
Saga Machinery Co,. Ltd specializes in developing, designing and producing High Frequency Machineries. We are a professional HF Machinery supplier in China. Our products cover with High Frequency Hot Press, High Frequency Generator,High Frequency Curved Plywood Press, High Frequency Vacuum Wood Dryer, High Frequency Guitar Machine, Wood Kiln, High Frequency Belt Conveyor, etc
Detail Pictures

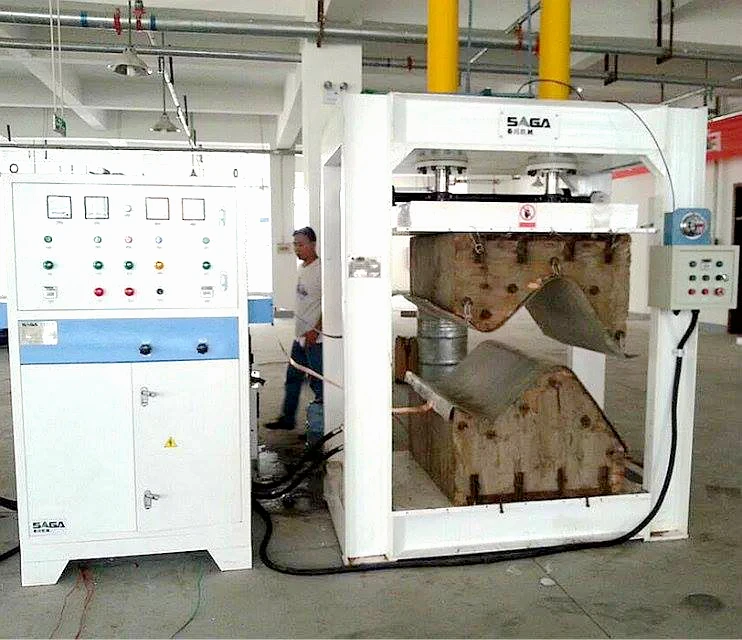

Production
Our Application
Spare Parts
Certification

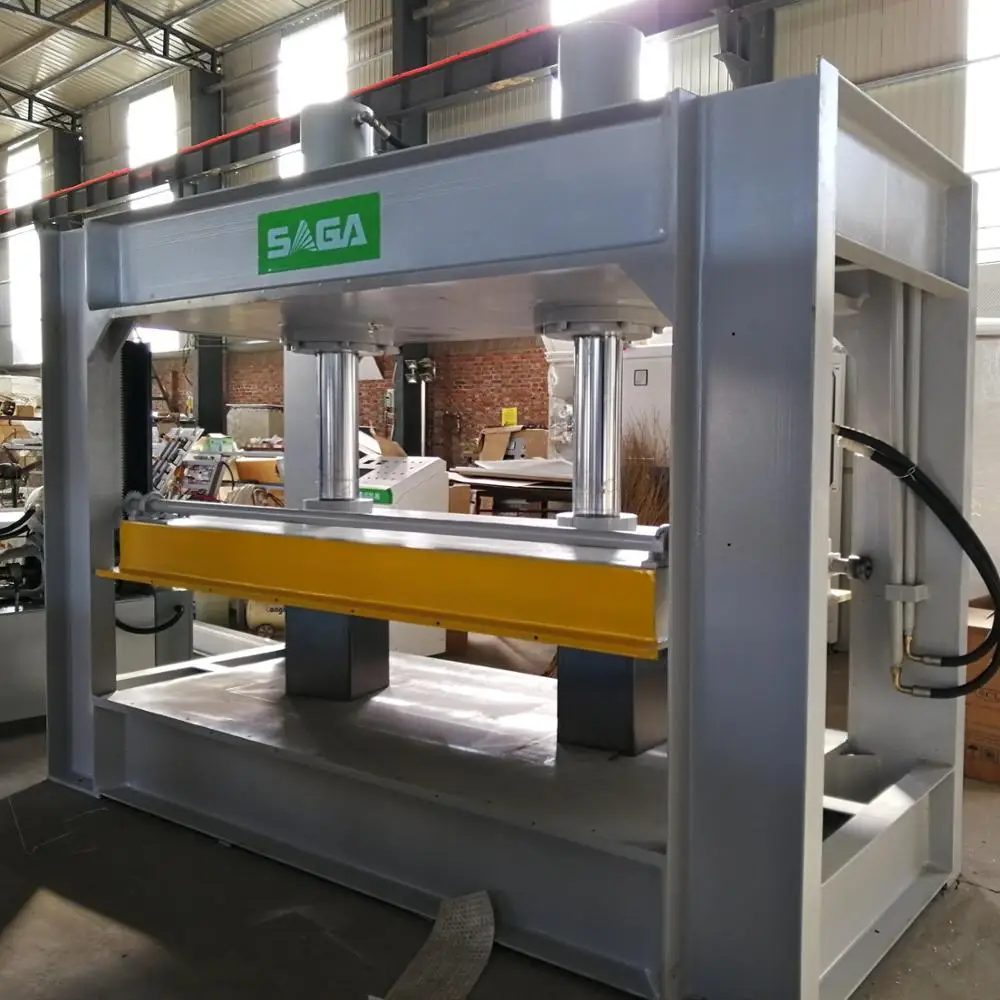

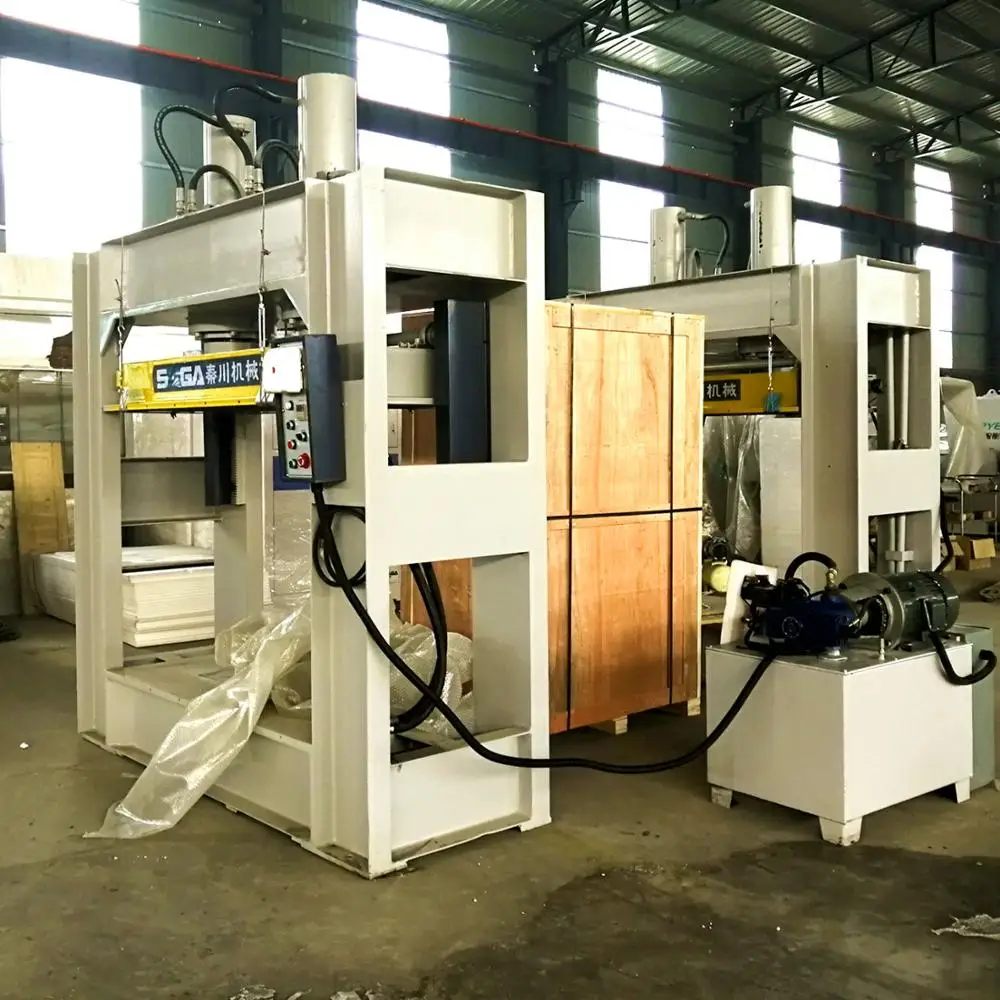

Our Factory
