product Introduction
Application Of Railway Maintenance Equipment Rail Head Profile Grinding Machine
This machine is a special and necessary equipment for grinding rail welded joints and rail profile with the characteristic of automatic feeding, control of grinding volume, grinding the rail side without inclining the machine, high work efficiency, easy operation, safty and reliability.zmwm07
Characteristics:
Scope of application: applicable for grinding steel rail of 43kg/m-75kg/m
Grinding operation: automatic stroke control to guarantee grinding quality
Profiling function: a perfect profiling capacity to grind rail from rail top to rail side without incling the petrol engine
according to the geometric shape of rail head.
Insulation performance: the profiling wheel and support wheel insulated with machine body.
Drive wheel adjustment: Adjusting the tightness of the belt by gasket of pulley to keep the belt normal working.
Parameter
Main Parameter of Railway Maintenance Equipment Rail Head Profile Grinding Machine
petrol engine power:4.8kw/3800r/min
Size of abrasive wheel : dia 125*65*20mm
Max adjustable travel distance of abrasive wheel: 45mm
profiling wheel-base:1000mm
Overall dimension: 1500*450*750mm
Overall weight:75kg
Photos

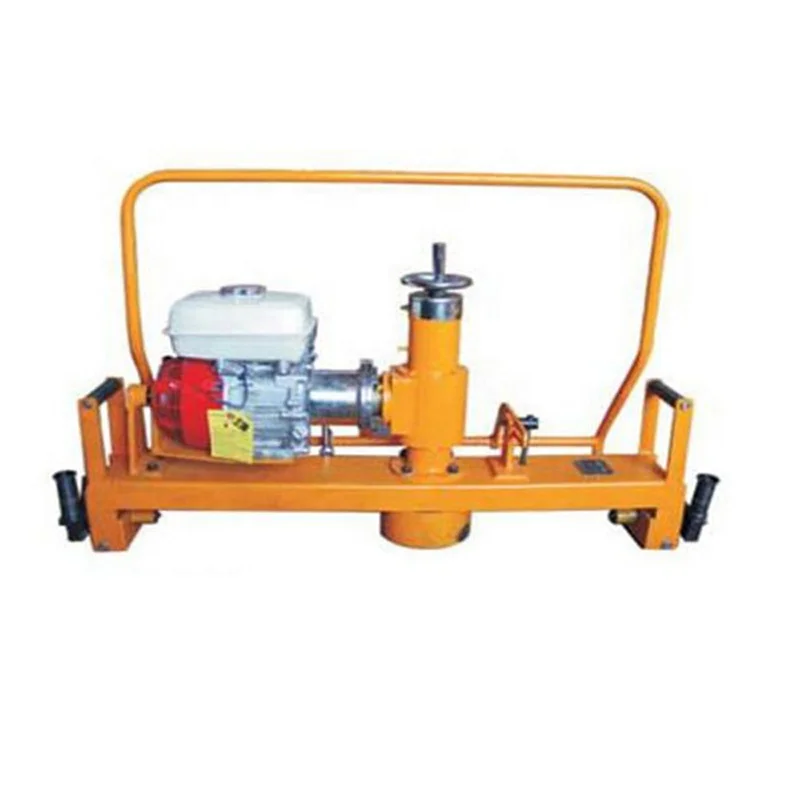

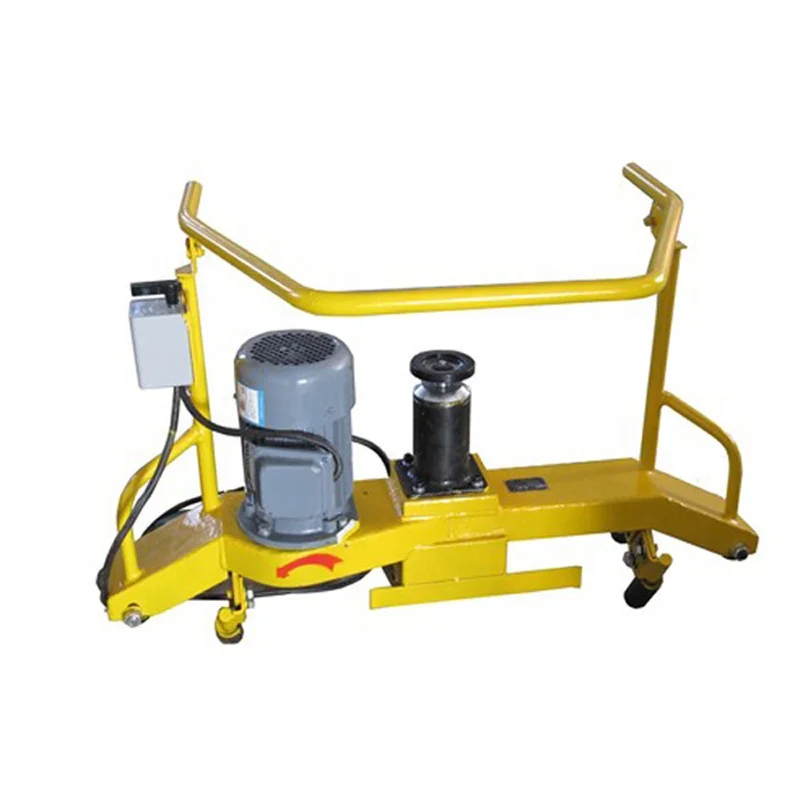

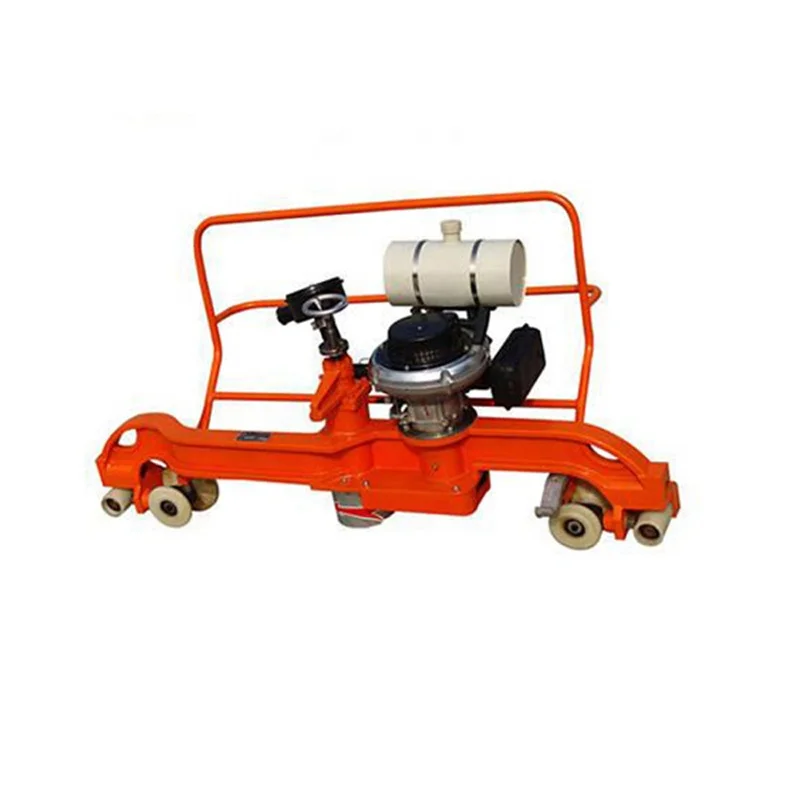

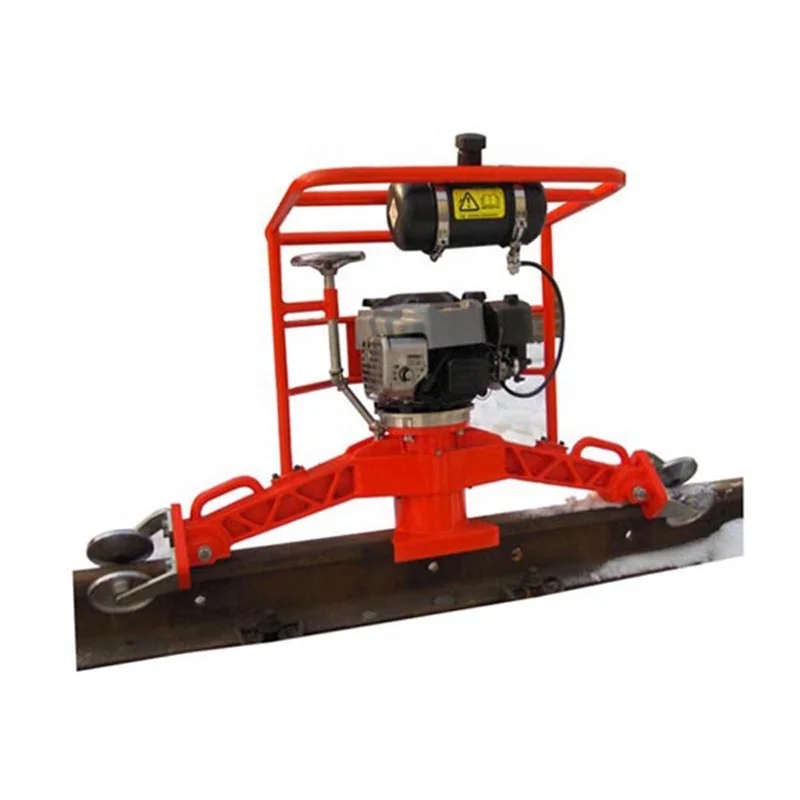

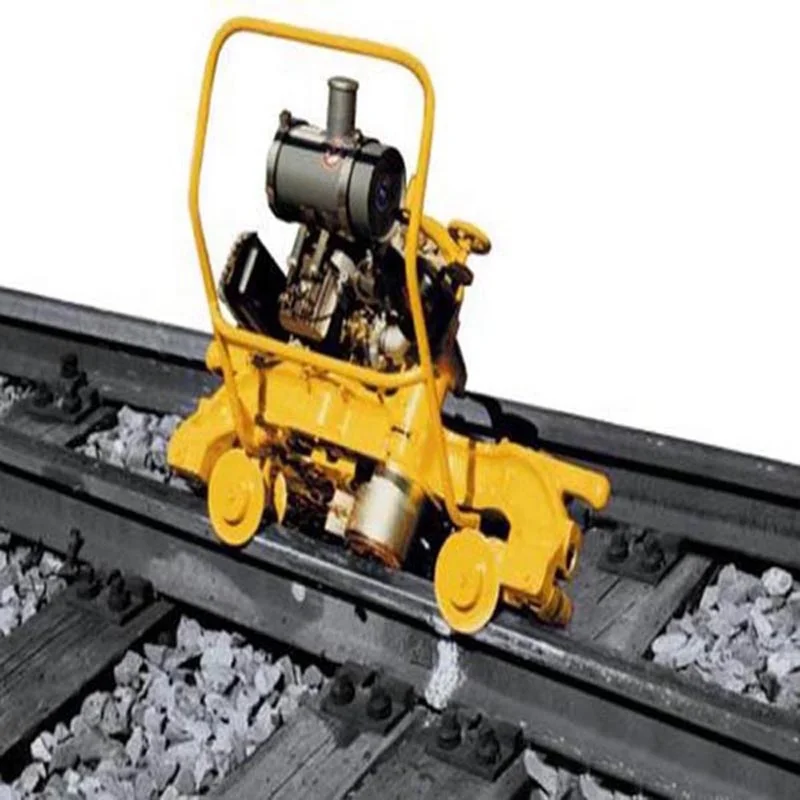

Figure Photos of Railway Maintenance Equipment Rail Head Profile Grinding Machine
