Раствор системы рециркуляции аквакультуры RAS дизайн для внутреннего рыбоводства с оборудованием рыбоводческой
- Категория: Aquaculture Equipment >>>
- Поставщик: Zhongshan,Huron,Environmental,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.85 $* | 0.0 $* |
| Aug-19-2025 | 0.59 $* | 0.69 $* |
| Jul-19-2025 | 0.14 $* | 0.51 $* |
| Jun-19-2025 | 0.63 $* | 0.68 $* |
| May-19-2025 | 0.48 $* | 0.51 $* |
| Apr-19-2025 | 0.30 $* | 0.60 $* |
| Mar-19-2025 | 0.80 $* | 0.27 $* |
| Feb-19-2025 | 0.99 $* | 0.99 $* |
| Jan-19-2025 | 0.16 $* | 0.51 $* |
Характеристики
\t\t\t\t\t\t\t\t\tRAS Description \t\t\t\t\t\t\t
Indoor recirculating aquaculture system fish farming pisciculture RAS equipment for grouper

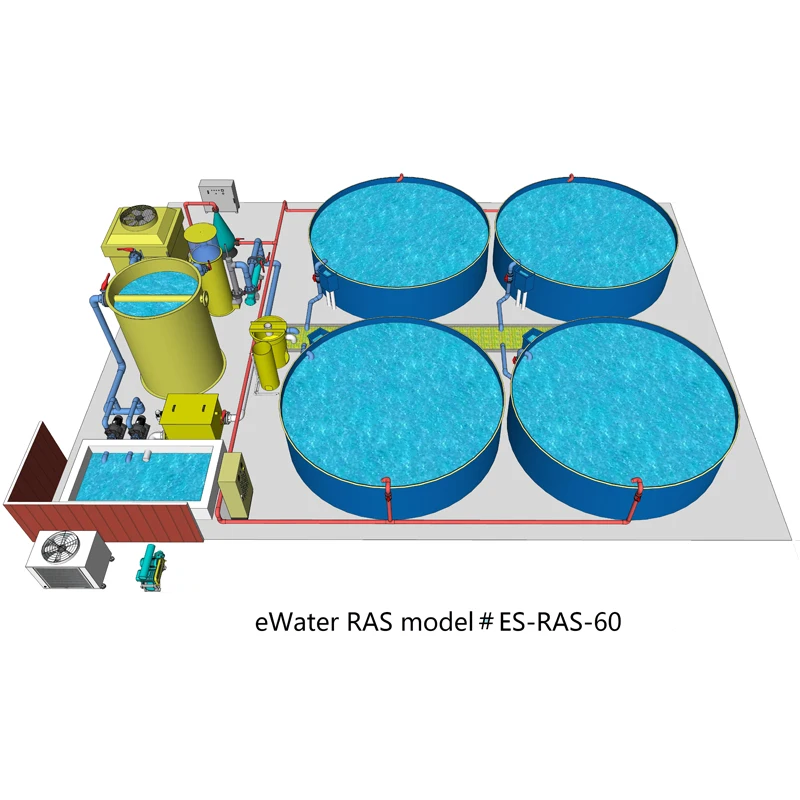

Recirculating Aquaculture System (RAS)
RAS is utilized to maintain water quality in intensive fish farming operations. These steps of RAS are often done in order or sometimes in tandem.
The water after the Vessel holding fish is first treated for solids before entering a biofilter to convert ammonia, next degassing and oxygenation occur, often followed by heating/cooling and
sterilization.
.
Each of these processes can be completed by using a variety of different methods and equipment, but regardless all must take place to ensure a healthy
environment that maximizes fish growth and health.
Advantages of the RAS
● Higher Productivity
Higher farming density
shorter farming cycle
higher breeding survival rate
● Lower Risk
Effectively resist natural risks and fish diseases
The breeding process is stable and controllable, ensuring product health and quality
● Environment Friendly
Blue revolution in aquaculture
Water reuse, zero emissions
Not subject to natural environmental resources
● Cost Advantages
High utilization of fish bait
Small farm area
Specification
The following parameters are for reference only, please contact us for more information.
Model # | Water flowrate | Water volume | Power consumption | Space required | Fish production |
RAS-200 | 200 m³ | 100~300 m³ | 17~35 kw | 200~400 m² | ~35000 kg/cycle |
RAS-300 | 300 m³ | 150~450 m³ | 25~50 kw | 250~700 m² | ~45000 kg/cycle |
RAS-500 | 500 m³ | 250~ 750 m³ | 40~80 kw | 400~1100 m² | ~75000 kg/cycle |
RAS-800 | 800 m³ | 400~1200 m³ | 60~120 kw | 700~2000 m² | ~120000 kg/cycle |
\t\t\t\t\t\t\t\t\tRAS Process \t\t\t\t\t\t\t
Key Components
A complete recirculating aquaculture system (RAS) normally contains the following equipment.
● Particle Settling Device
● Drum Filter
● Protein Skimmer
● Ozone Generator (Ozone Disinfection)
● Bio-filter
● Degasser (Remove carbon dioxide)
● UV Sterilizer (UV Disinfection)
● Oxygen Generator
● Oxygen Cone (or Low Pressure Oxygenation Device)
● Lift Pump
● Roots Blower

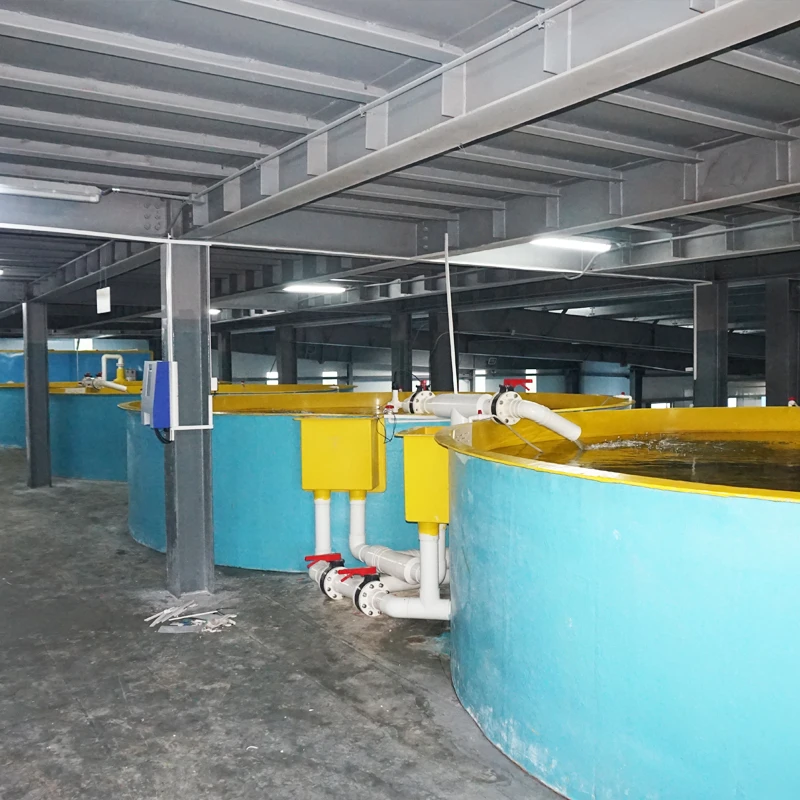

● Tanks
● Electrical Control System(PDC)
● Water Quality Mornitoring System
● Pipes & Fittings

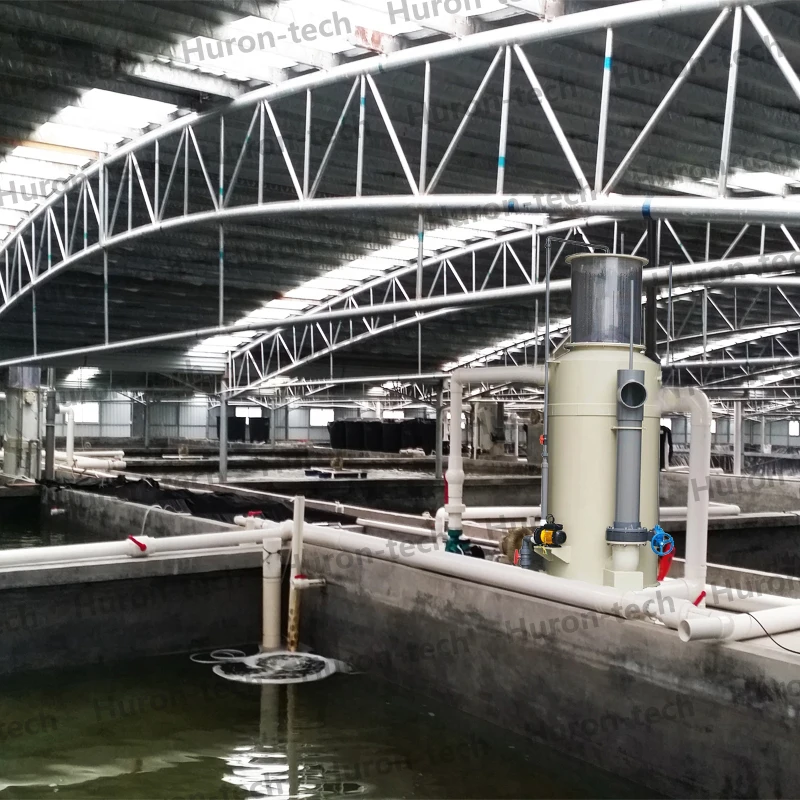

Protein Skimmer
PP material and durable,skimming the protein through
the microfoam.Improving water quality by removing the
fine organic matters.
Drum Filter
Effectively remove organic compounds from outlet water coming from fish tanks.Able to remove 42%~75% of the
total particles from the aquaculture water volume
Process
Our engineering team will design a solution based on customer's requirements together with our technology and
experience.You will get a full picture of RAS solution which contains RAS process,RAS technical info,annual fish
outcome,and the price.
\t\t\t\t\t\t\t\t\tRAS Applications \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tSuccessful Project \t\t\t\t\t\t\t
RAS for Lobster in Australia
180 m³ Recirculating Aquaculture System
RAS for Turbot in Saudi Arabia
120 m³ Recirculating Aquaculture System
RAS for Sea Grouper in Canada
300 m³ cement fish pond Recirculating Aquaculture
System
RAS for Penaeus Japonicus in Shanghai, China
100 m³ Recirculating Aquaculture System
\t\t\t\t\t\t\t\t\tAbout Huron \t\t\t\t\t\t\t
Zhongshan Huron Environmental Technology Co., Ltd., headquartered in the Torch Industrial Park of Zhongshan City of Guangdong Province, is an integrated high-tech environmental-friendly enterprise supported by the government. As an environmental-friendly equipment manufacturer and solutions designer, we focus on advanced oxidation technologies. The company has introduced and absorbed the cutting-edge technologies from both home and abroad, and holds many patents for its independent development of a series of disinfection products, such as UV sterilizer, ozone generator, PSA high purity oxygen generator, sodium hypochlorite generator, photocatalytic oxidation exhaust gas treatment device, etc.
The Factory Building
Certifications and Honor
The Workshop
\t\t\t\t\t\t\t\t\tTrade Show \t\t\t\t\t\t\t
Provide technical consultation, and assist customers on continuous quality improvement.
International customers consult business and seek common development with us.
Our company on the IE expo China 2018
Customers are consulting with us on site of the IE expo China 2018
\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t
Packing
We will send the pictures of the machines you order before we pack them with standard export wooden boxes.
We supply different standard export wooden boxes for different size products. All the details will be sent to you by email.
Delivery
1. Delivery by sea
When the products are delivered to seaport, the time of shipping and arrival will be confirmed with you. All the origin documents will be sent to you by Express .
2. Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport is optional.The Express tracking number will be send to you.
3.Delivery to the warehouse on your demand is optional. The express tracking number will email to you.
\t\t\t\t\t\t\t\t\tOur Services \t\t\t\t\t\t\t
. Consulting service available and custom designs are welcomed!
. We offer practical solutions, premium quality products along side competitive prices and prompt delivery.
. All the equipment are guaranteed for 2 years and life-time warranty,except for the wearing parts.
. Support onsite installation and sending engineer for debugging on demands.
. After-sales service and content: If the quality problems occur; even the equipment lose the ability of working, the supplier will repair or replace them free of charge during the warranty period. The product is life-long maintenance and the supplier provides all-round services. (except for factors such as artificial damage or irresistible force)
