36v 5a golf cart battery charger for lipo lithium ion li-ion lead acid electric bike forklift
- Категория: Battery Charger >>>
- Поставщик: Dongguan,Changbao,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 43.6 $* | 45.48 $* |
| Aug-19-2025 | 42.80 $* | 44.2 $* |
| Jul-19-2025 | 36.76 $* | 38.89 $* |
| Jun-19-2025 | 42.45 $* | 44.23 $* |
| May-19-2025 | 36.29 $* | 38.72 $* |
| Apr-19-2025 | 41.63 $* | 43.83 $* |
| Mar-19-2025 | 41.93 $* | 43.88 $* |
| Feb-19-2025 | 40.0 $* | 42.88 $* |
| Jan-19-2025 | 40.35 $* | 42.81 $* |
Характеристики

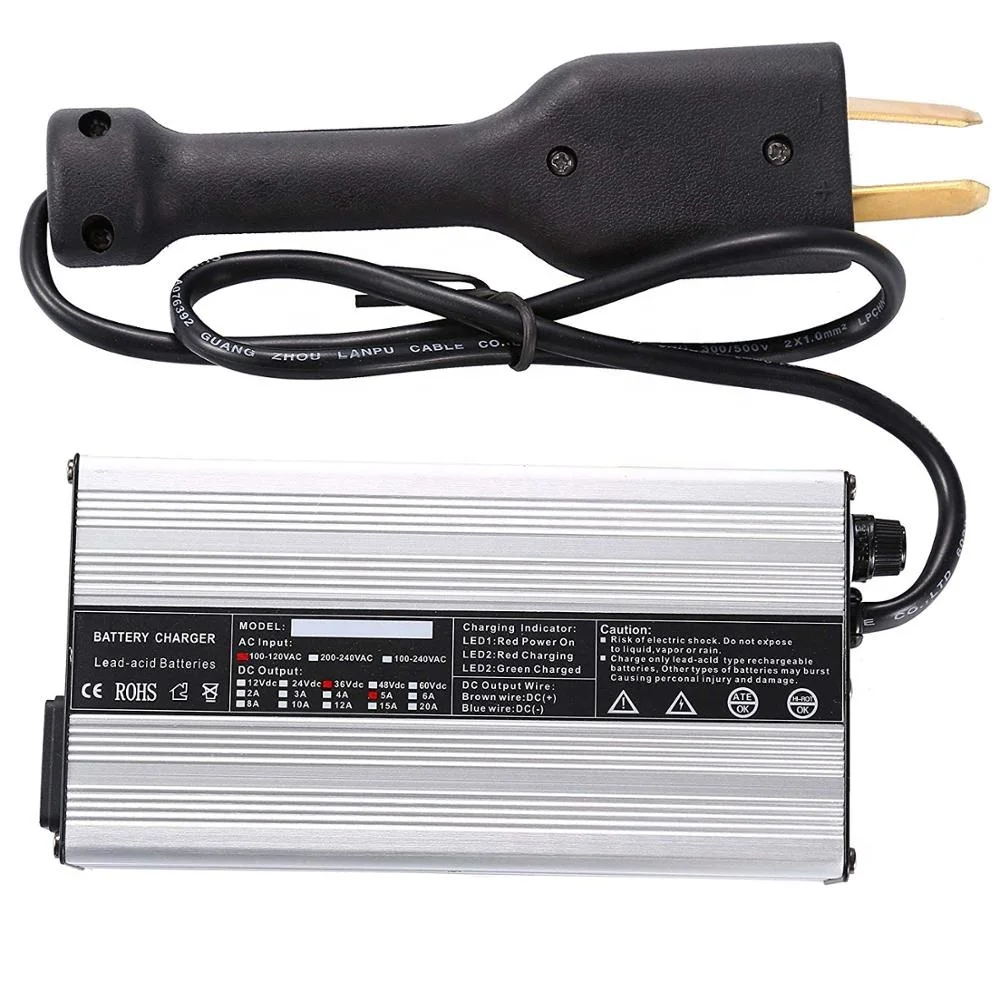

36V 5A Battery Charger
1). for 36V Lead acid Li-ion LifePO4 Battery Packs
2). for Electric Car, Wheelchair, Sightseeing Car, E-bike, Electric Golf Cart, E-Motocycle, E-Patrol Car, E-forklift, E-boat, E-Cleaner, E-sooter, E-torist Coach, Robot and more
Product Paramenters
Mechanical Drawing:
Dimension: L170xW90xH50mm
Net weight: 1.0kg
Color: Silver,Black,
Case material: Aluminium Alloy
Compatible Battery | Lead Acid/LiFePo4/Li-ion/Li-MnO2 | ||
Input | 100 to 240 VAC 50/60Hz | ||
Output | 42V 5A for Li-ion battery 43.8V 5A for LifePO4 | ||
Charge voltage | 44.1V | Float Voltage | 43V |
LiFePo4/3.65V Charge voltage | 43.8V | ||
Lithium ion/4.2V | 42V | ||
LED Indicator | Solid Red LED = Charging (0-99%) | ||
Dimension(LxWxH) | L170xW90xH50mm | ||
Weight | 1.0Kg | ||
Charging Mode | CC/CV, Float/cut-off | ||
Certification | UL/cUL / ETL / CE / FCC / RoHS, EN61558 / ETL1310 Approval Standard. Recognized or tested by TUV lab, for more information, please contact us. | ||
Charging Time | Cut-off point for Li battery is 8% of CC and it can be set between 3-10%.(charging time:4-5 hours) | ||
Transition for Lead acid charger is 25% of CC.(charging time:6-8 hours) | |||

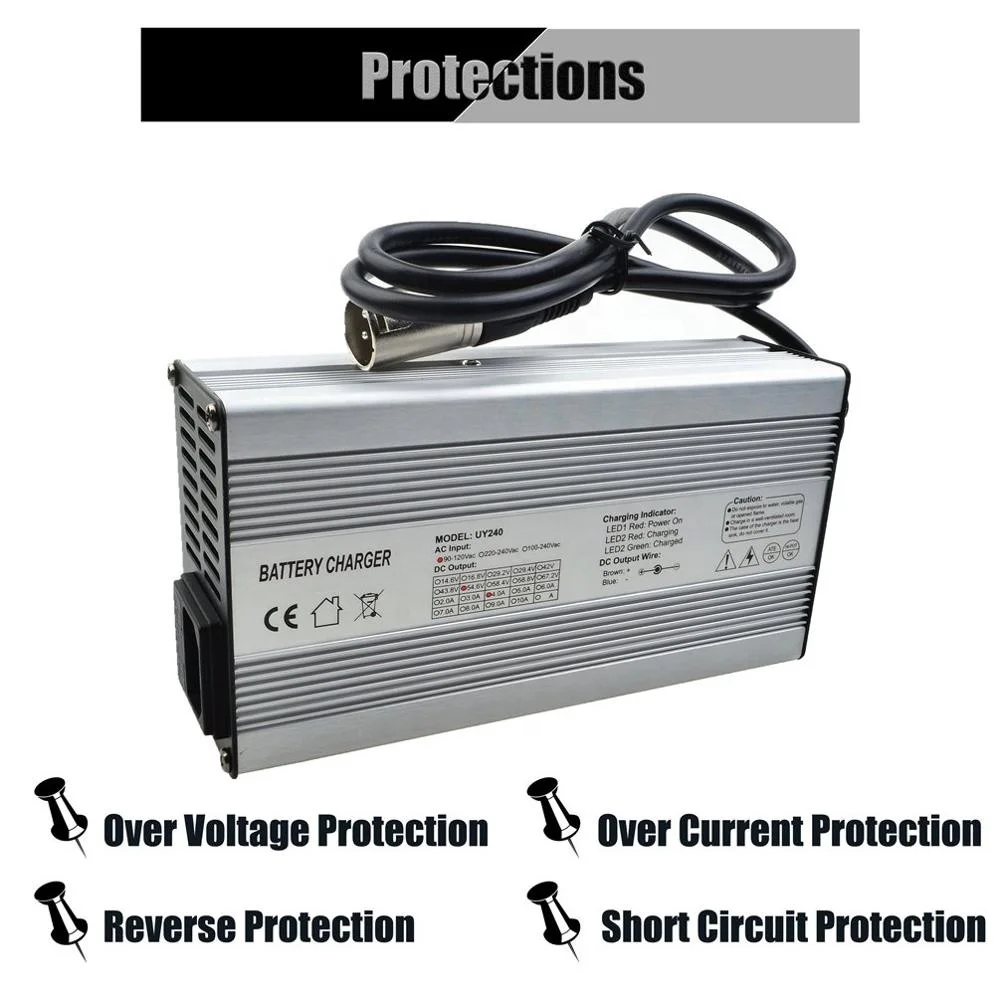

Protection | Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge. | ||
Advantage | 1). Intelligent cooling fun, controlled by temperatureQuasi-resonant pulse width modulation(PWM),full automatic transition of CC,CV and Float/Cut-off, meet the demands for different Curve. | ||
FAQ
1. The LED turns off while charging.
-This charger has a build-in thermal protection function. Battery charging is shut off when the temperature of charger increases beyond set limit, and LED turns off (no color). Once the charger temperature drops to acceptable limit, the charging process is resumed and the LED turns on (Green/Red color).
2. LED color changes to Yellow
-This indicates that battery is not being charged correctly. Remove the battery pack from Charger and re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
3. Battery is inserted in the charger, but the LED does not change to RED.
-This indicates that battery is not being charged correctly. Remove the battery from charger and re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
4. LED changes to Green, but the capacity is too low.
-This indicates that battery is not being charged correctly. Remove the battery from charger, clean the contacts with a soft clean cloth, re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
