TYou are here:Home>> DC Power Surge Protection >>Type 2 PV Surge Arrester


TYCOTIU Looking For Agents To Distribute Our Products Type 2 Spd Surge Protector 3P

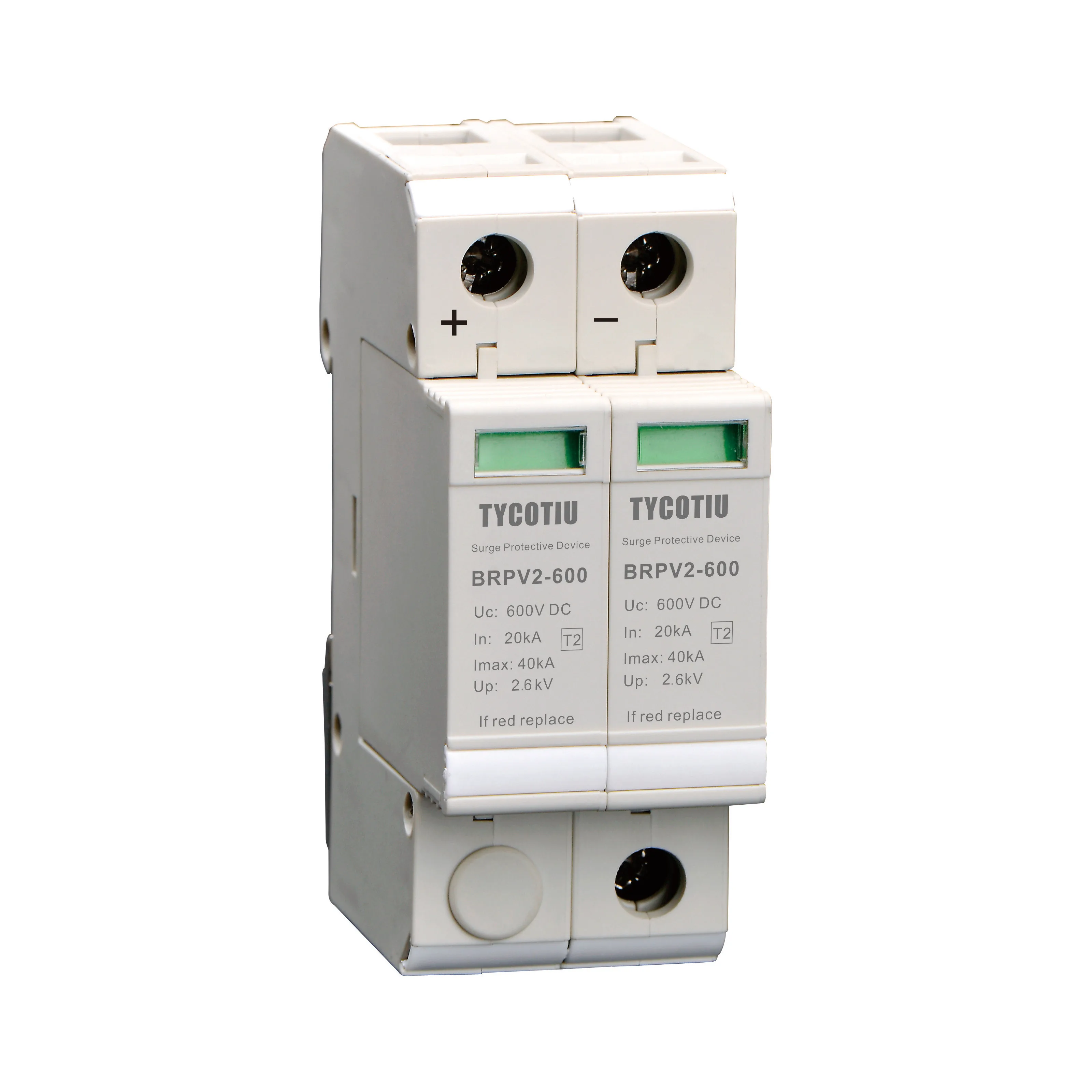

TYCOTIU 600v Thunder Protector 2p solar PV surge protection device  DC SPD  for Solar  Panel dc spd surge protector


   <Lightning Surge Arrester/Surge Protective Device/PV Surge Arrester>






Product Description


Features



  • Low residual voltage and quick response

  • High current capacity,high safety and stability perfomance

  • Multifunction connection for conductor and busbars

  • Widely  applicable to the overvoltage protection of all kinds of D,C grade in DC solar system.And protect against lightning surge voltages in solar system








Product Details


BRPV2-600 ws.jpg





Product characteristics






















































































Specification BRPV2 600 BRPV2 1000
Item name PV Surge Arrester
PV Surge Arrester
SPD dassification according to IEC61643-11 Type 2
Type 2
SPD dassification according to IEC50539-11-2013
Type 2 Type 2
Max continuous 0perating dc voltage ucpv≤600≤1000
Norminal discharge current (8/20µs) In 20 20
Max.discharge current (8/20 μs) Imax 4040
Voltage protection level [(DC+/DC-)→PE] Up≤2.6kV ≤4.0kV
Operating state/fault indicationGreen/red Green/red

Operating temperature range



-40℃-80℃


-40℃-80℃

Response time tA



≤25ns



≤25ns


For mounting on 35mm Din rail

35mm Din rail


Degree of protectionIP20 IP20
Payment term30% deposit in advance,70% before shipment,100% T/T in advance
CertificateTUV/SEMKO/CB/CE/ROHS/ISO9001 approved standard
Logo      Customized logo with Decal/ Frosted/ Print are available as request

Design ability



We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)









Product Range


















Workshop


  TYCOTIU owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Taike team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.
2





Company Information


   Zhejiang Tycotiu Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.
1





Exhibition


    TYCOTIU have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.
2





Certifications


  TYCOTIU offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.





Product Uses


  TYCOTIU have developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and data , etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.







FAQ




01





How about your experience?


We have our own  factory and in-house test laboratory, our R&D department have more than


15 years experiences.









02





What's your advantage?


Fast delivery: 2-3 weeks. Large scale production drive cost down: 300,000 pieces per year.


Qulaity recognized :cooperate with transnational company.









03





Is custom design package acceptable?


Inner box and out carton are made as per international standard.


We can make packaging according to customer's need.









04





Could you do OEM for us?


Sure,we accept OEM and ODM order,please supply with the letter of Authorization for the brand.









05





How about warranty?


5-8 years.







06





Could I buy 1pc sample first and small order?


Of course,support sample order, especially for new customers under certain condition.









07





How long make a sample?


 3-5 days.









08





How does your company do regarding the quality control?


Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. IQC inspects the components, the patrol inspection is done during production and all the goods to be tested 100% before leaving the factory..









Over 15 years' OEM experience,we can provide professional solutions for customers. Click "Send "get the Latest quotation Now!!
