Фабричный Sunsoont 4 порта 100 Мбит/с переключатель poe для ip-камеры
- Категория: Сетевые коммутаторы >>>
- Поставщик: Shenzhen,Sunsoont,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.56 $* | 0.41 $* |
| Aug-19-2025 | 0.10 $* | 0.18 $* |
| Jul-19-2025 | 0.58 $* | 0.42 $* |
| Jun-19-2025 | 0.84 $* | 0.49 $* |
| May-19-2025 | 0.8 $* | 0.41 $* |
| Apr-19-2025 | 0.27 $* | 0.23 $* |
| Mar-19-2025 | 0.40 $* | 0.80 $* |
| Feb-19-2025 | 0.37 $* | 0.93 $* |
| Jan-19-2025 | 0.9 $* | 0.74 $* |
Характеристики
100M OEM mini 8 port PoE switch 48V 24V for Access point IP camera IP phone
Product Description
10/100Mbps POE Switch with 4 10/100Mbps POE ports, with VLAN DIP, it can easily have access to VLAN function. There are 2 10/100Mbps uplink port. Longest POE distance can reach 250M. It is designed for school, family, SEMs, small range surveillance and other network connections. All ports support wire speed forwarding and the rate is up to 100Mbps. Each port support 4KV port lightning protection to ensure stable operation.
Specifications
100M OEM mini 8 port PoE switch 48V 24V for Access point IP camera IP phone product specs:
Standards | IEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet |
PoE Spec | PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE PD classification identity PoE over current protection PoE circuit sorting protection PoE Power Output: Per Port 52V DC, Max. 30 watts (IEEE 802.3af/at) Power Budget: Max. 65W Power Pin Assignment: 1/2(+), 3/6(-) |
Transmission Media | 10 BaseT Cat 3,4,5 UTP/STP 100M BaseTx CAT 5 UTP/STP |
Filtering/Forwarding Rates | 100Mbps port-148,000pps 10Mbps port-14,880pps |
LED Indicators | Per Port: Link/Act((Green), PoE Port:PoE in use(Orange) Power:PWR(Orange) |

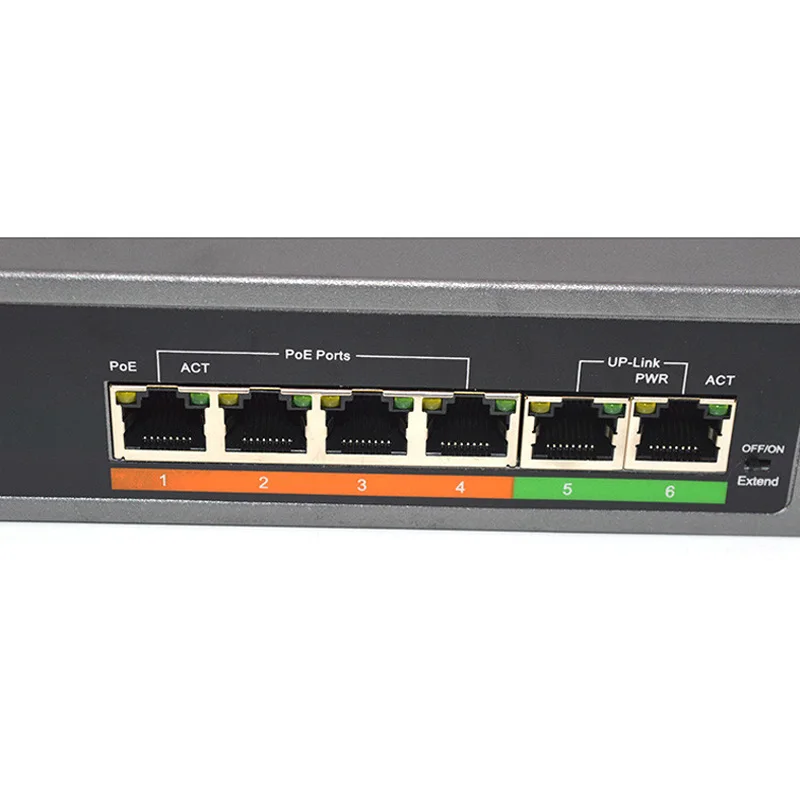

Network Interface | 4 x 10/100Mbps RJ-45 PoE 1~4 Ports 2x 10/100Mbps RJ-45 Uplink 5~6 Ports |
Extend/ON | 1~4Port 10Mbps POE+Vlan 250M ;5~6Port 10/100Mbps |
Power Input | Input: 100~240V/AC, 50~60 Hz, 1A Internal Power Supply |
Power Consumption | 65Watts(Max) |
Dimensions: (L x W x H) / Weight | 185*124*44mm /1kg |
Temperature | Operating: -5 ~ 45°C Storage: -20~70°C Humidity: 10~90%, Non-condensing |
Warranty | 3 years |
Product Avantages
100M OEM mini 8 port PoE switch 48V 24V for Access point IP camera IP phone Product advantages:
1. Support wireless access point (AP) and network surveillance cameras powered by Category 5 Ethernet cable
2, 1 to 4 port support standard IEEE802.3af/at power supply
3, 6 10/100 Mbps adaptive RJ45 ports, with dial switch 100 meters and 250 meters adjustable. 1 to 4 ports support 10M VLAN and 250 meters
4, in line with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX standard
5. Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
6, support port automatic flip (Auto MDI / MDIX)
7. The whole machine PoE power: 65W (all PoE ports, ports 1 to 4 ports)
8, maximum 30W per port
9. Switching system using store-and-forward
10, all ports support line-speed switching, line speed can be reached within 64 ~ 1536 frame length
11, no fan, natural heat dissipation
12, compact, quiet design suitable for placement on the desktop or wall
13, zero configuration features power is automatically supplied to the adaptive device

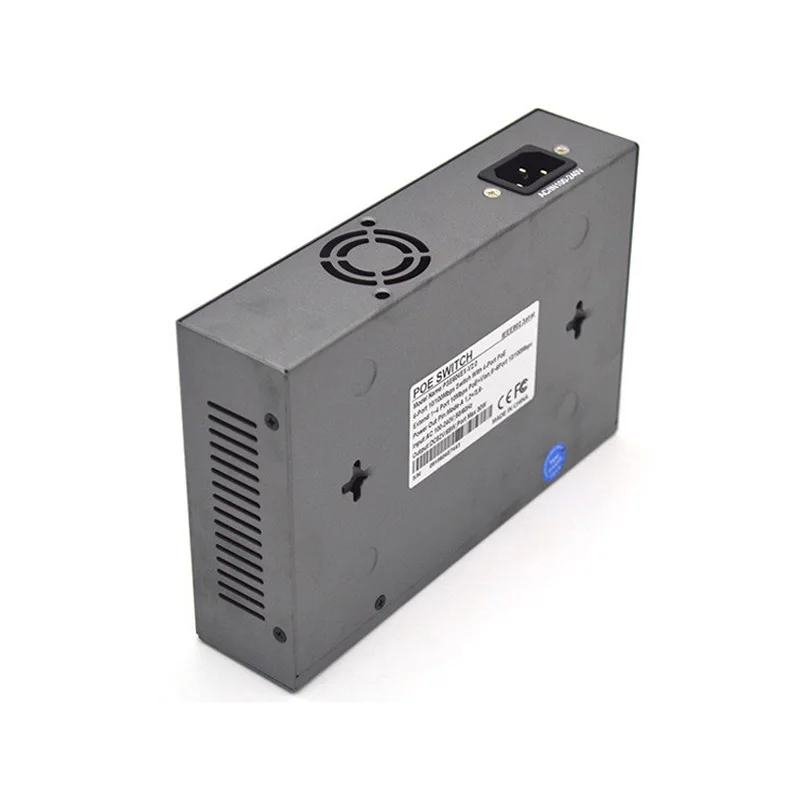

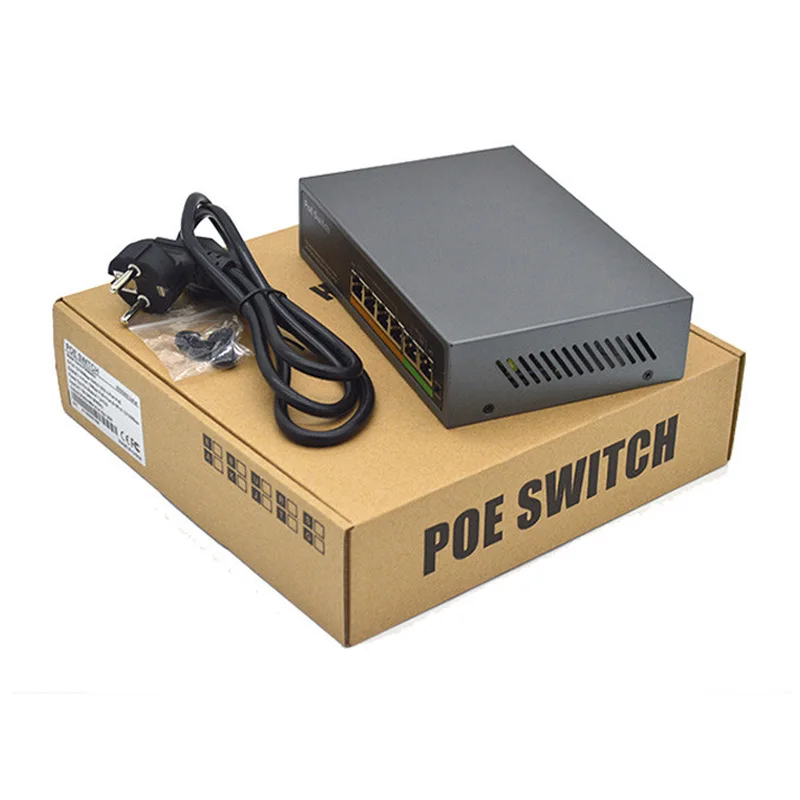

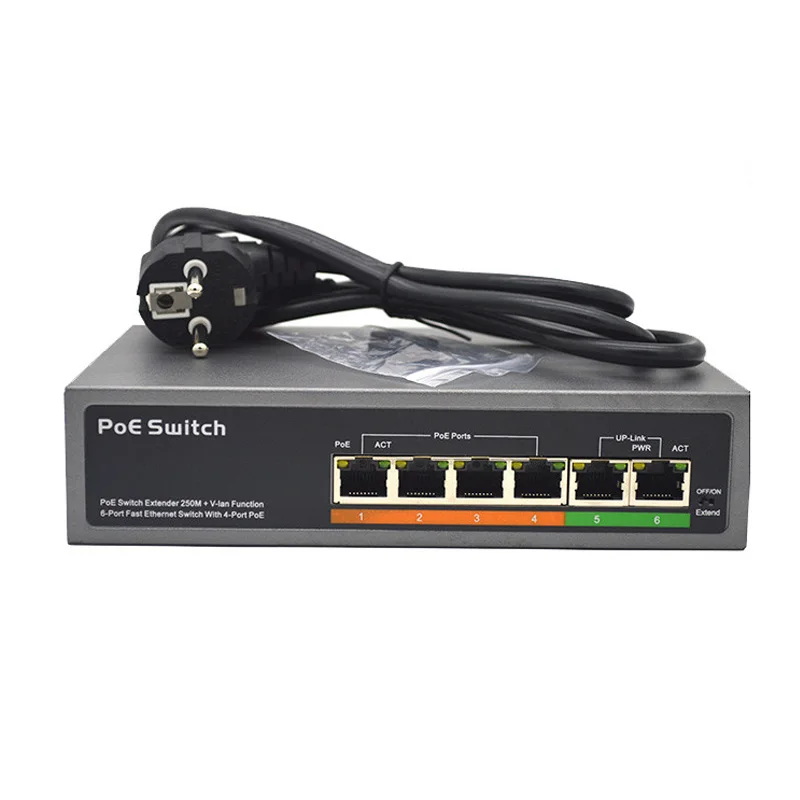

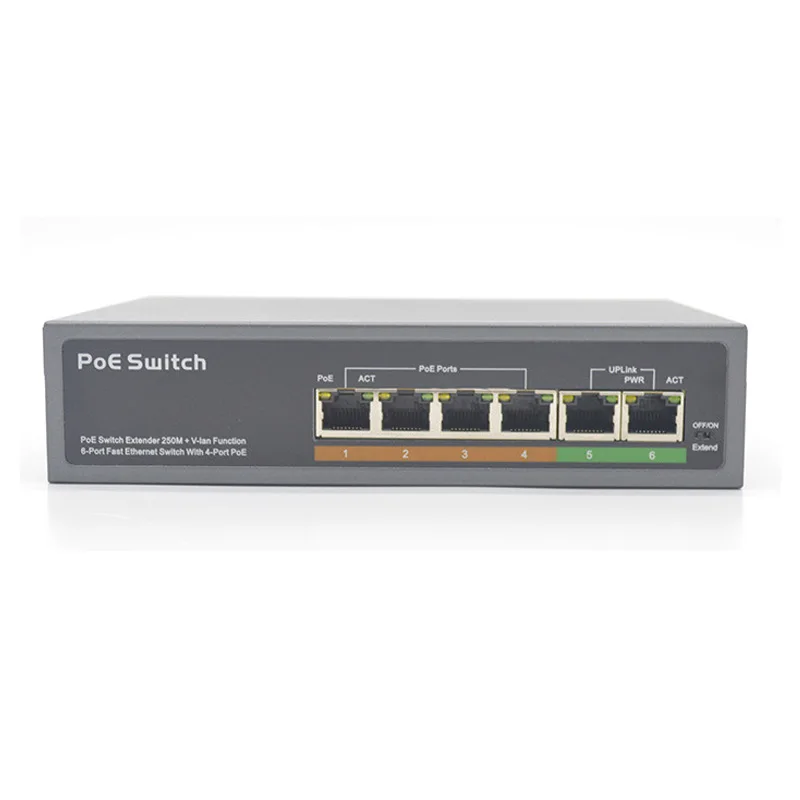

Detailed Images

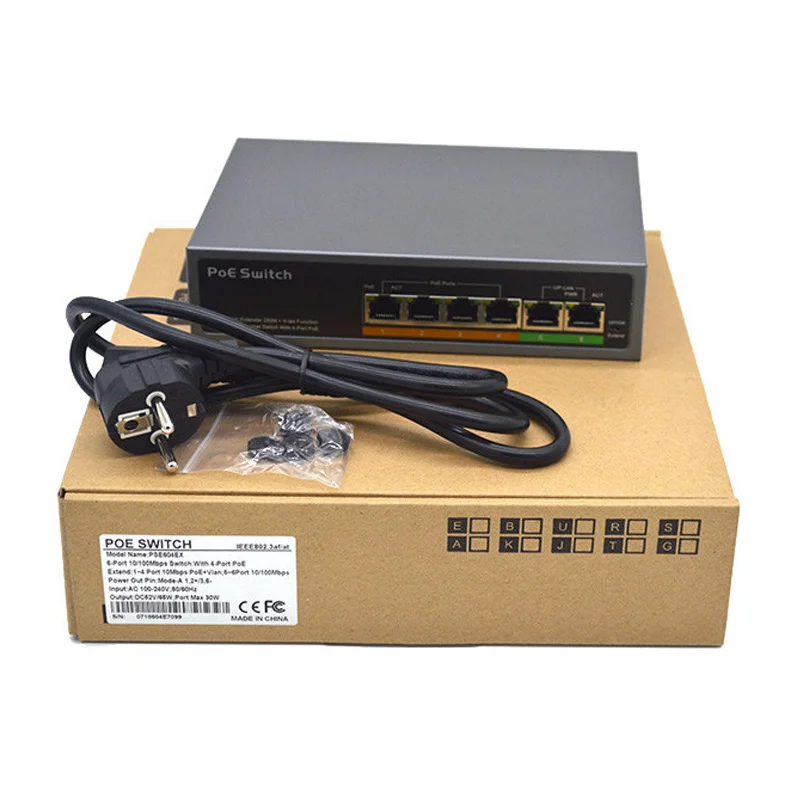

Packaging & Shipping
Company Information
Shenzhen Sunsoont Technology Co,. Ltd. established in 2016, is a professional manufacturer engaged in the research, development, production, sale and service of fiber optic equipments and network devices. We are located near to Shenzhen Subway Line 11 Qiaotou station. Dedicated to strict quality controlling and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including Laser automatic coupling machine\\Eye diagram instrument\\Oscilloscope. In addition, we have obtained CE, RoHS, FCC, TUV certificates. our products are exported to many countries, such as, Russia, India, Israel, Thailand, Ukraine, Brazil, Indonesia, Korea, Frence,Colombia, South Africa, and so on. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Hope we could offer the best products and services to you!
FAQ
1. What is your MOQ, Can I have a small sample order?
Yes, we welcome sample order to test and check quality.
2. What is your payment terms?
Trade assurance ,T/T, West Union, Paypal, Credit card or Cash.
3. What is your warranty time
We promise 3 years’ warranty for all products shipped from us.
4. What is the lead time?
For usual products. We keep stock, could ship 1-3 days after payment, as to big quantity and special products, will provide the lead time after confirming with our production dept.
5. Could I use our own logo and label?
Yes, we could provide OEM service and make the products with your own label.
Contact Us
Welcome your inquiry, and welcome to visit our factory.
For more information, please feel free to contact us, we will reply you in 8 hours.
Thanks for your attention!
