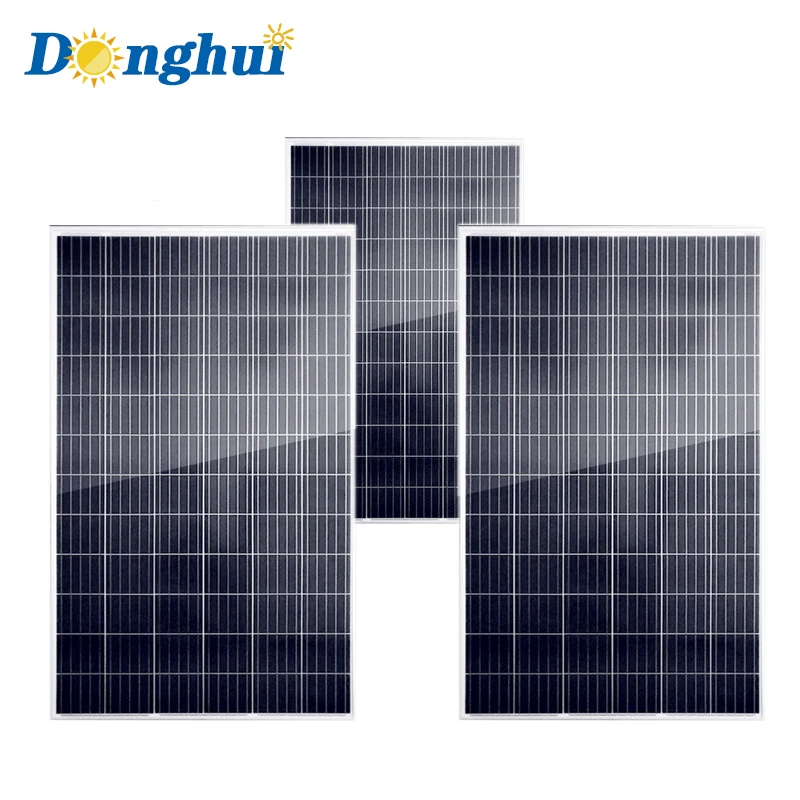

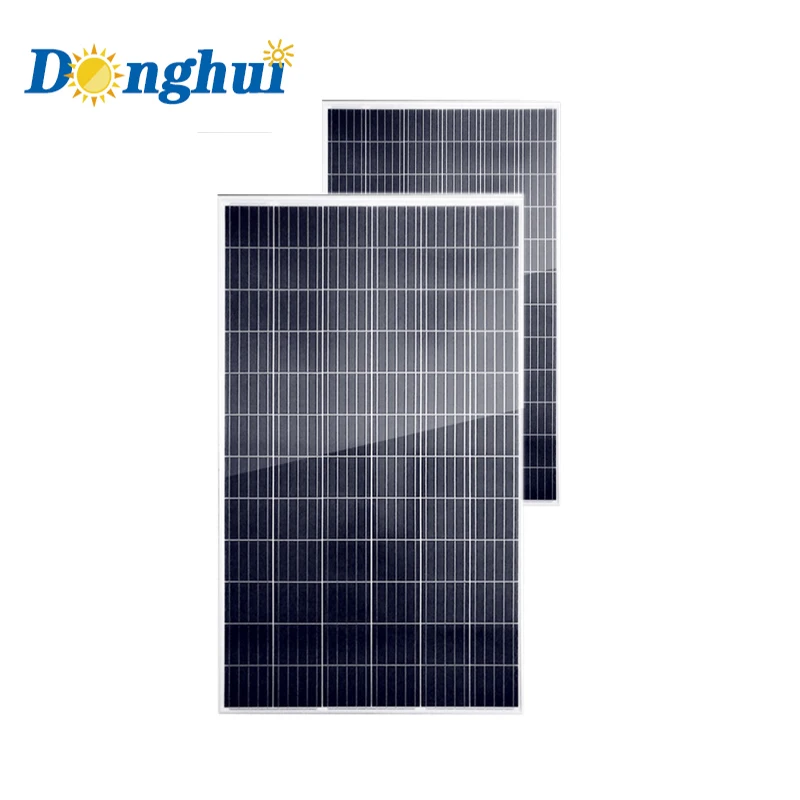

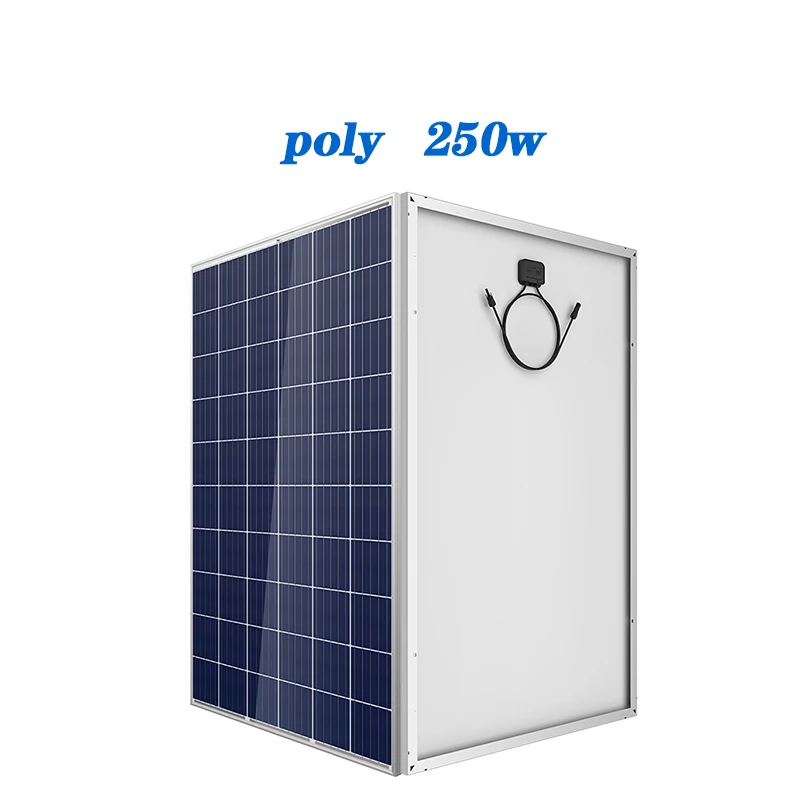

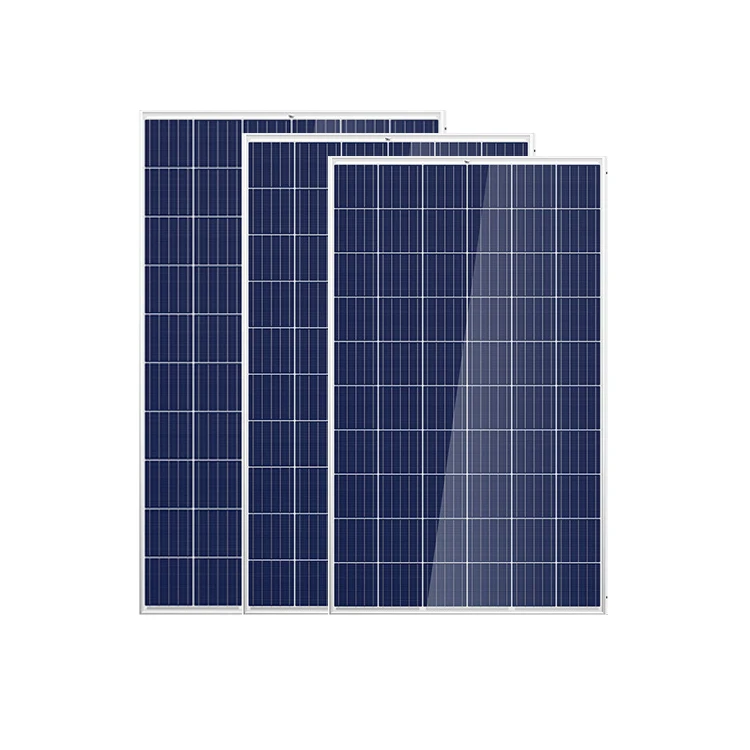

Поли-солнечная панель Donghui 250 Вт высококачественный поликристаллический кремний Высокая Коэффициент конверсии комплект солнечных
- Категория: Solar Panels >>>
- Поставщик: Yiwu,Donghui,Solar,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 48.4 $* | 50.31 $* |
| Aug-15-2025 | 47.34 $* | 49.84 $* |
| Jul-15-2025 | 40.82 $* | 42.72 $* |
| Jun-15-2025 | 46.56 $* | 48.2 $* |
| May-15-2025 | 40.69 $* | 42.36 $* |
| Apr-15-2025 | 46.94 $* | 48.92 $* |
| Mar-15-2025 | 45.90 $* | 47.93 $* |
| Feb-15-2025 | 45.61 $* | 47.79 $* |
| Jan-15-2025 | 44.77 $* | 46.6 $* |
Характеристики
Product Description
Detail
 |
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

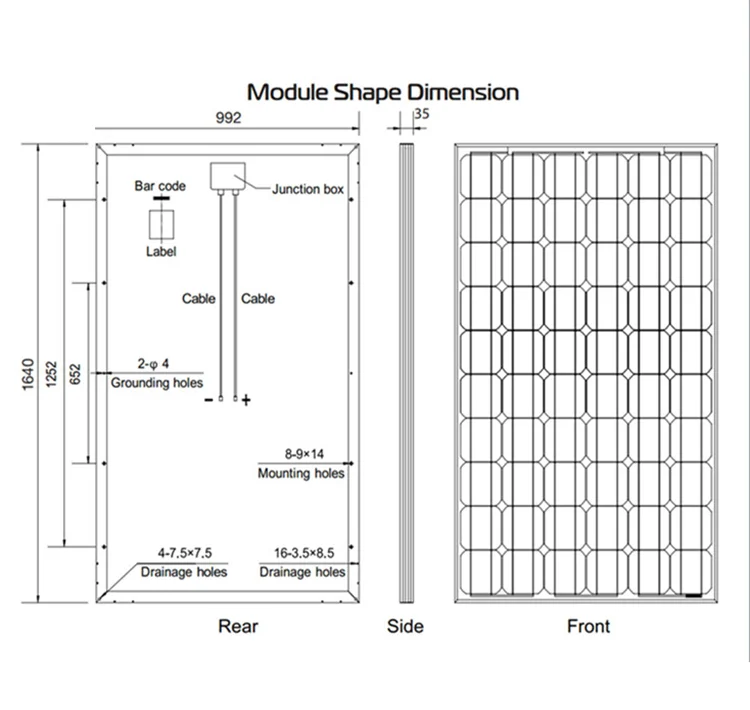

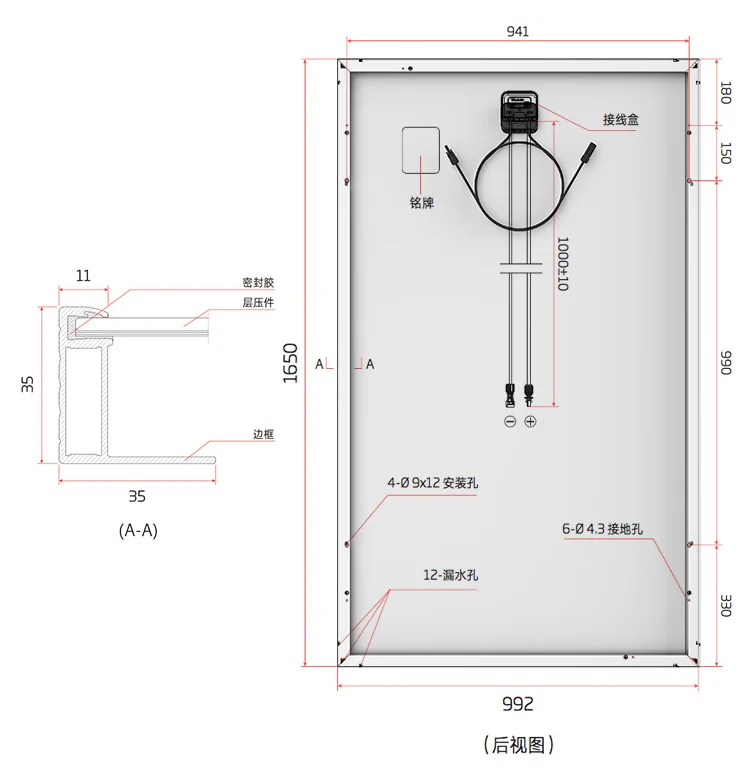

MECHANICAL DATA
| Solar Cells | Polycrystalline |
| Cell Orientation | 60cells |
| Module Dimensions | 1640*960*40mm |
| Weight | 19kg |
| Glass | 3.2mm (0.13 inches), High Transmission, AR Coated Tempered Glass |
| Encapsulant Material | EVA |
| Backsheet | Black |
| Frame | 35mm Anodized Aluminium Alloy |
| J-Box | IP 67 rated |
| Cables | Photovoltaic Technology Cable 4.0mm2 (0.006 inches2) |
| Connector | PV |
TEMPERATURE RATINGS MAXIUM RATINGS
| NMOT(Nominal Module) | 41℃(±3℃) | Operational Temperature | -40~+85°C |
| Temperature Coefficient of PMAX | - 0.37%/°C | Maxium System Voltage | 1000V DC(IEC) |
| Temperature Coefficient of VOC | - 0.37%/°C | 1000V DC(UL) | |
| Temperature Coefcient of ISC | 0.05%/°C | Max Series Fuse Rating | 20A |
(Do not connect Fuse in Combiner Box with two or more strings in parallel connection)
WARRANTY PACKAGING CONFIGURATION
| 10 year Product Workmanship Warranty | Modules per box:30 pieces |
| 25 year Linear POWER Warranty | Modules per 40'container:780 pieces |
(Please refer to product warranty for details)
Produce Line&Packing
| By Sea | Delivery from Yiwu,Ningbo or Shanghai seaport |
| By Air | Departure from Shanghai Pudong Airport |
| By Express | By TNT/DHL |
Project
Company Information
Payment
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
