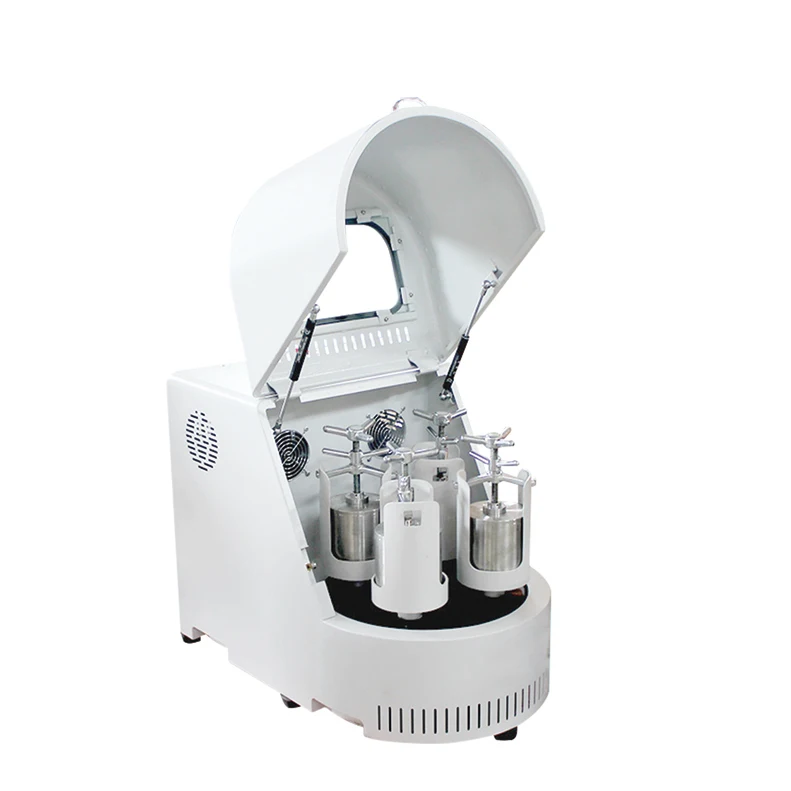

Высококачественная Вертикальная Планетарная шаровая мельница BIOSTELLAR (квадратная

Model

QM-0.4A

QM-2A

Capacity

0.4L

2L

Volume of Each Capacity

50-100ml

50-500ml

Jar Quantity

4 pcs

Motor Power(KW)

0.25

0.75

Running Time Range (min)

1-9999

Reciprocal Running Time (min)

1-999

Adjustable Speed Revolution (rpm)

45-435

35-335

Rotation (rpm)

90-870

70-670

Noise

≤58±5db

≤60±5db

Power Supply

AC 110/220V, 50/60HZ

Speed Control Mode

Frequency Control

Transmission Mode

Gear Drive

Working Mode

2 or 4 pots can be used each time

Max Volume of Load

Two-thirds of pot's volume

Feed Size

Soft and Crispy material<10mm, Other materials<3mm

Out-put Granularity

Minimum Granularity can be reached to 0.1um

Adjusting Mode of Rotate Speed

Frequency converter with stepless speed regulation

Dimension(mm)

530*300*340

730*430*550

Packing Size(mm)

595*360*485

820*530*720

Net Weight(kg)

26

74

Gross Weight(kg)

30

80
