Популярная автоматическая машина для удаления кромок с покрытием Low-e обработка


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.84 $* 0.10 $*
Aug-15-2025 0.61 $* 0.4 $*
Jul-15-2025 0.67 $* 0.15 $*
Jun-15-2025 0.23 $* 0.18 $*
May-15-2025 0.16 $* 0.5 $*
Apr-15-2025 0.25 $* 0.24 $*
Mar-15-2025 0.56 $* 0.14 $*
Feb-15-2025 0.10 $* 0.53 $*
Jan-15-2025 0.91 $* 0.52 $*

Характеристики


Product Description
Main Feature
1. Laser cutting, CNC bending, high strength carbon steel, spray backing

2. PLC control system, touch screen interface

3. LOW-E glass coating automatic identification

4. Four-axis servo control system

5. Two-way glass input

6. Automatic detection of glass size

7. Grinding wheel contact pressure automatic adjustment system

8. Automatic dust removal function

9. Automatic grinding wheel modification function

10 control system intelligent memory batch function

11. Linear guide positioning mechanism

12. Security device

Strength

1.Buyer can chose which side glass move into.

2.The wheel can be automatic repair by itself.

3.The machine includ a graphics library to delete different shape of glass.

4. We use five servo motors and high quality MP from panasonic in Japan, and adopt the linear guide rail from Hiwin in Taiwan.

5.The machine automatic absorb dust to keep the clean.


* It can be upgrade according customer's demands.


Technique parameter:

Machine size
7900mm(L)x2100mm(W)x3350mm(H)
Max. glass size
2000x3000mm
Min. glass size
300x400mm
Glass thickness
3-19mm
Transmission Speed
0-30m/min
Edge deleting speed
0-15m/min
Power supply
AC380V 3ph 50HZ
Total power
15kw

Main components :

No.
Name
Brand
1
Low-voltage electrical component
SCHNEIDER
2
PLC
PANASONIC
3
Touch screen
OMRON
4
Transducer
OMRON
5
Temperature controller
OMRON
6
Approach switch
AUTONIC
7
Photoelectric switch
AUTONICS
9
Hydraulic solenoid valve
AUTONICS
10
Air parts
AIRTAC
12
Servo Motor
PANASONIC

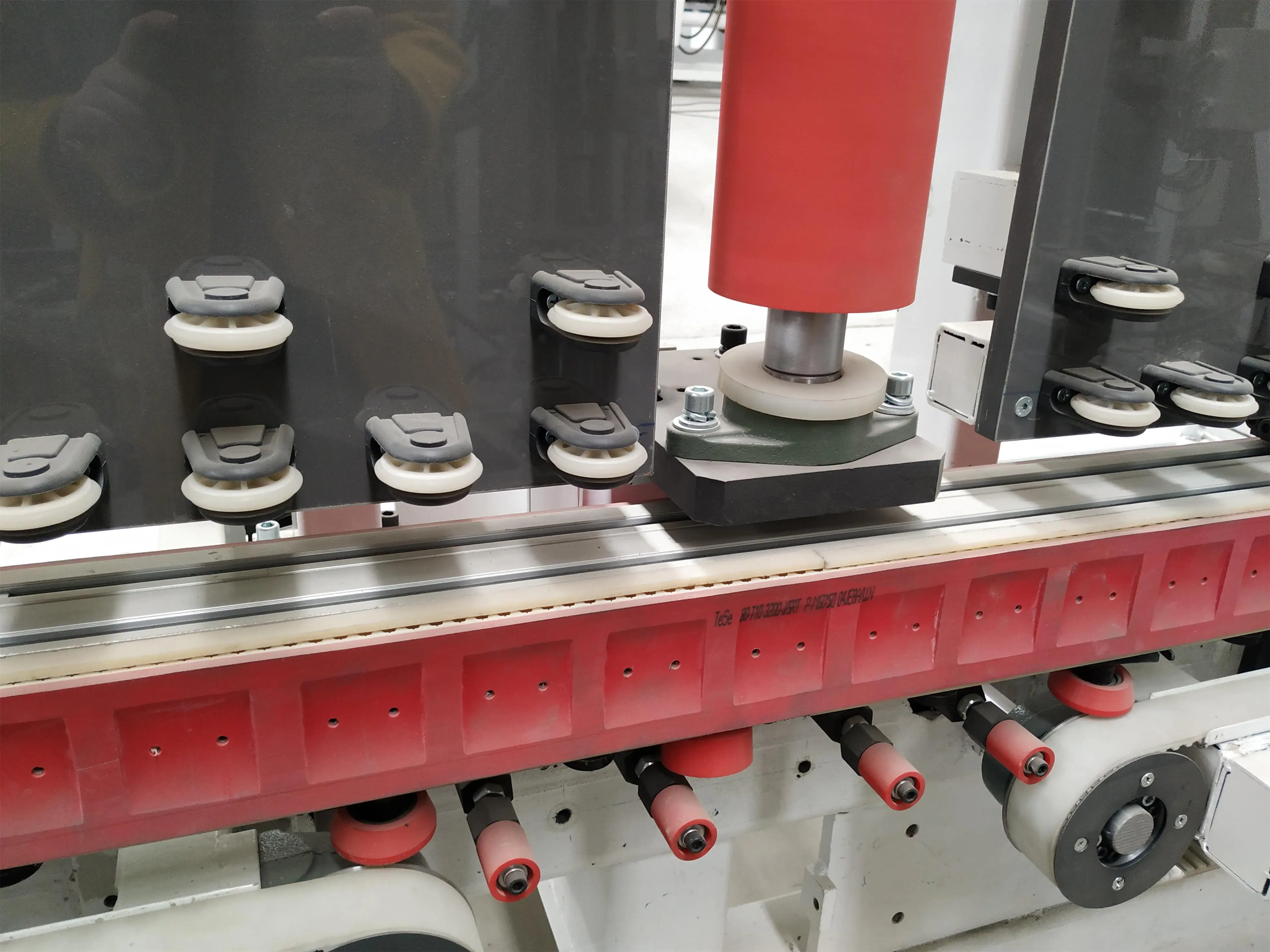

Detail Images
Company Profile

Jinan Weili Machine Co.,Ltd is in the service of construction glass and glass industries. It is mainly specialized in producing door-window of energy conservation insulated glass production line of curtain wall, and glass deep-processing equipment.

Based on the operating mode:"Professional, Meticulous, High, Top" ,our company has grown up to the leader of equipment line. It makes effort to create respected brand name by all glass industries.

Constantly making innovations, Capturing high technology, prompting the total level of industry, then to make Chinese mature and high technology insulating glass equipment for international, and accepted by international users. That is the Weili people working's goal and responsibility.

Since the company established, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipments. The products sell well at home and abroad, and some were exported to the countries in Europe, Africa, Middle east and Southeast Asia.

With super advanced sales service idea,Weili Machine makes it true that information transmission to and sharing with customer in point to point way,proffesional and high quality sales service guarantee the high efficient,rapid,timely and convenient comprehensive service.Weili Machine promise seriously:Customer's satisfaction is our destination.

Service

18 years experience

Jinan Weli Machine is a profession insulating glass machine manufacturer with 18 years experience.

Quality guarantee

We have professional after-service team for debugging installation and maintenance.

24-hour service

If you have any questions, please contact us and we will reply in time.


Exhibition
Related Products
Packing & Delivery
Certifications
FAQ

1.Question:Are you a manufacturer?

Answer:

Yes,we are the professional insulating glass processing machines manufacturer, which has 16 years history since 2001.



2.Question: How about the service ?

Answer:

1).Reply it at once in WhatsAPP,if by email,it will be reply within 12 hours.

2).18 hours for after-sale serive

4).more than 15 years experience in this kind machine field

5).fluent english ,communication barrier free. Point-to-point service help you solve the problems timely.



3.Question:What's the guarantee ?

Answer:

1). Our guarantee for 12 months.

2). 18 hours' technical support by email, video or calling

3). English manual and video tutorial

4). 24 hours on line service each day, free professional technical support.



4. Q: Do you provide equipment operation training?

Answer:

A: Yes. We can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.



5.Question:Why your price isn't the lowest price compared with others company or factories ?

Answer:

1) We are a innovative enterprises. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our insulating glass machine, likes auto gas filiing machine, auto loading machine and etc.

2)Compared with the same level brand, we have the same functions and components, but our price is the most competitive. At the same time, our after sales service is satisfactory.  We have a good reputation in our customers.
