Булавка/вилка типа медная расческа шина для автоматического выключателя 80A
- Категория: Power Distribution Equipment >>>
- Поставщик: Yueqing,Lanpu,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 2.30 $* | 2.41 $* |
| Aug-17-2025 | 2.57 $* | 2.90 $* |
| Jul-17-2025 | 2.25 $* | 2.63 $* |
| Jun-17-2025 | 2.24 $* | 2.43 $* |
| May-17-2025 | 2.85 $* | 2.66 $* |
| Apr-17-2025 | 2.53 $* | 2.87 $* |
| Mar-17-2025 | 2.10 $* | 2.75 $* |
| Feb-17-2025 | 2.62 $* | 2.38 $* |
| Jan-17-2025 | 2.70 $* | 2.58 $* |
Характеристики

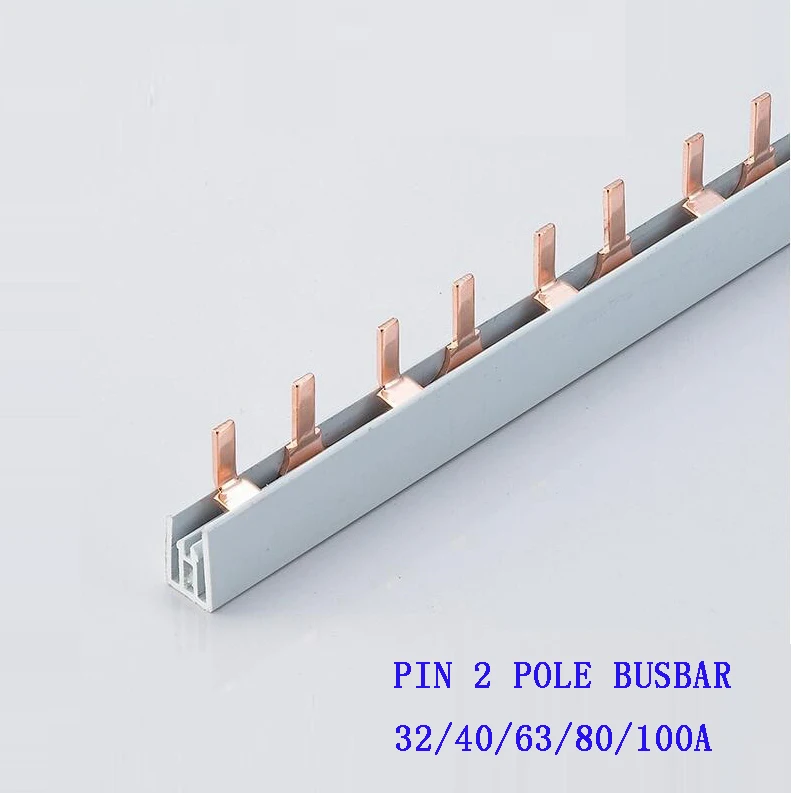

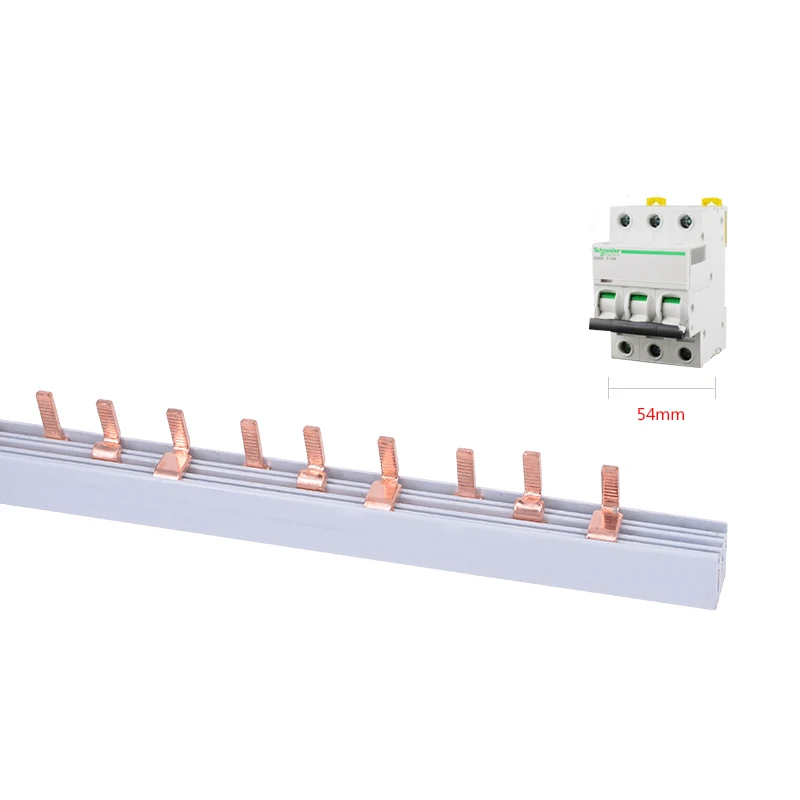

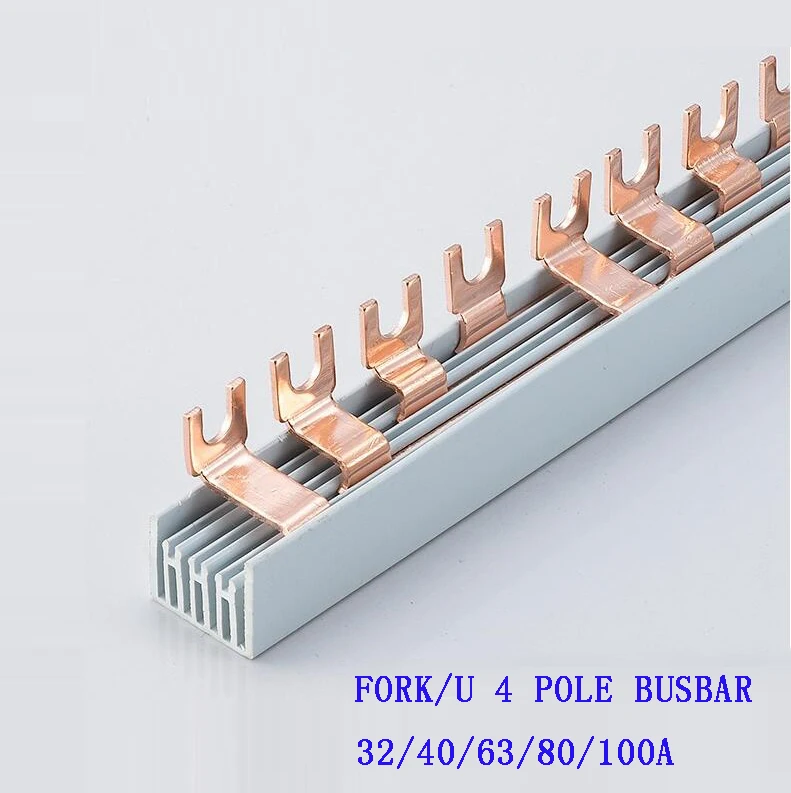

Product description of C45 MCB Busbar Insulator:
Terminal Block Connector Pure Copper Busbar is used for kinds of circuit breaker, C45 MCB Busbar Insulator ease wiring electrical item,enlarge area, decrease temperature rise and thus increase the electric reliability of electrical items.
Technical features of C45 MCB Busbar Insulator:
1. Material is of fire-resistant PVC and redl copper
2. Current rating is up to 125A
3. Rated voltage is up to 415V
4. Applicable ambient temperature -25~+50
5. Standard length 1m, other length tol be made upon request.
6. Good conductivity, low contact resistance, safe and reliable.
Packing information:

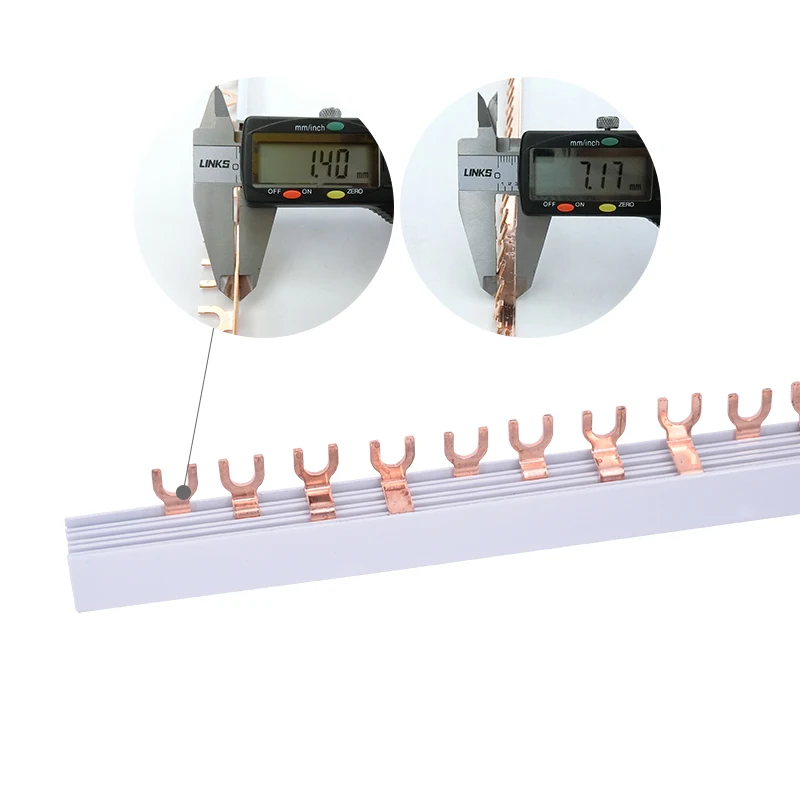

| C45 TYPE copper busbar | Dimension | PCS/CTN | Packing | G.W kgs | N.W kgs | Material |
| C45-1P-20A | 1.0*5mm | 200 | 101*22*12 | 26 | 25 | Brass |
| C45-1P-32A | 1.0*5mm | 100 | 101*12*9 | 14 | 13 | Copper |
| C45-1P-40A | 1.2*5mm | 100 | 101*12*9 | 16 | 15 | Copper |
| C45-1P-63A | 1.5*7mm | 100 | 101*14*10 | 21 | 20 | Copper |
| C45-1P-80A | 1.5*9mm | 100 | 101*14*10 | 23 | 22 | Copper |
| C45-1P-100A | 1.8*9mm | 100 | 101*14*10 | 26 | 25 | Copper |
| C45-1P-125A | 2*10mm | 100 | 101*14*12 | 30 | 29 | Copper |
| C45-2P-20A | 1.0*5mm | 100 | 101*22*12 | 26 | 25 | Brass |
| C45-2P-32A | 1.0*5mm | 100 | 101*22*12 | 26 | 25 | Copper |
| C45-2P-40A | 1.2*5mm | 50 | 101*14*10 | 16 | 15 | Copper |
| C45-2P-63A | 1.5*7mm | 50 | 101*14*10 | 18 | 17 | Copper |
| C45-2P-80A | 1.5*9mm | 50 | 101*14*10 | 20 | 19 | Copper |
| C45-2P-100A | 1.8*9mm | 50 | 101*14*12 | 23 | 22 | Copper |
| C45-3P-20A | 1.0*5mm | 50 | 101*16*14 | 19 | 18 | Brass |
| C45-3P-32A | 1.0*5mm | 50 | 101*16*14 | 19 | 18 | Copper |
| C45-3P-40A | 1.2*5mm | 50 | 101*16*14 | 20 | 19 | Copper |
| C45-3P-63A | 1.5*7mm | 50 | 101*22*10 | 26 | 25 | Copper |
| C45-3P-80A | 1.5*9mm | 30 | 101*22*10 | 29 | 28 | Copper |
| C45-3P-100A | 1.8*9mm | 50 | 101*22*12 | 24 | 23 | Copper |
| C45-3P-80A | 1.7*8mm | 50 | 101*22*10 | 30 | 29 | Copper |
| C45-3P-100A | 2*10mm | 30 | 101*14*10 | 26 | 25 | Copper |
