Китай портативная испытательная машина Ndt металлокерамические ультразвуковые

 This is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a workpiece without destruction. It can be used both in a lab and field. The instrument can be widely used in any fields that need defect inspection and quality controlling e.g. manufacturing industry, iron & steel metallurgical industry, metalworking, chemical industry, etc., also be broadly used in the active safety inspection and service-life evaluation in such fields as aerospace, railway transportation and boiler pressure vessels, etc. It is an essential instrument for non-destructive inspection industry. When the ultrasonic wave propagates in a job, one can detect the defect in it by the influence on the propagation of ultrasonic wave based on the acoustic characteristic demonstrated by the defect in the material. Based on this principle, by using ultrasonic wave one can measure such defects as crack, pinhole and inclusion in such media as metal,nonmetal andcomposite,etc.

 MAIN FEATURE

*CY 912 could measure item's thickness, measuring range:0-10000mm

*Automated display precise flaw location(Depth d, level p,distance s,amplitude,sz dB, diameter), utomated to switch;

*Automated calibration of transducer Zero-point, angles, front edge and material velocity;

*Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated;

*6dB DAC functions, standards of test for DAC is saved;
*Gate and DAC alarm, display freeze;

*B scan, AWS D1.1;

*Max 500 independence setup, any criterion can be input freely, can work in the scene without test block;

*Big memory Max 1000 A graph, unlimited of video time, automated make video of test process and play;

*Automated gain and gain scan;

*Peak hold and peak memory;

*Powerful PC software,reports can be export to excel;

*The embeded software can be online updated;

*Automated echo degree;

*Big memory Max 1000 A graph;

*Electronic clock calendar, lock and unlock function of system parameters;

*Two gates setting and alarm indication.

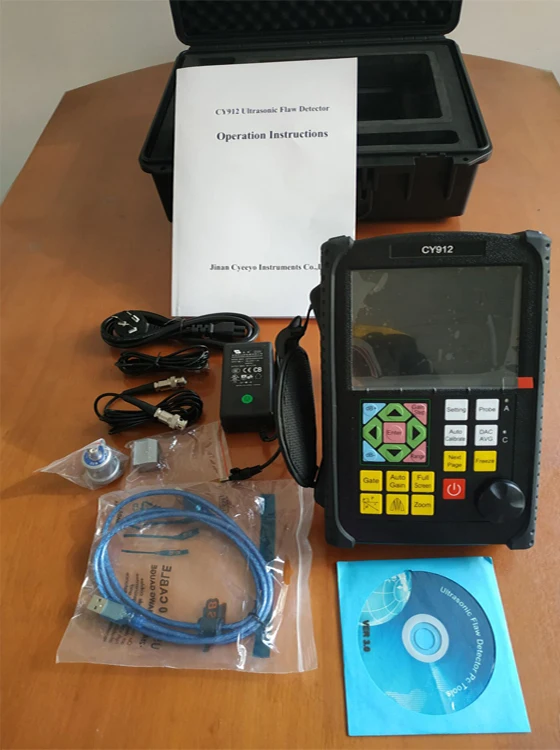

 STANDARD DELIVERY
