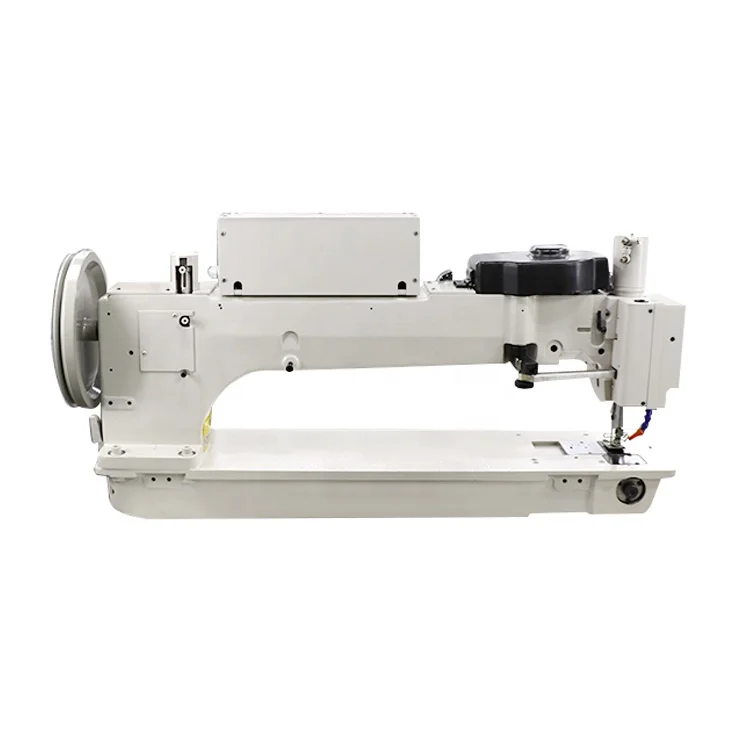

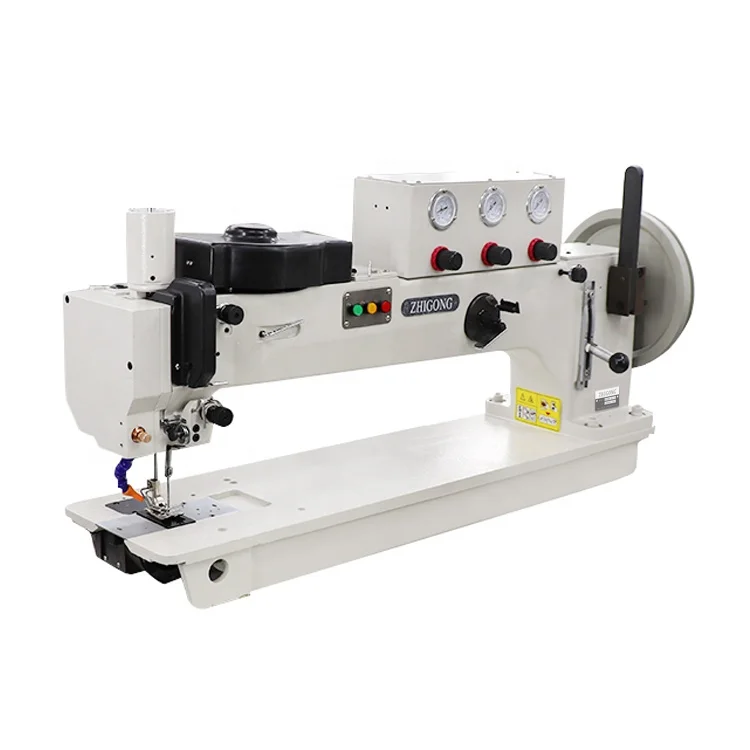

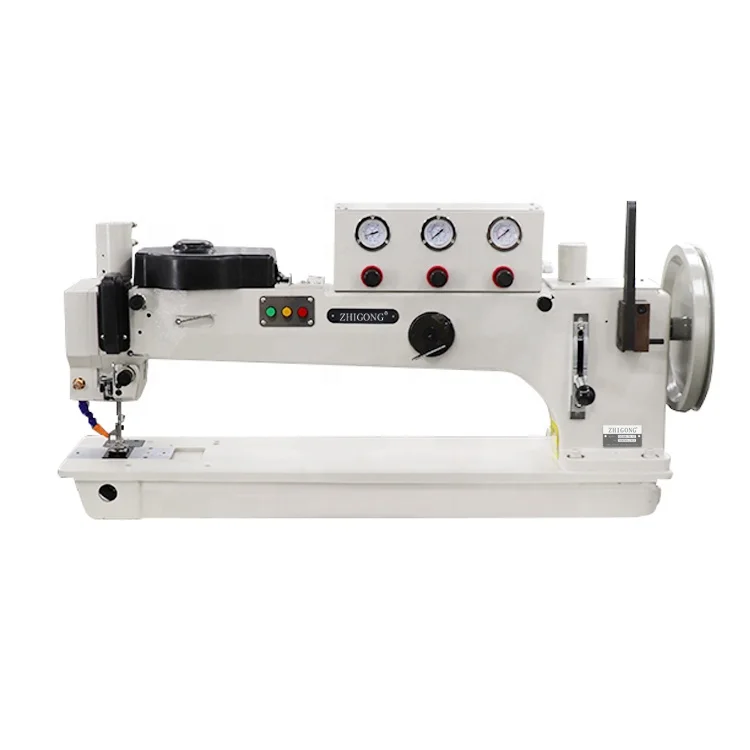

long arm industrial zigzag sail sewing machine with puller

Model	G366-76-12
Maximum speed	800r.p.m
Maximum stitch length	10mm(0-10)
Zigzag maximum swing	14mm(0-14)
Zigzag stitching	Two o'clock three o'clock four o'clock
Needle bar stroke	50.8mm
Pick rod stroke	106.8mm
Needle	DY*3 27#
Shuttle	Large semi-turn shuttle
Presser foot lifting height	20mm
Lubrication method	Manual lubrication
Operating space	760*160mm
Electric motor	550w4p

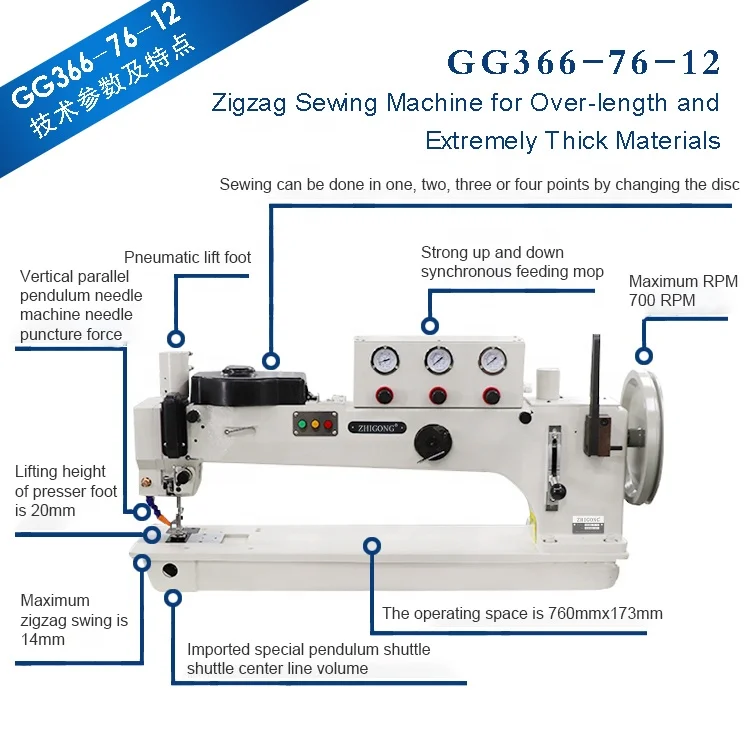

This machine is a large-scale industrial sewing equipment designed for the sailing industry (body weight is 280 kg); when sewing sails or sails, it is necessary to fully unfold several hundred square meters of canvas (conveniently stitching multiple pieces of canvas) The sail can achieve the expected tensile strength, and the oversized working space of GG366-76-12 is designed based on this demand.

 Applications: Large sails (main and front sails), sails, military parachutes, aerospace parachutes, large carpets (stitching), military tents, outdoor tents, camping tents, high-end sofas and furniture (thick line stitching).

Parallel vertical needle bar movement, the needle piercing force is strong, can easily sew 20mm thick canvas (Dacron), Kevlar bulletproof fiber, hard leather, webbing and plastic board; this machine is mainly used for sewing mainsail and mainsail The advantage of the 366 is even more pronounced when the head sail, the edge of the sail/sail is reinforced (striped with a webbing) or the corner reinforced seam (multilayer canvas stack); this special sewing machine for the sail is in Düssel 366, Germany. (Durkopp Adler 366-76-12) Based on the improvement, it is one of the necessary sewing
