Автоматическая машина для производства ленты BOPP
US $10000-$30000
Высокоскоростная 50-180 м/мин настраиваемая машина для ламинирования клейкой этикеточной бумаги на водной
- Категория: Машины для нанесения покрытия >>>
- Поставщик: Wenzhou,Dayu,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 103530.67 $* | 108707.32 $* |
| Aug-19-2025 | 102660.14 $* | 107793.51 $* |
| Jul-19-2025 | 86130.65 $* | 90437.86 $* |
| Jun-19-2025 | 100920.61 $* | 105966.47 $* |
| May-19-2025 | 87870.28 $* | 92264.81 $* |
| Apr-19-2025 | 99180.80 $* | 104139.90 $* |
| Mar-19-2025 | 98310.66 $* | 103226.58 $* |
| Feb-19-2025 | 97440.28 $* | 102312.99 $* |
| Jan-19-2025 | 96570.92 $* | 101399.27 $* |
Характеристики
Coating Machine
Wet Laminating Machine
High-speed 50-180m/min Customizable Adhesive Label Paper Film Lamination Water Based Adhesive Coating Machine
Why Choose Us
(1) OEM or Customizable Coating Laminating Machines from 2000.
(2) “Quality is our Culture.” QC team to strive to provide superior-quality machines.
(3) Machine performance inspection in local customer's factory is available.
(4) Machine operation training, technician dispatch are available.
(5) Satisfactory service with professional English-spoken workers.
(6) One year guarantee, Lifetime service.
(7) 100% Recommended by old customers.
(8) Certificate ISO, CE, SGS.
(9) “QUALITY AGREEMNT”, “REFUND MONEY AGREEMENT”
(10) Payment by T/T, L/C at sight, Western Union, Paypal, Moneygram, Cash.
The Complete Production Line Machines and technology for Hot Stamping Foil can be supplied.
(2) “Quality is our Culture.” QC team to strive to provide superior-quality machines.
(3) Machine performance inspection in local customer's factory is available.
(4) Machine operation training, technician dispatch are available.
(5) Satisfactory service with professional English-spoken workers.
(6) One year guarantee, Lifetime service.
(7) 100% Recommended by old customers.
(8) Certificate ISO, CE, SGS.
(9) “QUALITY AGREEMNT”, “REFUND MONEY AGREEMENT”
(10) Payment by T/T, L/C at sight, Western Union, Paypal, Moneygram, Cash.
The Complete Production Line Machines and technology for Hot Stamping Foil can be supplied.

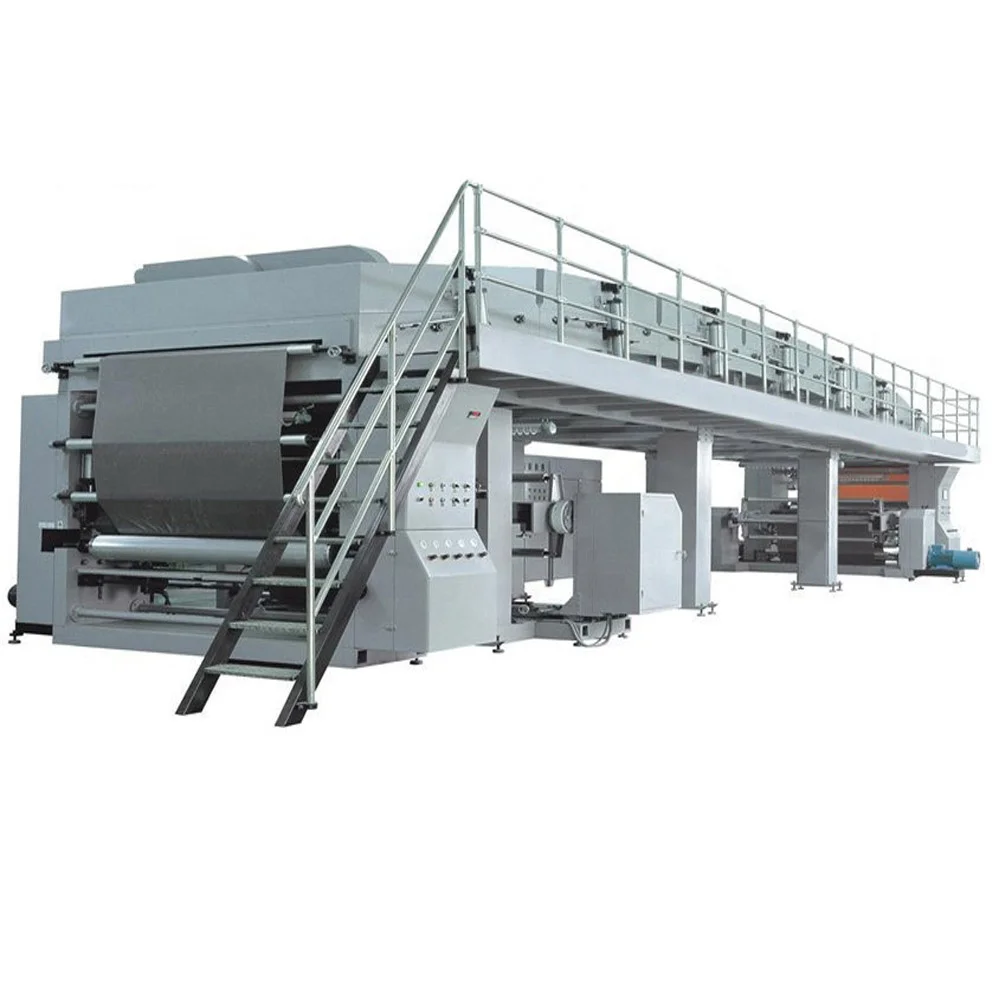

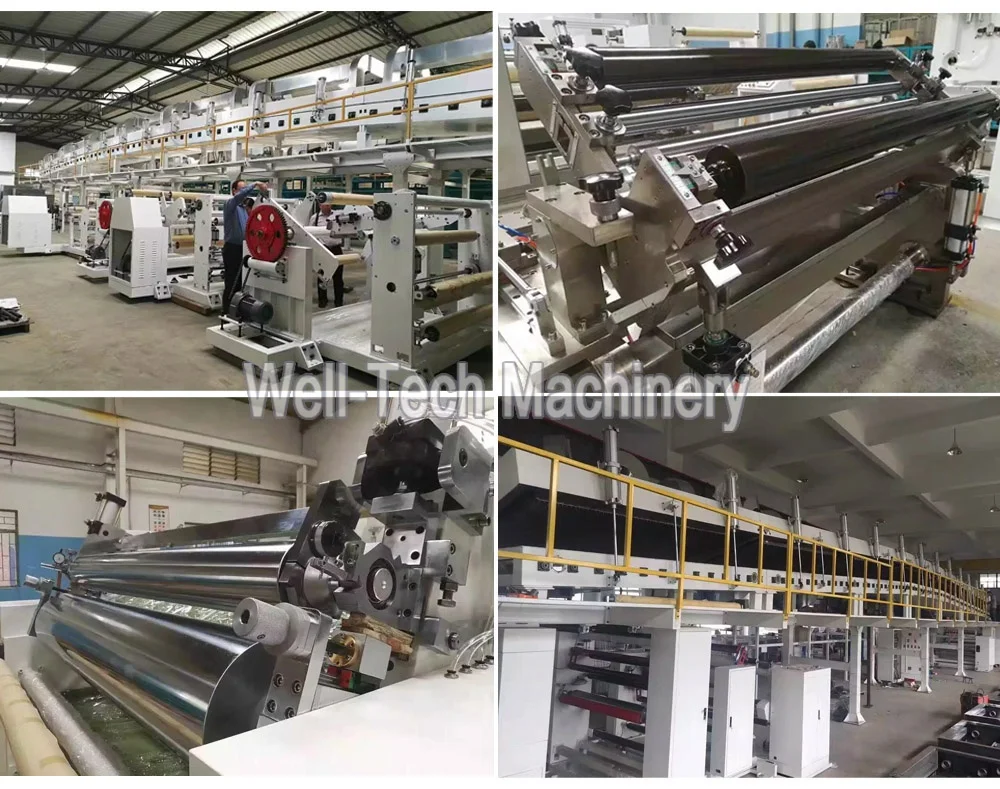

Machine Photos
OEM Customizable Coating Laminating Machine
Application
Coating & Laminating
Wet Laminating
Computerized High-speed Wet Laminating Machine is suitable for coating or laminating the materials of transfer aluminizing paper,
transfer laser cards, metalized gold or silver cards, etc. PE protective film, all kinds of adhesive sticker tape, thermal
insulation materials, XPE Foams, label sticker, etc coating laminating.
Film coating: release film, protective film, scratch-resistant film. Hot stamping film, laser holographic film, aluminizedWet Laminating
Computerized High-speed Wet Laminating Machine is suitable for coating or laminating the materials of transfer aluminizing paper,
transfer laser cards, metalized gold or silver cards, etc. PE protective film, all kinds of adhesive sticker tape, thermal
insulation materials, XPE Foams, label sticker, etc coating laminating.
transfer, thermal transfer film, coating and other coating products, production, BOPP,CPP ,PET ,PP ,PVC tape, foam stickers, PE,
non-woven, PU coating, Metallic yarn coating.
Paper coating: It’s suitable for the production of paper, white cardboard, duplex cardboard, synthetic paper, PP paper, PET
sheet, high light waterproof photo paper, matte photo paper, cast coated photo paper, RC high glossy photo paper, carbonless
paper, PP Synthetic Paper and other high-tech information industry paper.
Foil coating: Household Foil, Pharmacy Foil, Cold Forming Medicine Package Foil, Food Soft Packing Foil, Container Foil, Beer
Mark, Air-conditioner Foil, Decoration Foil
Attention Please
Since all the Coating Laminating Machines are customized. Please send us the detail Coating Specification or Coating Process
Requirement, so that we can offer the exact OEM coating machine. Including the main points as below
1 the base material
2 the width
3 unwinding and rewinding diameter
4 coating material
5 wet coating amount
6 specification of laminating material (if laminating function is needed)
6 heating method
7 coating speed
8 oven length
9 Application of final products
Since all the Coating Laminating Machines are customized. Please send us the detail Coating Specification or Coating Process
Requirement, so that we can offer the exact OEM coating machine. Including the main points as below
1 the base material
2 the width
3 unwinding and rewinding diameter
4 coating material
5 wet coating amount
6 specification of laminating material (if laminating function is needed)
6 heating method
7 coating speed
8 oven length
9 Application of final products
Products Description
Spec.:
-Overall machine adopts frequency motors control, adopt JAPANESE MITSHUBISHI PLC to automatic control tension of unwinding,
coating, traction, rewinding , and man machine interface touch screen to control and display to improve machine tension
reliability.
- Independent unwinding frame, adopt magnetic powder auto-control tension
- Gravure coating method, coating doctor blade shaft adopt heavy double shaft machine independent moving, blade adjust by manual
with pneumatic, angle adjust freely, coating quantity depend the mesh of gravure roller, different coating quantity can change
different mesh gravure roller.
- Oven sections independently controlled. Heating adopts electric, hot air intake drying
system, heater outset,heating pipe adopt stainless steel with cooling fin type, adjustable inner cycle air intake and out device,
air intake and outlet with strong air, dry thoroughly.
- Oven inner guide wheel is active synchronous with the mainframe, drive adopt synchronous belt drive guide wheel to assure
synchronous to reduce material stretch and deformation, cylinder pneumatic open oven and film pass operation panel so that worker
can work very easily.
- The tension between coaitng roller and traction steel roller adopt float swing arm by PLC auto-control.
- Auto-length and speed meter device
- Webguide adopts EPC air sensitive register to assure the trimness when rewinding.
- Rewinding and unwinding adopt key type airshaft for easily operating when loading and unloading the material, air shaft take
in/off adopt safety lock type
- High presicion up press traction device, steel roller cooling adopt water cycle to make the film surface more smooth and neat.
to reach good cooling effect.
- Rewinding frame is electric rotation double station, rewinding adopt frequency motor, vector inverter by PLC control.
-Overall machine adopts frequency motors control, adopt JAPANESE MITSHUBISHI PLC to automatic control tension of unwinding,
coating, traction, rewinding , and man machine interface touch screen to control and display to improve machine tension
reliability.
- Independent unwinding frame, adopt magnetic powder auto-control tension
- Gravure coating method, coating doctor blade shaft adopt heavy double shaft machine independent moving, blade adjust by manual
with pneumatic, angle adjust freely, coating quantity depend the mesh of gravure roller, different coating quantity can change
different mesh gravure roller.
- Oven sections independently controlled. Heating adopts electric, hot air intake drying
system, heater outset,heating pipe adopt stainless steel with cooling fin type, adjustable inner cycle air intake and out device,
air intake and outlet with strong air, dry thoroughly.
- Oven inner guide wheel is active synchronous with the mainframe, drive adopt synchronous belt drive guide wheel to assure
synchronous to reduce material stretch and deformation, cylinder pneumatic open oven and film pass operation panel so that worker
can work very easily.
- The tension between coaitng roller and traction steel roller adopt float swing arm by PLC auto-control.
- Auto-length and speed meter device
- Webguide adopts EPC air sensitive register to assure the trimness when rewinding.
- Rewinding and unwinding adopt key type airshaft for easily operating when loading and unloading the material, air shaft take
in/off adopt safety lock type
- High presicion up press traction device, steel roller cooling adopt water cycle to make the film surface more smooth and neat.
to reach good cooling effect.
- Rewinding frame is electric rotation double station, rewinding adopt frequency motor, vector inverter by PLC control.

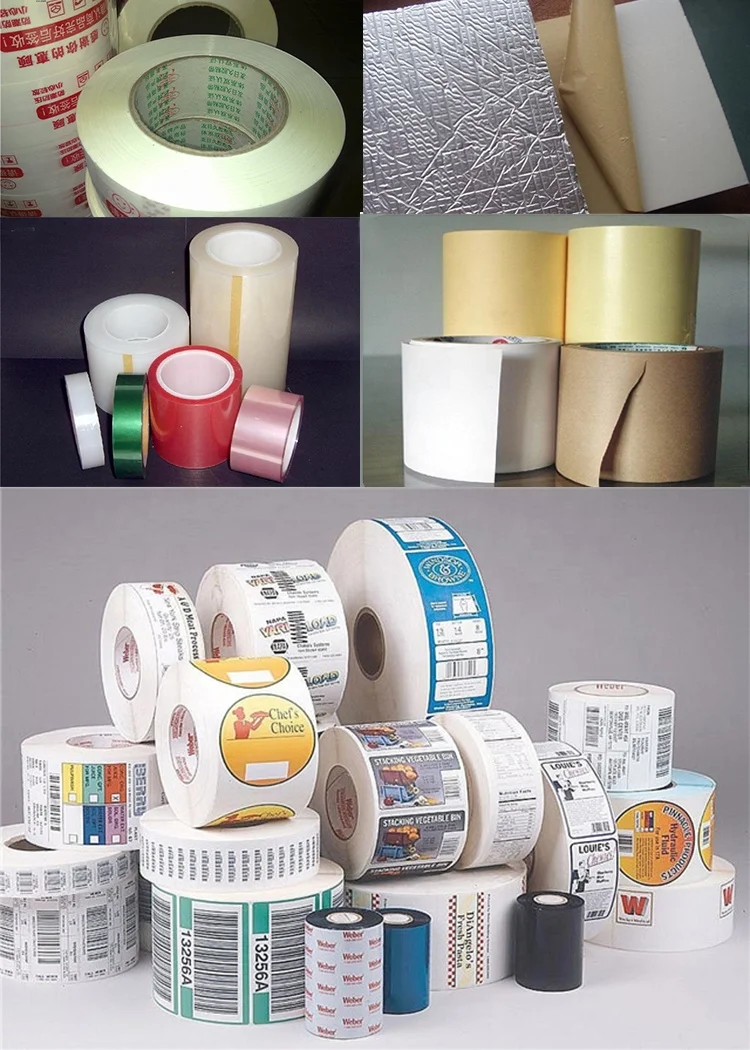

Final Products Samples
Product Paramenters
Model | TB-A (Economical type) | TB-B (Improvement type) | |
Apply to raw materials | OPP, PET, PVC, PA, CPP film, Aluminum foil and other types of plastic film , fabric and paper, etc. | ||
Width of material | 600mm to 2000mm | ||
Functions | Coating, Laminating | ||
Max. mechanical speed | 80-180m/min | ||
5Max. Speed of laminating | 50-160m/min | ||
Dry oven length | 5 meters to 35 meters, customizable | ||
Operation or control system | Operation button panel | PLC, touch screen panel | |
Mode of unwinding and rewinding | Single shaft, shaftless unwinding, Or double-station rotary rollers for unwinding, options available | ||
Max. Diameter of unwinding and rewinding | 600mm-1500mm | ||
Unwinding brake | Magnetic powder brake or air brake | ||
Tension controller | Automatic constant tension control for unwinding, torque motor or variable frequency motor for rewinding | ||
Edge position system | E.P.C or L.P.C automatic edge system, control accuracy≤1mm | ||
Coating modes | Cob-webbing rollers (Anilox roller) coating, Three-roller, steel wire, rod blade, comma blade coating, or anti-comma coating, etc. | ||
Heating modes | Electric heating ,Conduction Oil heating ,Steaming heating, etc. | ||
Oven | Arc top-opening door (controlled by pneumatic), explosionproof oven optional | ||
Reflector cover | Stainless steel | ||
Temperature control system | PID intelligent temperature controller, temperature control accuracy≤±2℃ | ||

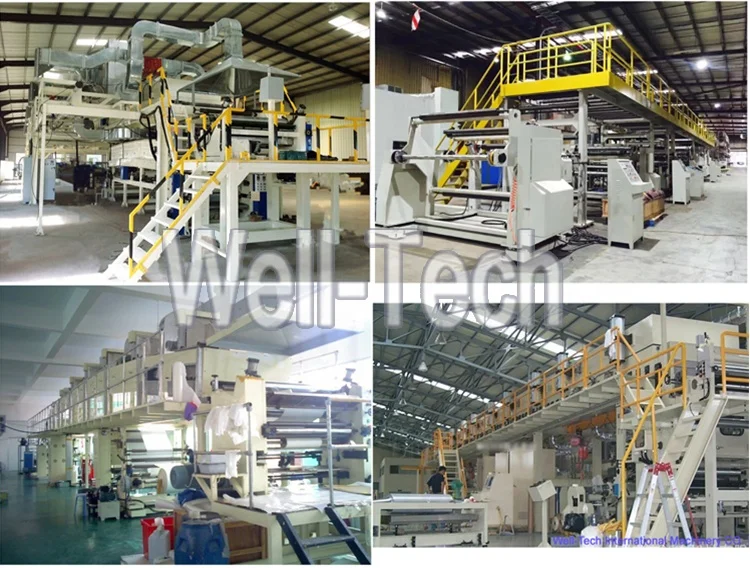

Machines Delivered
Company Profile
Contact Us
Well-Tech
Your Best Choice!
Attention Please
Since all the Coating Laminating Machines are customized. Please send us the detail Coating Specification or Coating ProcessRequirement, so that we can offer the exact OEM coating machine. Including the main points as below
1 the base material
2 the width
3 unwinding and rewinding diameter
4 coating material
5 wet coating amount
6 specification of laminating material (if laminating function is needed)
6 heating method
7 coating speed
8 oven length
9 Application of final products
Contact Us
We had the honor to serve many customers from all over the world to help them to start from “0” to big factories and companies.
Welcome to be one of our top “VIP” customers.
We believe that “The quality is the soul of an enterprise”.
Welcome to contact us.
“With us your MONEY in SAFE; Your BUSINESS in SAFE.”
