Прецизионная раздвижная настольная панельная пила с нарезным
- Категория: Wood Based Panels Machinery >>>
- Поставщик: Qingdao,Hailiju,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.45 $* | 0.26 $* |
| Aug-17-2025 | 0.49 $* | 0.42 $* |
| Jul-17-2025 | 0.51 $* | 0.98 $* |
| Jun-17-2025 | 0.84 $* | 0.89 $* |
| May-17-2025 | 0.34 $* | 0.59 $* |
| Apr-17-2025 | 0.64 $* | 0.44 $* |
| Mar-17-2025 | 0.87 $* | 0.67 $* |
| Feb-17-2025 | 0.81 $* | 0.72 $* |
| Jan-17-2025 | 0.42 $* | 0.68 $* |
Характеристики

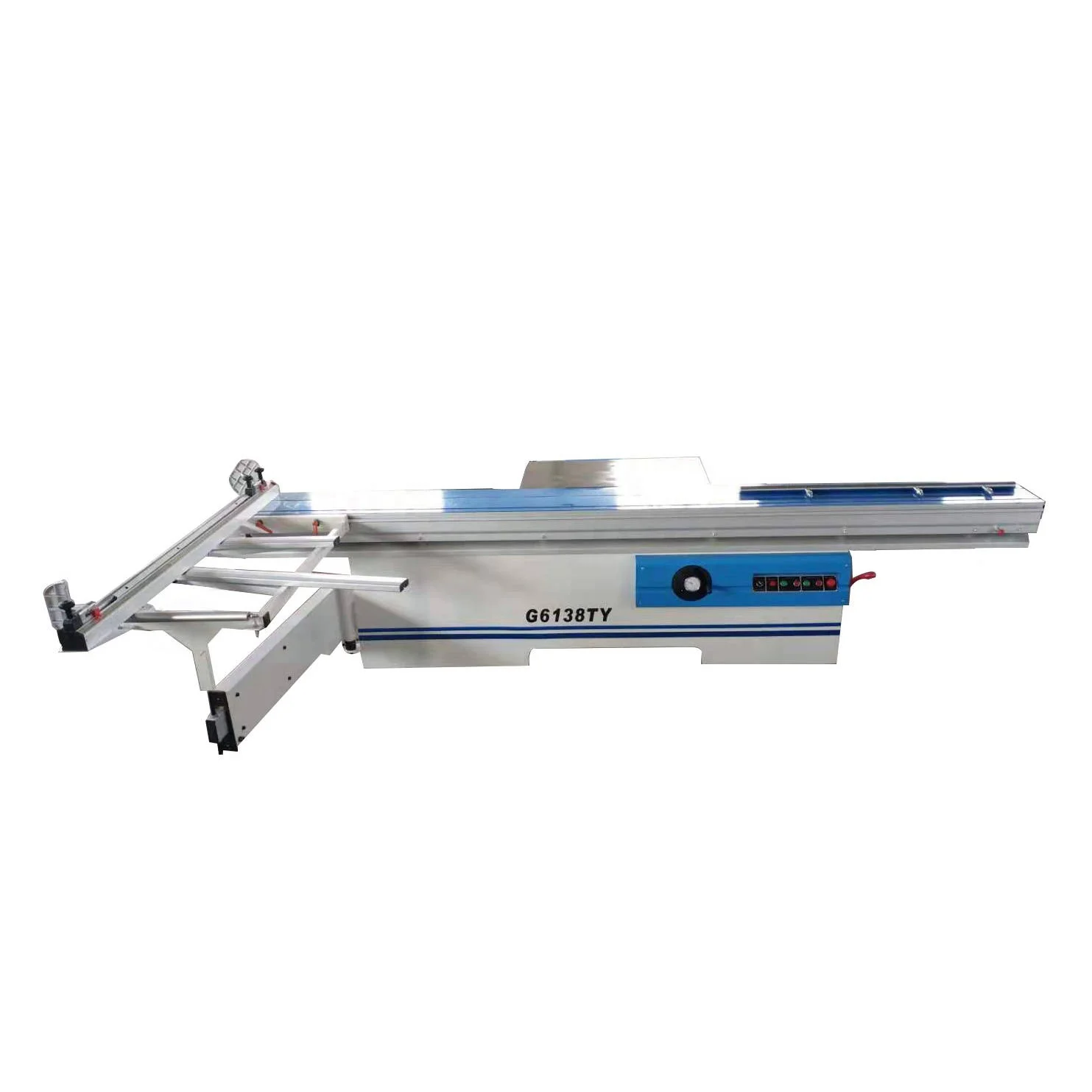

Sliding panel saw
Product details
Sliding panel size：（2800—3200）*330/375MM | Max cutting length：2800—3200MM |
The best cutting width：1250MM | The best cutting thickness：80MM |
45゜the best cutting thickness：60MM | Grooving saw spindle speed：7000—8000R/ MIN |
Main saw size: outside diameter 300MM/inner diameter 30MM | Grooving saw size：outside diameter 120MM/inner diameter 20MM |
Main saw spindle speed：4000—6000R/MIN | Main spindle size：300MM |
Motor power：4+0.75KM | Saw blade angel：90゜/0—45゜ |
Outside size：（2800—3200）*1100*1200MM | Gross weight：600—900KG |
Details determine quality
Innovation and upgrading
Innovate and upgrade the "double-layer widened sliding platform" and adopt 330mm double-layer sliding platform at 90 degrees;
375mm double-layer push table is used for 45 degree. When the bearing capacity is increased to 150kg, the stability precision of
plate cutting is greatly improved than ordinary single-layer push table.
Adopts chromium plated round bar structure
Compared with the previous linear ball push table, it has the advantages of accurate positioning, long service life and smooth
driving
Upgrade big motor
The machine adopts pure copper motor, default main motor 4kw, auxiliary motor 0.75km, total power 4.75kw, if you need to cut hard
wood and other plates, you can customize 5.5km + 1.1W large motor freely.
High strength extrusion of aluminum alloy
It is made of high strength extruded aluminum alloy, with high strength and no deformation. The surface of the sliding table is
treated by oxidation, beautiful and wear-resistant.
Lengthen and thicken fuselage
Inner machine adopt new type design，ensure machine working stable adopt lengthen and thicken fuselage,90 ° fuselage 190cm, 45°
fuselage 195cm ，ensure machine stable，reduce vibration,Improve the use life and cutting accuracy, improve the fuselage
performance.
European style guiding rule
The guiding rule adopts the European style large guiding rule, which is stable and does not shift, and effectively ensures the
precision of plate cutting engineering; The model seat (also known as the backer) adopts a new internal stable structure to ensure
the stability and smooth driving of the backer
Innovative double junction box design
The machine adopts a double junction box design, the vacuum cleaner can be directly connected to the machine, and the vacuum
cleaner can be directly controlled through the vacuum cleaner switch of the machine body to improve the convenience of operation.
Bearing imported from Japan
The bearing of the machine is quest bearing imported from Japan, and the electrical appliance is Zhengtai electrical appliance,
which improves the service life of the machine.
Double saw blades prevent edge chipping effectively
The machine adopts double saw blade structure, the small saw blade is responsible for marking, the large saw blade is responsible
for cutting, so that the cutting plate will not produce the phenomenon of edge collapse and burr.
Base of push table processed by gantry milling
The base of the sliding table is processed by gantry milling according to the international standard, and the base is milled at
one time to ensure that the sliding table will not have errors and jitters on the body. High precision, long use life.
