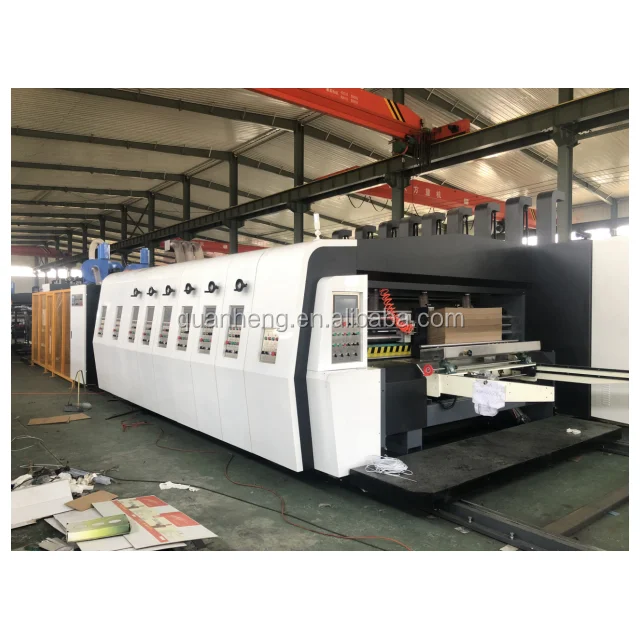

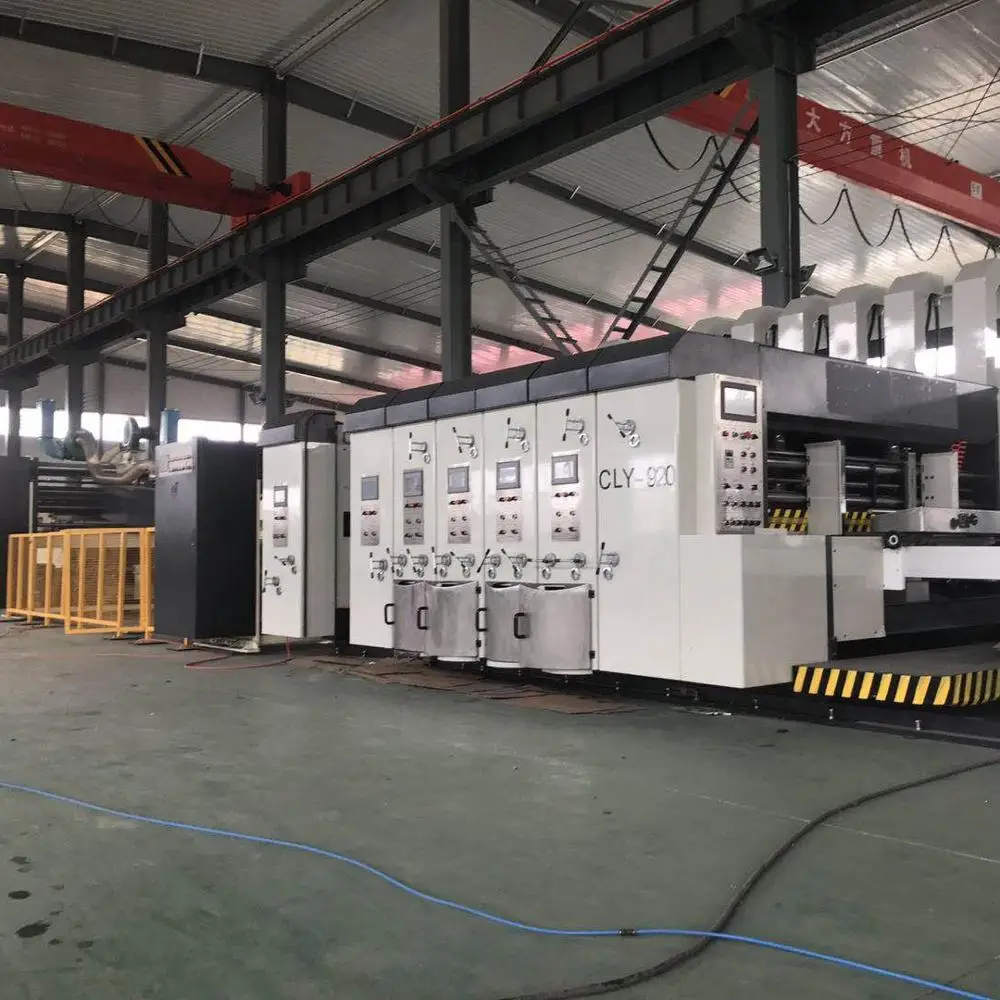

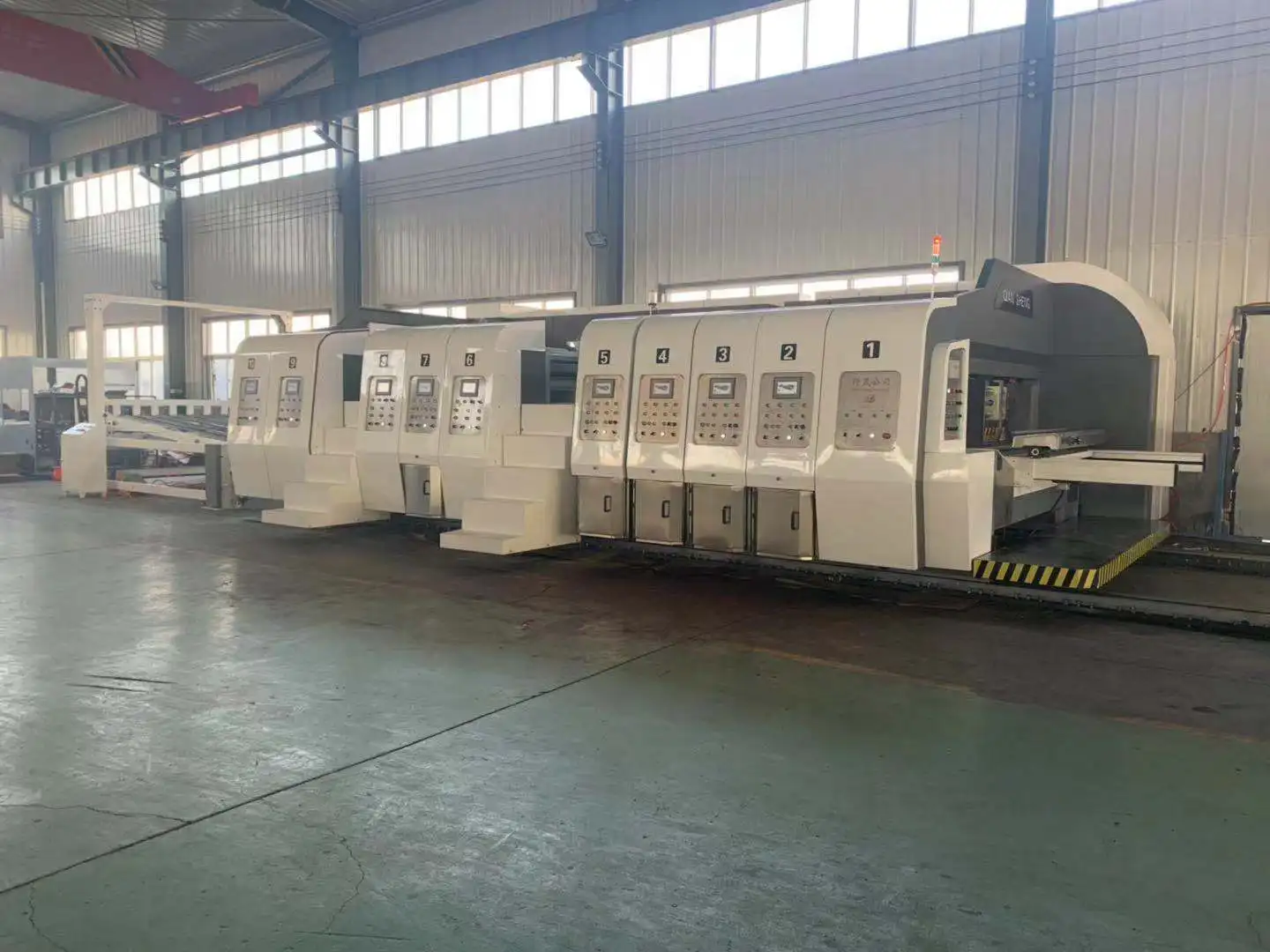

Модель 1224 года автоматическое картонное оборудование гофрированный картон 4 цвета печать штамповочная машина с

Описание и отзывы

Трекер стоимости

Характеристики



1),Electric machine control clutch bell , moving last warning bell ring , ensuring the safety of operation personnel.
2)Drive shaft with a safe clutch to avoid misuse and damage to the machine (the machine is not fixed, the host can not start operation).
3),Pneumatic interlocking device .
4), Host motor start up protection device .
2, Adsorption leading edge Feeder system
1),lead edge feeder institution can greatly reduce clogging phenomenon in the process of cardboard paper.
2),Suction fan auxiliary feeder,make sure the winding paperboard feeding smoothly,The wind volume can be adjusted according to the size of the board.,The maximum guarantee of the vacuum adsorption of cardboard, so that more accurate to send paper.
3),front baffle and back baffle adopt manual adjust gap, feeder lift-right baffle adopt electric adjust gap.
4),feeder wheels adopt polyurethane material made,Large friction and long life.
5),it suitable for 3layers,5layers and 7layers corrugated cardboard, include E flute cardboard.
6),supply paperboard counter,set-up and Display production quantity.
3,dust-extraction unit
1),Equipped with dust removal mechanism ( remove dust brush ), effectively remove cardboard surface impurities , improve the quality of printing .
4,feeding roll
1),out diameter is 127mm.
2),Seamless steel pipe , parcel wear-resisting rubber , correction and balance
3),Lower feed roller chrome plating.
4),feeder Paper roll gap dial manual adjustment, adjustment range 0-11mm.
5,Operation control switch (PLC computer control)
1), the control panel is equipped with 10 Inch Touch screen, can control the paper feeding, printing, slotting, die cutting, easy to operate.
6,Automatic zero return device
1),Paper feed, printing, slotting, cutting part of the electric automatic return to zero.
2),In general, the use of automatic paper box to zero device, try to print two can be adjusted to the correct position, reduce waste.1,Machine clutch
1),Electric machine control clutch bell , moving last warning bell ring , ensuring the safety of operation personnel.
2)Drive shaft with a safe clutch to avoid misuse and damage to the machine (the machine is not fixed, the host can not start operation).
3),Pneumatic interlocking device .
4), Host motor start up protection device .
2, Adsorption leading edge Feeder system
1),lead edge feeder institution can greatly reduce clogging phenomenon in the process of cardboard paper.
2),Suction fan auxiliary feeder,make sure the winding paperboard feeding smoothly,The wind volume can be adjusted according to the size of the board.,The maximum guarantee of the vacuum adsorption of cardboard, so that more accurate to send paper.
3),front baffle and back baffle adopt manual adjust gap, feeder lift-right baffle adopt electric adjust gap.
4),feeder wheels adopt polyurethane material made,Large friction and long life.
5),it suitable for 3layers,5layers and 7layers corrugated cardboard, include E flute cardboard.
6),supply paperboard counter,set-up and Display production quantity.
3,dust-extraction unit
1),Equipped with dust removal mechanism ( remove dust brush ), effectively remove cardboard surface impurities , improve the quality of printing .
4,feeding roll
1),out diameter is 127mm.
2),Seamless steel pipe , parcel wear-resisting rubber , correction and balance
3),Lower feed roller chrome plating.
4),feeder Paper roll gap dial manual adjustment, adjustment range 0-11mm.
5,Operation control switch (PLC computer control)
1), the control panel is equipped with 10 Inch Touch screen, can control the paper feeding, printing, slotting, die cutting, easy to operate.
6,Automatic zero return device
1),Paper feed, printing, slotting, cutting part of the electric automatic return to zero.
2),In general, the use of automatic paper box to zero device, try to print two can be adjusted to the correct position, reduce waste.

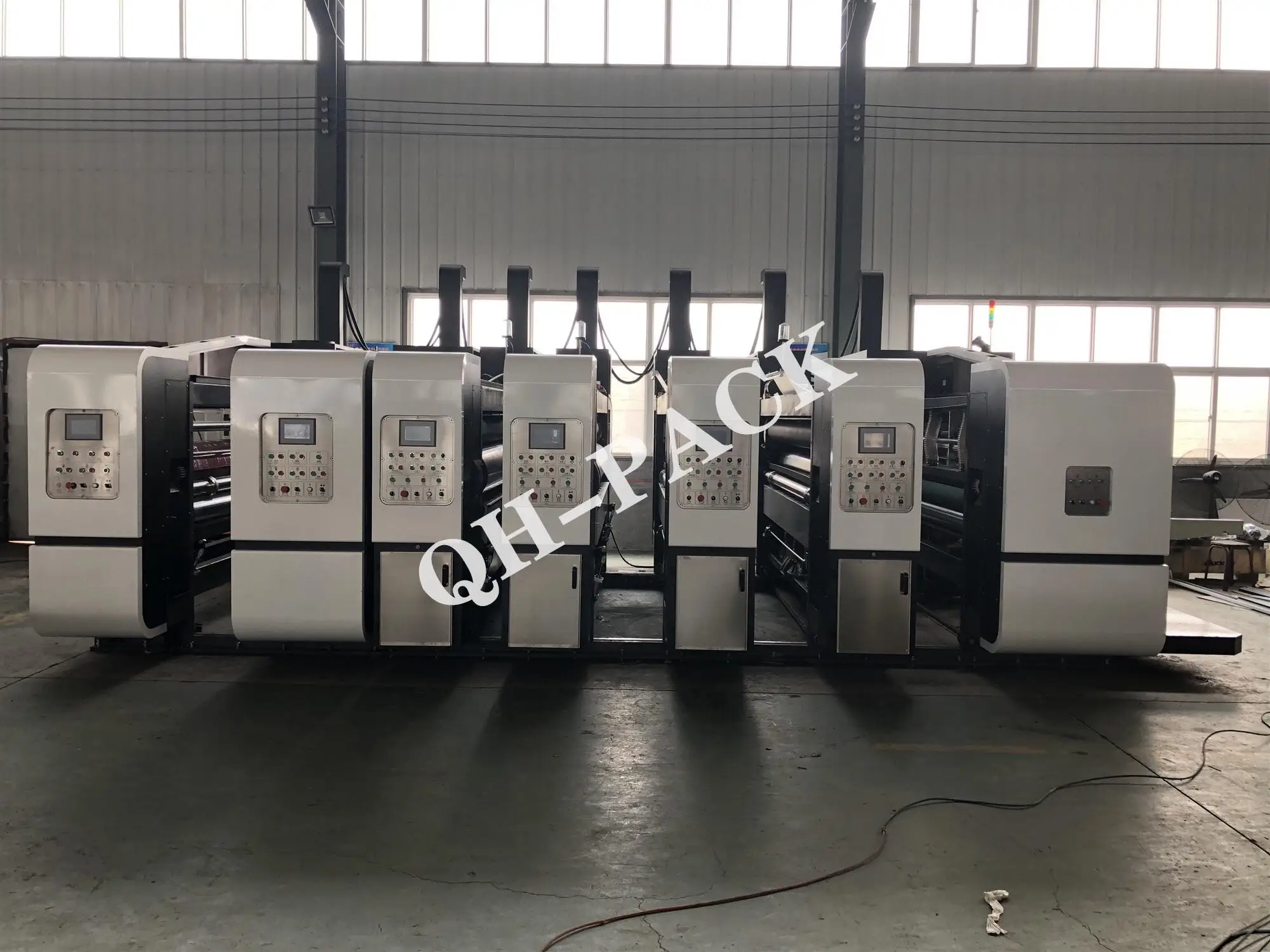

  Printing unit
1,printing roller
1),out diameter is 405mm(include printing plate 410mm).
2),Steel plate material, surface grinding, hard chromium plating.
3),Balance correction, smooth operation.
4),Fixed ratchet wheel shaft.
5),Full format plate ditch, suitable for 9mm hanging version.
6),Loading and unloading printing plate, pedal switch electric control positive and negative.
7),Printing roller clearance dial manual adjustment, adjust the range of 0-11mm.
2,printing pressure roller
1),out diameter is 159mm.
2),Steel pipe surface grinding, hard chromium plating.
3),Balance correction, smooth operation.
4),printing pressure roller gap dial manual adjustment,adjustment range 0-13mm.
5),Feeder roller gap dial manual adjustment, adjustment range is 0-13mm.
3,Metal anilox roller
1),out diameter is 198mm
2),Steel pipe surface using advanced electroplating hard chromium technology, hard, smooth and wear-resistant.
3),Dot uniform, uniform on ink.
4),Prolong the service life of the plate and rubber roller.
5),anilox roller gap dial manual adjustment.
4,rubber roller
1),out diameter is 180mm.
2),Steel pipe surface coated with wear-resistant rubber.
3),High special grinding rubber roller, ink effect is good.
5,feeder paper up-down roller
1),up roller:diameter is 100mm Seamless steel pipe, with 2 paper feed wheel.2),down roller:out diameter is 159mm Seamless steel pipe, surface grinding, hard chromium plating.
3),feeder roller gap dial manual adjustment,adjustment range is 0-13mm.
6, phase adjustment mechanism
1)planetary gear structure.
2)horizontal position, manually adjust the distance of a total of 20mm.
3)the printing plate roller adopts frequency converter to adjust the phase, return to zero and adjust the speed of the plate, adjust the version of high precision.
7,Ink circulation
1),Pneumatic diaphragm pump for ink stability, simple operation and maintenance.
2),Ink filter, filter impurities.
8,Printing phase fixing device
1),Pneumatic brake mechanism.
2),When the stage is separated or adjusted, the brake mechanism is restricted to rotate, and the fixed point of the original gear position is maintained.

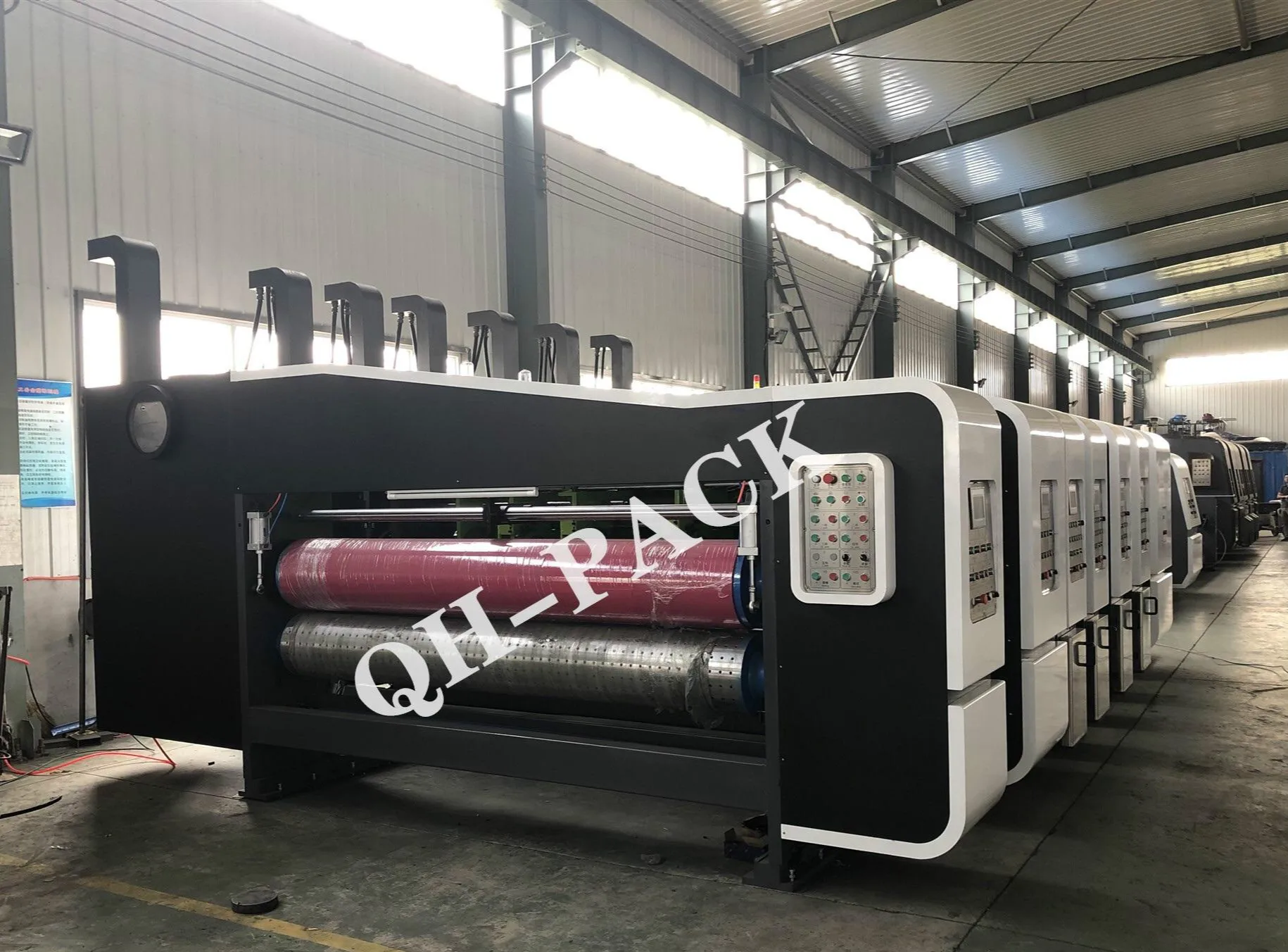

Slotter unit
1 Score groove device
(1) Roller surface after grinding, hard chromium plating, smooth moving.
(2) Do balancing and correcting, smooth running.
(3) Score grove wheel gap is dial manual adjustment, adjusting range is 0~12mm.
2 slotting knife holder transverse adjustment structure
(1) Roller surface after grinding, hard chromium plating, smooth moving.
(2) Slotting knife width is 7mm
(3) Alloy steel materials is through heat treatment grinding tooth form slotting knife, hardness and tenacity is better
(4)Score groove wheel , slotting knife holder transverse left/right place is electric adjusting
(5) Score groove wheel , slotting knife holder transverse left/right place, use hig precision ball screw
3 Slotter phase adjustment structure
(1)Planetary type gear structure
(2) Phase use PLC, touch screen and electric digital type in 360°adjustment (can do adjustment when run and stop)

Stacker unit
1.Paper-receiving arm can be operated by hand ,the receiving paper height can be choosed freely.
2.Paper-receiving arm belt can adjust the tension and loosen lonely.
3.Receiving paper platform rise and fall are driven by the powerful chain.
4.Receiving paper platform is automatically adjust the inclination according to the cardboard rising, the rising motor with electrical braking function, so the platform can keep the fixed position.
5.Paper plate with pneumatic action, when the cardboard get the predetermined height, it can hold out automatically.
6.1600mm the cardboard piling height is 1600mm.
7.Transfer belt driven motor 2.2kw(adjust the speed and control) 1set
8.Elevator motor3kw 1 set
9.Receiving paper arm cylinder80×300(with three five way electromagnetic valve)
10.The system is 5.5 meters , that has the receiving paper part, transmission part, collecting paper, connected with friction belt to transfer the cardboard, paper receiving part is the cylinder lifting, fasten the belt wheel lonely.
Eight, materials:
1, the main drive gear
1), 40Cr alloy steel and 45 steel material, high frequency treatment of grinding teeth.
2), six grade precision, smooth operation, low noise, hardness HRC45-50, long life, small abrasion, long constant color printing precision.
3), phase gear using 40Cr alloy steel and 45 steel material, through the tempering, grinding tooth high frequency processing, hardness HRC50-55.
4), planetary gear using 20CrMnTi, tempering after quenching and tempering, carburizing grinding gear processing, quenching H.0
RC58-62.
2, the thickness of the wall plate selection for 50mm solid casting, through the conditioning process, so that the smooth operation of the machine, the wall plate does not deform.
3, a connecting rod with 160mm steel welded, the stable operation of the machine is not.
4, walking track selection of cast iron rail, walking stability.
5, the transmission part adopts cross sliding seamless transmission, gear thickness is 60mm thick, tempered, high frequency quenching and the material for the 40 Luo material.
6, the lubrication part of the spray lubrication, machine oil lubrication, the machine stop stop oil.
