Free shipping 125khz mini smart card readers usb smartphone rfid reader price for access control systems with OTG cable free

Product Description

 1.Product Features

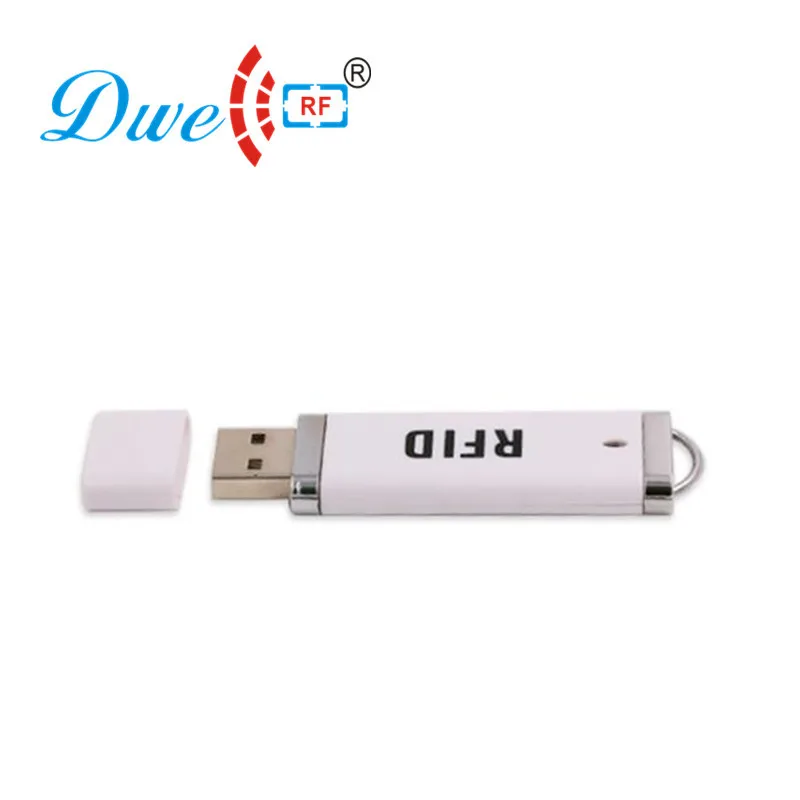

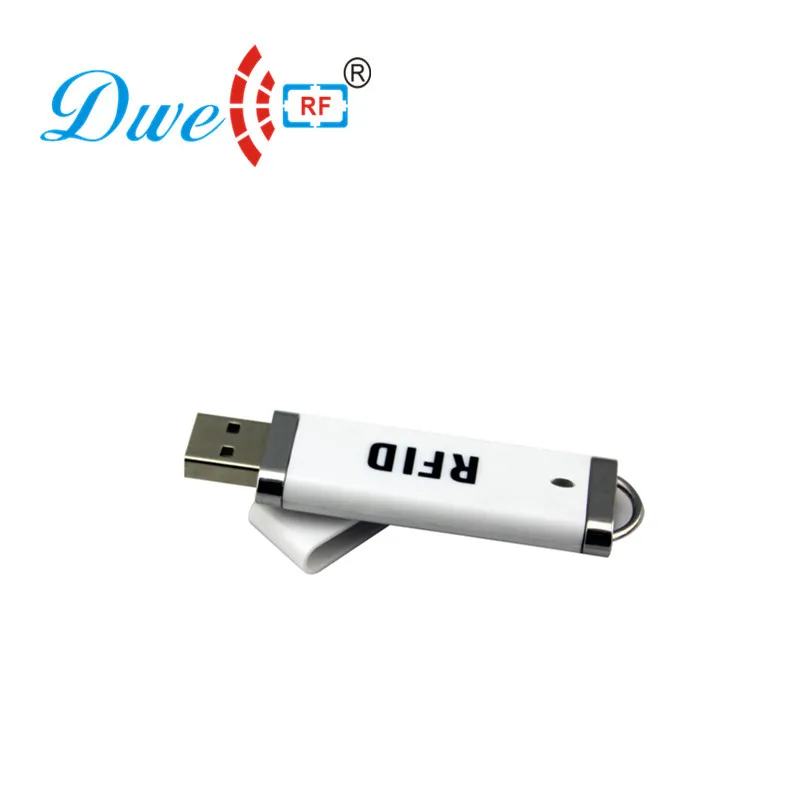

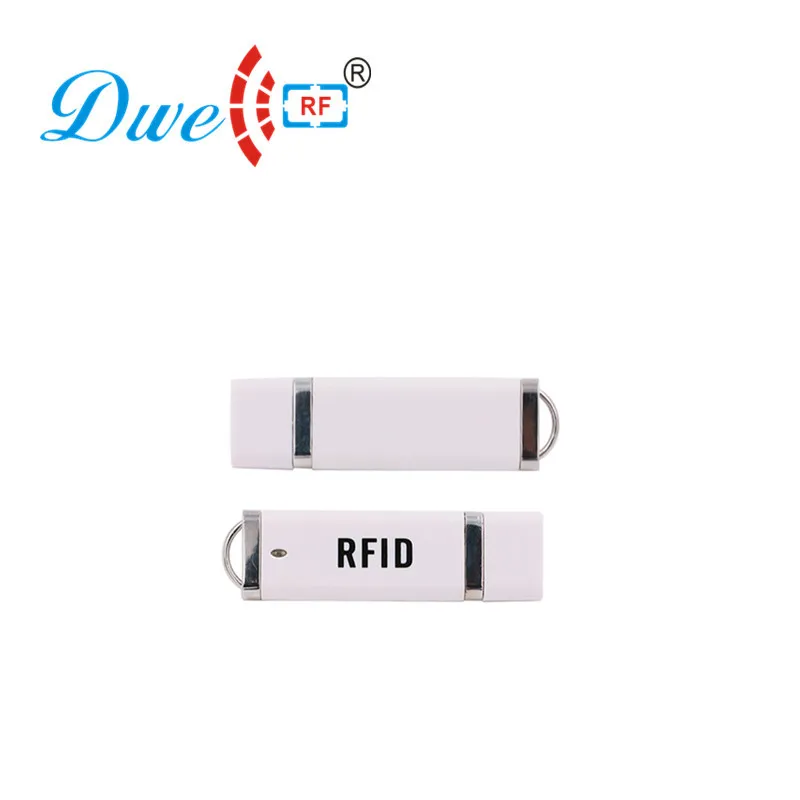

USB interface 125Khz mini rfid reader for reading the first 10 digits of TK4100 card P01



Description


1. USB-Reader plug & play reader is one type simple, easy to operate, stable, low cost, and high performance

2.125khz contactless TK4100 card reader, it's able to read TK4100/ TK4200/EM4100/EM4200, adopt with advanced plug & play, USB port without driver

3. Core technology(EM ID Protocol). Reader connect with PC through USB port, no USB driver request and easy for user to operate and maintain.





Specification


Read chip

TK4100/ TK4200/EM4100/EM4200

Frequency

125KHZ

Speed

106Kbit/s

reading distance

1-10cm

Power supply

DC 5V(±5%)

Current

<100Ma

Operating range

30-100mm(Depend on Card/Tag shape, manufacturer)

Interface

USB

Indication light

1 DUAL LED,1 BUZ

Working temperature

-10  ~ +70 degree

Storage temperature

-20  ~ +80 degree

Max. humidity

Relative humidity 0 ~ 95%

Size

75mm × 21mm × 7mm

Operation system

Windows\\Macintosh\\Linux\\Android

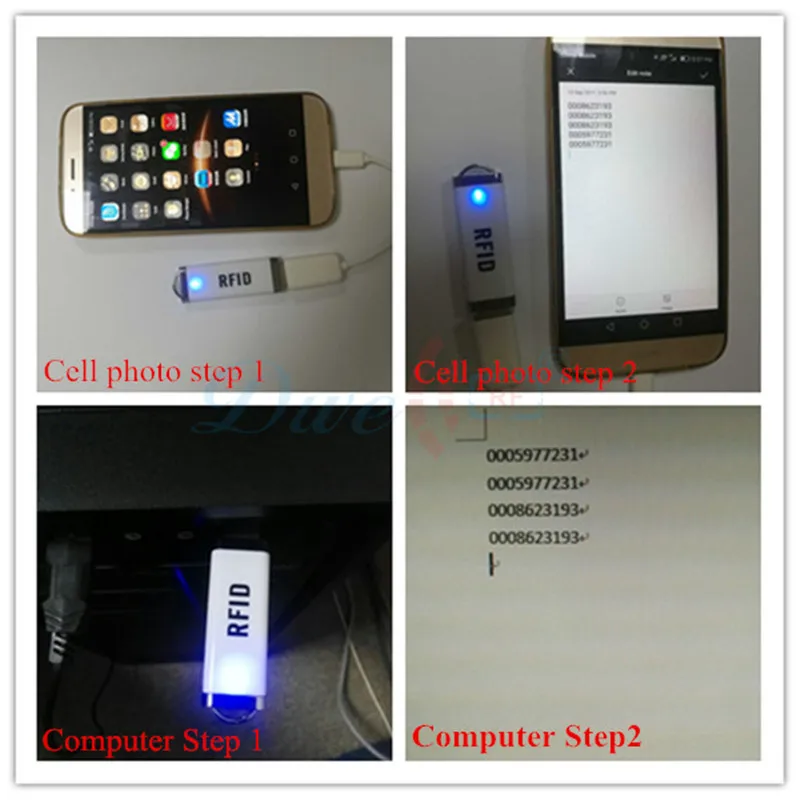

How to USE ?



1. Connect the RFID USB Pen Reader to the computer USB port.

2. The reader will 'drip' sound and flash about that power successfully, and then half a second after the 'drip' sound and flash about that device selftest successfully, without Install any drivers, windows will automatically recognize it.

3. Open one EXCEL or WORD ,the card number would be input by itself .Connect USB pen reader to OTG cable , OTG cable to smartphone , open any file can type letters, the card number would be input by itself.






Pack listing



1 x new  RFID USB Pen Reader

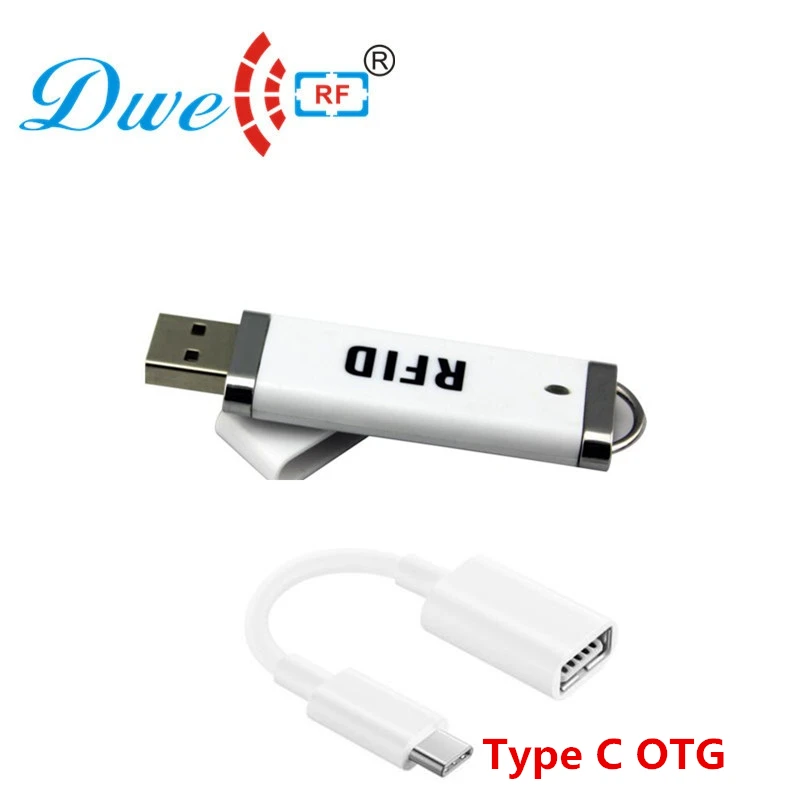

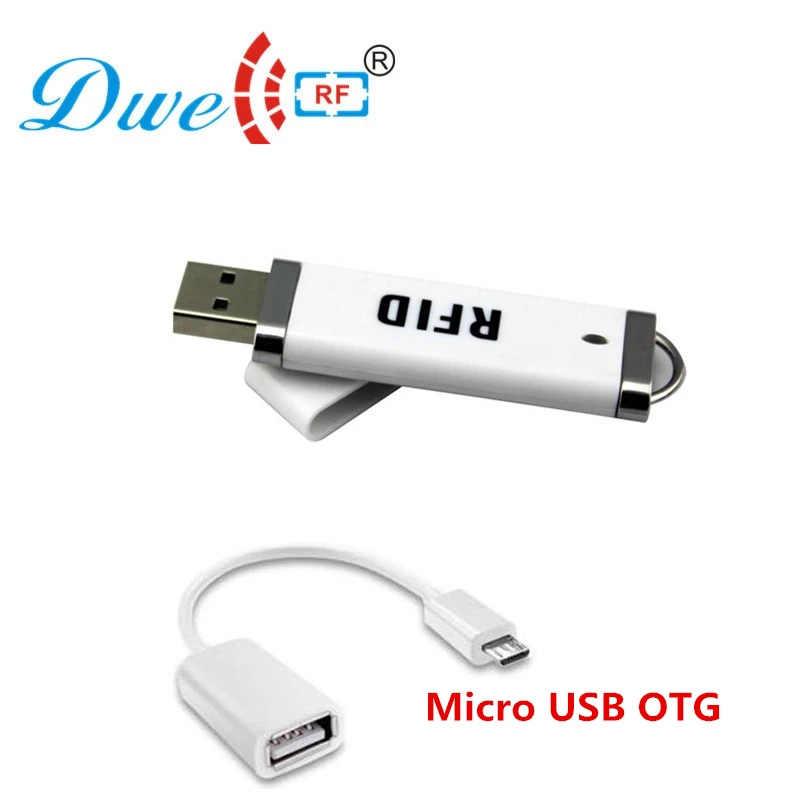

1X micro usb OTG cable free of charge ( Default one mirco usb OTG free of charge , if you need Type C OTG cable please marked in order or contact Dwell sales. )





Application

 4.Product Application
