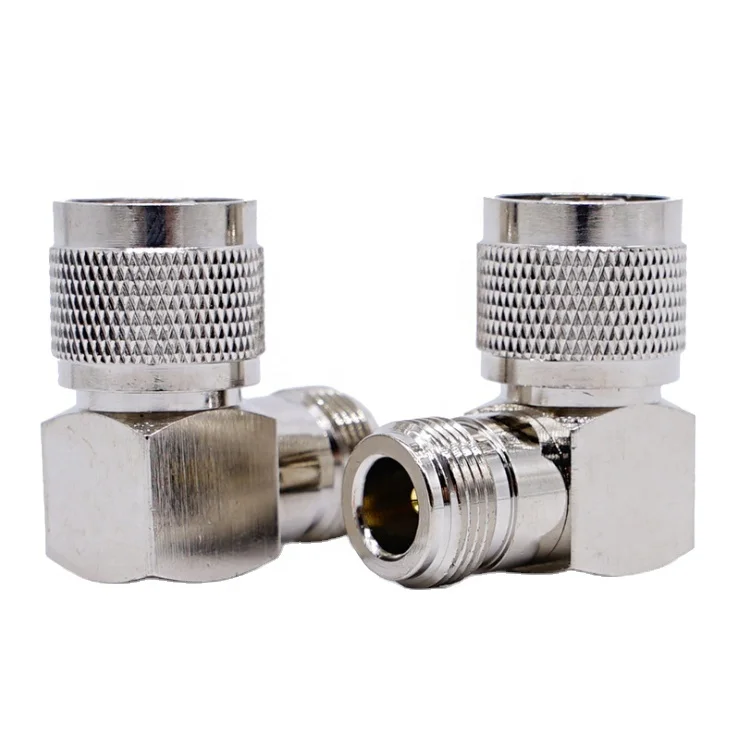

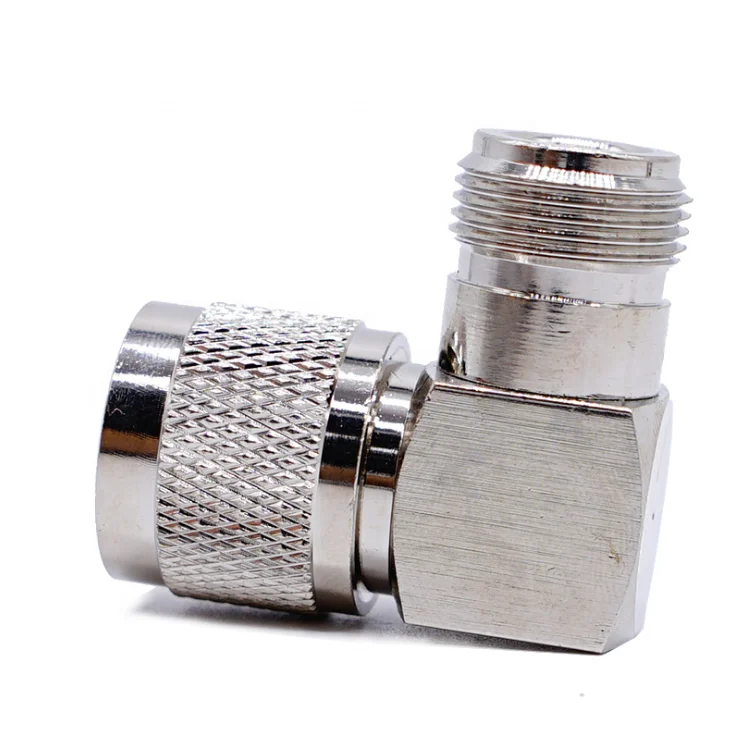

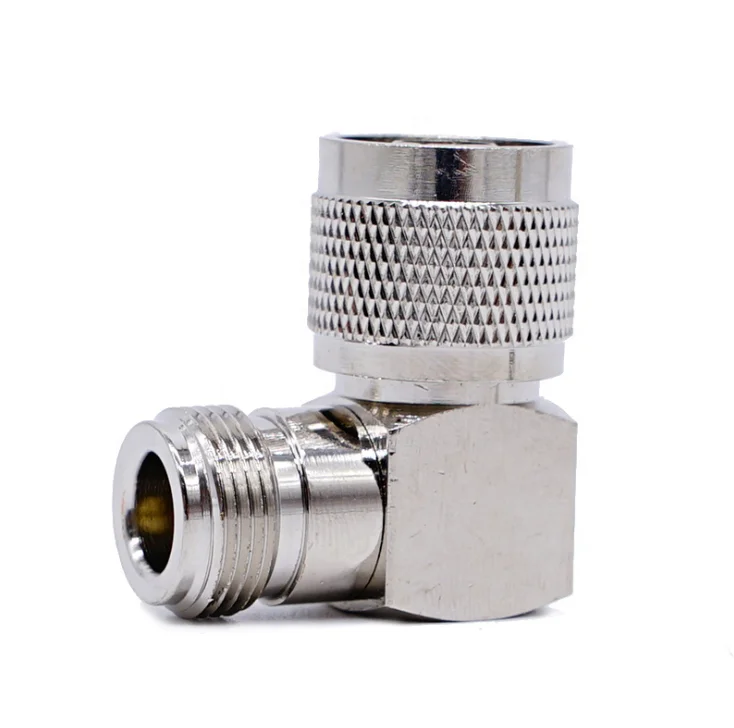

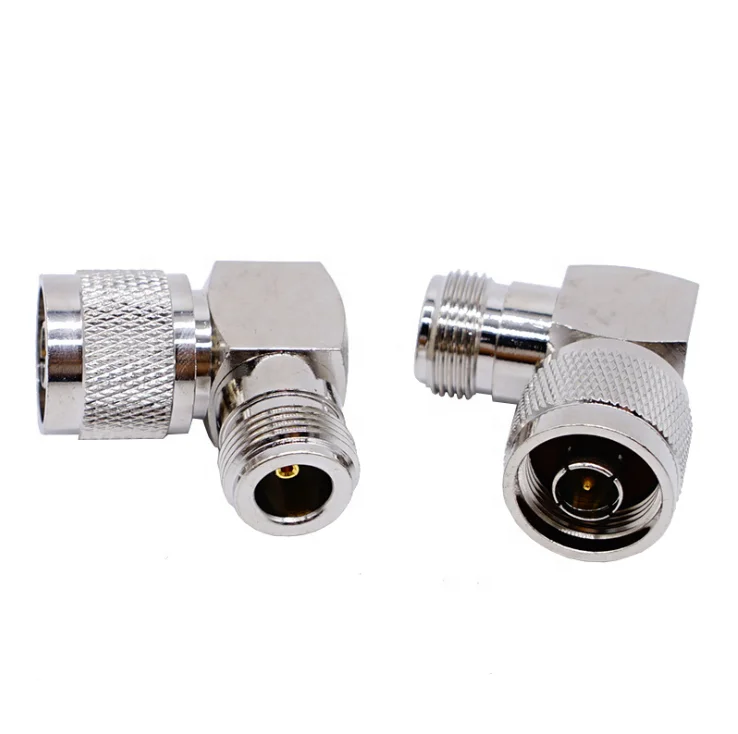

N штекер к гнездо прямоугольный радиочастотный коннектор коаксиальный

N штекер к гнездо прямоугольный радиочастотный коннектор коаксиальный

Категория: Coaxial Connectors (RF) >>>
Поставщик: Ningbo,Keenan,Technology,Co.,Ltd.

Цена:0,85 $ - 1,30 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.23 $*	0.86 $*
Aug-18-2025	0.70 $*	0.76 $*
Jul-18-2025	0.7 $*	0.63 $*
Jun-18-2025	0.98 $*	0.27 $*
May-18-2025	0.50 $*	0.14 $*
Apr-18-2025	0.7 $*	0.39 $*
Mar-18-2025	0.79 $*	0.71 $*
Feb-18-2025	0.97 $*	0.18 $*
Jan-18-2025	0.3 $*	0.15 $*

Характеристики

N Male to N Female Right Angle RF Connector Coaxial Adapter Connector

Overview

RF coaxial adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.

Electrical Characteristics

Name	N connector
Impedance	50Ω/75Ω
Frequency range	0~14GHz
Working Voltage	2700V max
Withstand Voltage	4000V rms
VSWR Straight Rigth Angle	≤ 1.2 ≤ 1.3
Contact resistance -center contact -outer contact	≤5mΩ ≤5mΩ
Insulation resistance	≥10000MΩ
Temperature range	-55°C~+155°C
Durability(matings)	>500

Construction

Piece part	Material	plating
Body	Brass	Nickel plated
Center conductor	Brass or Phosphor Bronze	Gold or silver plated
Crimping suite	Copper alloy	Nickel plated
O-ring sealing	6146 silastic
Insulator	PTFE
