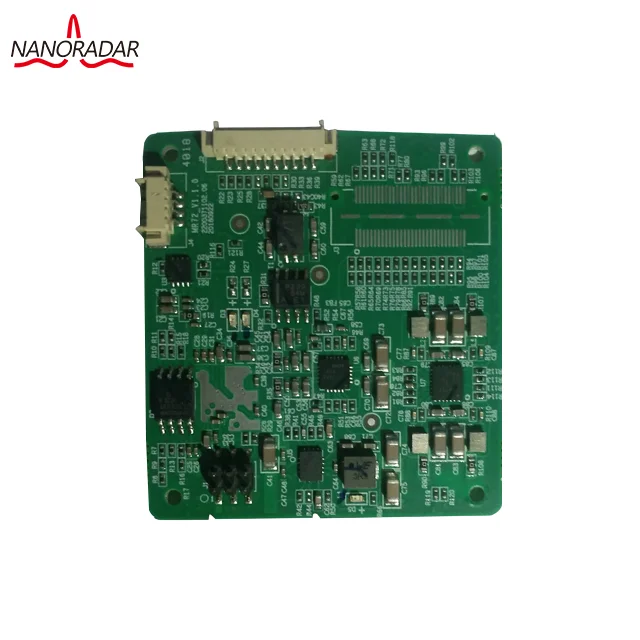

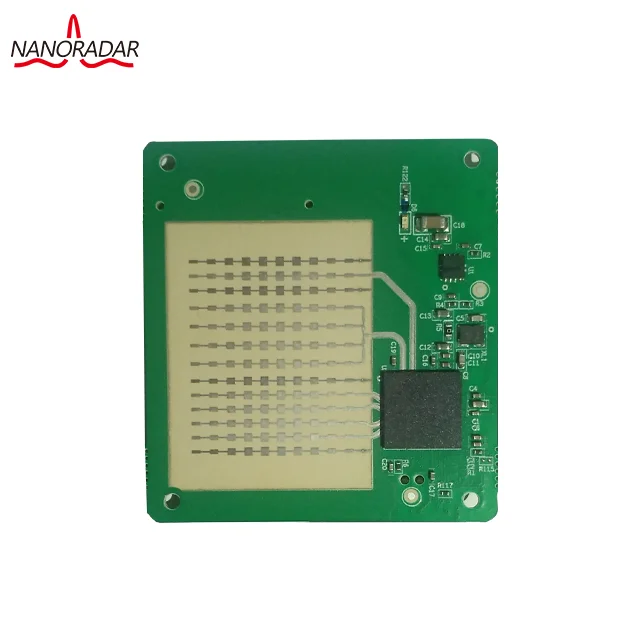

77Ghz radar sensor for UAVs obstacle avoidance, 40 meters detection range

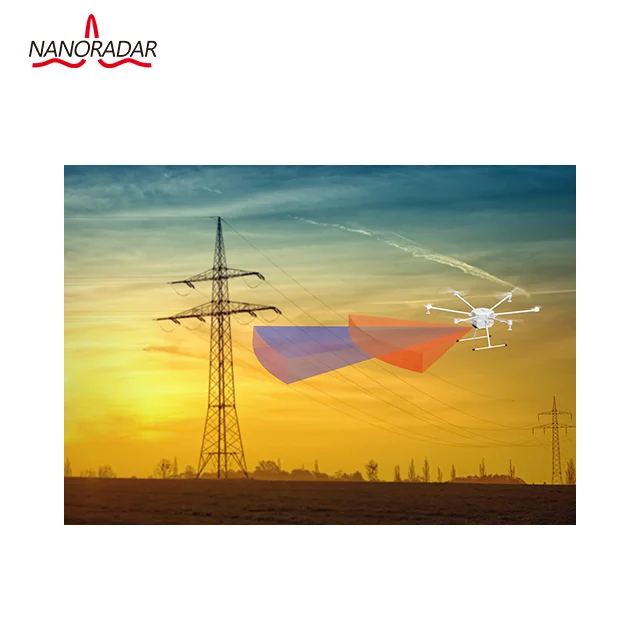

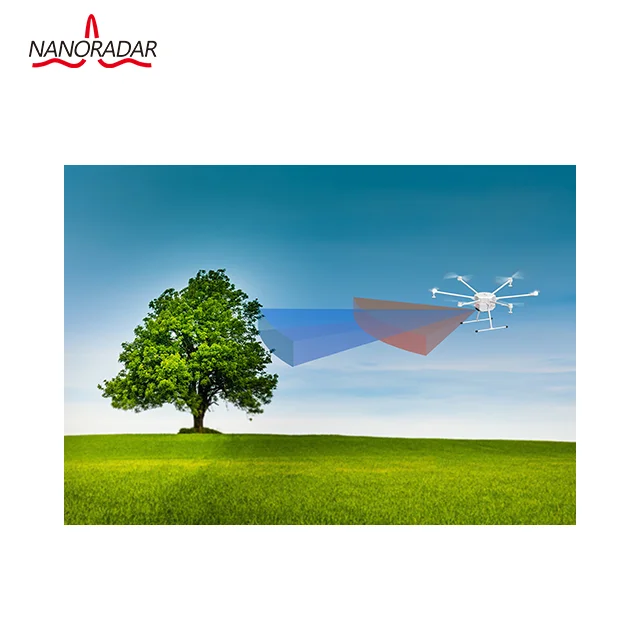

The dual-beam 77GHz millimeter wave radar for UAV collision avoidance. It is suitable in automatic obstacle avoidance for UAV autonomous flight and fixed-point cruise in all-weather, all-time and all-terrain. MR72-UAV support simultaneous output of distance, speed and angle information of up to 50 target. Featured with low-cost, high accuracy, small& light and low power consumption, MR72-UAV is applicable in agriculture, power, industry, small airship and other fields.





Radar features:

*Long detection distance

Up to 90 meters for target RCS 5m2, and 40m for high voltage line;



*High detection accuracy

Compared with 24GHz radar, the range resolution of radar is improved up to three times, and better performance for obstacle recognition ability;



*Dual beams simultaneously working mode

Wide FOV in short-range mode ; long detection distance in mid-range mode;



*The pitch angle of mid-range mode is 15.6°

We reduce ground clutter interference when the UAV tilt attitude;



*Strong anti-interference ability

Not affected by light, weather, environmental, noise, and unmanned aerial vehicle electromagnetic interference;

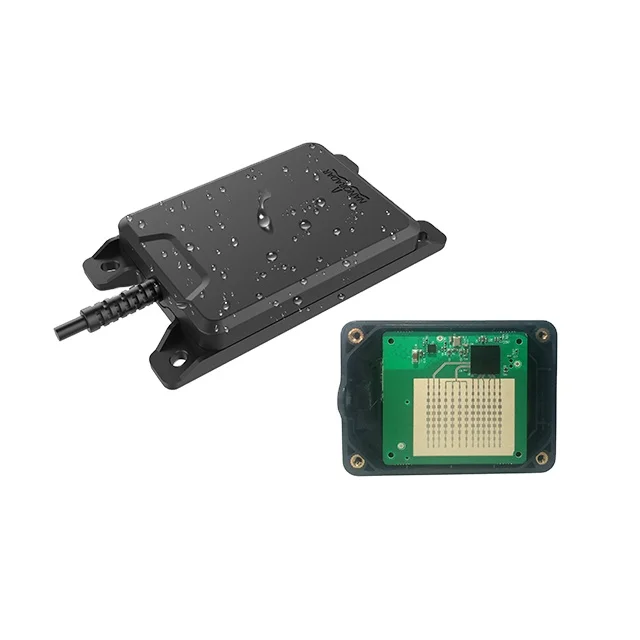

*Compact size

77GHz MMW obstacle avoidance radar is of small size, adaptive to various application;



Specification:



About Nanoradar:

Nanoradar, established in 2012, is specialized in developing, producing and selling millimeter wave radar for security, UAV, automotive, smart traffic and other industrial application. Our products covers 24GHz, 77GHz, 79GHz frequency band. We have successfully developed 10+ models MMW radar products. Nanoradar’s radar detection range covers 30-450 meters. The accuracy is up to 85% for security radar to identify pedestrians. As a leading MMW radar manufacture in China, Nanoradar products also well accepted in overseas market like US, Korea, UK, and France etc.



Nanoradar is providing 24GHz / 77GHz Radar Sensors and Systems.

1. NRA24---24GHz 50~200 meters UAV Altimeter Radar.

2. MR72---77GHz 40-80 meters UAV collision avoidance radar

3. CAR28T / 28F---Vehicle BSD/LCA radar  Heavy-duty vehicle collision avoidance radar.

4. MR76---77GHz 160 meters Automotive ADAS radar ( ACC/AEB)

5. NSR80W/NSR100W/NSR300W---Security perimeter intrusion detection
