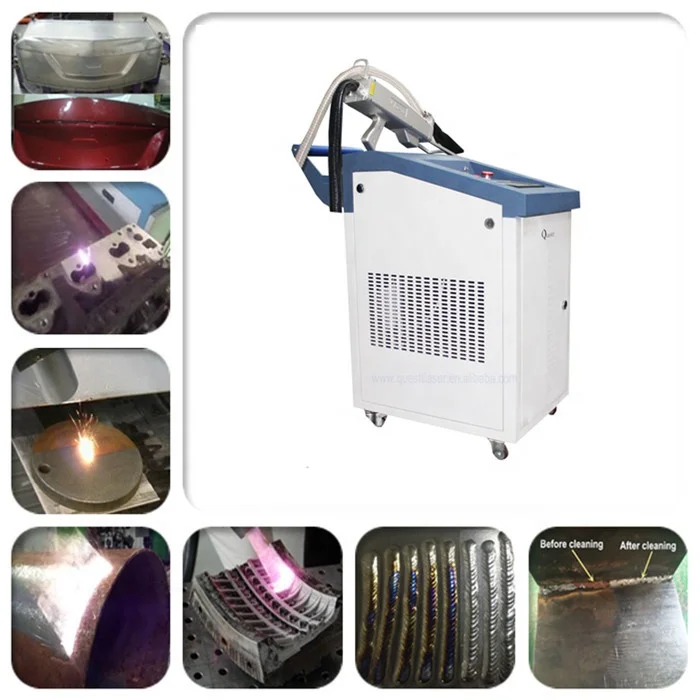

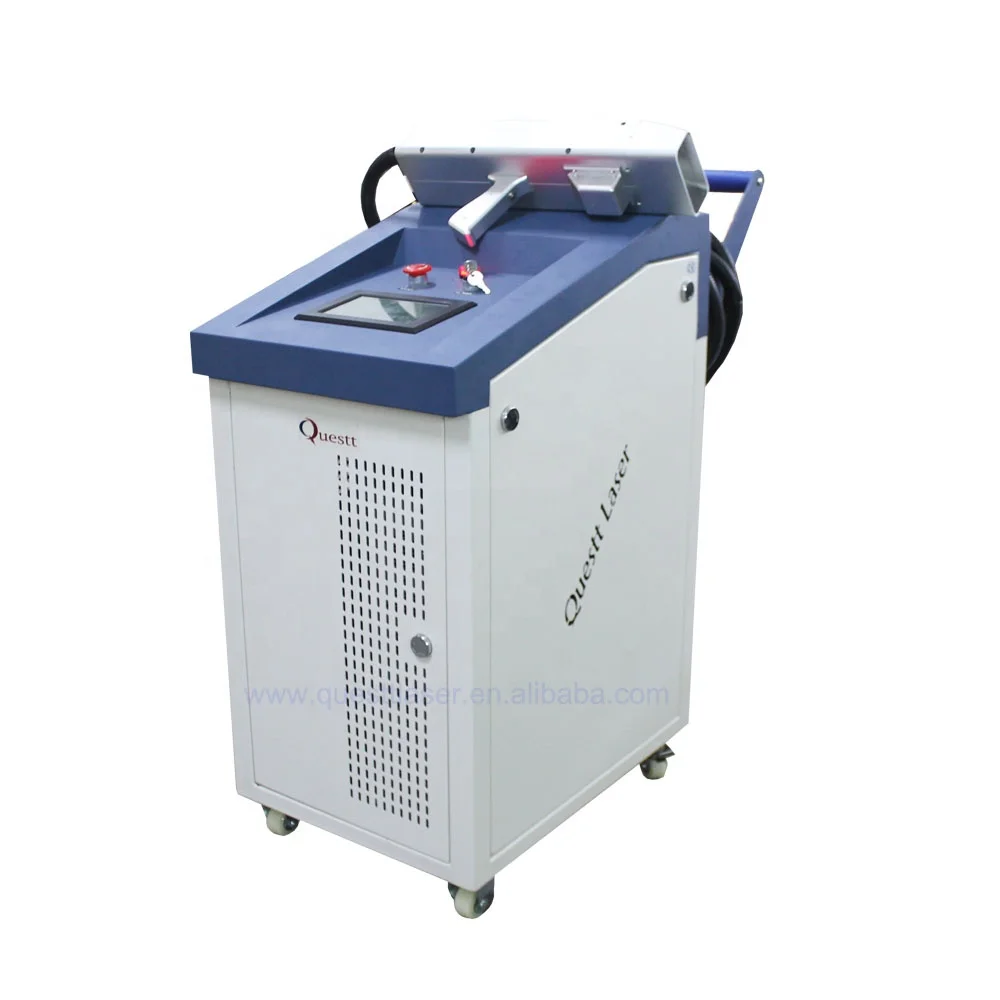

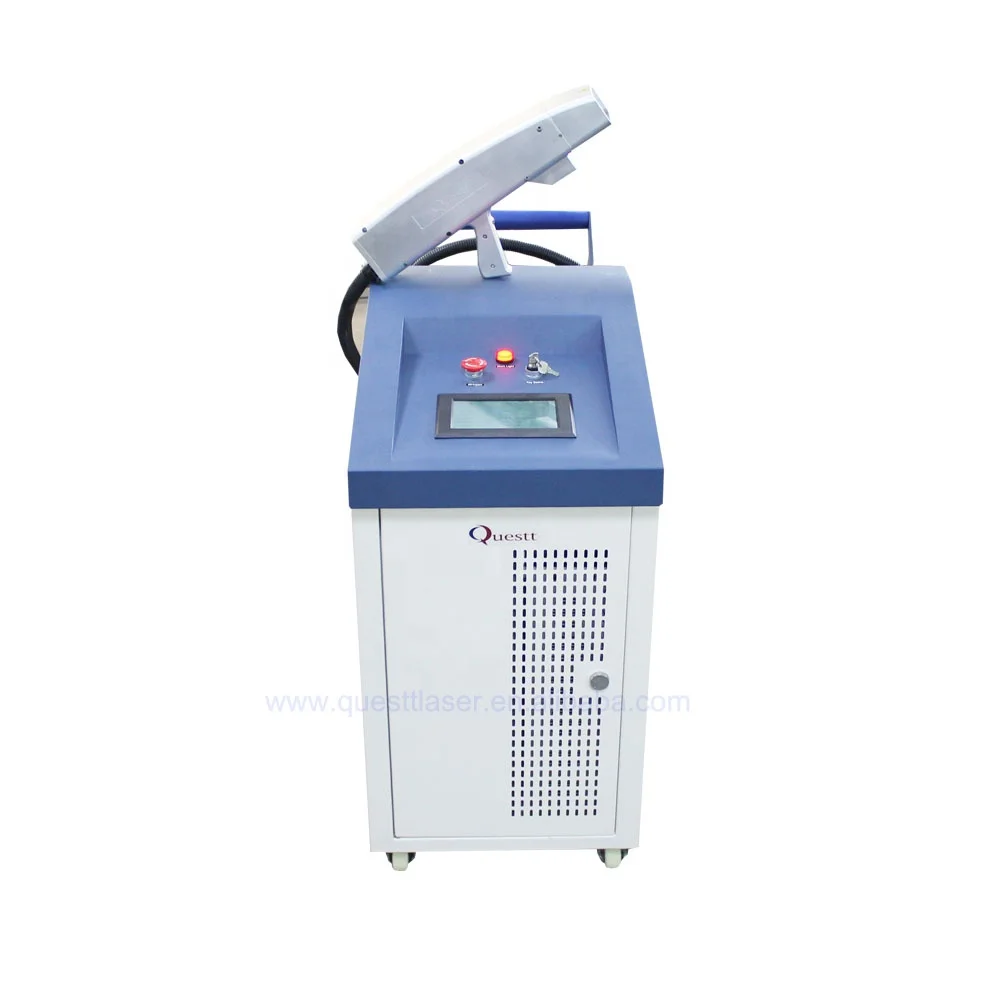

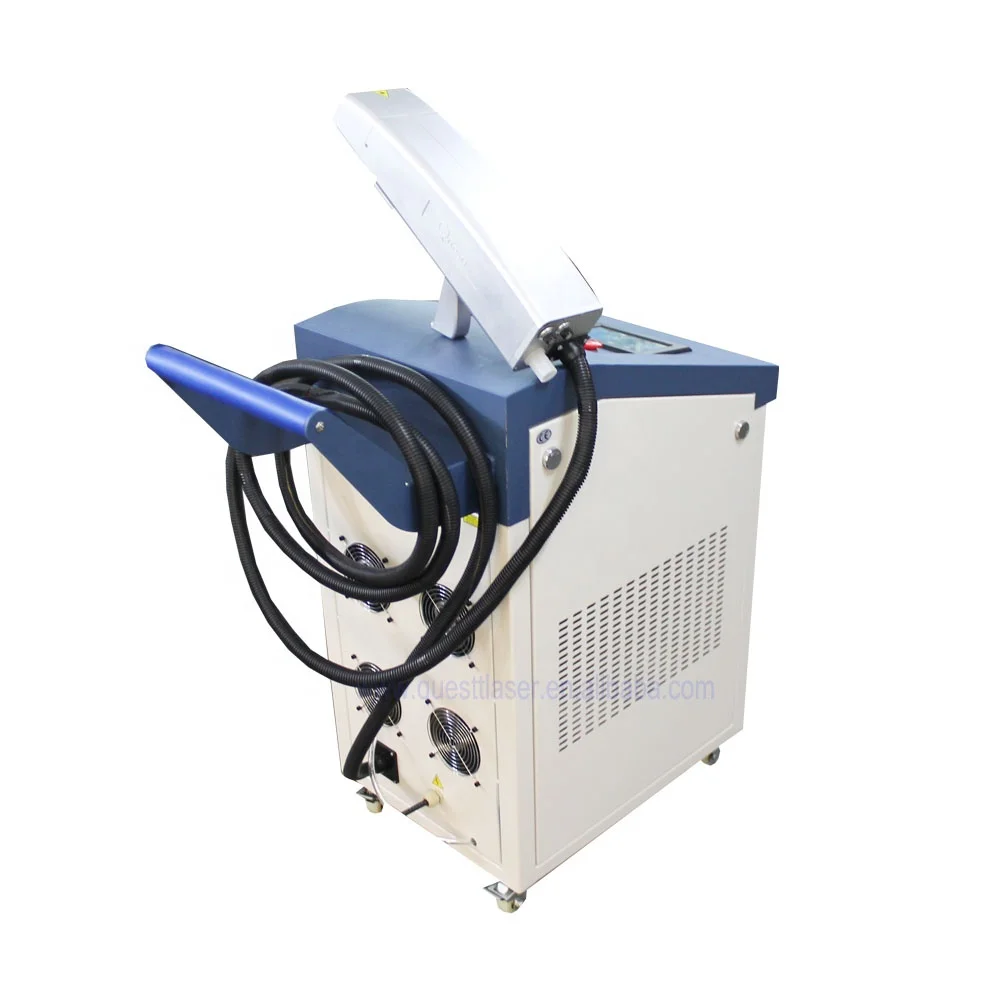

Laser Rust Removal Machine for Cleaning Paint / Graffiti / Coating 1000W 200W Laser rust cleaner



Machine introduction



There is oxidation and corrosion when metals meet oxygen and water vapor in air. It will greatly damage the metal workpiece and the rust will spread from outside to inside and become worse and worse as time goes on, until the whole workpiece is totally corrupted. So rust removal is extremely important. Laser rust removal uses not chemical agents or mechanical polishing, so it is faster and safer.

Laser beam energy is absorbed by the contaminants above the substrate The contaminant heats up so much, a plasma is created around the working area. This will cause evaporation The contaminant is then removed T'he base material stays cold, while the absorbing layer heats up, so there will be no damage to base material Laser cleaning can clean not only organic contaminant, but also inorganic substance, such as metal rust, metal particle.



Features



1. Fast and concentrated pulses  with enormous power impact and gasification of residues on the surface;

2. Laser pulses are very suitable for the removal of organic matter, such as residues in the tire mold fouling;

3. The impact of a short period of time will not cause metal surface heating, no damage to the substrate.

4. Clean or remove the surface paint layer quickly and cleanly;

5. Accurate cleaning and paint removal effect;

6. No damage to the base material;





Specifications:



Model	QA-LC60	QA-LC100	QA-LC200	QA-LC1000
Laser source	Fiber	Fiber	Fiber	Fiber
Laser Power	60W	100W	200W	1000W
Fiber cable L	3 M	3 M	5 M	20M
Pulse Energy	1.5 mJ	1.5 mJ	2 mJ	100 mJ
Wavelength	1060nm	1060nm	1060nm	1060nm
Frequency	1-2000KHz	1-2000KHz	1-3000KHz	2-50KHz
Clean speed	≤5 M²/Hour	≤10 M²/Hour	≤20 M²/Hour	≤50 M²/Hour
Scann speed	0-7000mm/s	0-7000mm/s	0-7000mm/s	0-7000mm/s
Cooling	Air cooling	Air cooling	Air cooling	Water cooling
Dimension	450*350*500	650*350*560	900*600*1100	1100*600*1100
Weight	30Kg	40Kg	120Kg	280Kg
Beam width	10-100mm	10-100mm	10-100mm	10-100mm
Optional	Manual	Manual	Manual	Manual
Temperature	5-40 ℃	5-40 ℃	5-40 ℃	5-40 ℃
Voltage	Single Phase 220V, 50HZ	Single Phase 220V, 50HZ	Single Phase 220V, 50HZ	Single Phase 220V, 50HZ



Comparison with Traditional Clean Methods:



Comparison	Laser Cleaning	Chemical Cleaning	Mechanical Grinding	Dry ice cleaning
Washing Method	non-contact cleaning	contact cleaning	Abrasive contact cleaning	non-contact cleaning
Harm to base material	None	Yes	Yes	None
Washing Efficiency	High	Low	Low	Mid.
Consumable	Power	Chemical Detergent	Abrasive paper, grinder, abrasive stone	Dry Ice
Washing result	Very good, very clear	Medium, uneven	Medium, uneven	Good, uneven
Precision Washing	Accuracy controllable. High precision	Uncontrollable, low precision.	Uncontrollable, medium precision.	Uncontrollable, poor precision.
Safety/Environment	No pollution	Chemical pollution	Dust pollution	No pollution
Operation	Easy to operate, portable or automation optional.	Complicated process, higher technical requirement of the operator. Pollution prevention measures required.	Need more time & manpower. Pollution prevention measures required.	Easy to operate, portable or automatic.
Investment	High investment on machine. But no consumable, low maintenance cost	Low investment on machine. But expensive consumables	Medium investment on machine. High man-power cost.	Medium investment on machine. High consumable cost.





Application

industries: air plane and ship metal surface derusting , paint removal; building surface dirt cleaning; chip surface cleaning of micro electricy Rust, painting coating, oxide coating removal





1.Q:What is the warranty of the lazer rust removal machine?

   A:2 years.

2.Q:Are you a factory or trading company?

   A:Quesstt Laser is a factory for 22 years.Got import and export License.

3.Q:How about the quality?

   A:Technology is from Germany.High quality best price.

4.Q:What is your after-sale service?

   A:If needed,Questt Laser offer door to door service !we can send engineers to your factory for assembling ,adjusting and training!

5.Q:How do i get technical support after purchasing?

   A:Questt Laser offer online service in English through Skype,WhatsAPP,Wechat or Email etc .If need remote operation,we can use TeamViewer software.

 6.Q:How can i get assurance of my Payment?

 A:Alibaba have Trade Assurance,you can pay throught Alibaba first.
