Характеристики
Products Description
Pick to light system is a set of electronic indicating devices installed on the storage position of the shelves. Through the control of computer and software, the light and digital display of the material location and quantity guide the pickers to complete the picking work correctly, quickly and easily.
Macinte electronic tags picking system has been successfully applied to e-commerce, logistics, electronics, daily chemical, medicine, clothing, precision hardware, auto parts packaged food, printing, jewellery, fresh cold chain, chemical environmental protection industries, as far as relate to material picking ,sorting and circulation control, all can be good to solve by electronic tags system, and it also can seamless docking enterprises's ERP, WMS, MES system, improve efficiency, prevent mistakes.
Macinte electronic tags picking system has been successfully applied to e-commerce, logistics, electronics, daily chemical, medicine, clothing, precision hardware, auto parts packaged food, printing, jewellery, fresh cold chain, chemical environmental protection industries, as far as relate to material picking ,sorting and circulation control, all can be good to solve by electronic tags system, and it also can seamless docking enterprises's ERP, WMS, MES system, improve efficiency, prevent mistakes.
Details Images
Low power consumption !
DC-DC power management chip, 9-24V wide voltage, low power consumption design.

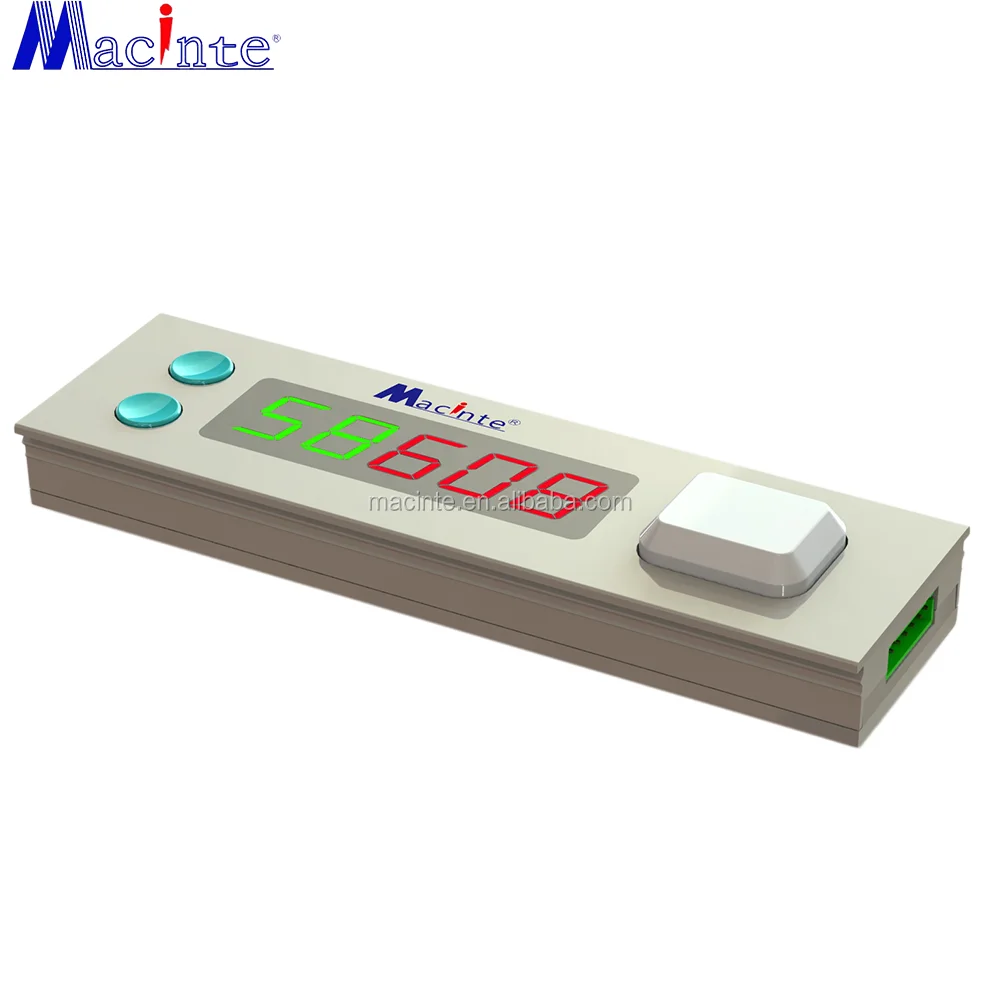

Digital tube display electronic tag JYBQ-L15-A1Voltage: 9-24V
Button life: 20 million times
Rated current: 20mA@24V Communication distance: within 500 meters Standby: 5mA@24v
Mounting size: L-139mm W-41mm H-16mm
Rated current: 20mA@24V Communication distance: within 500 meters Standby: 5mA@24v
Mounting size: L-139mm W-41mm H-16mm
1, two green + three red (digital tube color can be customized).
2. Tag ID can be set by yourself.
3, address and confirm button light quick view.
4, Front two digits display goods position, the last three digits display quantity.
5, data modification function (increase/decrease button)
2. Tag ID can be set by yourself.
3, address and confirm button light quick view.
4, Front two digits display goods position, the last three digits display quantity.
5, data modification function (increase/decrease button)

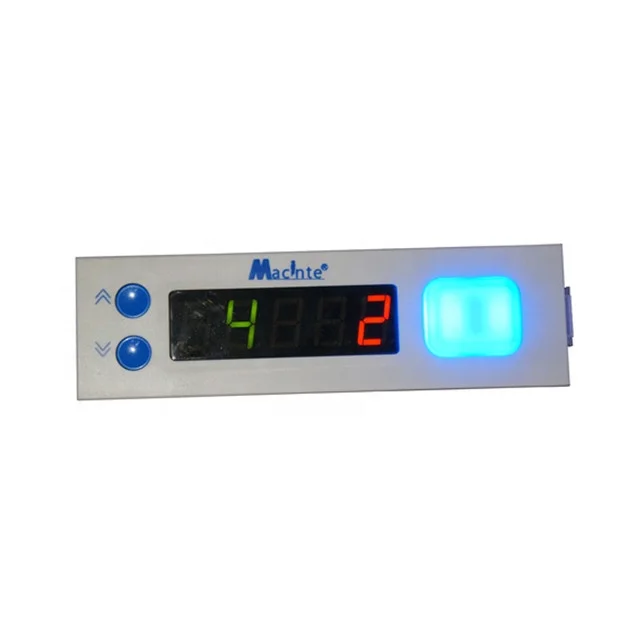

3-Digital tube display electronic tag JYPL-L3-1
Voltage: 24V
Button life: 20 million times
Rated current: 20mA@24V Communication
distance: within 500 meters
Standby: 5mA@24v Mounting
size: L-139mm W-41mm H-16mm
1, three blue (digital tube color can be customized).
2. Tag ID can be set by yourself.
3, address and confirm button
light quick view.
4.data modification
function (increase/decrease button)
Voltage: 24V
Button life: 20 million times
Rated current: 20mA@24V Communication
distance: within 500 meters
Standby: 5mA@24v Mounting
size: L-139mm W-41mm H-16mm
1, three blue (digital tube color can be customized).
2. Tag ID can be set by yourself.
3, address and confirm button
light quick view.
4.data modification
function (increase/decrease button)
1. Data source: The existing WMS system, ERP, MIS, etc. or manually inputting the information
2. Control PC: Using to download the order from WMS and send the outbound information to CAN bus module through network switch.
3, Network switch: From one interface to multiple interfaces, also known as the bridge.
4. CAN BUS: control the work of signal lamp and electronic tags of captioning machine, and transmit the completed job information back to PC. Achieve two-way communication.
5. Alarm light: used in the working area to prompt the task to be done in the area.
6, multi-function label: can be connected to the alarm light and scanning gun.
7, electronic label: used to display the goods location, quantity and send out indicating information.
2. Control PC: Using to download the order from WMS and send the outbound information to CAN bus module through network switch.
3, Network switch: From one interface to multiple interfaces, also known as the bridge.
4. CAN BUS: control the work of signal lamp and electronic tags of captioning machine, and transmit the completed job information back to PC. Achieve two-way communication.
5. Alarm light: used in the working area to prompt the task to be done in the area.
6, multi-function label: can be connected to the alarm light and scanning gun.
7, electronic label: used to display the goods location, quantity and send out indicating information.
As an advanced operation method, the whole system can be used in conjunction with WMS or other logistics and warehouse management systems. According to the operation mode, it can be divided into DPS(Digital Picking System) and DAS(Digital Assortative System).
Convenient control Fast transmission Reliable storage of data
High reliable industrial CAN bus is used between labels and area controller to ensure data error-free code transmission.
CAN BUS Controller & New Intelligent type BUS Controller
Working mode: UDP, TCP/Server, TCP/Client
Working voltage: 9-24V (wide voltage support)
Working temperature: -35~70°C
Free configuration software is provided, and Web parameter configuration is supported
Ethernet properties
Use standard Ethernet interface, RJ45, support 10/100M self-adaption.
Support heartbeat package, registration package, short connection, KeepAlive, clear cache and timeout restart function.
Support Modbus TCP to RTU function.
Support Web page settings.
Working port, target IP and target port can be set.
Support two SOCKETT operations at the same time, four SOCKETT operations (TCP Server, TCP Client UDP Server, UDP Client)
1 | Electronic labels for five digits | JYBQ-L15-A1 | DC9-24V wide voltage low power 7-color highlight LED confirmation key |
2 | Multi-functional electronic labels | JYBQ-D-U1-Q2 | USB scanner can be connected, tower light music playback and area control can be connected |

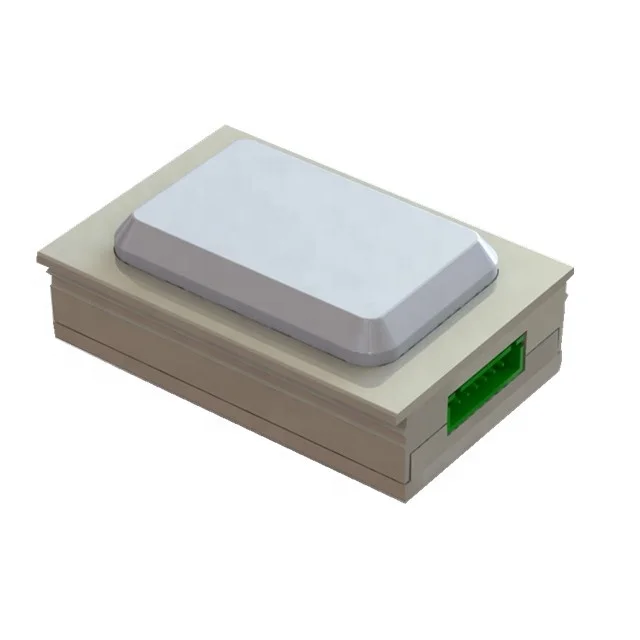

3 | Single-light electronic label | JYBQ-L00-A1 | No digital tube, one 7-color highlight LED light, 1 confirmation key |
4 | Dual-light electronic label | JYBQ-L00-A2 | No digital tube, two 7-color highlight LED light, two confirmation key |

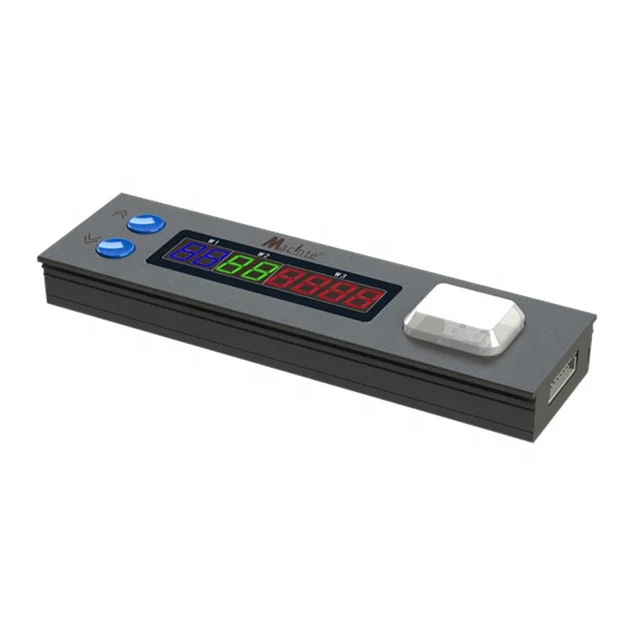

5 | Two rows of small LED labels | JYBQ-L28-A1 | Small size, 2 rows of a total of 8 digital tubes, a highlight 7 color confirmation key |
6 | LCD in English and Chinese labels | JYBQ-Y1NZ-A1 | A single LCD screen, 0-50 ℃ at usual temperature highlights, Chinese and English and other country language information. |
7 | Single-screen OLED label | JYBQ-O1NZ-A1 | A single screen, in harsh environments, can be high-definition display of Chinese and English and other country language information. |
Installation Instructions
CAN BUS type white color
New Intelligent BUS type black color （much more easy installation)
