2021 Автомобильная распылительная камера с ИК-подогревом


Поделиться:


Цена:5 900,00 $ - 6 100,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 7021.70 $* 7372.19 $*
Aug-20-2025 6962.78 $* 7310.25 $*
Jul-20-2025 5841.80 $* 6133.86 $*
Jun-20-2025 6844.33 $* 7186.16 $*
May-20-2025 5959.68 $* 6257.13 $*
Apr-20-2025 6726.82 $* 7062.95 $*
Mar-20-2025 6667.48 $* 7000.66 $*
Feb-20-2025 6608.15 $* 6938.57 $*
Jan-20-2025 6549.57 $* 6876.42 $*

Характеристики


2021 Customized Voltage Car Paint Spray Booth with IR heating



 1-Specification











































































































Detailed specification



Cabin System



Wall Panel and roof



EPS colorful steel skin panel, 50mm thick, steel 0.426mm thick, tongue&groove style, compound construction, anti-flame and heat-insulation, galvanized steel roof panel.

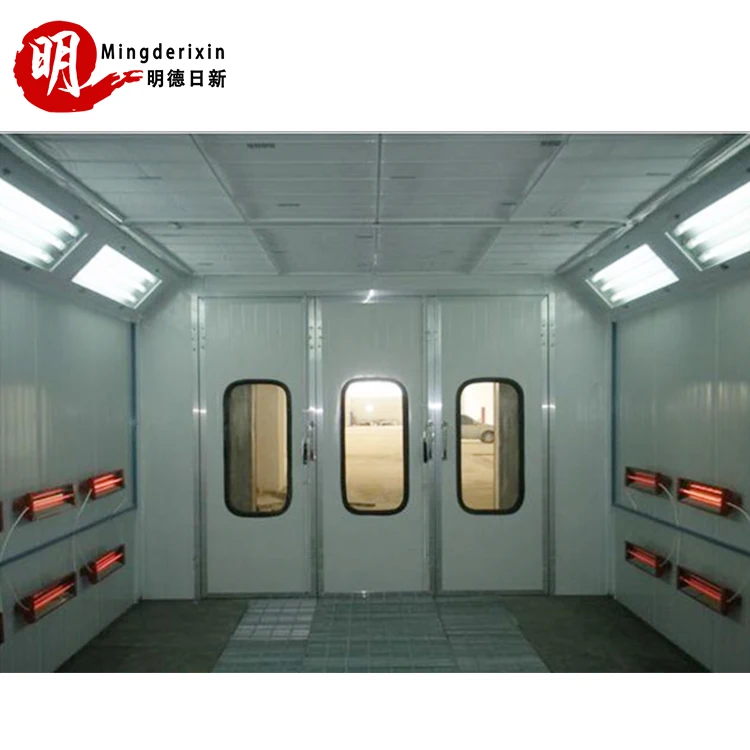

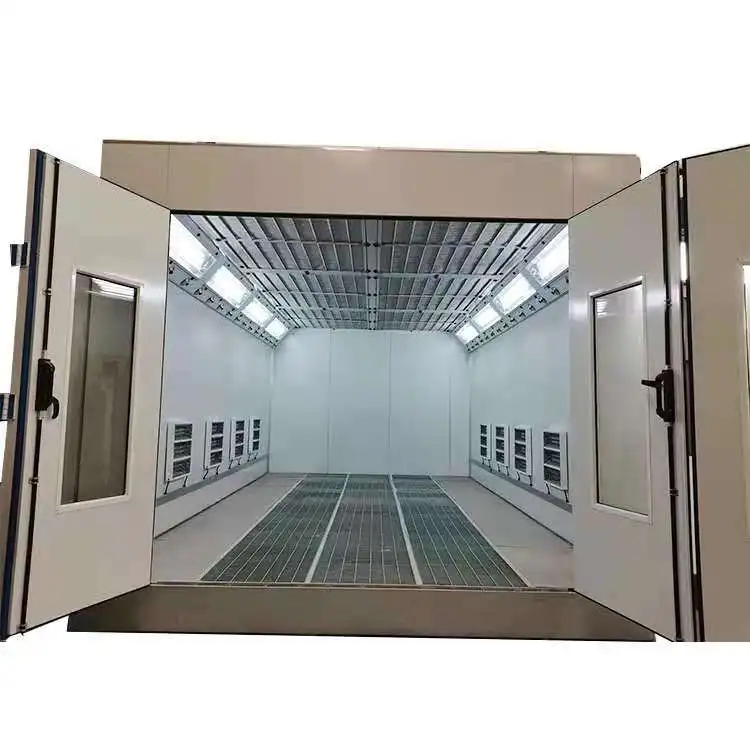

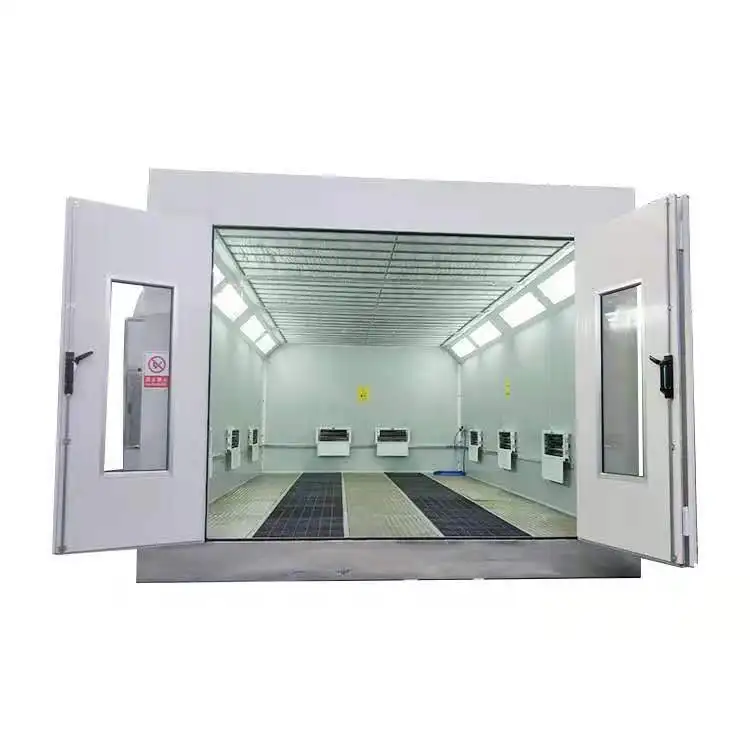

Entry door



Folding metal sheet door, 3pcs, size: 3000(W)*2700(H), rectangle window tempered glass, 5mm thick.



Personnel door



Size: 700(W)*2000(H),alloy aluminum door ,1 set, rectangle window tempered glass, 5mm thick, with pressure lock



Basement






The basement made by high quality galvanized 1.2mm steel sheet and square tubes assembling,300mm height ,;


2 rows of grilles (30*3mm) made by flat bar and round steel, 30*4mm;


3 rows of diamond plates, Galvanized.

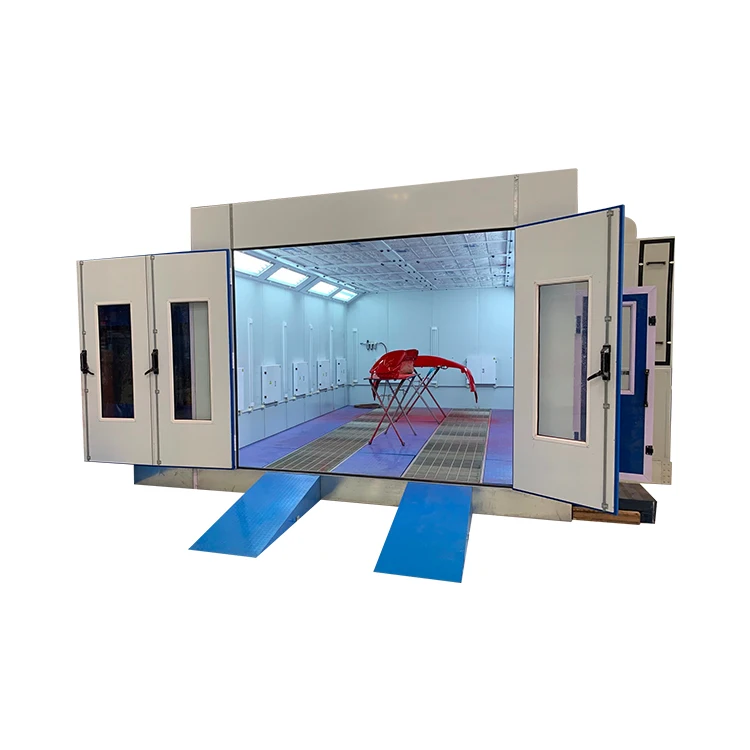

2 rows of slopes ,1 set of foot platform












Air Circulation System






Intake fan



2 sets of YDW-4kW double-intake centrifugal fan, air Capacity 26000m3/h in total.(Low noise)



Exhaust fan



1 set of  YDW-5.5kW exhaust fan, air capacity 15500m3/h in total.(Low noise)



Fan cabinet



Fan cabinet made by painted sections and powder-coated steel plate; the exhaust duct made by high-quality galvanized steel, and professional flange.



Air exhausted  pipe



1.5mter length ,1 set of 90 degree elbow, can be adjusted by customers



Roof System



Beam



Made by 40*40 galvanized square pipe, with supporting; and also 40*40mm angle iron, connected by screw.



Plenum



The plenum made by 0.8mm galvanized steel, powder-coated on the surface. The roof filter support frame made by 25*25 and 15*15 galvanized square tubes, powder-coated on the surface.



Purification System



Intake filter



Intake filter is high quality imported filter, could capture the articles larger than 10μm (15mm thickness)


Purpose: Filter the larger dust in the air



Roof filter



High efficiency imported Italy filters, could capture the articles larger than 4μm. (22 mm thickness)


Purpose:The most important filter cotton, filter the smaller dust and make air spread uniformly.



Floor filter



The floor filter is fiberglass filter, TSP≤14mg/m3


Purpose: Filter the redundant painting in the air









Activated


carbon



Structure: activated drawer plate. Resistant hot ,acid,alkali


Purpose :It can absorb the bad smell ,harmful substances , protecting the environment.



Heating System


(Electricity)

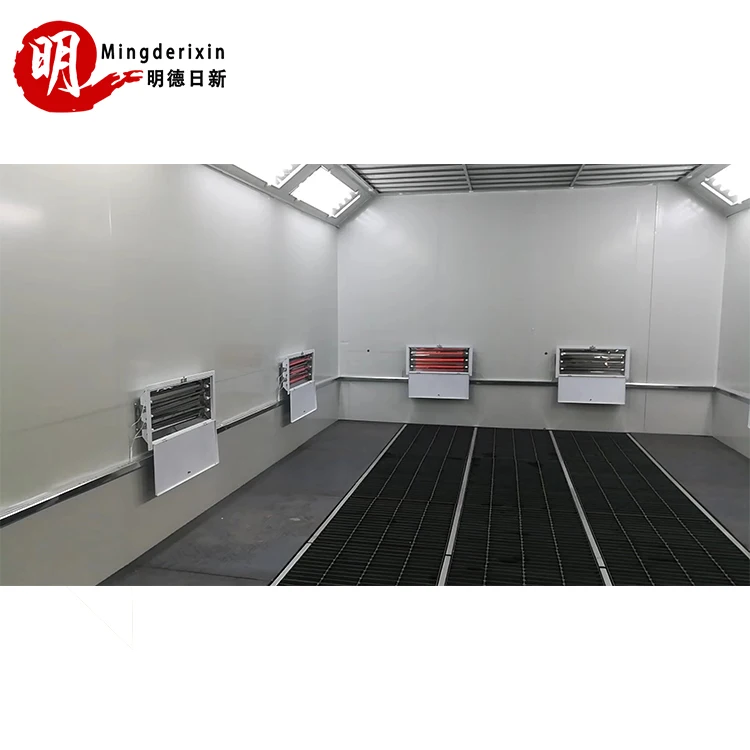

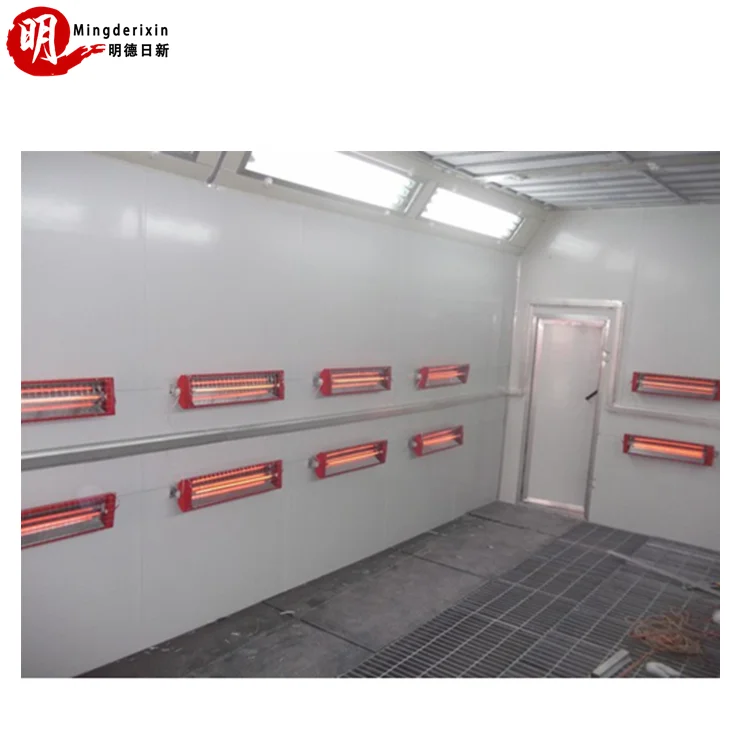

Infrared


heating pipe






1.8 rows of lamps:1 set of shade+3 rows of tubes+1 set od brackets, carbon fiber far infrared heating tube.


Total power:24kw


2.Shade with stainless steel mirror reflector,shade shell full use of important high temperature insulation materials


3.Electro-thermal conversion rate of more than 95%



Pneumatic damper



1 set of Pneumatic-damper for changing spraying and baking automatically.



Parameter



Highest temperature: 80℃.


Temperature rising time: 18-30minutes(20℃-80℃).



Lights



Roof lights



1.8*3 pcs,21w each ,LED explosion proof with electronic ballasts ,powder-coated light box.


2.Using Philips lighting tube and electronic ballasts, lampshade with mirror stainless steel reflection, 45 ° angle installation, effectively ensure that no ghosting and operating blind spot.


3.Light box with 0.45mm color steel plate and aluminum frame, equipped with glass cover.



Side lights



6Units×3Pcs=18Pcs×21W, with electronic ballasts, vertically set, power-coated light box.



Control System



Export type. Microcomputer controlling system, which can program all the functions in each phase of every cycle work. Including adjusting the parameters of the time, temperature, and main circuit has multi-protection, to control the light, time, spraying, temperature, baking, failure indicator, and emergency stop and so on. Reasonable structure and stable performance.


















2-Other Models


































No.



Model



Name



1



MD-CBD



Diesel Heater



2



MD-CBG



Gas Heater



3



MD-CBE



IR Heater



4



MD-CBS



Semi-down draft



Choose your favorite one according to your requirement
