Зарядное устройство для свинцово-кислотных аккумуляторов 48 В 10


Поделиться:


Цена:59,80 $ - 85,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-19-2025 75.75 $* 77.28 $*
Jul-19-2025 61.57 $* 62.5 $*
Jun-19-2025 74.72 $* 75.52 $*
May-19-2025 73.72 $* 74.84 $*
Apr-19-2025 58.78 $* 59.50 $*
Mar-19-2025 72.49 $* 73.23 $*
Feb-19-2025 71.38 $* 72.24 $*
Jan-19-2025 71.56 $* 72.28 $*

Характеристики



Details Images


48V 10A Battery Charger

1). for 48V  Li-ion LifePO4 Battery Packs


2). for Electric Car, Wheelchair, Sightseeing Car, E-bike, Electric Golf Cart, E-Motocycle, E-Patrol Car, E-forklift, E-boat, E-Cleaner, E-sooter, E-torist Coach, Robot and more



Product Paramenters

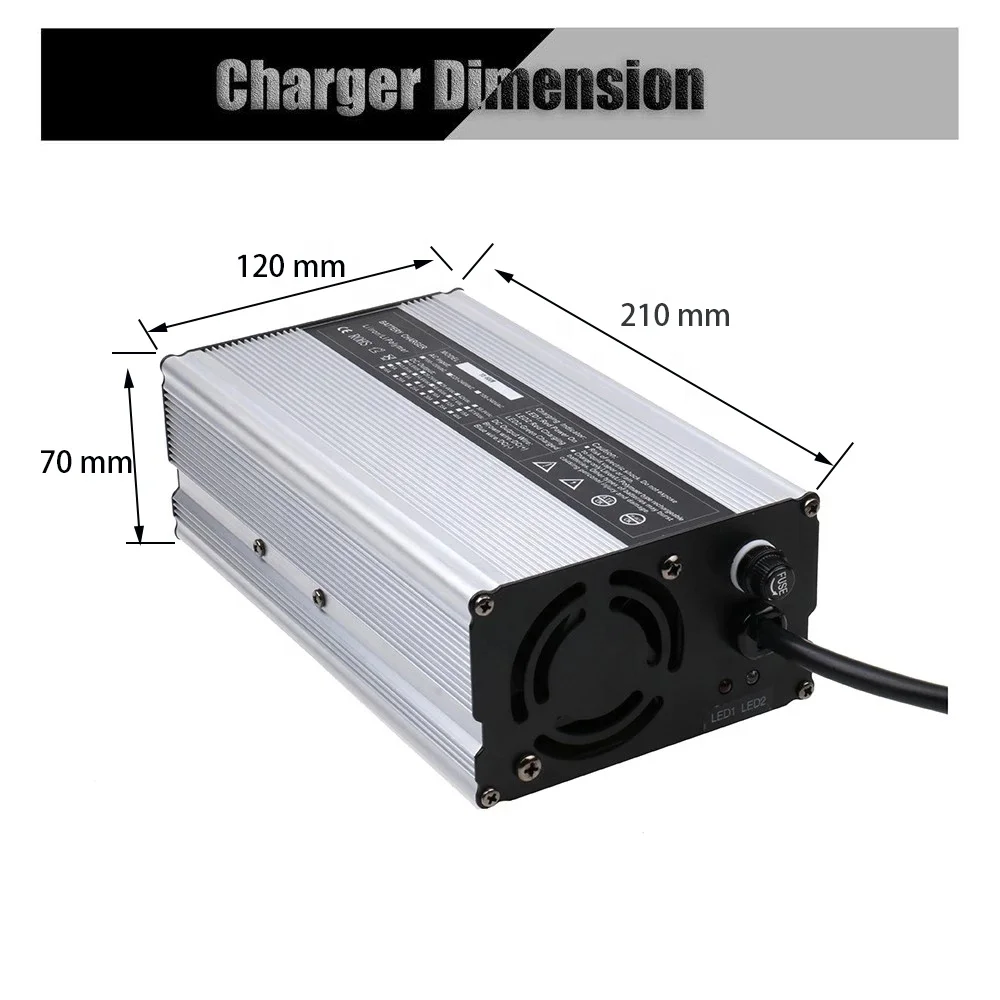

Mechanical Drawing:

DimensionL210xW120xH70mm

Net weight: 2.5kg

Color: Silver,Black,

Case material: Aluminium Alloy



Charging Curve

1). Intelligent cooling fun, controlled by temperatureQuasi-resonant pulse width modulation(PWM),full automatic transition of CC,CV and Float/Cut-off, meet the demands for different Curve.


2). Aluminum case, Robust, Elegant and Reliable.



600W Electric Vehicle Battery Charger
Series Units: 12V / 24V / 36V / 48V / 60V / 72V / 144V @ 25A max. 600W Power


No.

Output

Constant Voltage (CV)

Constant Current (CC)

Transition / Cut-off Current

Lead Acid

Li-ion

LiFePO4

Lead Acid (A)

Li(A)

1

12V

14.7V

16.8V

14.6V

25

5

2.5

2

24V

29.4V

29.4V

29.2V

18

3.6

1.8

3

36V

44.1V

42.0V

43.8V

12

2.4

1.2

4

48V

58.8V

54.6V

58.4V

10

2

1

5

60V

73.5V

67.2V

73.0V

 8

 1.6

0.8

6

72V

88.2V

84.0V

87.6V

6

0.8

0.2

7

144V

176.4V

176.4V

175.2V

 3

 0.6

 0.3




General Spec:
Compatible Batteries: Lead Acid, Li-ion, Lifepo4,  Lithium Titanate , Ni-mh Titanate



Compatible Battery

Lead Acid/LiFePo4/Li-ion/Li-MnO2

Input

100 to 240 VAC 50/60Hz

Output

54.5V 10A for Li-ion battery 58.4V 10A for LifePO4

Charge voltage
(Lead Acid)

58.8V
(Lead acid battery voltage is 48V)

Float Voltage
(Lead acid)

57V

LiFePo4/3.65V Charge voltage
(S:connect in series)

58.4V
LiFePO4 battery voltage is 3.65V
CC mode

Lithium ion/4.2V
Charge voltage
(S:connect in series)

54.6V
Li-ion battery voltage is 4.2V <0.6A

LED Indicator

Solid Red LED = Charging (0-99%)
Solid Green LED = Fully charged (100%)

Dimension(LxWxH)

L210xW120xH70mm

Weight

2.5Kg

Charging Mode

CC/CV, Float/cut-off

Certification

UL/cUL / ETL / CE / FCC / RoHS, EN61558 / ETL1310 Approval Standard. Recognized or tested by TUV lab, for more information, please contact us.

Charging Time

Cut-off point for Li battery is 8% of CC and it can be set between 3-10%.(charging time:4-5 hours)

Transition for Lead acid charger is 25% of CC.(charging time:6-8 hours)

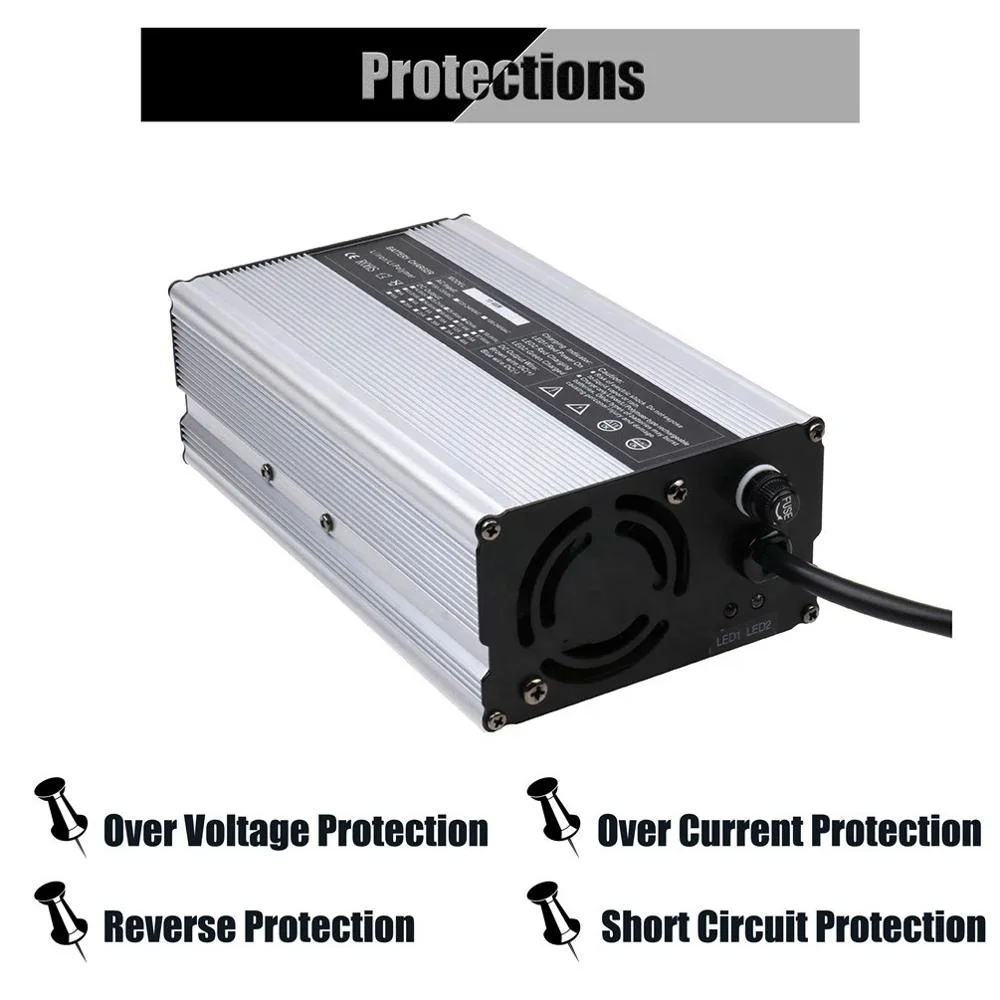

Protection

Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge.

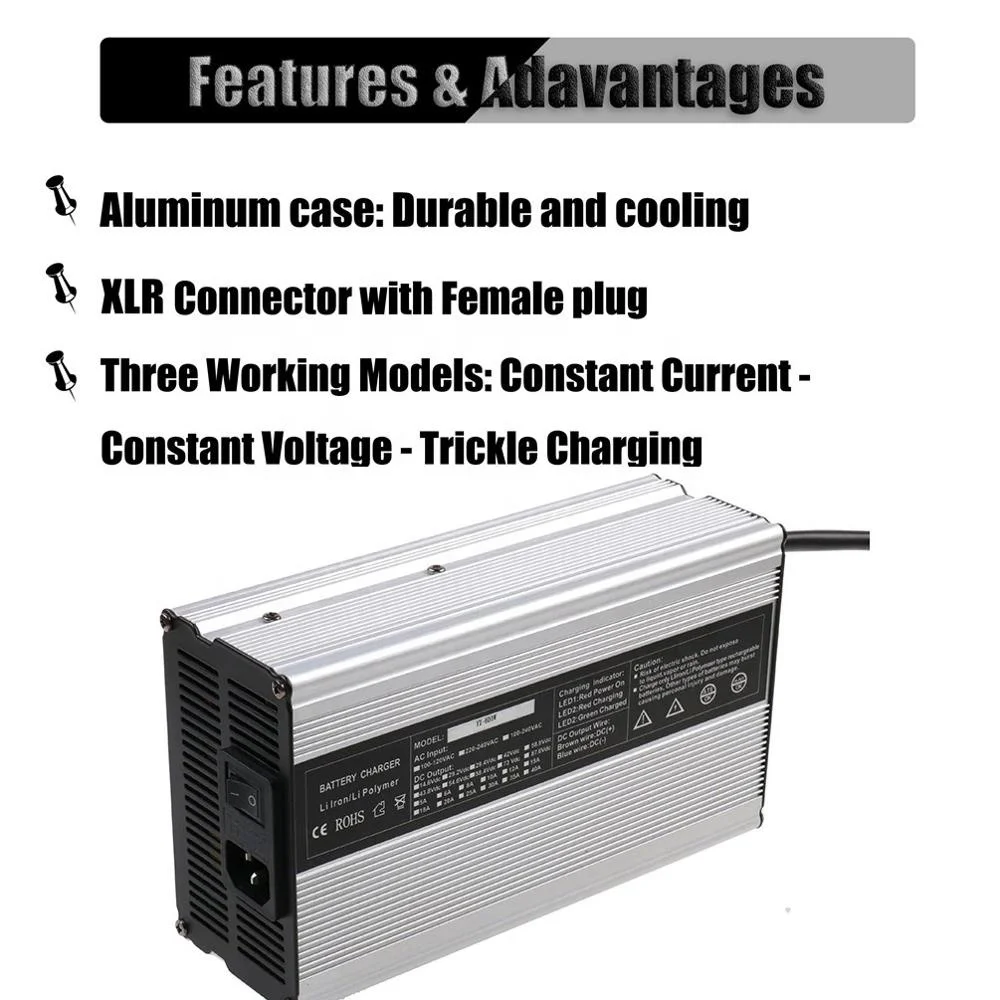

Advantage

1). Intelligent cooling fun, controlled by temperatureQuasi-resonant pulse width modulation(PWM),full automatic transition of CC,CV and Float/Cut-off, meet the demands for different Curve.
2). Aluminum case, Robust, Elegant and Reliable.




Perfert Protection and Safety:

  • Protection: Over current protection, Over voltage protection, Short Circuit Protection, Reverse Connection Protection
  • Safety: ETL, CE, RoHS
  • Approval standard: EN60335 EN55014 EN61000




Why choose this

(1) Famous Original Components & Stable Circuit Board


(2) 40 x 0.15mm 100% Copper Power Cord


(3) Low fever & No Noise at Full Wattage Working


(4) Overload Cut-off Automatically (Avoid Fire)


(5) Short Circuit Protection



Products application


Wide Application:



        Electric Car, Sightseeing Car, Electric wheelchair, E-bike, Electric Golf Cart, E-Motocycle, E-Patrol Car, E-forklift, E-boat, E-Cleaner, E-sooter, E-torist Coach, Robot, DC Power Supply, Smart&Intelligent Home, and more





Perfect and Universal Complibility:

(1) Robot, Sweep Cleaner, Water Purifier, humidifier, Atomizer Sweeper,Printer


(2) Speaker system, Soundbar, POE injectors, CCTV Camera, LCD MonitorLED light


(3) lamps, radios, motor-driven tools and appliances, geyser, water pumps, toys, barbecue machines





Product packaging




FAQ


1. The LED turns off while charging.
-This charger has a build-in thermal protection function. Battery charging is shut off when the temperature of charger increases beyond set limit, and LED turns off (no color). Once the charger temperature drops to acceptable limit, the charging process is resumed and the LED turns on (Green/Red color).
2. LED color changes to Yellow
-This indicates that battery is not being charged correctly. Remove the battery pack from Charger and re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
3. Battery is inserted in the charger, but the LED does not change to RED.
-This indicates that battery is not being charged correctly. Remove the battery from charger and re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
4. LED changes to Green, but the capacity is too low.
-This indicates that battery is not being charged correctly. Remove the battery from charger, clean the contacts with a soft clean cloth, re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
