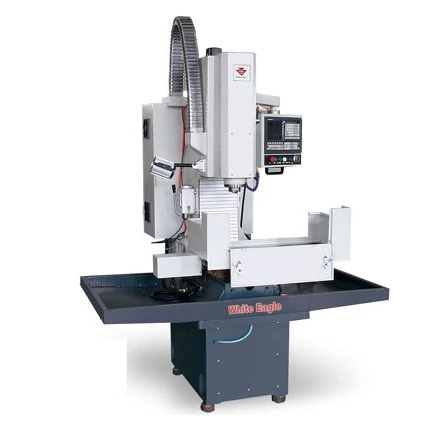

Маленький размер вертикальный мини-фрезерный станок с ЧПУ сертификатом
- Категория: Фрезерные станки с ЧПУ >>>
- Поставщик: Anhui,Chizhou,Household,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 8092.95 $* | 8497.10 $* |
| Aug-18-2025 | 8024.79 $* | 8425.23 $* |
| Jul-18-2025 | 6732.79 $* | 7069.53 $* |
| Jun-18-2025 | 7888.29 $* | 8282.25 $* |
| May-18-2025 | 6868.64 $* | 7211.46 $* |
| Apr-18-2025 | 7752.59 $* | 8140.75 $* |
| Mar-18-2025 | 7684.54 $* | 8068.42 $* |
| Feb-18-2025 | 7616.29 $* | 7997.36 $* |
| Jan-18-2025 | 7548.97 $* | 7925.60 $* |
Характеристики
Product Description
High quality CNC drilling and milling machine
1.Four pieces simple tool magazine on worktable with high effciency.It can realize all the processing as facing,drilling and taping in one claming.
2.High and low step speeds available and stronger torque for low step speed.
3.Three axis transmission by precision ball lead screw with servo motor.
4.Wo style of tool change available,manually and preumatically.
5.Various famous CNC controllers supplied with more choice.
6.Machine stand and machine body are designed separately for easy and flexible installment by user.
Technical Data | ||||
Item | Model | XK712A | ||
Worktable | Size of worktable(L×W)(mm) | 800×240 | ||
900×240 Optional | ||||
T slot(width ×qty×spaces)(mm) | 16×3×60 | |||
Max loading weight on worktable(kg) | 60 | |||
TRAVEL | X/Y/Z-Axis travel(mm) | 430×280×400 | ||
530*280*400 | 530×280×400 | |||
Distance between spindle nose and table(mm) | 60-460 | |||
Distance between spindle center and column(mm) | 297 | |||
Spindle | Spindle speed(r/min) | 100-4000 | ||
Spindle taper | BT30 | |||
Tool clamping way | Manual/Pneumatic | |||
ATC capacity(optional) | no | |||
Feeding | Feeding speed(mm/min) | 100~900 | ||
Rapid feeding speed:X,Y,Z axis(m/min) | 6 | |||
ACCURACY | Positioning accuracy(mm) | 0.04 | ||
Repeatability accuracy(mm) | 0.02 | |||
Min.set unit(mm) | 0.001 | |||
MOTOR | Main motor power (kw) | 1.5(A/C motor) | ||
Feeding motor power:X/Y/Z Axis(kw) | 1/1/1 | |||
TOOLS | Max.size of tool(mm) | Φ60×175 | ||
Max.loading weight of Tool(kg) | 3.5 | |||
OTHERS | N.W(include machine stand)(kg) | 900 | ||
Overall size(L×W×H)(mm) | 1640×1205×1950(2050) | |||
Packing size(L×W×H)(mm) | 1900×1620×2480(2580) | |||
Loading amount(20") | 3sets | |||

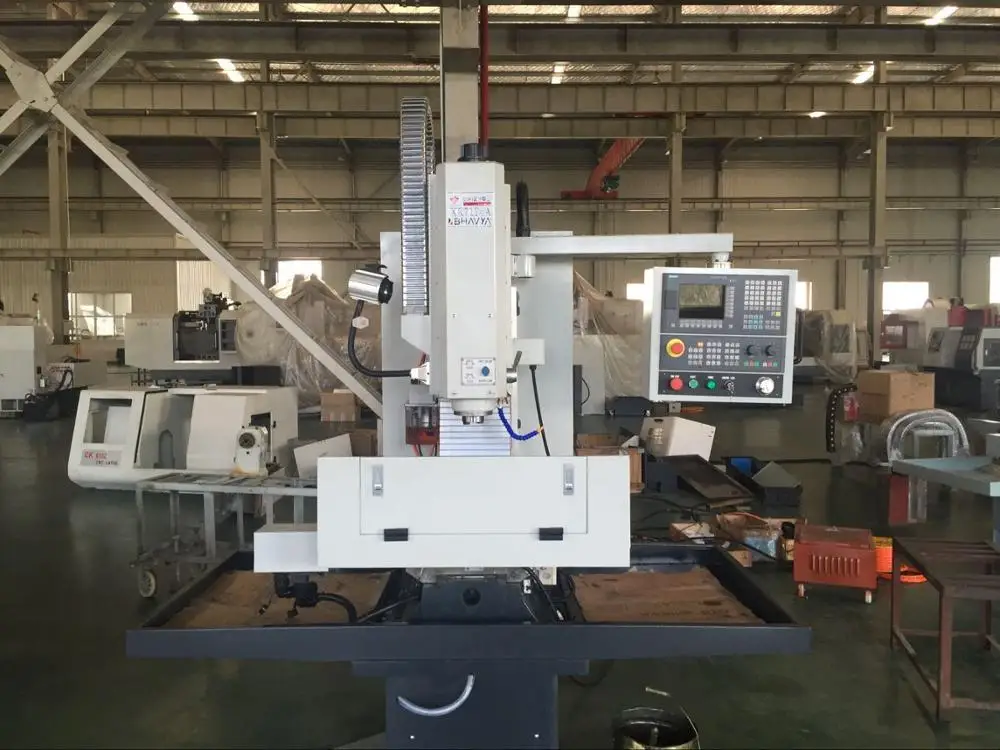

Detailed Images
Machine Parts
Name: Moving handle wheel
Brand: GSK,SIEMENS,FANUC
Original: China,Germany,Japan
It helps you to move the X/Y/Z axis easily and fast.You also can take the moving hadle wheel far away the machine to keep you safe.
Main parts

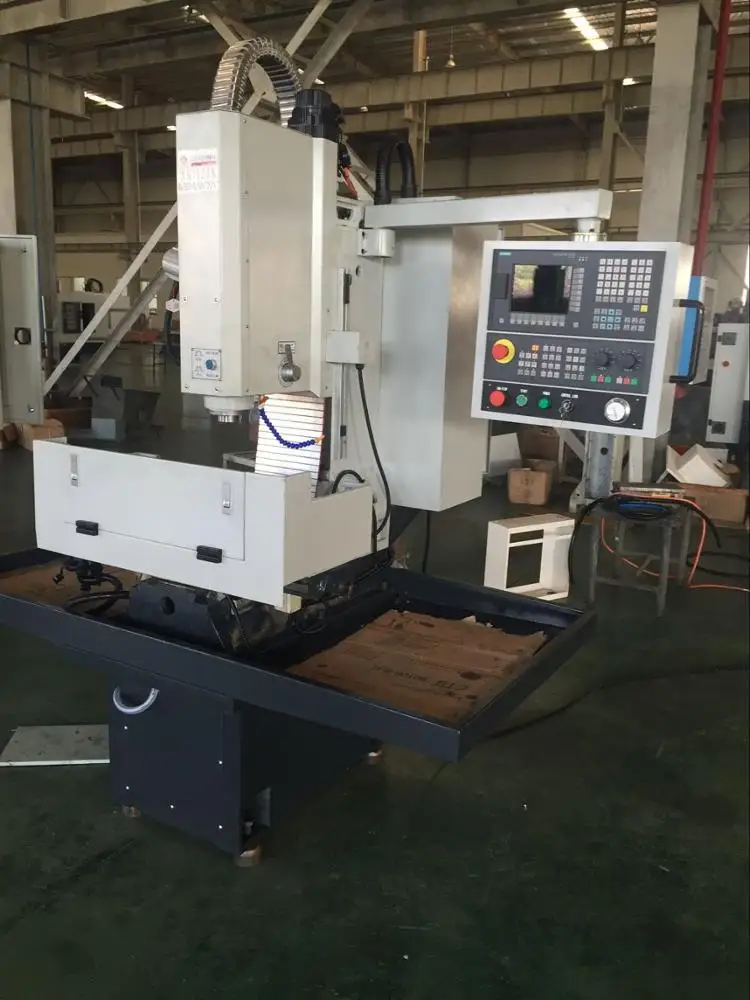

Name:Controlling system
Brand: GSK,SIEMENS,FANUC
Original: China,Germany,Japan
There are also other controlling system as option.
Always one item suit you well.
Machine Parts
Name: Spindle,worktable, lamp
Spindle speed(r/min): 100-4000
Spindle taper: BT30
Tool clamping way: Manual/Pneumatic
Worktable size:800*240mm
Main parts
Name: Simple tool magazine
Four pieces simple tool magazine on worktable with high effciency.It can realize all the processing as facing,drilling and taping in one claming.
Packing & Delivery
Packaging | ||
Size | 1900(L) * 1620W) * 2480 (D) | |
Weight | 1.0T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Certifications
Our Workshop
We In Fairs
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
